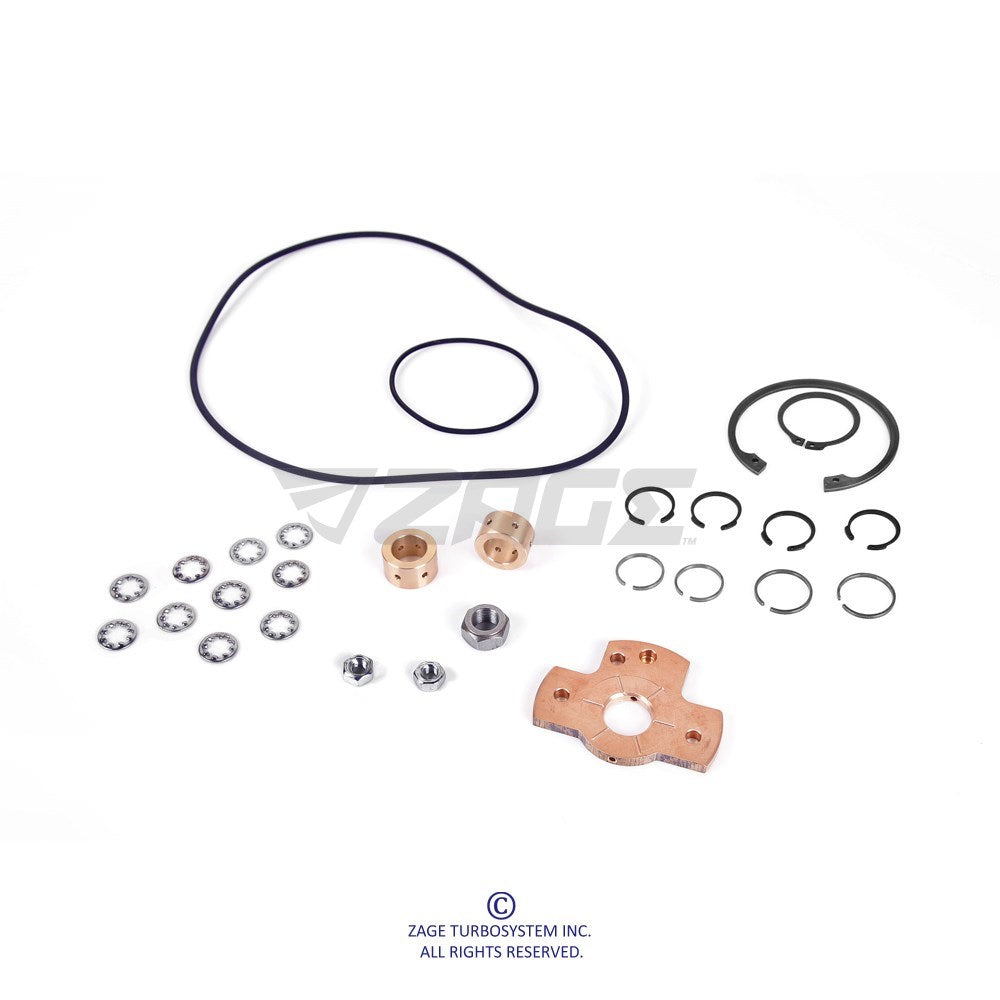

Rebuild Kit for Holset HX60 Turbo
Part Number : 1GRBK-ZHS6-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4CSR-I-022-0100 | Snap Ring (J-Brg) | 4 |
| 4CSR-I-068-0100 | Snap Ring (Insert) | 1 |
| 4CSR-O-041-0100 | Snap Ring(Heat Shield) | 1 |
| 4NUT-M06100N-0100 | Nut | 2 |
| 4NUT-M11100R-0100 | Shaft Nut | 1 |
| 4ORN-06426-0100 | O-Ring (Insert/64.7mm)4LE | 1 |
| 4ORN-19035-0100 | O-ring (190.1mm) | 1 |
| 4RKP-JB-HS-0300 | Journal Bearing22.15/14.3/12.7 | 2 |
| 4RKP-PR-190-0100 | Piston Ring (Comp)Φ19.05 T1.6 | 2 |
| 4RKP-PR-224-0100 | Piston Ring (Turb)Φ22.45 | 2 |
| 4RKP-TB-HS-0400 | Thrust Bearing | 1 |
| 4WAS-M08I-0100 | Washer | 10 |
