Rebuild Kit for Holset HX80/ HX82/ HX85/ HC5A Turbo
Part Number : 1GRBK-ZHS7-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***

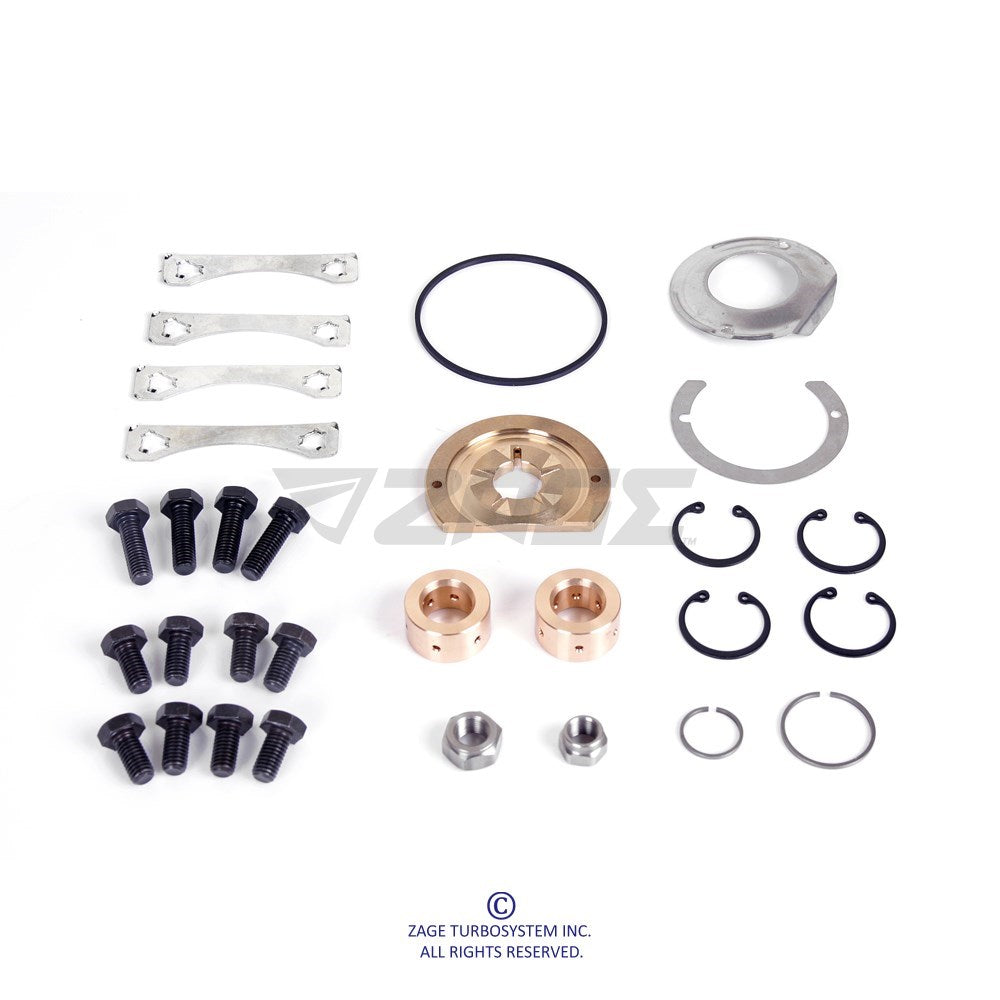

| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0812516A-0100 | Bolt (B/Hsg-Turb/Hsg) | 8 |
| 4BOT-M0812525A-0100 | Bolt(M8*1.25p*25mm ) | 4 |
| 4CSR-I-028-0100 | Snap Ring(J-Brg) | 4 |
| 4NUT-M06100N-0600 | V-BAND LOCK NUT | 1 |
| 4NUT-M11100R-0100 | Shaft Nut(M11xp1.0) | 1 |
| 4ORN-06820-0100 | O-Ring (68mm) | 1 |
| 4RKP-CP-HS-0200 | Clamp Plate | 4 |
| 4RKP-GK-HS-0100 | Gasket/Shim(Thrust Brg) | 1 |
| 4RKP-JB-HS-0400 | Journal Bearing | 2 |
| 4RKP-OD-HS-0200 | Oil Deflector | 1 |
| 4RKP-PR-190-0100 | Piston Ring (Comp)Φ19.05 T1.6 | 1 |
| 4RKP-PR-285-0100 | Piston Ring (Turb)Φ28 | 1 |
| 4RKP-TB-HS-0500 | Thrust Bearing | 1 |
