Rebuild Kit for Holset H3B/ HC3B Turbo


Rebuild Kit for Holset H3B/ HC3B Turbo



Part Number : 1GRBK-ZHS10-0100



*** ZAGE can ship worldwide with no minimum order quantity. ***

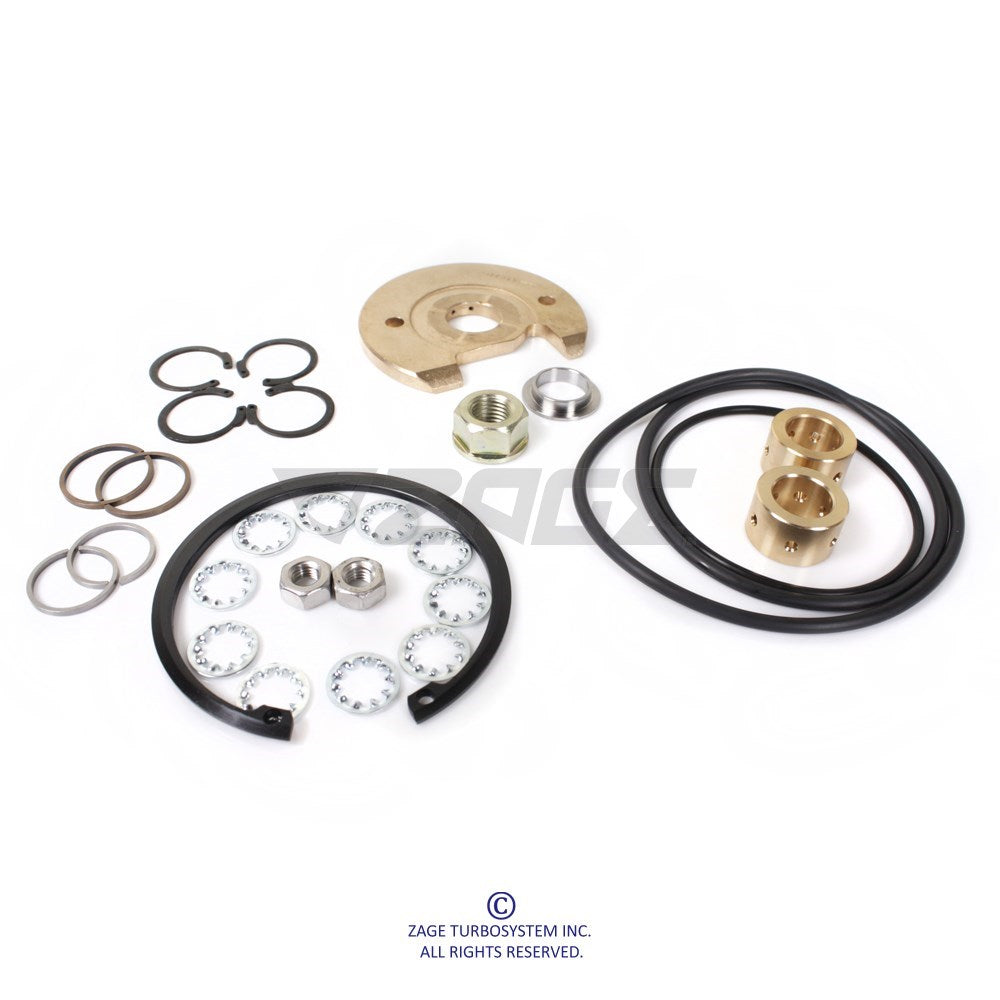

Kit Includes
 P/N  Type  Qty
4CSR-I-022-0100 Snap Ring (J-Brg) 4
4CSR-I-046-0100 Snap Ring (Insert) 1
4NUT-I41628N-0200 Nut 2
4NUT-I71620N-0100 Shaft Nut  1
4ORN-06426-0100 O-Ring (Insert/64.7mm)4LE 1
4ORN-17135-0100 O-Ring (171.05mm) 1
4RKP-JB-HS-0300 Journal Bearing22.15/14.3/12.7 2
4RKP-OS-SW-0100 Oil Control Sleeve 1
4RKP-PR-190-0100 Piston Ring (Comp)Φ19.05 T1.6 2
4RKP-PR-224-0101 Piston Ring (Turb)Φ22.45/1.58 2
4RKP-TB-SW-0200 Thrust Bearing 1
4WAS-M08I-0100 Washer 10
