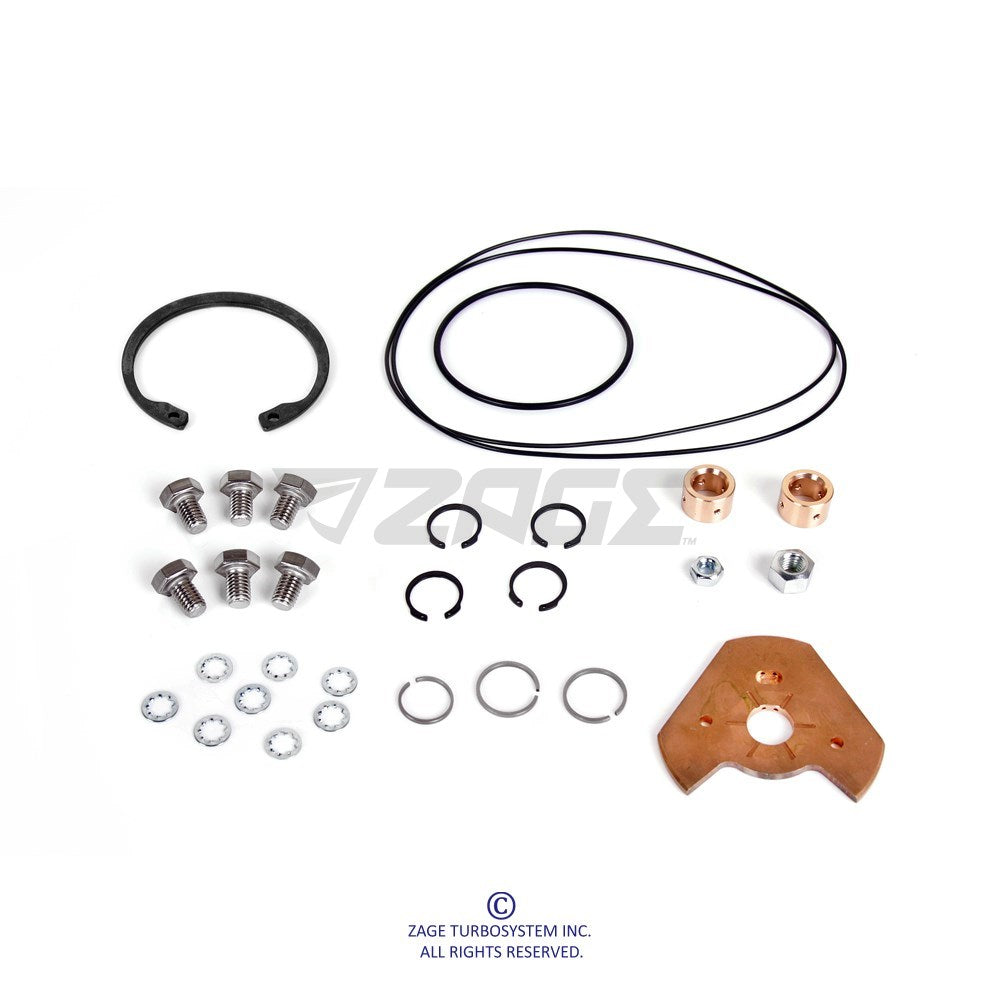

Rebuild Kit for Holset HX50 Turbo
Part Number : 1GRBK-ZHS3-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0812512A-0100 | Bolt(M8*1.25p*12mm) | 6 |
| 4CSR-I-019-0100 | Snap Ring(20.4xT1) | 4 |
| 4CSR-I-068-0100 | Snap Ring (Insert) | 1 |
| 4NUT-I41628N-0200 | Nut | 1 |
| 4NUT-I51620R-0100 | Shaft Nut | 1 |
| 4ORN-06726-0100 | O-Ring (67.95mm) | 1 |
| 4ORN-15217-0100 | O-Ring (Comp Cover/152.6mm) | 1 |
| 4ORN-16318-0100 | O-Ring (Comp Cover/164mm) | 1 |
| 4RKP-JB-HS-0500 | Journal Bearing | 2 |
| 4RKP-PR-161-0100 | Piston Ring (Comp)Φ16.1 T1.58 | 1 |
| 4RKP-PR-190-0201 | Piston Ring(Turb)Φ19.05 1.7 | 2 |
| 4RKP-TB-HS-0100 | Thrust Bearing | 1 |
| 4WAS-M06I-0100 | Washer | 8 |
