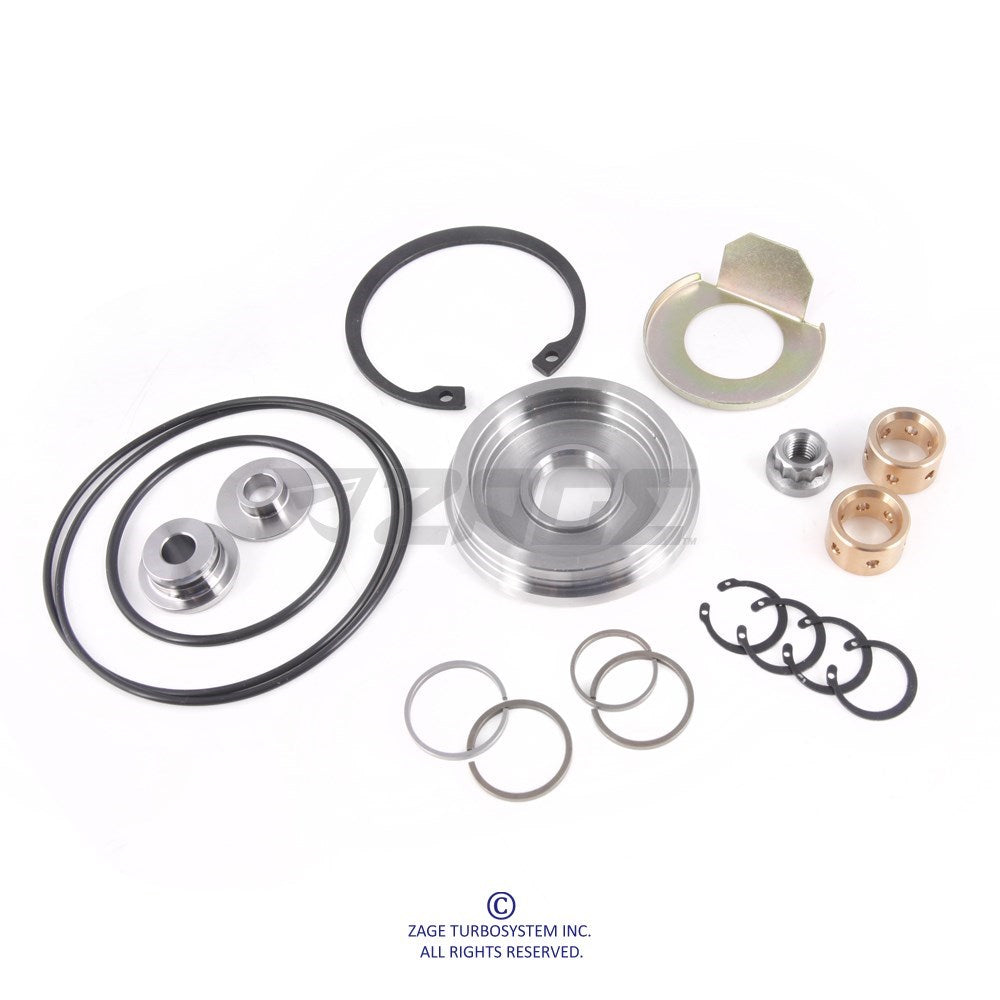

Rebuild Kit for Holset HX35/ HX40 Turbo


Rebuild Kit for Holset HX35/ HX40 Turbo



*** ZAGE can ship worldwide with no minimum order quantity. ***



Part Number Type
1GRBK-ZHS2-0200 Major
1GRBK-ZHS2-0100 Minor



Kit Includes
 P/N  Type  Qty
4BOT-M0812512A-0100 Bolt(M8*1.25p*12mm) 6
4CSR-I-048-0100 Snap Ring(Insert) 1
4CSR-I-160-0100 Snap Ring(J-Brg)(17x0.6) 4
4NUT-M07100R-0200 Shaft Nut反牙(M7xp1) 1
4ORN-04724-0100 O-Ring (Seal plate/47.2mm) 1
4ORN-14019-0100 O-Ring (Comp Cover/140mm) 1
4RKP-JB-HS-0200 Journal Beari (Straight Shaft) 2
4RKP-OD-HS-0300 Oil Deflector 1
4RKP-PR-161-0100 Piston Ring (Comp)Φ16.1 T1.58 1
4RKP-PR-190-0100 Piston Ring (Comp)Φ19.05 T1.6 2
4RKP-PR-193-0100 Piston RingΦ19.3 0.9 1.58 1
4RKP-TB-HS-0300 Thrust Bearing 1
4RKP-IS-HS-0300 Insert 1
4RKP-FG-HS-0300 Flinger 1
4RKP-TR-HS-0500 Thrust Ring 1
