Rebuild Kit for Garrett T25 / T28 CARBON SEAL (270˚) Turbo
*There are two different types of compressor and seals used for T2, T25, and T28 turbos. Most of the T25 turbos before 1990 should use carbon seal.
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Part Number | Type | OE Number |
| 1GRBK-ZGA1-0100 | CARBON SEAL (270˚) | 709342-0001 |

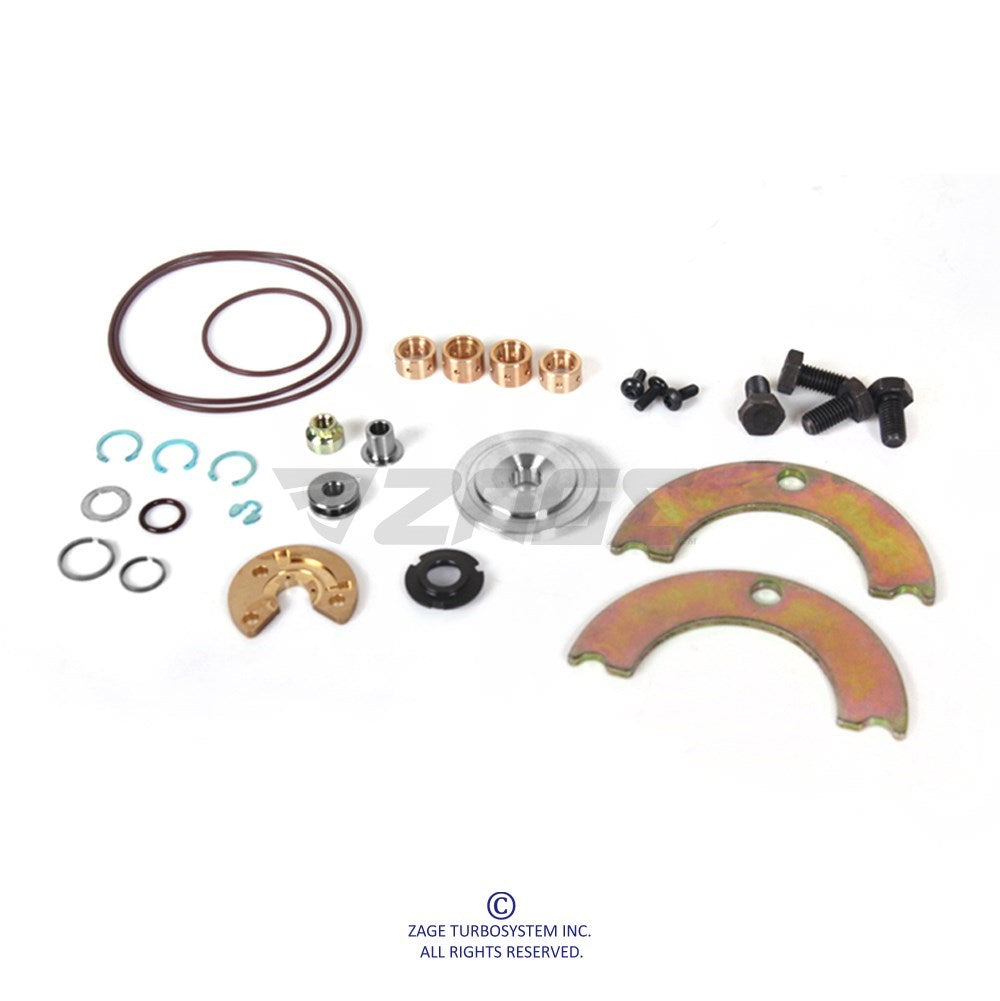

| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0407010E-0300 | Bolt (T-Brg T-Torx Patched) | 3 |
| 4BOT-M0812516A-0100 | Bolt (B/Hsg-Turb/Hsg) | 4 |
| 4CSR-I-013-0200 | Spiral Snap Ring(Brg Retainer) | 3 |
| 4CSR-I-013-0600 | Snap Ring (C/Hsg-B/Hsg) | 3 |
| 4CSR-O-004-0100 | Actuator pin | 1 |
| 4NUT-M06100R-0300 | Shaft Nut (M6x1.0P) | 1 |
| 4ORN-04117-0100 | O-Ring (Seal Plate/41x1.78 VT) | 1 |
| 4ORN-07517-0100 | O-Ring (T2 C/Cover 75mm) | 1 |
| 4ORN-08217-0100 | O-Ring (B/Hsg-CC/82.27x1.78VT) | 1 |
| 4RKP-CP-GA-0100 | Clamp Plate (T/Hsg-S/Plate) | 2 |
| 4RKP-FG-GA-1200 | Thrust Collar (Thrust Flinger) | 1 |
| 4RKP-IS-GA-0200 | Insert(Carbon Seal) | 1 |
| 4RKP-JB-GA-0300 | Journal Bearing 13.8/9.23/9.37 | 2 |
| 4RKP-JB-GA-0500 | Journal Bearing13.8 9.23 H7.67 | 2 |
| 4RKP-PR-158-0101 | Piston Ring (Turb)Φ15.88 | 1 |
| 4RKP-TB-GA-0300 | Thrust Bearing 37.3/2.97/9.8 | 1 |
| 4RKP-TR-GA-0200 | Thrust Spacer (Carbon Seal) | 1 |
| 4WAS-M10F-0300 | Washer | 1 |
