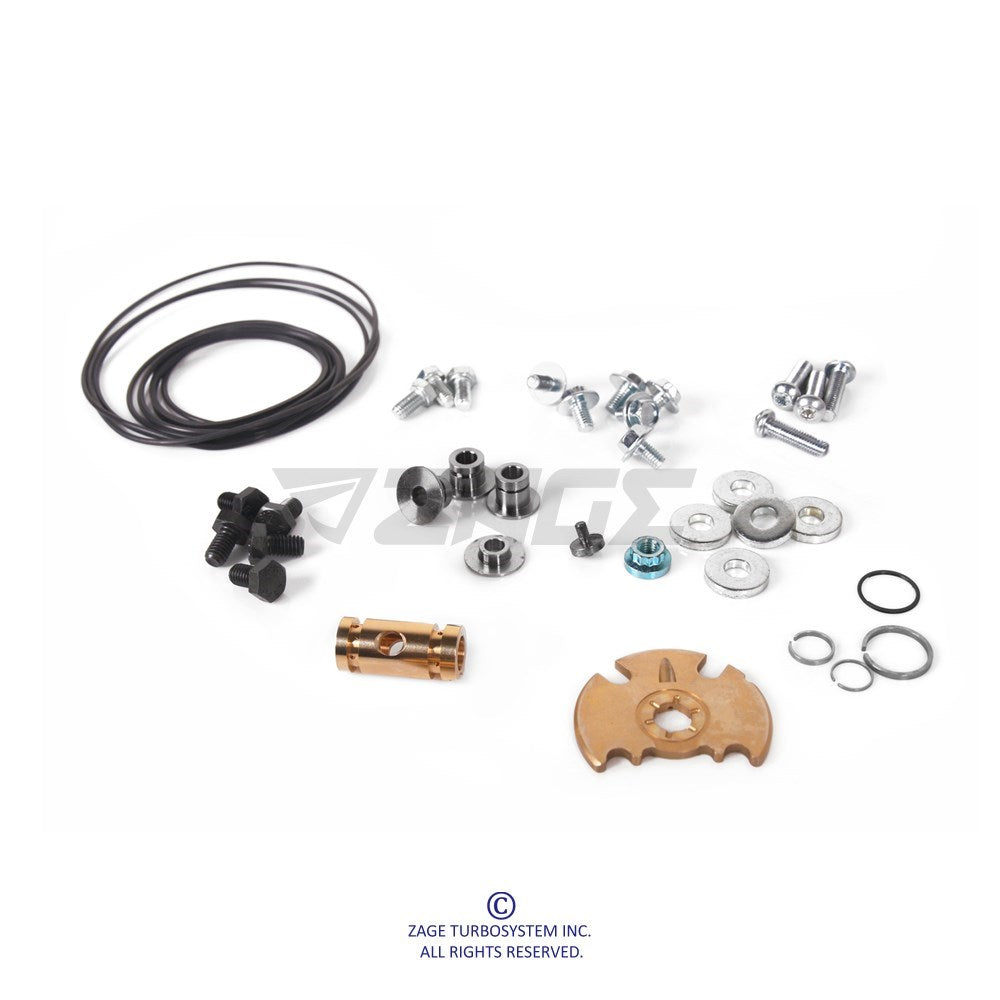

Rebuild Kit for Garrett VNT / GT1544-2560 Turbo
Part Number : 1GRBK-ZGA2-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0508008B-0200 | Bolt(Comp Cover) | 6 |
| 4BOT-M0508010A-0100 | Bolt (Comp) | 3 |
| 4BOT-M0508018E-0100 | Locking Bolt(S/Plate to Brg/Hs) | 4 |
| 4BOT-M0610010A-0100 | Bolt (Turb/Hsg) | 5 |
| 4CSR-I-013-0100 | Spiral Snap Ring(Brg Retainer) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut M5x0.8P S1B | 1 |
| 4ORN-04827-0100 | O-Ring(BrgHsg/Sealplate)Square | 1 |
| 4ORN-08217-0100 | O-Ring (B/Hsg-CC/82.27x1.78VT) | 1 |
| 4ORN-08817-0100 | O-Ring (Brg/Hsg-CC/86mm) | 1 |
| 4ORN-09417-0100 | O-Ring (Brg/Hsg-CC/95mm) | 1 |
| 4ORN-10717-0100 | O-Ring (Brg/Hsg-CC/108mm) | 1 |
| 4ORN-11417-0100 | O-Ring (Brg/Hsg-CC/114mm) | 1 |
| 4RKP-AP-GA-0100 | Anti Rotation Pin (J/Bearing) | 1 |
| 4RKP-CP-GA-0700 | Clamp Washer (Turb/Hsg) | 5 |
| 4RKP-FG-GA-0100 | Flinger (10-pad/10.33mmP/Ring) | 1 |
| 4RKP-FG-GA-0200 | Flinger-FB 10-pad 8.54mmP/Ring | 1 |
| 4RKP-FG-GA-0300 | Flinger-SB 10-pad 8.54mmP/Ring | 1 |
| 4RKP-JB-GA-0600 | Journal Bearing | 1 |
| 4RKP-PR-090-0100 | Piston Ring (Comp)Φ9 | 1 |
| 4RKP-PR-100-0100 | Piston Ring (Comp)Φ10 T1.37 | 1 |
| 4RKP-PR-158-0101 | Piston Ring (Turb)Φ15.88 | 1 |
| 4RKP-TB-GA-0100 | Thrust Bearing | 1 |
| 4RKP-TR-GA-0100 | Thrust Collar (Thrust Ring) | 1 |
