Rebuild Kit for Garrett MGT2256S Turbo



Rebuild Kit for Garrett MGT2256S Turbo



*** ZAGE can ship worldwide with no minimum order quantity. ***



Part Number Type
1GRBK-ZGA2-0200 BMW X6 769155-11

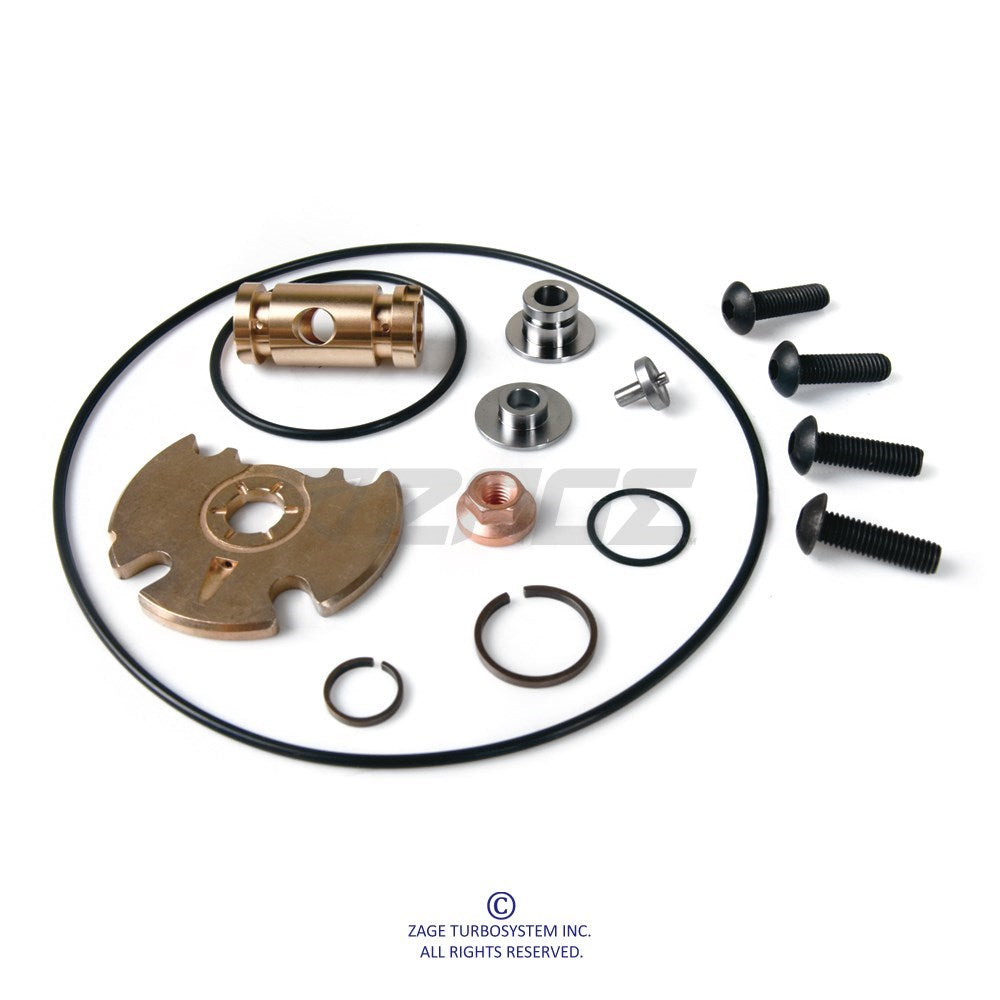

Kit Includes
 P/N  Type  Qty
4BOT-M0508018E-0100 Locking Bolt(S/Plate to Brg/Hsg) 4
4CSR-I-013-0100 Spiral Snap Ring(Brg Retainer) 1
4NUT-M05080R-0200 Shaft Nut M5x0.8P S1B 1
4ORN-04117-0100 O-Ring (Seal Plate/41x1.78 VT) 1
4ORN-10717-0100 O-Ring (Brg/Hsg-CC/108mm) 1
4RKP-AP-GA-0100 Anti Rotation Pin (J/Bearing) 1
4RKP-FG-GA-0200 Flinger-FB 10-pad 8.54mmP/Ring 1
4RKP-JB-GA-0600 Journal Bearing 1
4RKP-PR-100-0100 Piston Ring (Comp)Φ10 T1.37 1
4RKP-PR-158-0500 Piston Ring Φ15.8 1.58 0.95 1
4RKP-TB-GA-0100 Thrust Bearing 1
4RKP-TR-GA-0100 Thrust Collar (Thrust Ring) 1
