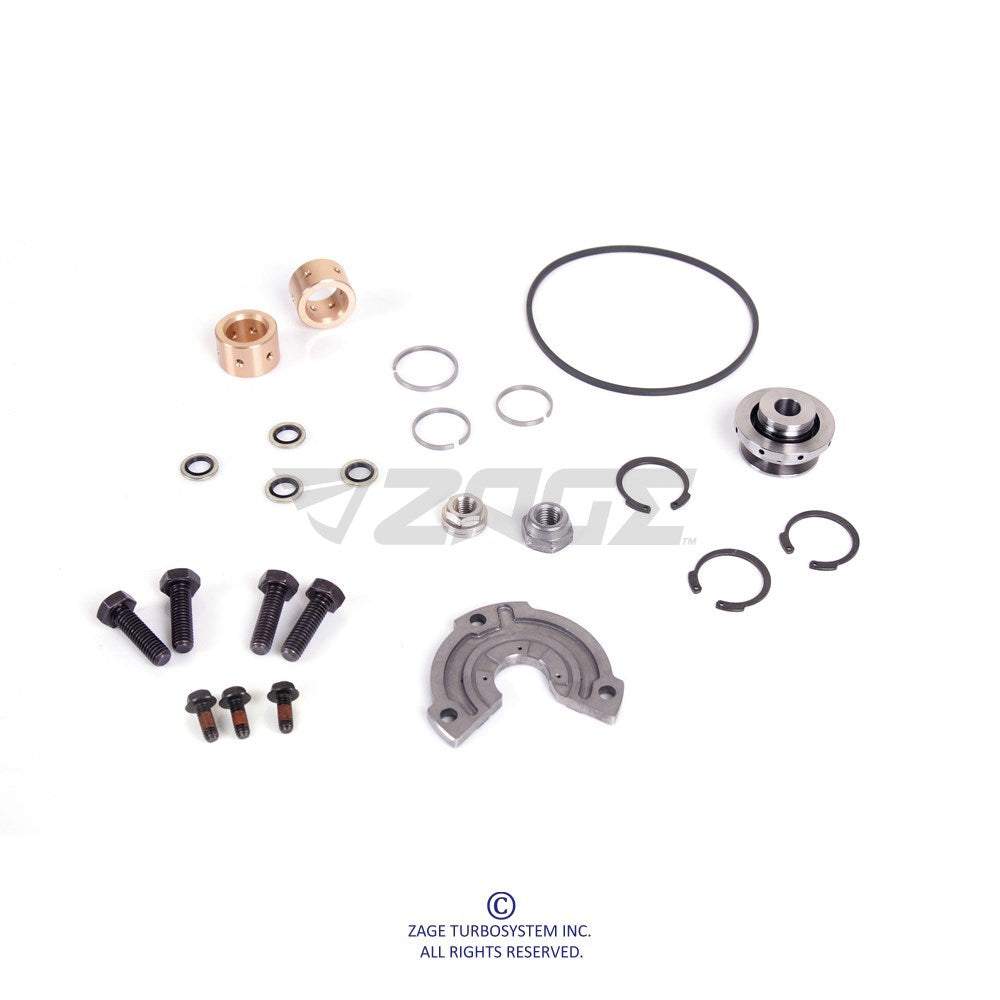

Rebuild Kit for Garrett GT45 / TMF55 Turbo
Part Number : 1GRBK-ZGA8-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0407010B-0100 | Bolt(M4x0.7Px10) | 3 |
| 4BOT-M0610020A-0100 | Bolt(M6x1.0px20) | 4 |
| 4CSR-I-022-0100 | Snap Ring (J-Brg) | 3 |
| 4NUT-I41628R-0100 | Shaft Nut | 1 |
| 4NUT-I51624R-0100 | Shaft Nut | 1 |
| 4ORN-07417-0100 | O-Ring (Seal plate/74.5mm) | 1 |
| 4RKP-FG-GA-0400 | Flinger Collar (7.93) | 1 |
| 4RKP-JB-GA-1000 | Journal Bearing(H12.9) | 2 |
| 4RKP-PR-175-0100 | Piston Ring (Comp)Φ17 | 2 |
| 4RKP-PR-209-0101 | Piston Ring Φ20.9/R1.05/T1.58 | 1 |
| 4RKP-TB-GA-0900 | Thrust Bearing | 1 |
| 4WAS-M06B-0100 | Washer | 4 |
