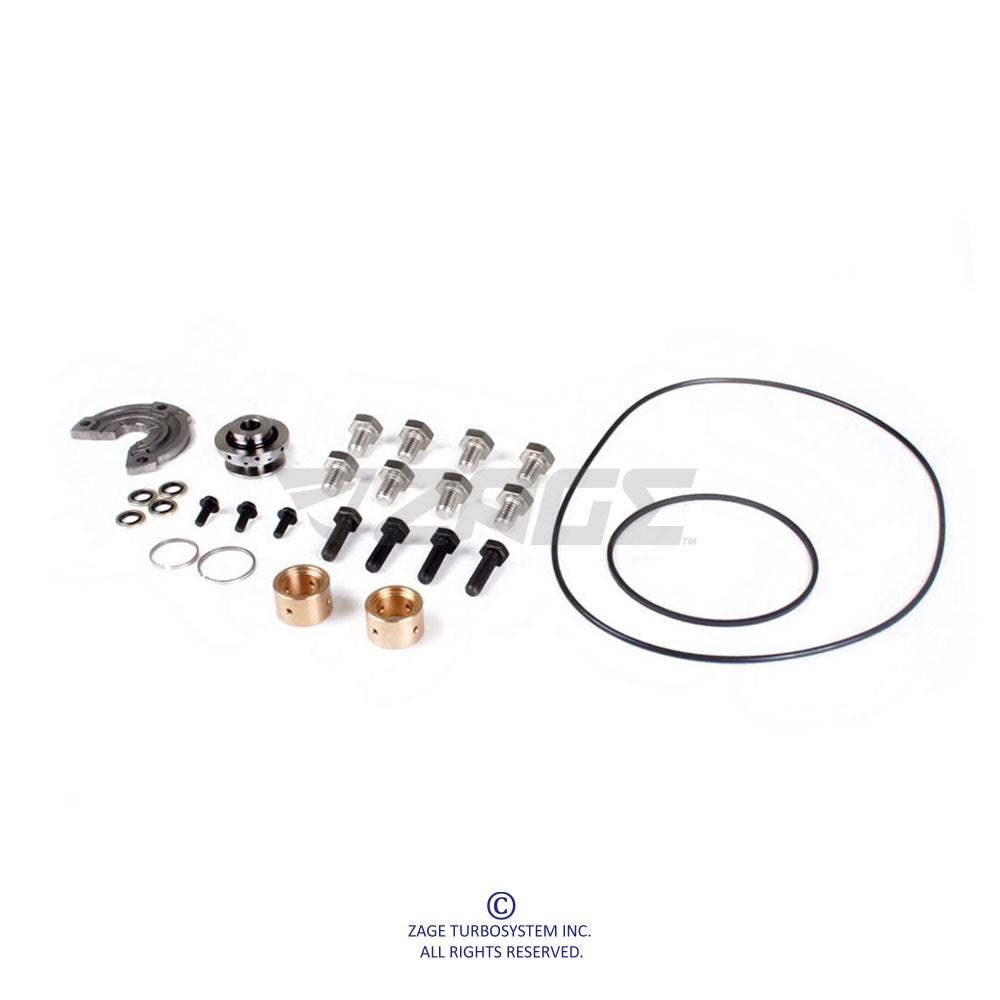

Rebuild Kit for Garrett GT42 / GT45 Turbo
Part Number : 1GRBK-ZGA9-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
Kit Includes | ||
P/N | Type | Qty |
4BOT-M0407010B-0100 | Bolt(M4x0.7Px10) | 3 |
4BOT-M0610020A-0100 | Bolt(M6x1.0px20) | 4 |
4BOT-M0812512A-0100 | Bolt(M8*1.25p*12mm) | 8 |
4ORN-07417-0100 | O-Ring (Seal plate/74.5mm) | 1 |
4ORN-17126-0100 | O-Ring (171.12mm) | 1 |
4RKP-FG-GA-0500 | Flinger Collar (8.25) | 1 |
4RKP-JB-GA-0800 | Journal Bearing D20.08D13.01 | 2 |
4RKP-PR-175-0100 | Piston Ring (Comp)Φ17 | 1 |
4RKP-PR-209-0101 | Piston Ring Φ20.9/R1.05/T1.58 | 1 |
4RKP-TB-GA-0900 | Thrust Bearing | 1 |
4WAS-M06B-0100 | Washer | 4 |
