Rebuild Kit for Garrett T25 / T28 Dynamic(360˚) Turbo
There are two different types of compressor and seals used for T2, T25, and T28 turbos. Almost T25 turbos which were made from 1990 and up are the dynamic seal type.
| Part Number | Type | OE Number |
| 1GRBK-ZGA1-0200 | Dynamic(360˚) | 709143-0001 |

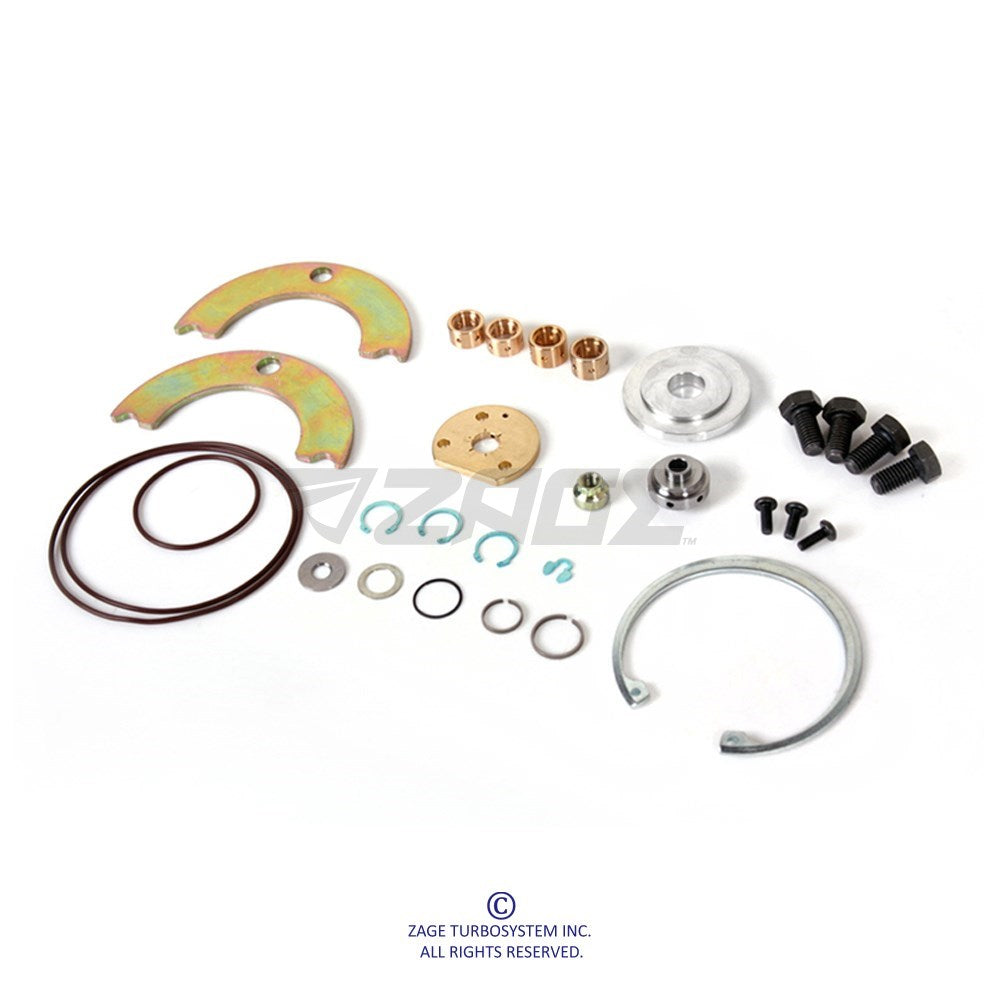

| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0407010E-0300 | Bolt (T-Brg T-Torx Patched) | 3 |
| 4BOT-M0812516A-0100 | Bolt (B/Hsg-Turb/Hsg) | 4 |
| 4CSR-I-013-0200 | Spiral Snap Ring(Brg Retainer) | 1 |
| 4CSR-I-013-0600 | Snap Ring (C/Hsg-B/Hsg) | 3 |
| 4CSR-I-046-0100 | Snap Ring (Insert) | 1 |
| 4CSR-O-004-0100 | Actuator pin | 1 |
| 4NUT-M06100R-0300 | Shaft Nut (M6x1.0P) | 1 |
| 4ORN-04117-0100 | O-Ring (Seal Plate/41x1.78 VT) | 1 |
| 4ORN-07517-0100 | O-Ring (T2 C/Cover 75mm) | 1 |
| 4ORN-08217-0100 | O-Ring (B/Hsg-CC/82.27x1.78VT) | 1 |
| 4RKP-CP-GA-0100 | Clamp Plate (T/Hsg-S/Plate) | 2 |
| 4RKP-FG-GA-1000 | Thrust Collar (Thrust Flinger) | 1 |
| 4RKP-IS-GA-0100 | Insert(360 Degree) | 1 |
| 4RKP-JB-GA-0300 | Journal Bearing 13.8/9.23/9.37 | 2 |
| 4RKP-JB-GA-0500 | Journal Bearing13.8 9.23 H7.67 | 2 |
| 4RKP-PR-127-0100 | Piston Ring(C)Φ12.7 T1.58 | 1 |
| 4RKP-PR-158-0101 | Piston Ring (Turb)Φ15.88 | 1 |
| 4RKP-TB-GA-0200 | Thrust Bearing | 1 |
| 4RKP-TW-GA-0200 | Thrust Collar (Thrust Washer) | 1 |
| 4WAS-M10F-0300 | Washer | 1 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
