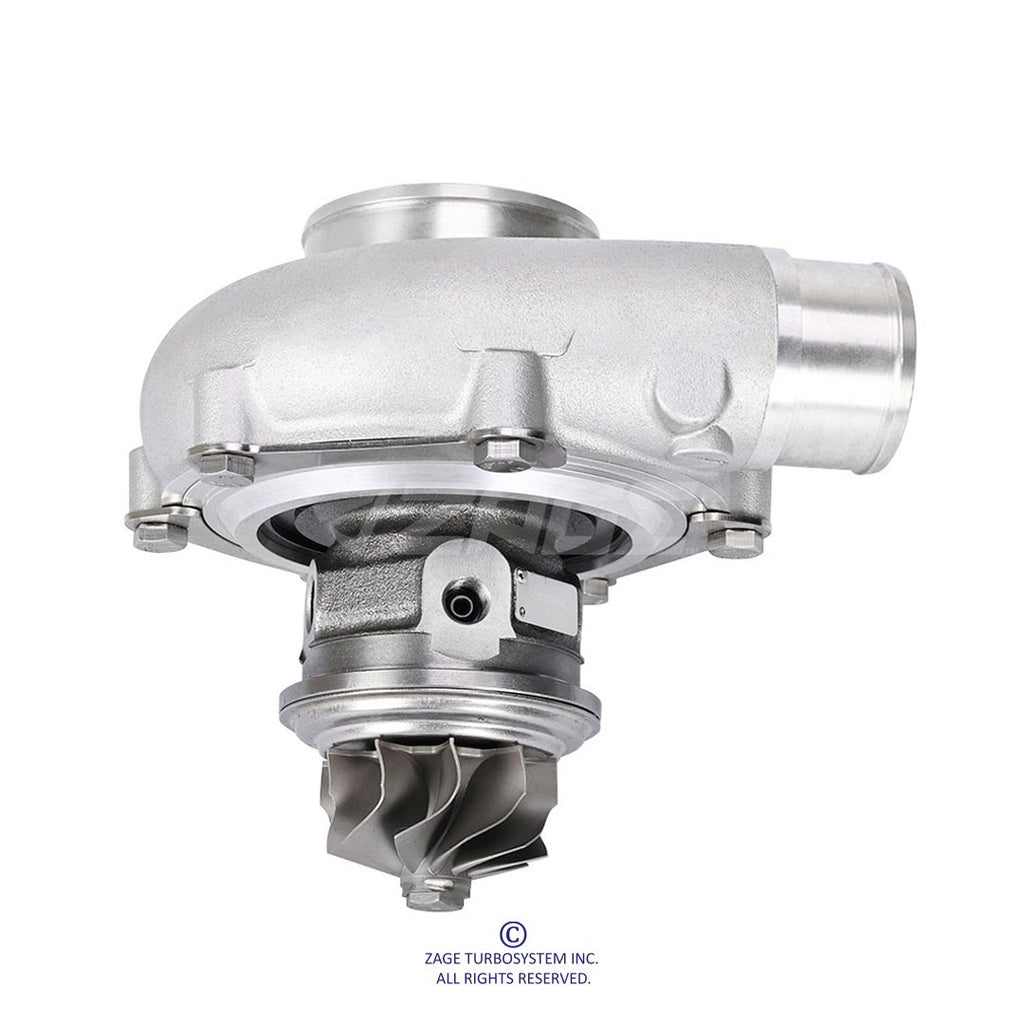

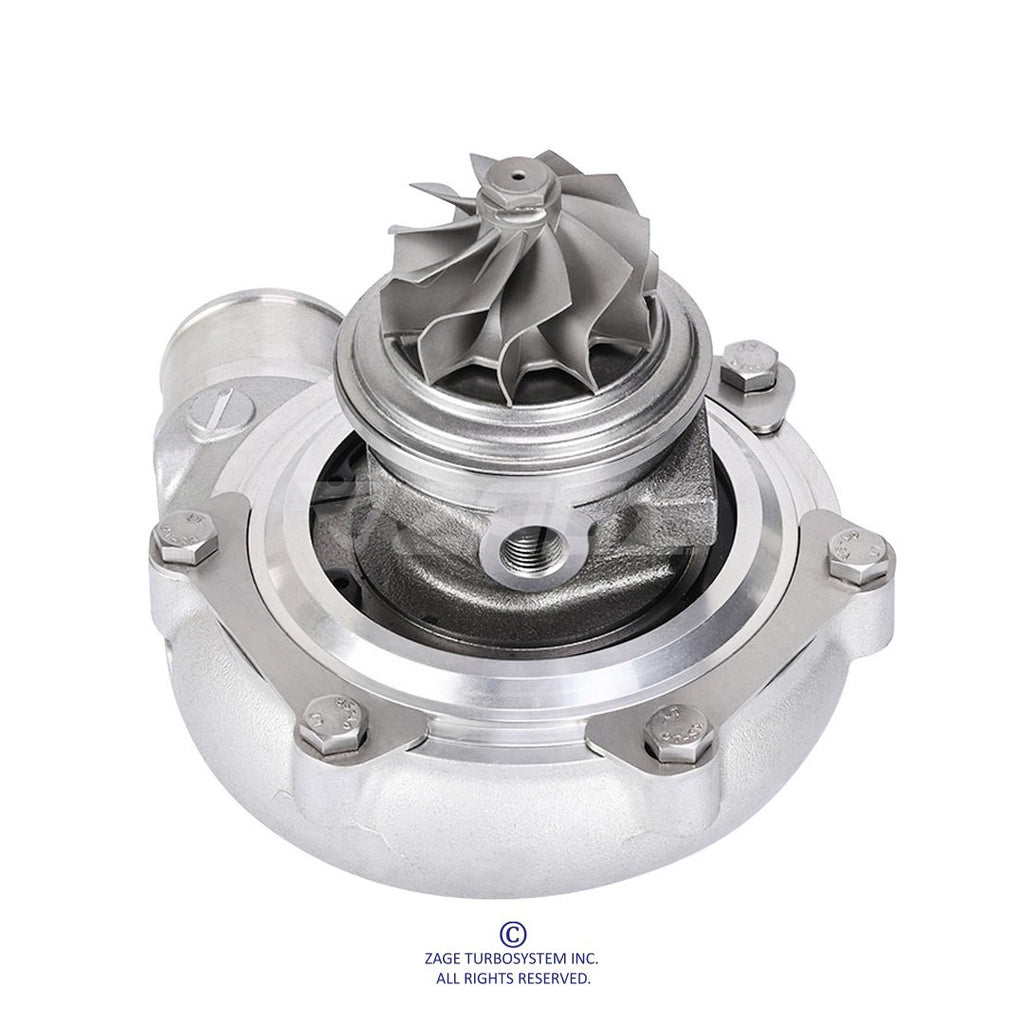

Supercore Part Number : 1ZUN18S-545400-A1



Comp Wheel: 54/67mm

Trim: 65

A/R : 0.7



Turbine Wheel: 54/49mm

Trim: 84



Horsepower: 350-660hp

Displacement: 1.4L-3.0L



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.

Zage G Series wheels are compatible with only GTX cartridges, this allows GTX turbos to upgrade to G Series at minimal cost!


 *** ZAGE can ship worldwide with no minimum order quantity. ***

Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.



Turbine kit PN A/R Inlet Outlet Wastegate Divided
1GTBH-UN19ZG49-0100 0.64 T25 5 Bolt wastegated N
1GTBH-UN20ZG49-0100 0.86 T25 5 Bolt wastegated N
1GTBH-GA22ZG49-0100 0.72 v-band v-band wastegated N
1GTBH-GA17ZG49-0100 0.92 v-band v-band wastegated N
