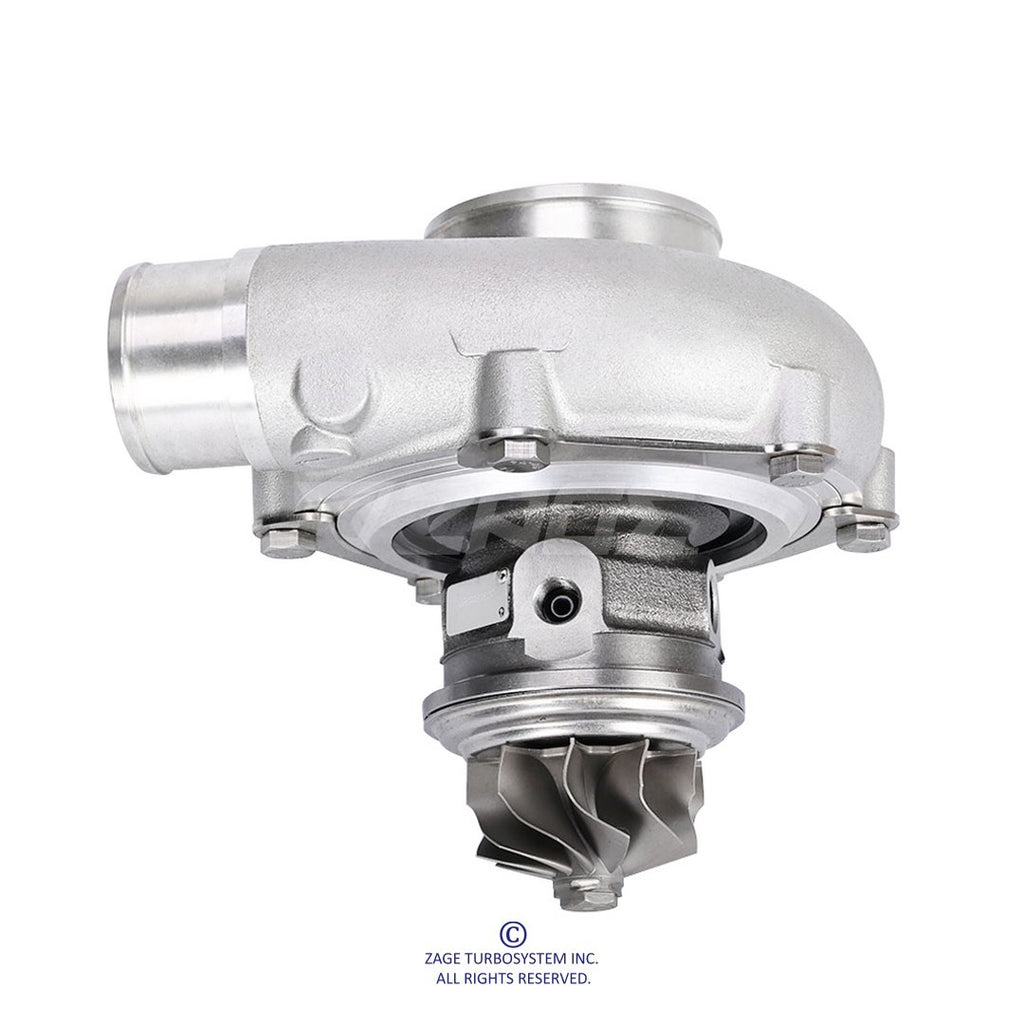

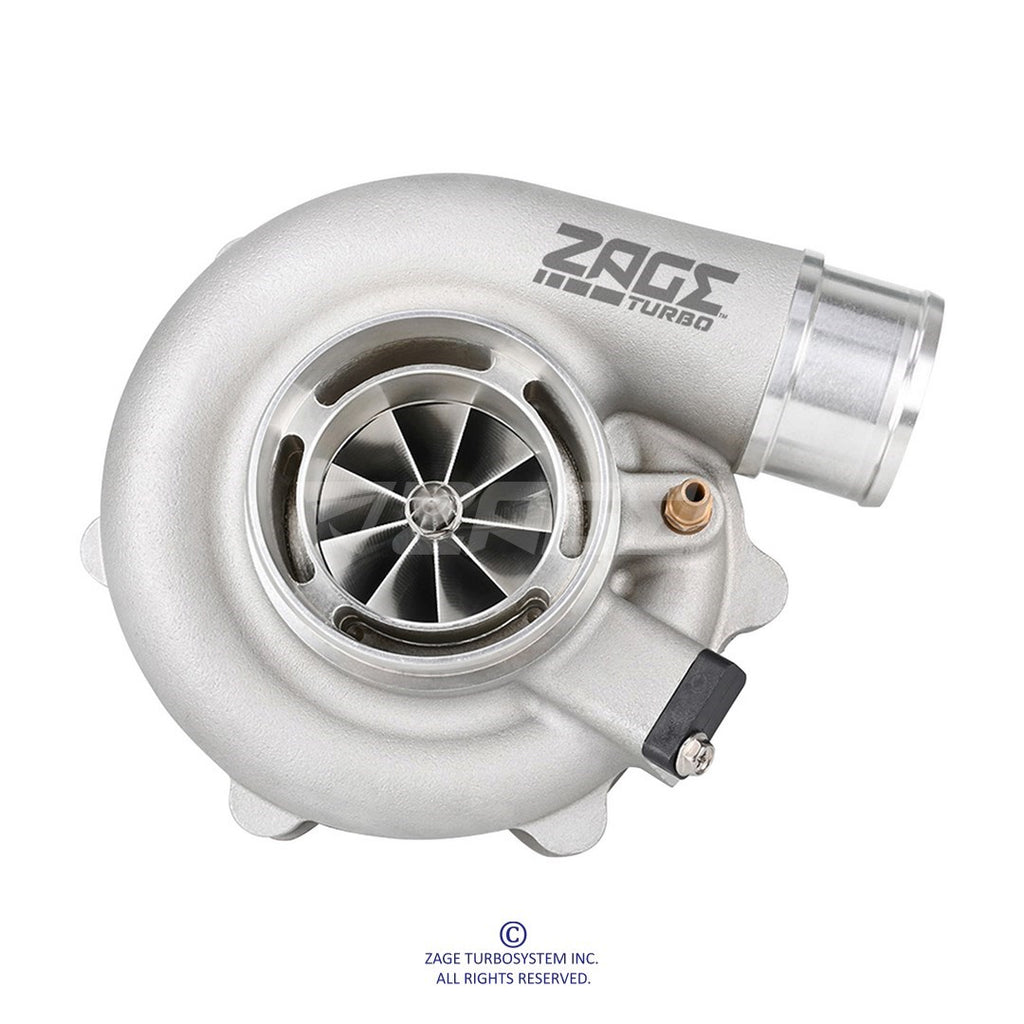

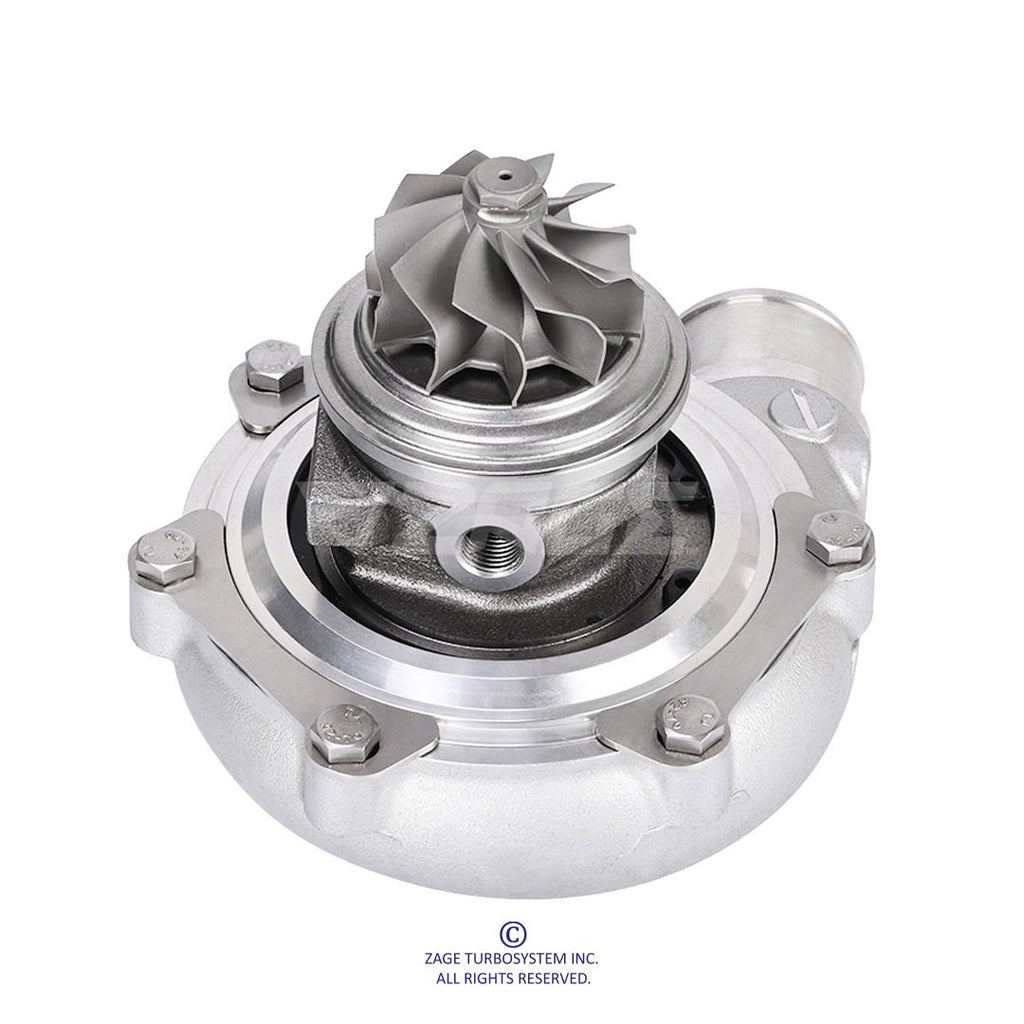

Supercore Part Number: 1ZUN8S-595400-A2



- Comp Wheel: 54/67mm

Trim: 65

A/R: 0.7



- Turbine Wheel: 60/55mm

Trim: 84



- Horsepower: 350-660hp

- Displacement: 1.4L-3.0L

- Bearing: Dual-row ceramic ball bearing


The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.

This GTX Hybrid series is paired with the GTX cartridge, this allows GTX turbos to upgrade to G Series at minimal cost!



● Scrollable Table for Turbine kit details:

Turbine kit PN A/R Inlet Outlet Wastegate Divided
1GTBH-GA23ZG55-0100 0.49 T25 V-Band Wastegated N
1GTBH-GA21ZG55-0100 0.72 V-Band V-Band Free Float N
1GTBH-GA16ZG55-0100 0.92 V-Band V-Band Free Float N
1GTBH-GA3ZG55-0100 0.61 V-Band V-Band Free Float Y
1GTBH-GA4ZG55-0100 0.83 V-Band V-Band Free Float Y
1GTBH-GA5ZG55-0100 1.01 V-Band V-Band Free Float Y
1GTBH-GA6ZG55-0100 0.61 V-Band V-Band Free Float N
1GTBH-GA7ZG55-0100 0.83 V-Band V-Band Free Float N
1GTBH-GA8ZG55-0100 1.01 V-Band V-Band Free Float N
1GTBH-GA9ZG55-0100 0.61 T3 V-Band Free Float Y
1GTBH-GA10ZG55-0100 0.83 T3 V-Band Free Float Y
1GTBH-GA11ZG55-0100 1.01 T3 V-Band Free Float Y
1GTBH-NI5ZG55-0102 0.64 T25 5 Bolt Wastegated N
1GTBH-NI5ZG55-0201 0.64 V-Band 5 Bolt Wastegated N
1GTBH-SU1ZG55-0100 7cm² Subaru 5 Bolt Wastegated N
1GTBH-SU5ZG55-0100 10cm² Subaru 5 Bolt Wastegated N
1GTBH-SU7ZG55-0100 8cm² Subaru 5 Bolt Wastegated N
1GTBH-UN506355-0100 0.63 V-Band V-Band Free Float N
1GTBH-UN508255-0101 0.82 V-Band V-Band Free Float N
1GTBH-UN510655-0101 1.06 V-Band V-Band Free Float N
1GTBH-UN606355-0100 0.63 T3 V-Band Free Float N
1GTBH-UN608255-0101 0.82 T3 V-Band Free Float N
1GTBH-UN610655-0100 1.06 T3 V-Band Free Float N



● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.

● ZAGE can ship worldwide with no minimum order quantity.

● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
