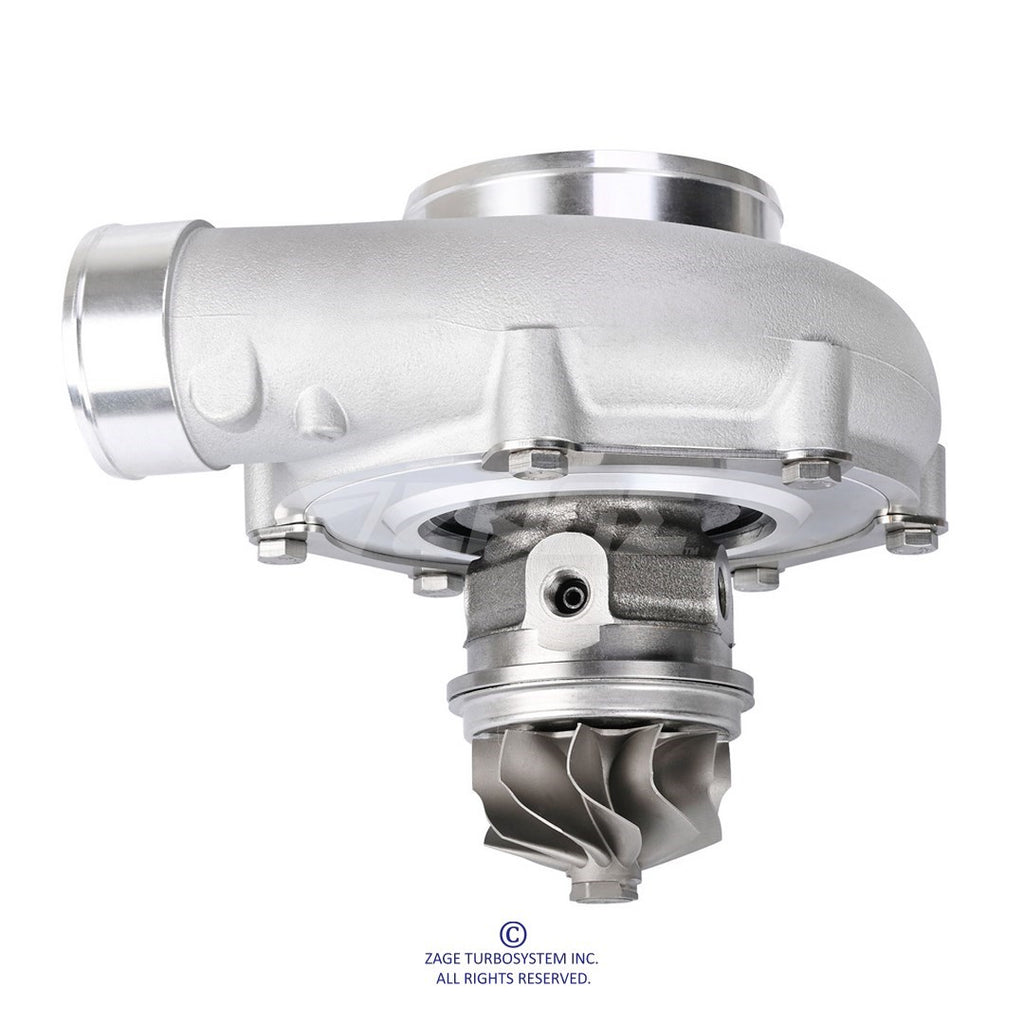

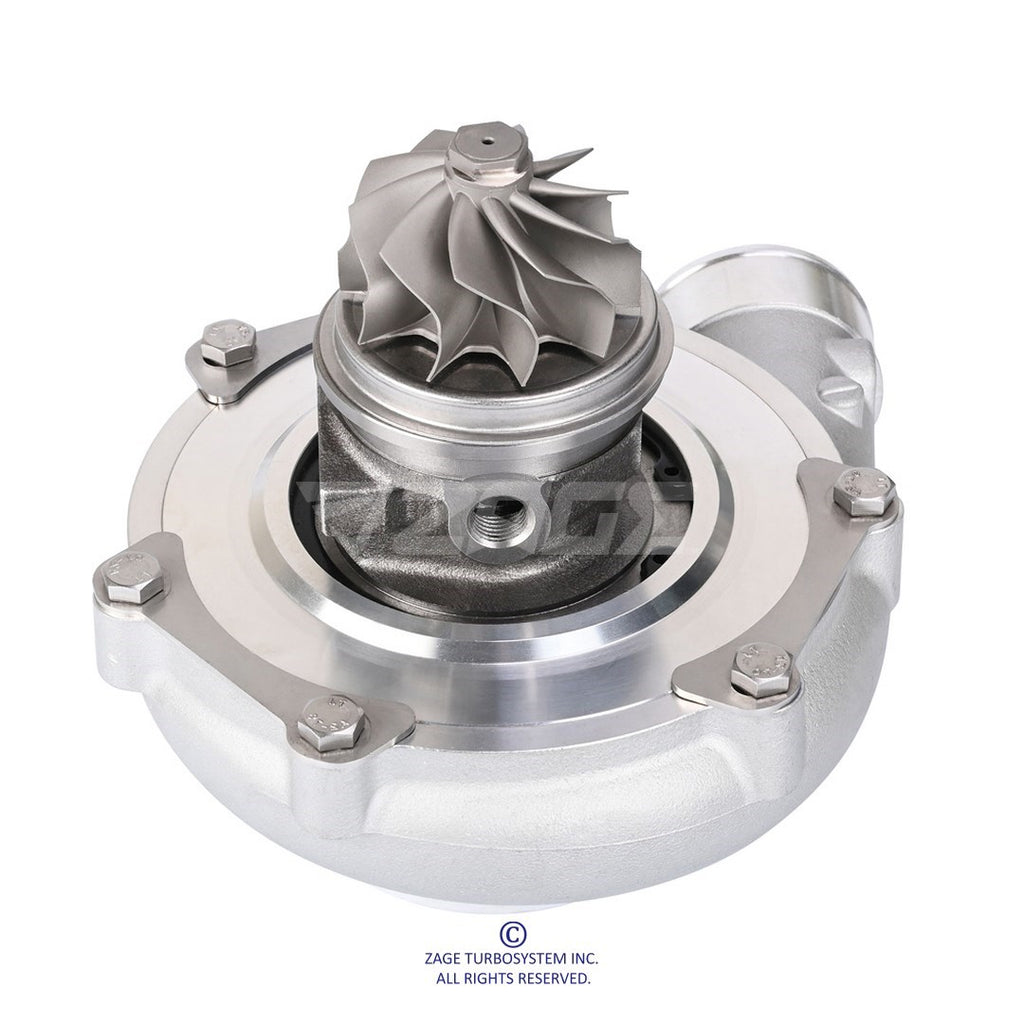

Supercore Part Number: 1ZUN8S-686800-A1



- Comp Wheel: 68/84mm

Trim: 65

A/R : 0.75



- Turbine Wheel: 68/62mm

Trim: 84



- Horsepower: 700-1050hp

- Displacement: 2.0L-5.5L

- Bearing: Dual-row ceramic ball bearing



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.

This GTX Hybrid series is paired with the GTX cartridge, this allows GTX turbos to upgrade to G Series at minimal cost!

Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.



● Scrollable Table for Turbine kit details:

Turbine kit PN A/R Inlet Outlet Wastegate Divided
1GTBH-F01ZG62-0200 1.06 T3 5 Bolt Wastegated N
1GTBH-GA3ZG62-0100 0.61 V-Band V-Band Free Float Y
1GTBH-GA4ZG62-0100 0.83 V-Band V-Band Free Float Y
1GTBH-GA5ZG62-0100 1.01 V-Band V-Band Free Float Y
1GTBH-GA6ZG62-0200 0.61 V-Band V-Band Free Float N
1GTBH-GA7ZG62-0200 0.83 V-Band V-Band Free Float N
1GTBH-GA8ZG62-0100 1.01 V-Band V-Band Free Float N
1GTBH-GA9ZG62-0100 0.61 T3 V-Band Free Float Y
1GTBH-GA10ZG62-0100 0.83 T3 V-Band Free Float Y
1GTBH-GA11ZG62-0100 1.01 T3 V-Band Free Float Y
1GTBH-UN506362-0100 0.63 V-Band V-Band Free Float N
1GTBH-UN508262-0100 0.82 V-Band V-Band Free Float N
1GTBH-UN510662-0100 1.06 V-Band V-Band Free Float N
1GTBH-UN606362-0100 0.63 T3 V-Band Free Float N
1GTBH-UN608262-0100 0.82 T3 V-Band Free Float N
1GTBH-UN610662-0100 1.06 T3 V-Band Free Float N
1GTBH-SU5ZG62-0100 10cm2 Subaru 5 Bolt Wastegated N
1GTBH-SU7ZG62-0100 8cm2 Subaru 5 Bolt Wastegated N



● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.

● ZAGE can ship worldwide with no minimum order quantity.

● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
