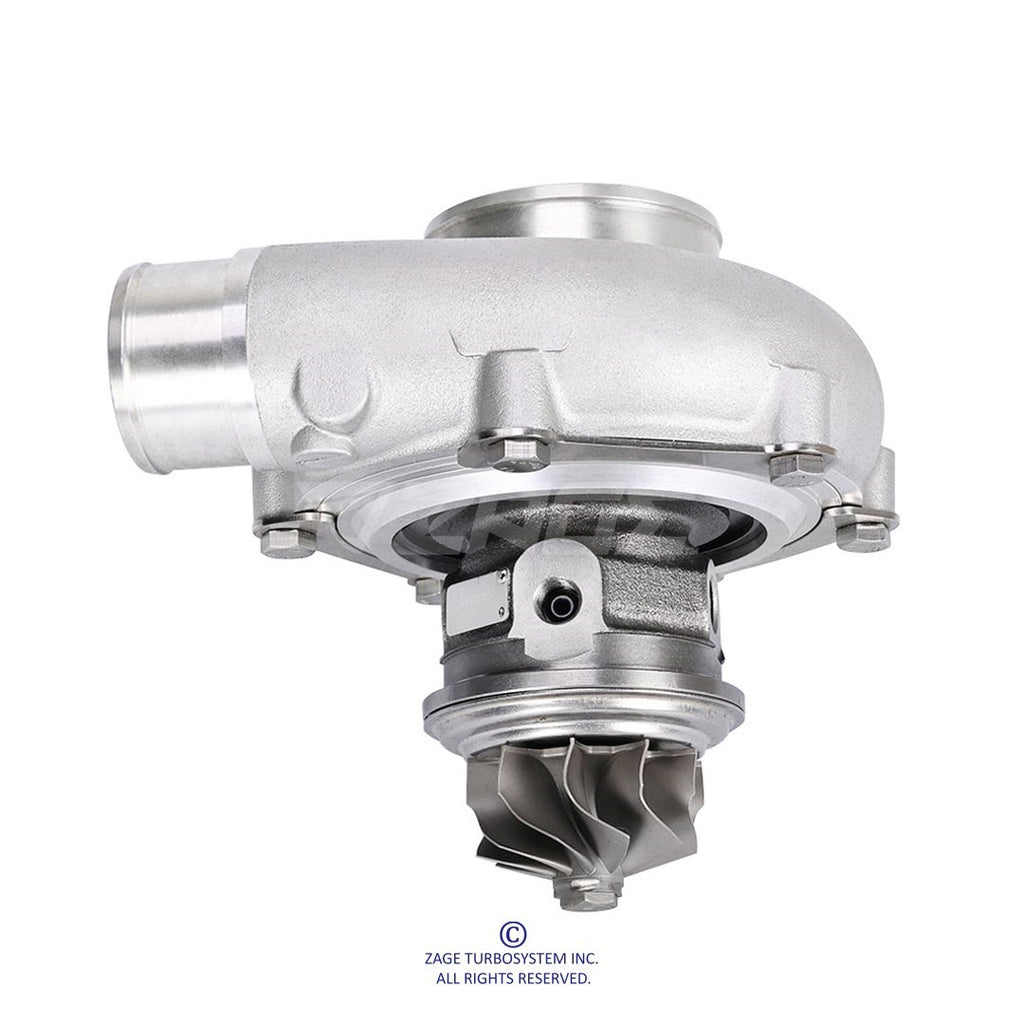

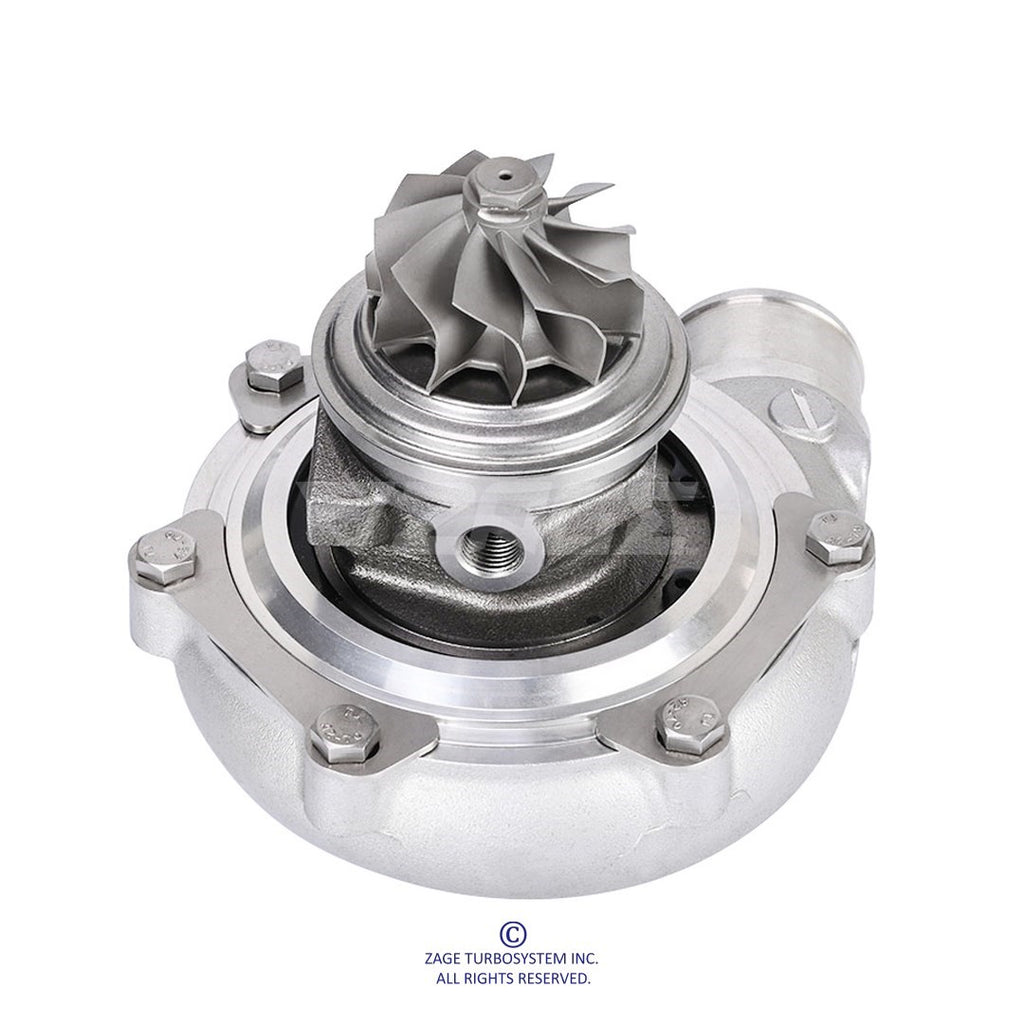

Supercore Part Number : 1ZUN8S-545400-A1



Comp Wheel: 54/67mm

Trim: 65

A/R : 0.7



Turbine Wheel: 54/49mm

Trim: 84



Horsepower: 350-660hp

Displacement: 1.4L-3.0L



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.

Zage G Series wheels are compatible with only GTX cartridges, this allows GTX turbos to upgrade to G Series at minimal cost!


 *** ZAGE can ship worldwide with no minimum order quantity. ***

Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
Turbine kit PN A/R Inlet Outlet Wastegate Divided
1GTBH-GA23ZG49-0100 0.49 T25 v-band wastegated N
1GTBH-GA2ZG49-0100 0.72 v-band v-band Free Float N
1GTBH-GA21ZG49-0100 0.72 v-band v-band wastegated N
1GTBH-GA16ZG49-0100 0.92 v-band v-band wastegated N
