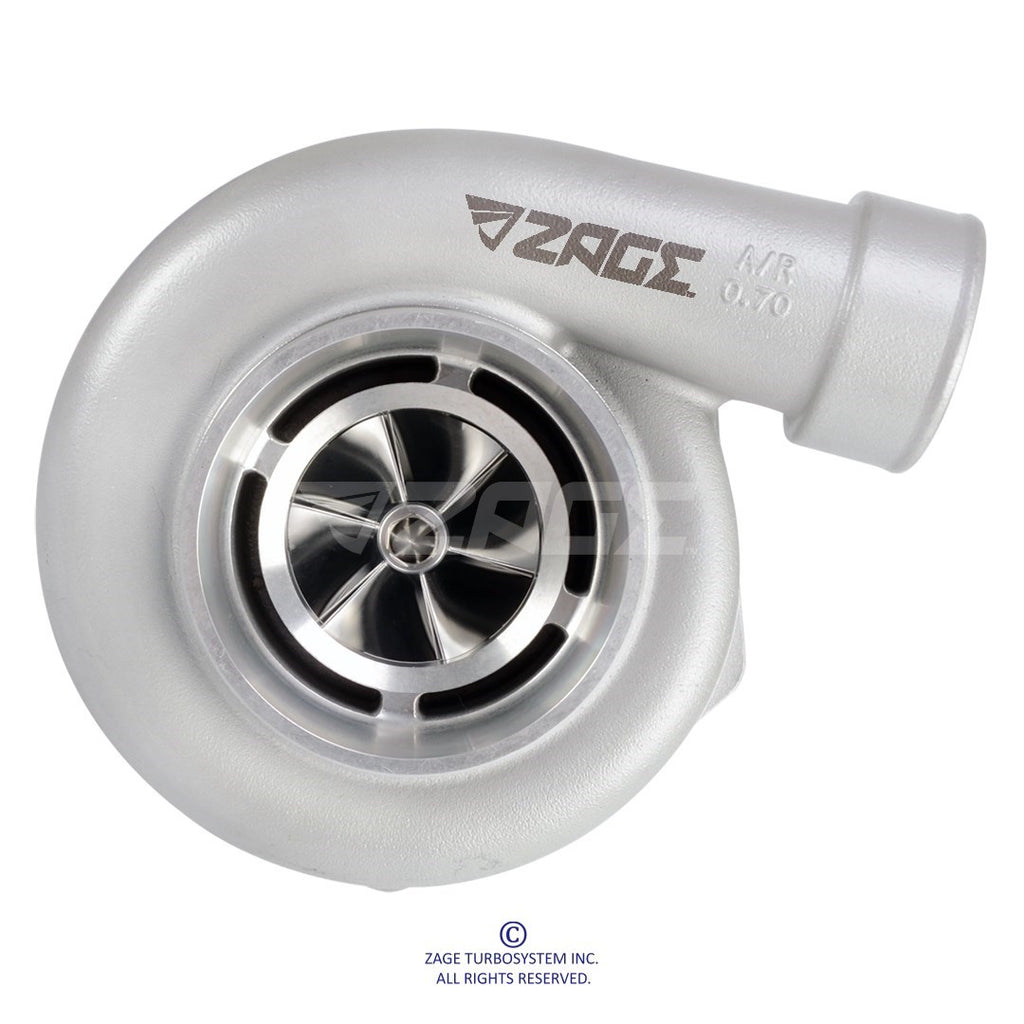

Supercore Part Number : 1ZUN8S-686100-A4



Comp Wheel: 61/82mm

Trim: 56

A/R: 0.70

Turbine Wheel: 68/62mm

Trim: 84





Horsepower: 400 - 675hp

Displacement: 2.0- 4.5L

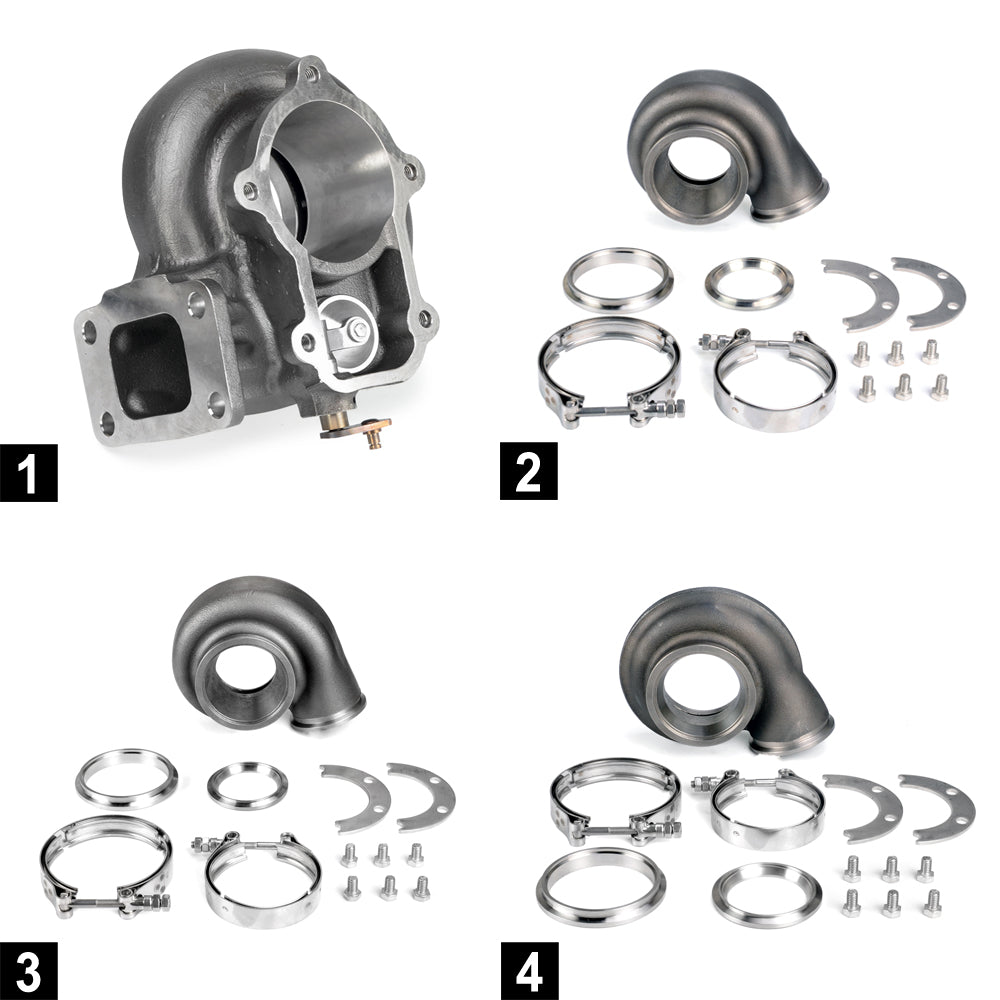

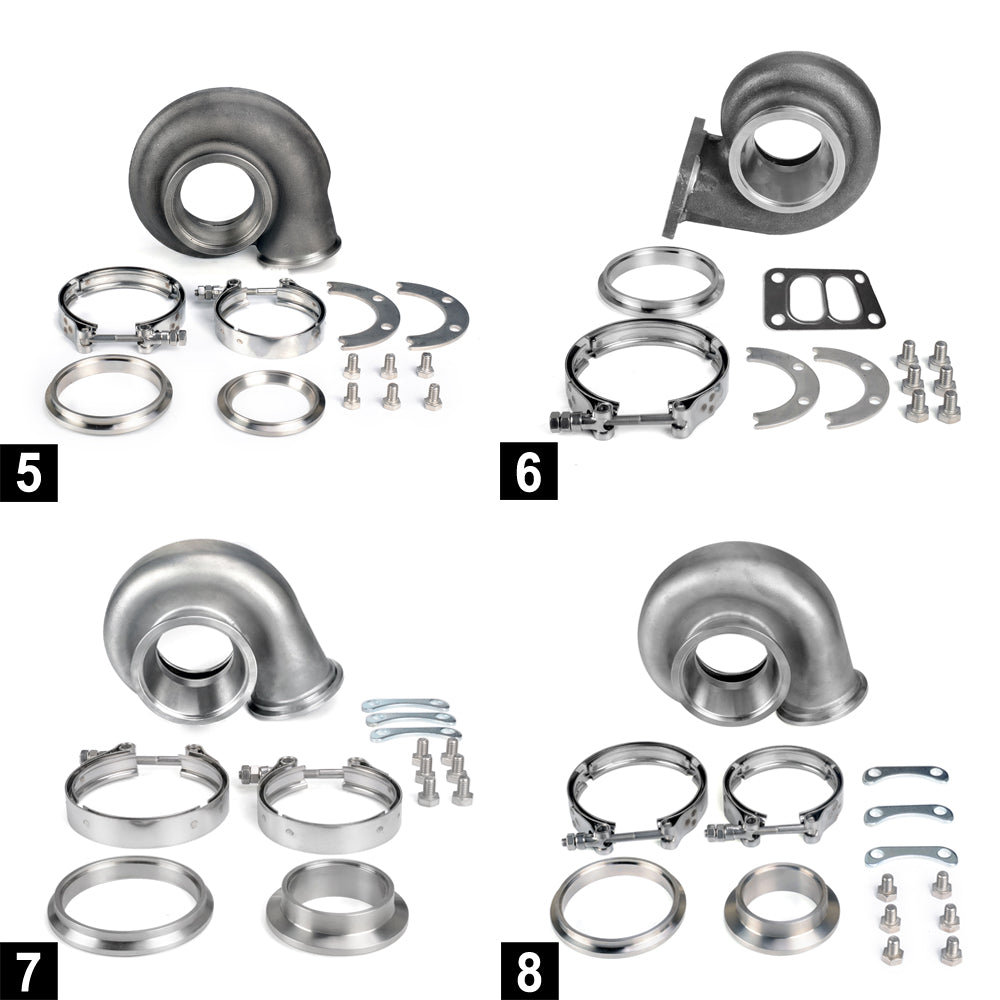

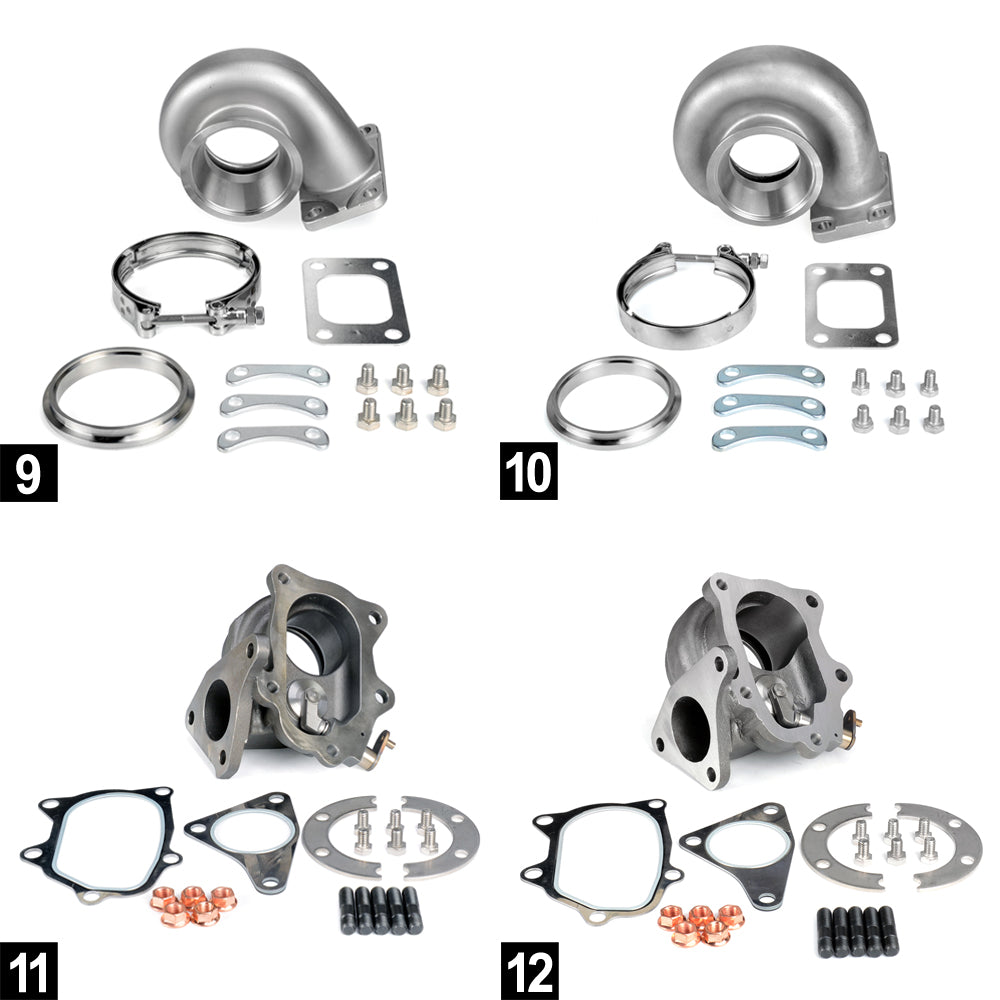

Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.

*** ZAGE can ship worldwide with no minimum order quantity. ***



Number

Product

A/R

Inlet

Outlet

Wastegate

Divided

Pic

1GTBH-F01ZG62-0200

Turbo Housing

1.06

T3

5 Bolt

Wastegated

No

1

1GTBH-GA11ZG62-0100

Turbo Housing

1.01

T3

V-Band

Free Float

Yes

6

1GTBH-UN506362-0100

Turbo Housing

0.63

V-Band

V-Band

Free Float

No

7

1GTBH-UN508262-0100

Turbo Housing

0.82

V-Band

V-Band

Free Float

No

8

1GTBH-UN510662-0100

Turbo Housing

1.06

V-Band

V-Band

Free Float

No

8

1GTBH-UN606362-0100

Turbo Housing

0.63

T3

V-Band

Free Float

No

9

1GTBH-UN608262-0100

Turbo Housing

0.82

T3

V-Band

Free Float

No

10

1GTBH-UN610662-0100

Turbo Housing

1.06

T3

V-Band

Free Float

No

10

1GTBH-SU5ZG62-0100

Turbo Housing

10cm2

SUBARU

SUBARU

Wastegated

No

11

1GTBH-SU7ZG62-0100

Turbo Housing

8cm2

SUBARU

SUBARU

Wastegated

No

12

1GTBH-GA3ZG62-0100

Turbo Housing

0.61

V-Band

V-Band

Free Float

Yes

2

1GTBH-GA4ZG62-0100

Turbo Housing

0.83

V-Band

V-Band

Free Float

Yes

3

1GTBH-GA5ZG62-0100

Turbo Housing

1.01

V-Band

V-Band

Free Float

Yes

3

1GTBH-GA6ZG62-0200

Turbo Housing

0.61

V-Band

V-Band

Free Float

No

4

1GTBH-GA7ZG62-0200

Turbo Housing

0.83

V-Band

V-Band

Free Float

No

5

1GTBH-GA8ZG62-0100

Turbo Housing

1.01

V-Band

V-Band

Free Float

No

5

1GTBH-GA9ZG62-0100

Turbo Housing

0.61

T3

V-Band

Free Float

Yes

6

1GTBH-GA10ZG62-0100

Turbo Housing

0.83

T3

V-Band

Free Float

Yes

6
