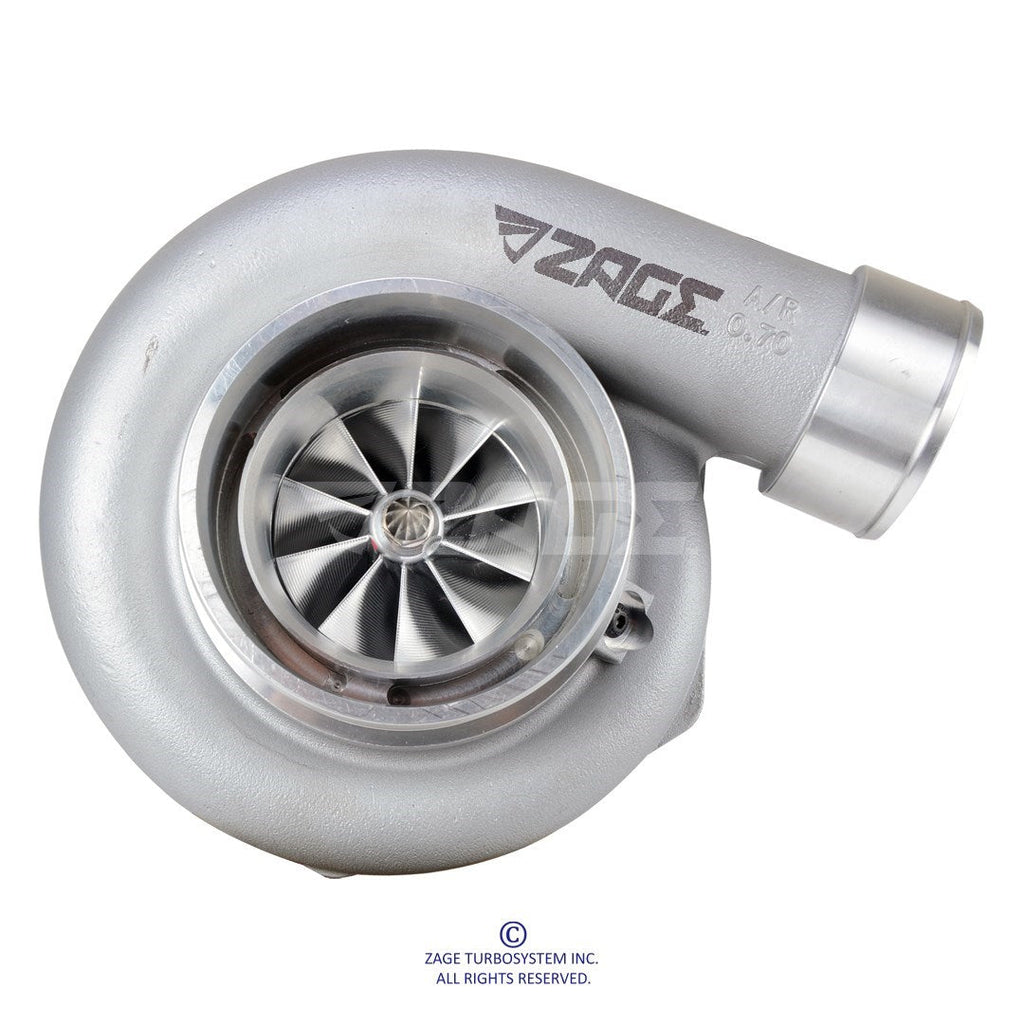

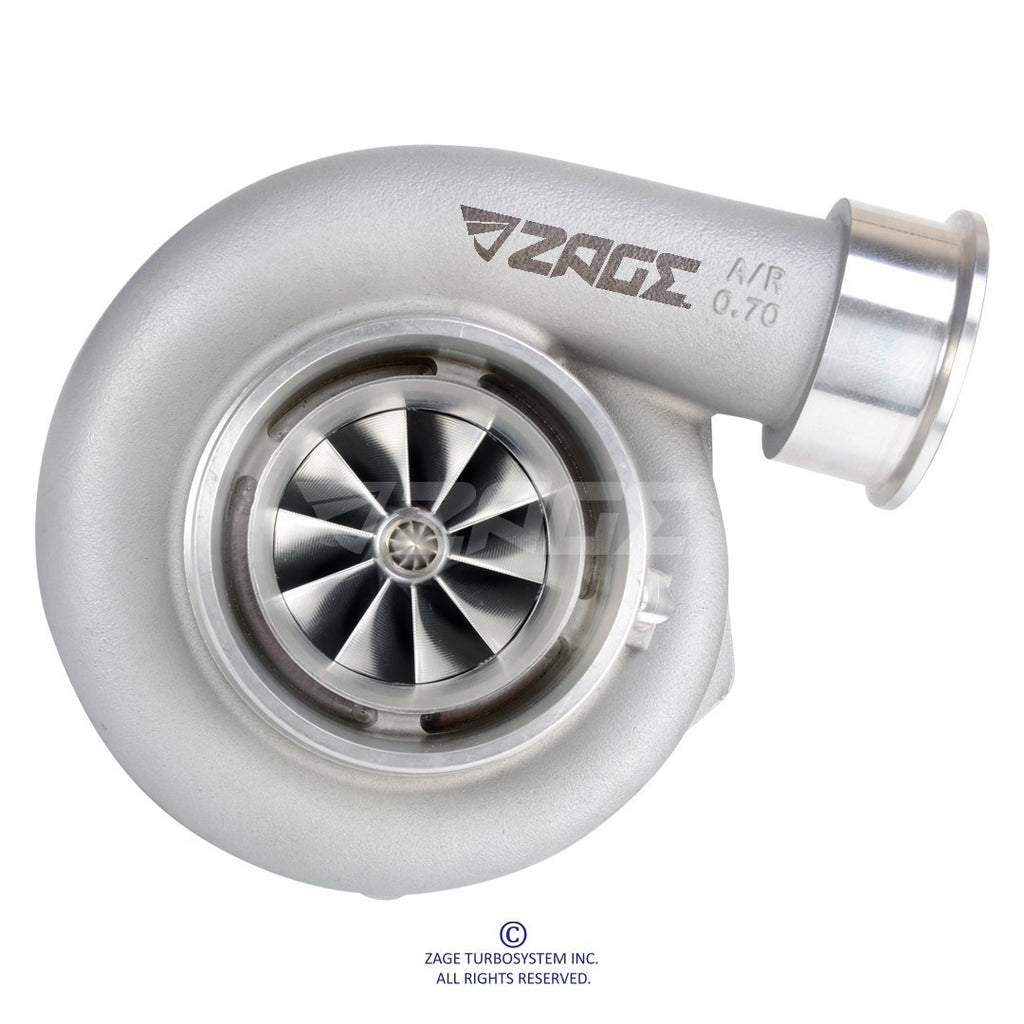

Supercore Part Number : 1ZUN8S-686700-A2



- Comp Wheel: 67/84mm

Trim: 64

A/R: 0.72



- Turbine Wheel: 68/62mm

Trim: 84



- Horsepower: 550-1000hp

- Displacement: : 2.0- 5.5L

- Bearing: Dual-row ceramic ball bearing



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.
Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.



● Scrollable Table for Turbo Housing Options:

Number Product A/R Inlet Outlet Wastegate Divided Pic

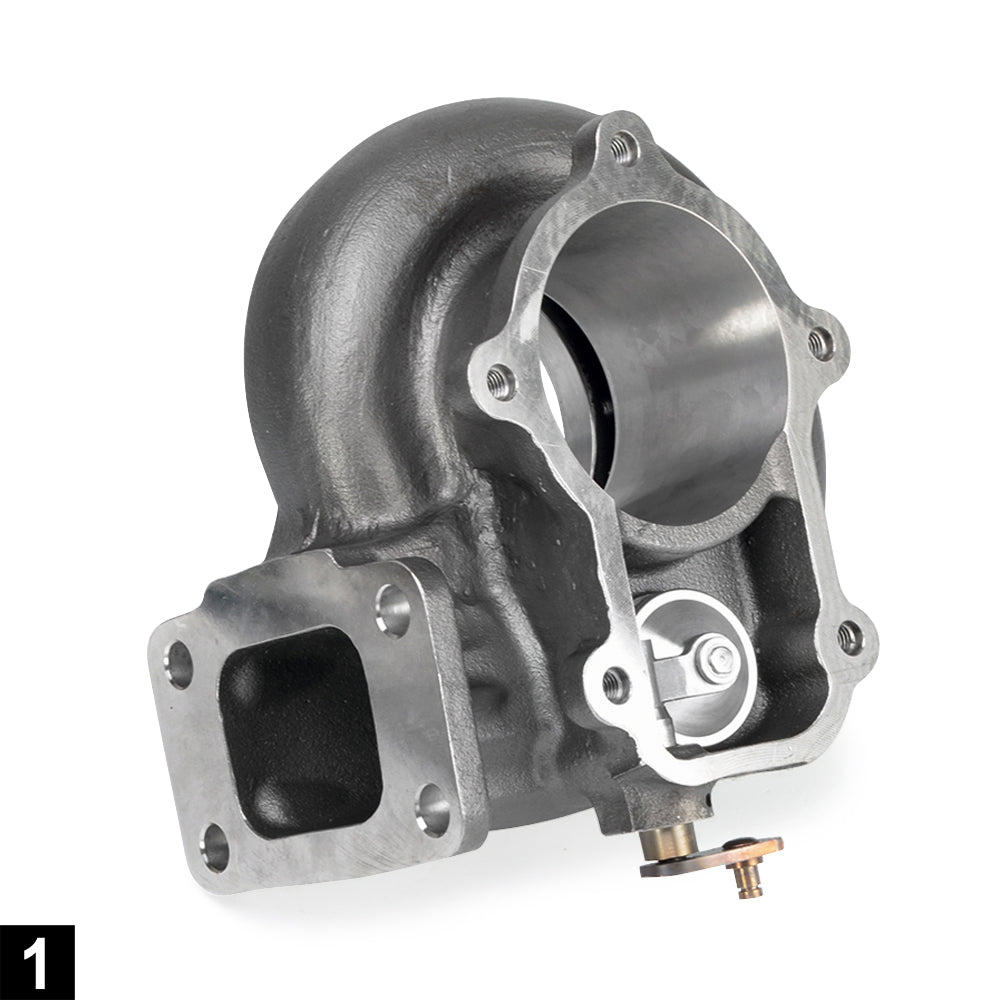

1GTBH-FO1ZG63-0100 Turbo Housing 1.06 T3 5 Bolt Wastegated No 1

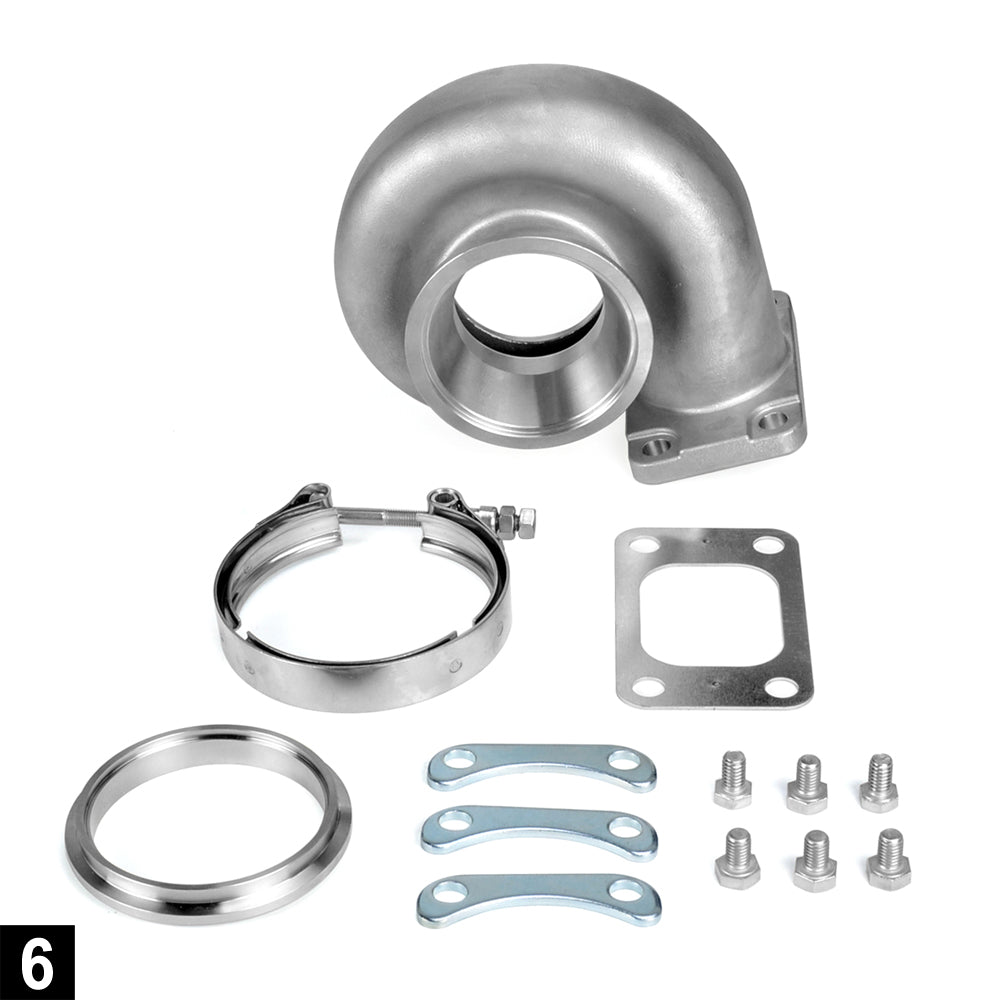

1GTBH-UN608263-0100 Turbo Housing 0.82 T3 V-Band Free Float No 6
1GTBH-UN610663-0100 Turbo Housing 1.06 T3 V-Band Free Float No 6

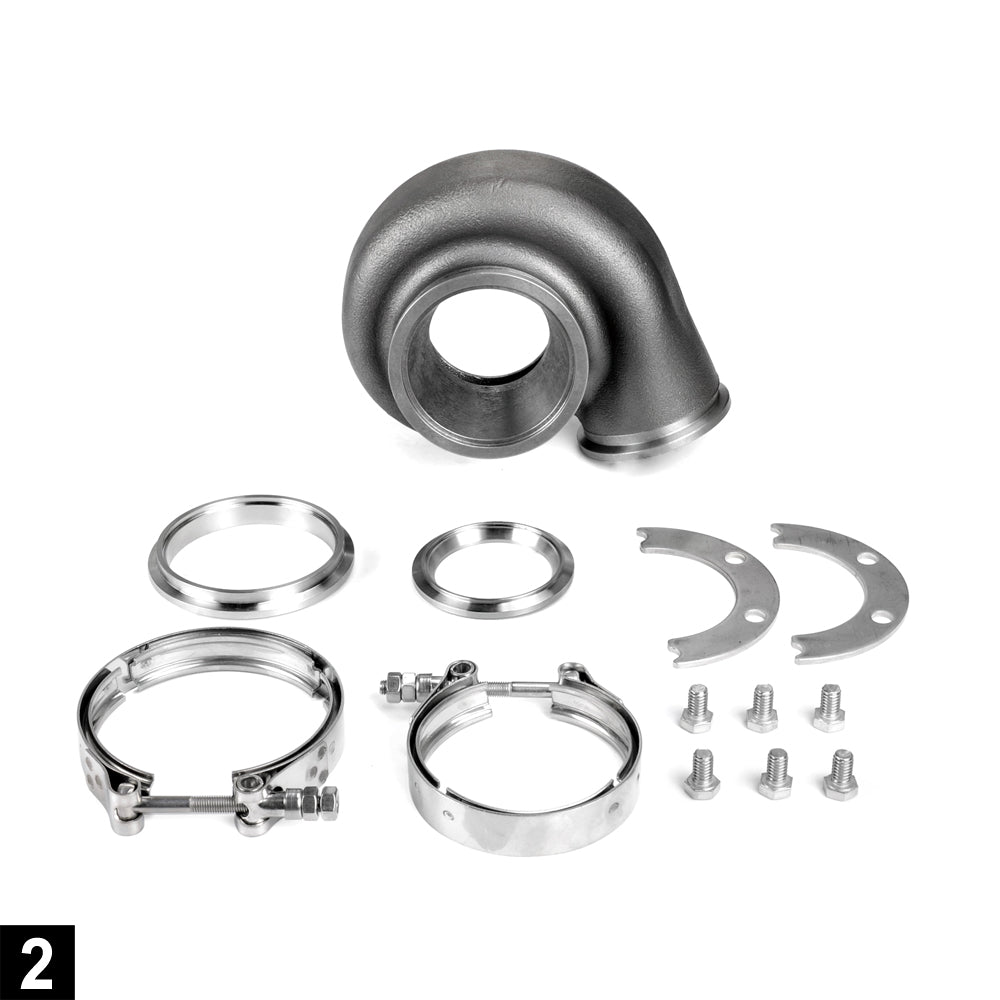

1GTBH-GA4ZG63-0100 Turbo Housing 0.83 V-Band V-Band Free Float Yes 2
1GTBH-GA5ZG63-0100 Turbo Housing 1.01 V-Band V-Band Free Float Yes 2

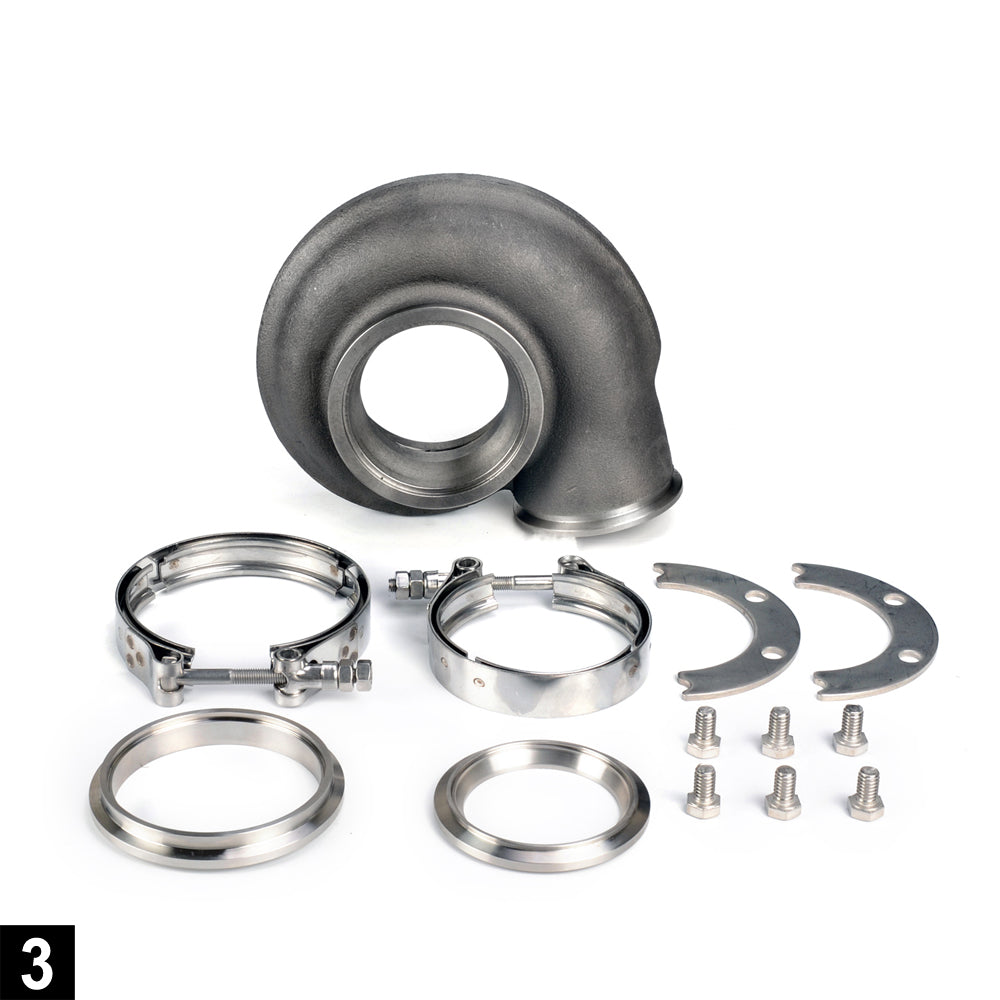

1GTBH-GA7ZG63-0100 Turbo Housing 0.83 V-Band V-Band Free Float No 3
1GTBH-GA8ZG63-0100 Turbo Housing 1.01 V-Band V-Band Free Float No 3

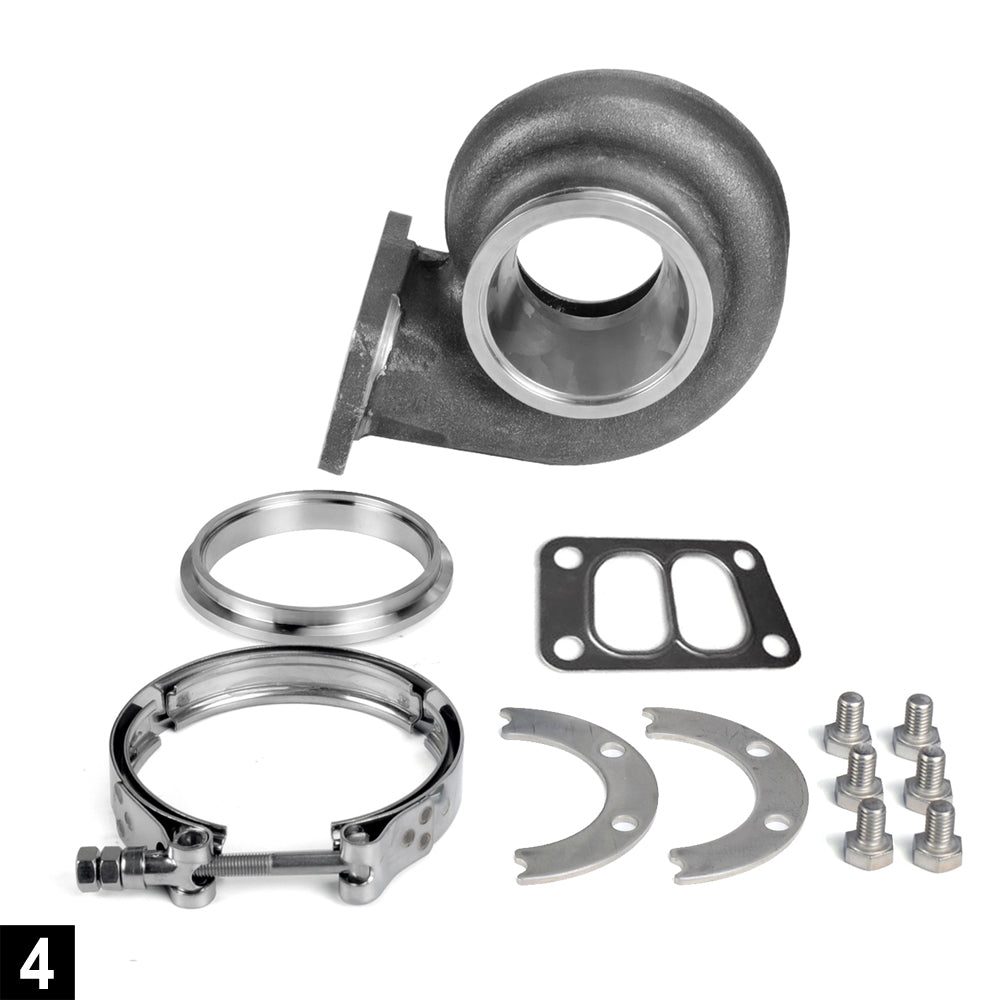

1GTBH-GA10ZG63-0100 Turbo Housing 0.83 T3 V-Band Free Float Yes 4
1GTBH-GA11ZG63-0100 Turbo Housing 1.01 T3 V-Band Free Float Yes 4

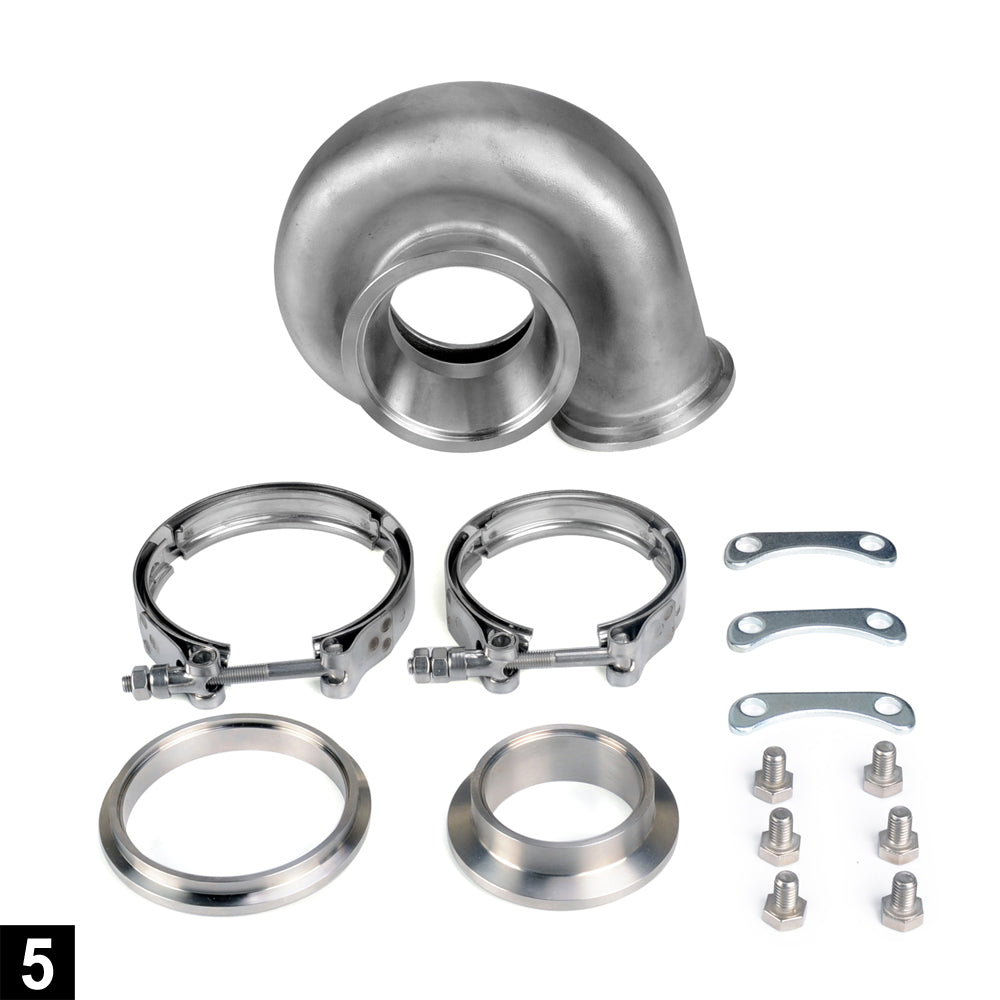

1GTBH-UN508263-0100 Turbo Housing 0.82 V-Band V-Band Free Float No 5
1GTBH-UN510663-0100 Turbo Housing 1.06 V-Band V-Band Free Float No 5



● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.

● ZAGE can ship worldwide with no minimum order quantity.

● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
