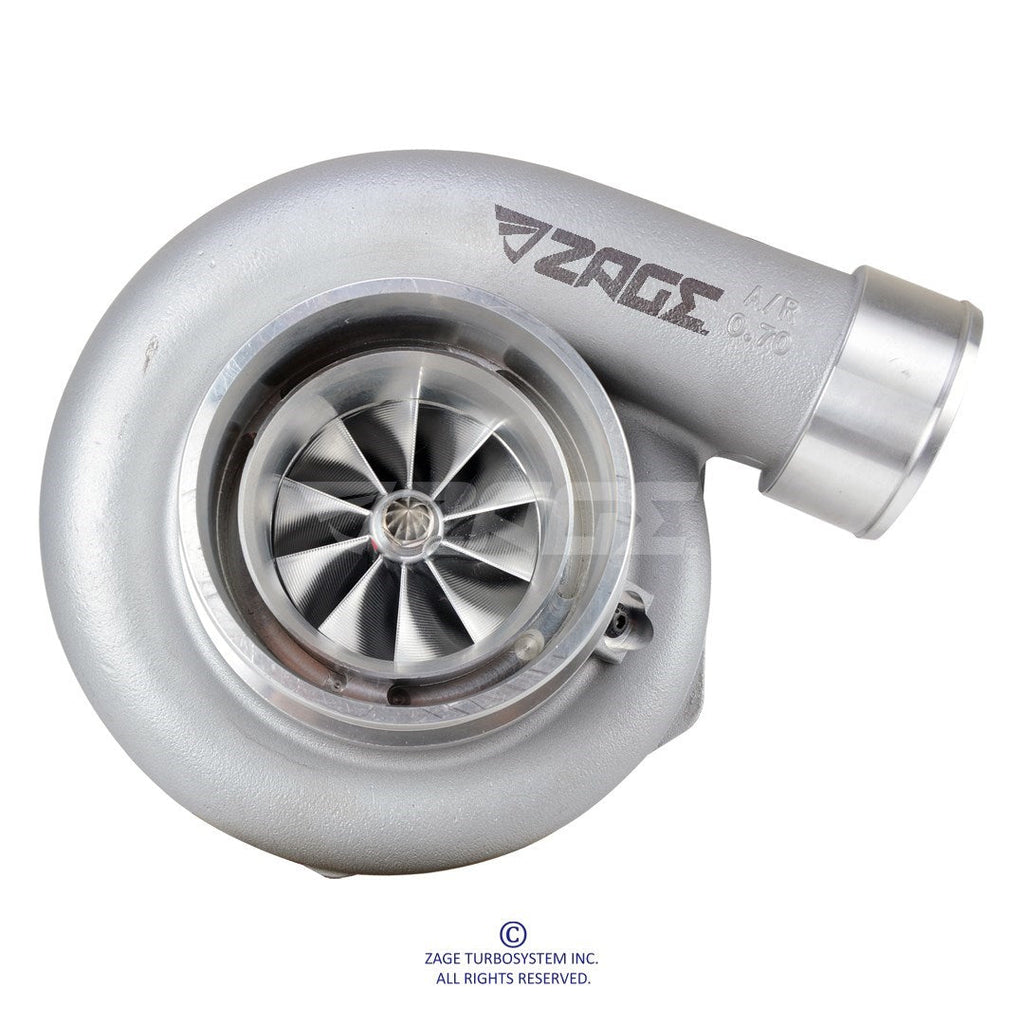

Supercore Part Number : 1ZUN8S-686500-A1



Comp Wheel: 66/82mm

Trim: 64

A/R: 0.70



Turbine Wheel: 68/62mm

Trim: 84



Horsepower: 450 - 850hp

Displacement: : 2.0- 4.5L



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.


Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
*** ZAGE can ship worldwide with no minimum order quantity. ***

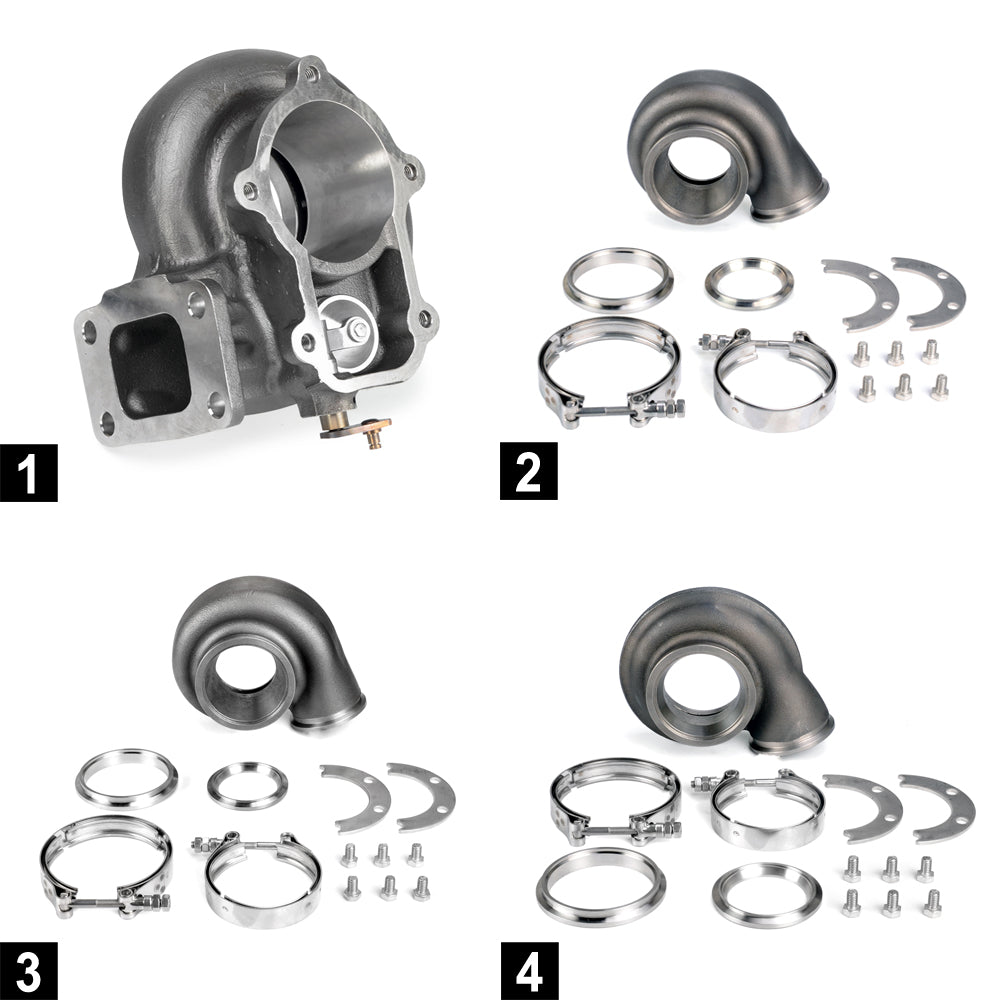

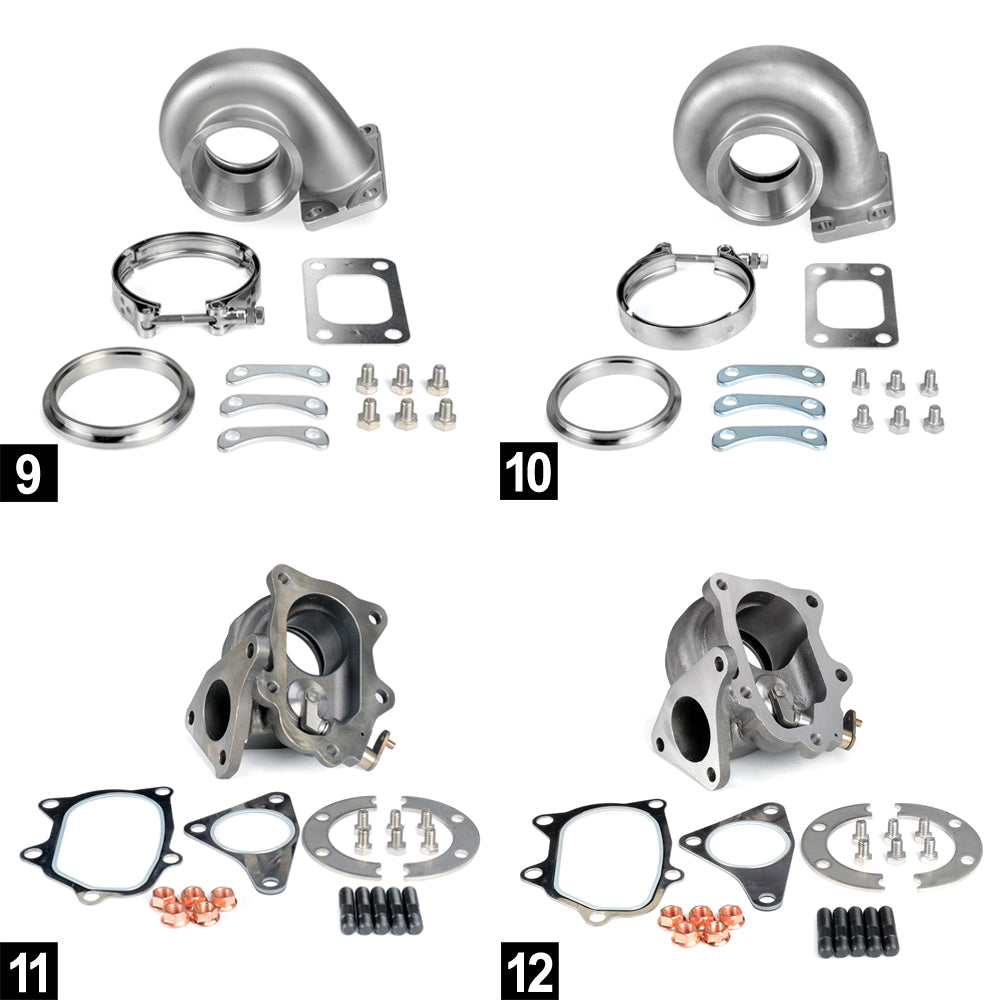

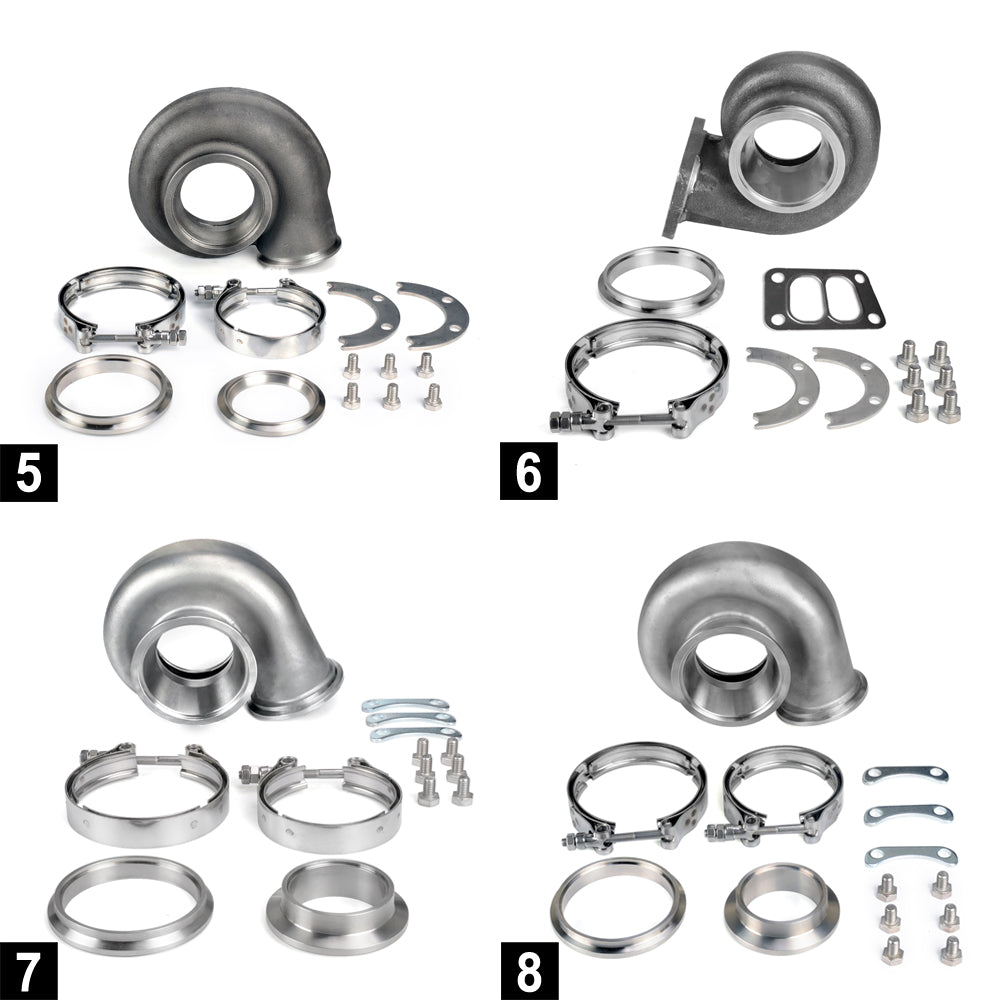

Number Product A/R Inlet Outlet Wastegate Divided Pic
1GTBH-F01ZG62-0200 Turbo Housing 1.06 T3 5 Bolt Wastegated No 1
1GTBH-GA11ZG62-0100 Turbo Housing 1.01 T3 V-Band Free Float Yes 6
1GTBH-UN506362-0100 Turbo Housing 0.63 V-Band V-Band Free Float No 7
1GTBH-UN508262-0100 Turbo Housing 0.82 V-Band V-Band Free Float No 8
1GTBH-UN510662-0100 Turbo Housing 1.06 V-Band V-Band Free Float No 8
1GTBH-UN606362-0100 Turbo Housing 0.63 T3 V-Band Free Float No 9
1GTBH-UN608262-0100 Turbo Housing 0.82 T3 V-Band Free Float No 10
1GTBH-UN610662-0100 Turbo Housing 1.06 T3 V-Band Free Float No 10
1GTBH-SU5ZG62-0100 Turbo Housing 10cm2 Subaru 5 Bolt Wastegated No 11
1GTBH-SU7ZG62-0100 Turbo Housing 8cm2 Subaru 5 Bolt Wastegated No 12
1GTBH-GA3ZG62-0100 Turbo Housing 0.61 V-Band V-Band Free Float Yes 2
1GTBH-GA4ZG62-0100 Turbo Housing 0.83 V-Band V-Band Free Float Yes 3
1GTBH-GA5ZG62-0100 Turbo Housing 1.01 V-Band V-Band Free Float Yes 3
1GTBH-GA6ZG62-0200 Turbo Housing 0.61 V-Band V-Band Free Float No 4
1GTBH-GA7ZG62-0200 Turbo Housing 0.83 V-Band V-Band Free Float No 5
1GTBH-GA8ZG62-0100 Turbo Housing 1.01 V-Band V-Band Free Float No 5
1GTBH-GA9ZG62-0100 Turbo Housing 0.61 T3 V-Band Free Float Yes 6
1GTBH-GA10ZG62-0100 Turbo Housing 0.83 T3 V-Band Free Float Yes 6
