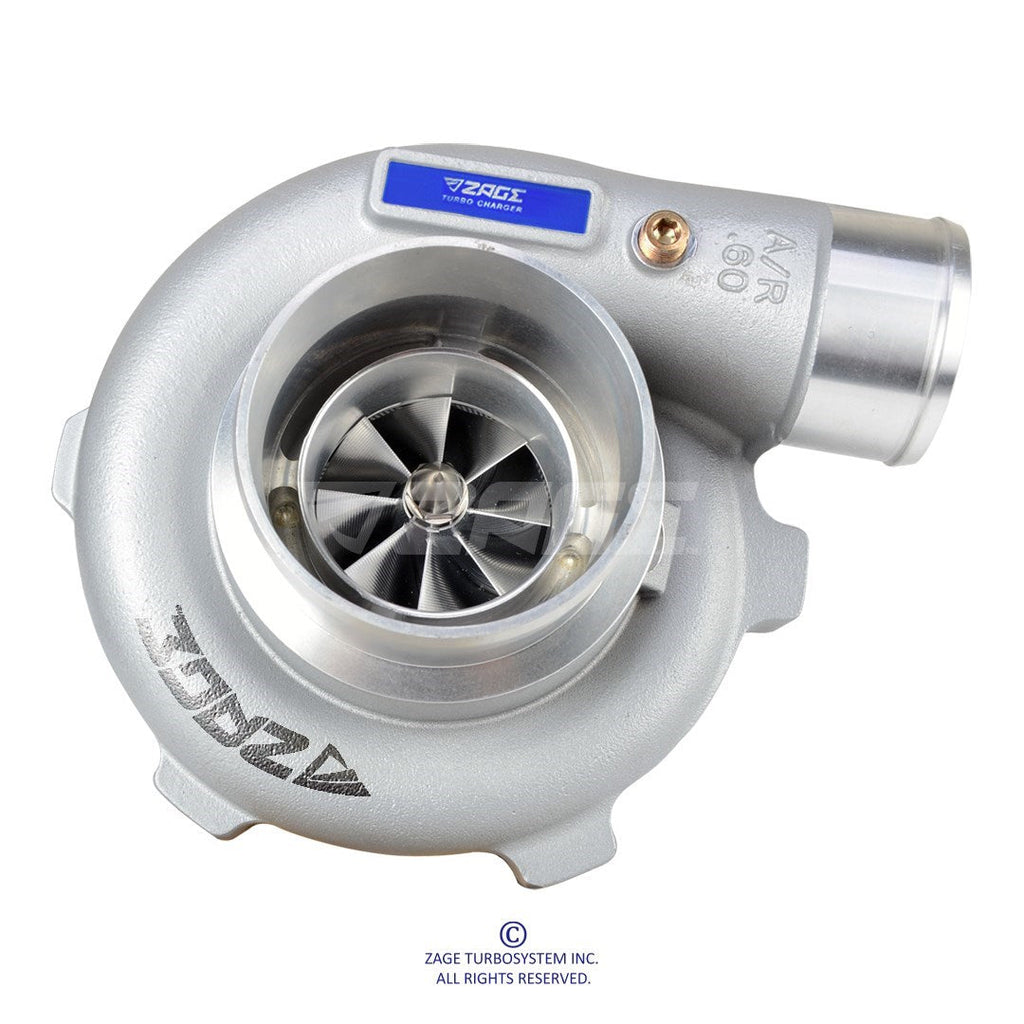

Supercore Part Number : 1ZUN8S-535000-A1



Comp Wheel: 50/67mm

Trim: 55

A/R: 0.60



Turbine Wheel: 54/47mm

Trim: 76



Horsepower: 275 - 550hp

Displacement: : 1.4- 2.5L



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator


Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
*** ZAGE can ship worldwide with no minimum order quantity. ***


Number Product A/R Inlet Outlet Wastegate Divided Pic

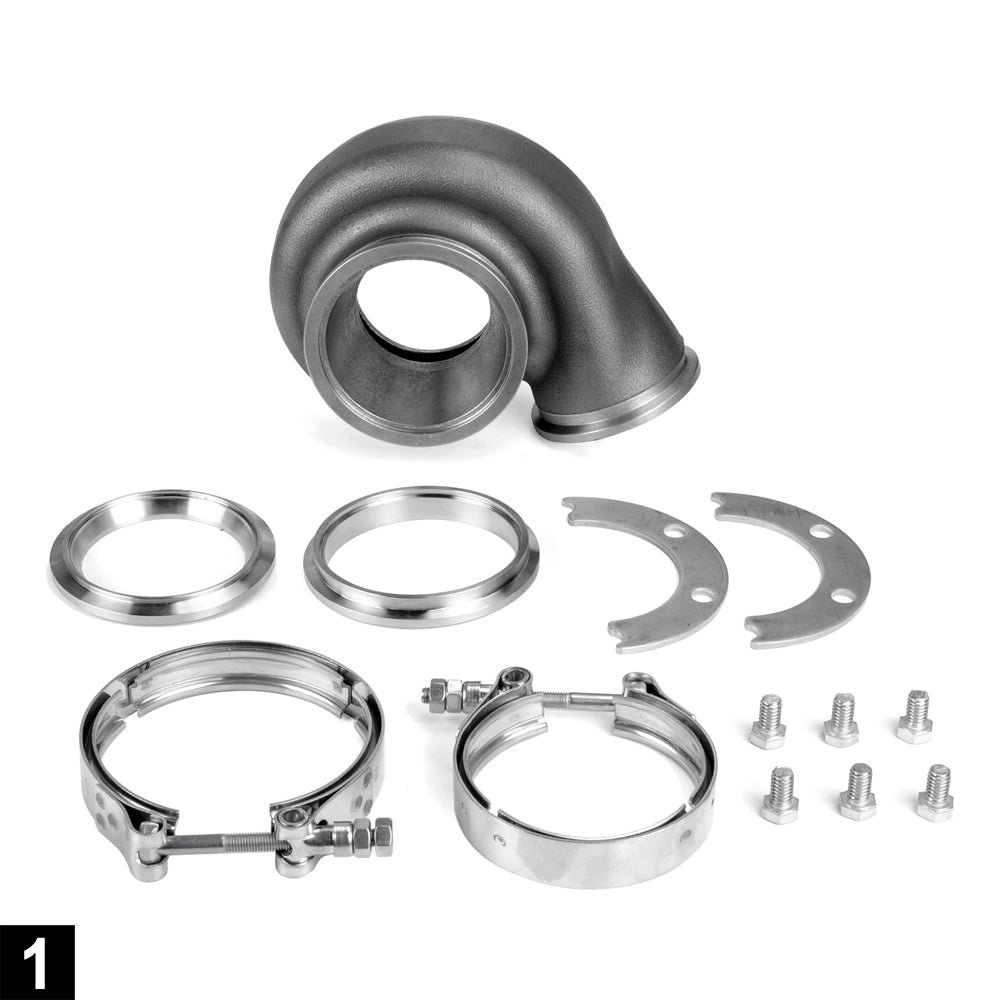

1GTBH-GA1ZG47-0101 Turbo Housing 0.57 V-Band V-Band Free Float No 1
1GTBH-GA2ZG47-0101 Turbo Housing 0.72 V-Band V-Band Free Float No 1

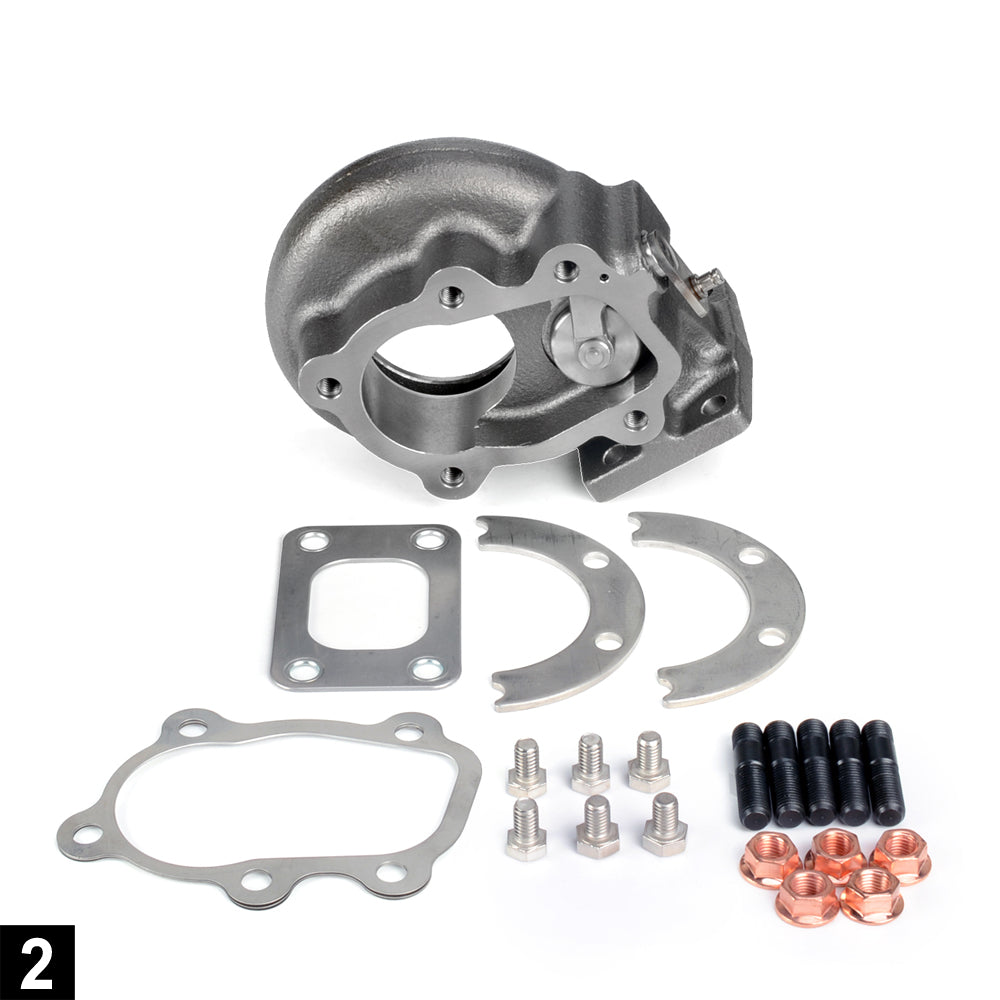

1GTBH-NI5ZG47-0101 Turbo Housing 0.64 T25 5 Bolt Wastegated No 2

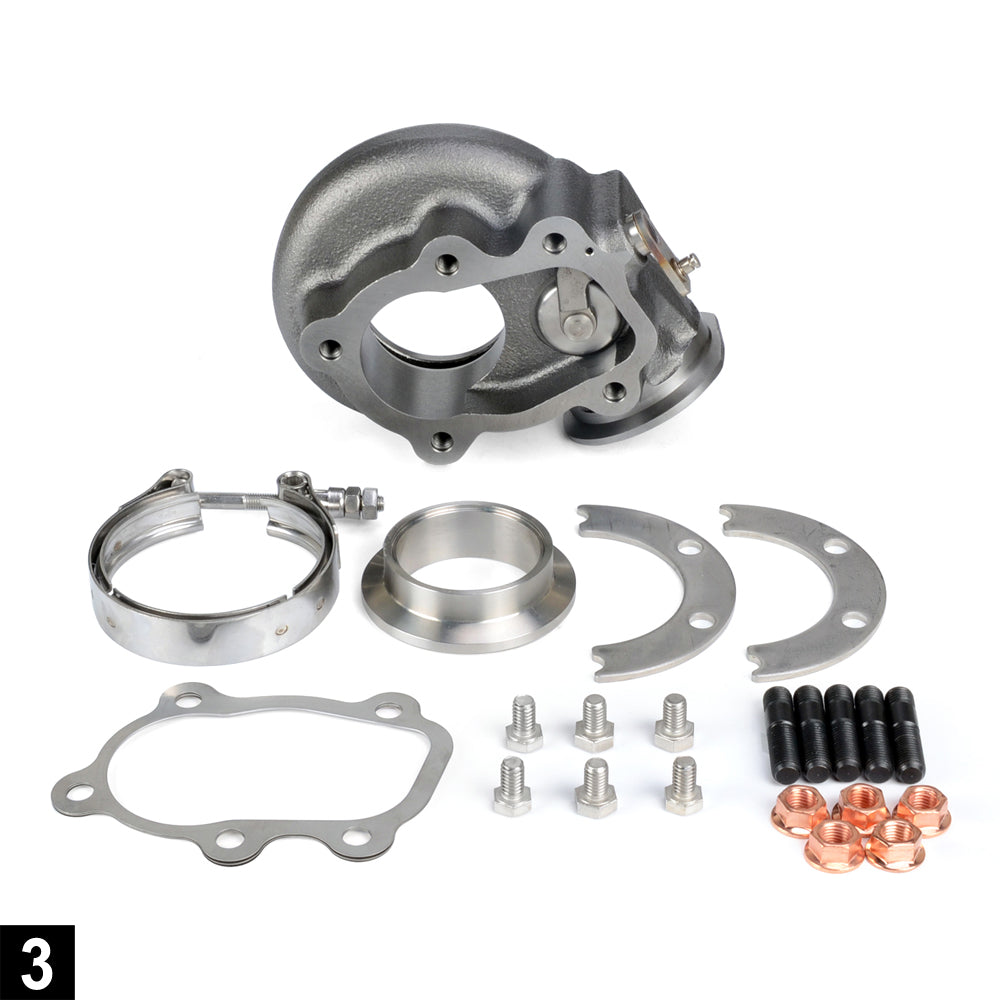

1GTBH-NI5ZG47-0201 Turbo Housing 0.64 V-Band 5 Bolt Wastegated No 3
1GTBH-NI8ZG47-0100 Turbo Housing 0.57 T25 5 Bolt Wastegated No 2
1GTBH-NI8ZG47-0200 Turbo Housing 0.57 V-Band 5 Bolt Wastegated No 3

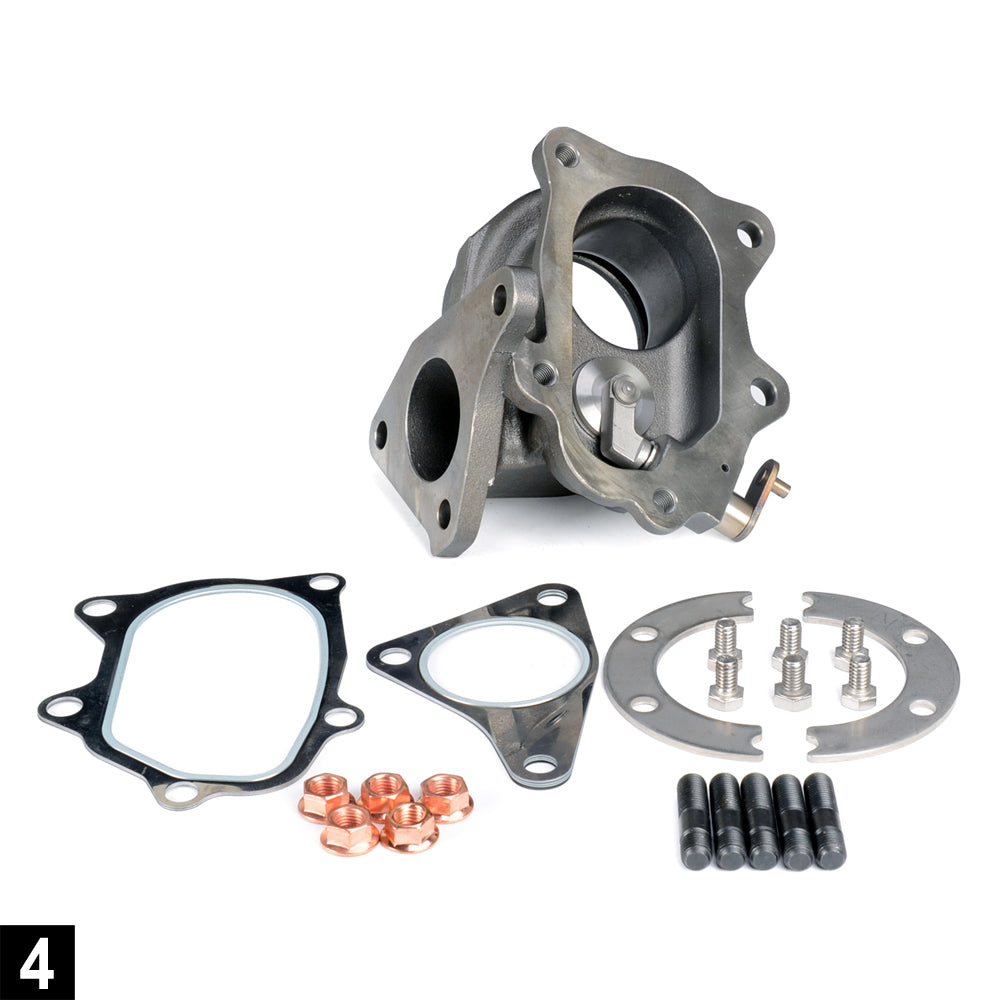

1GTBH-SU1ZG47-0100 Turbo Housing 7cm2 Subaru 5 Bolt Wastegated No 4

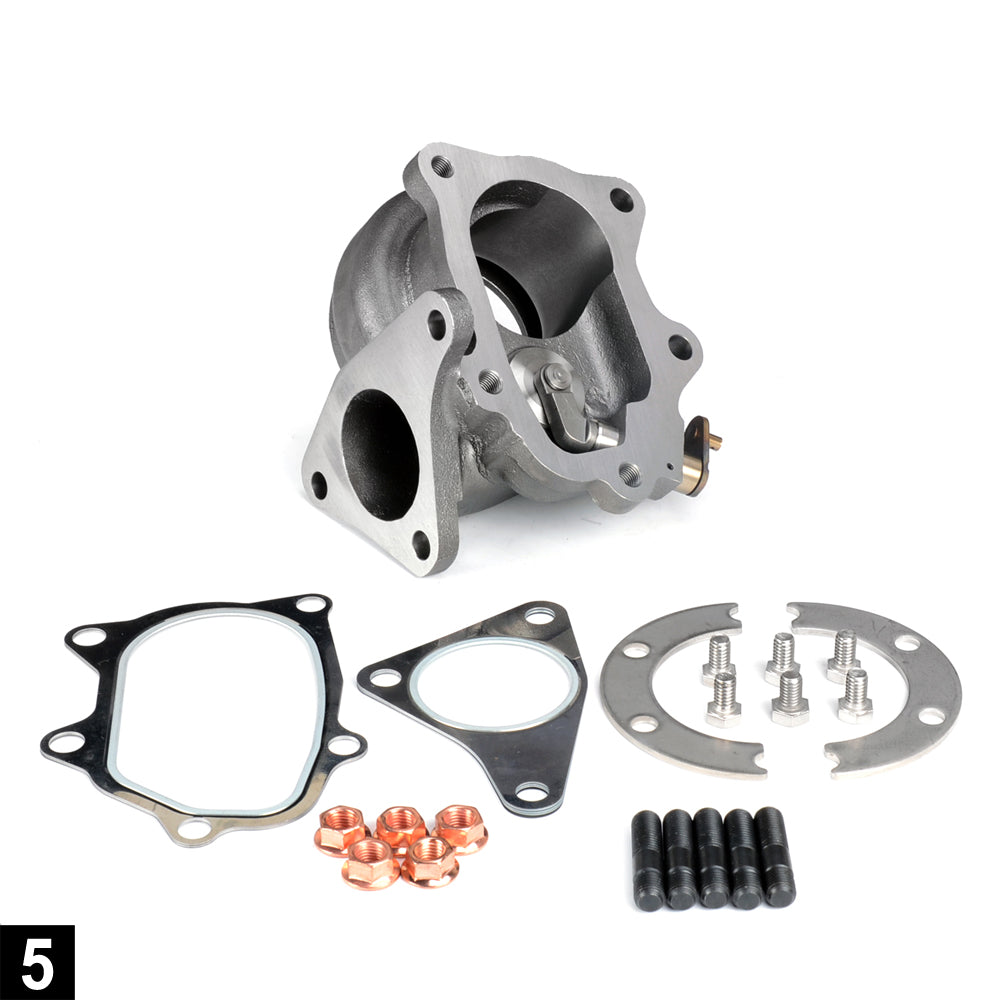

1GTBH-SU3ZG47-0100 Turbo Housing 8cm2 Subaru 5 Bolt Wastegated No 5
