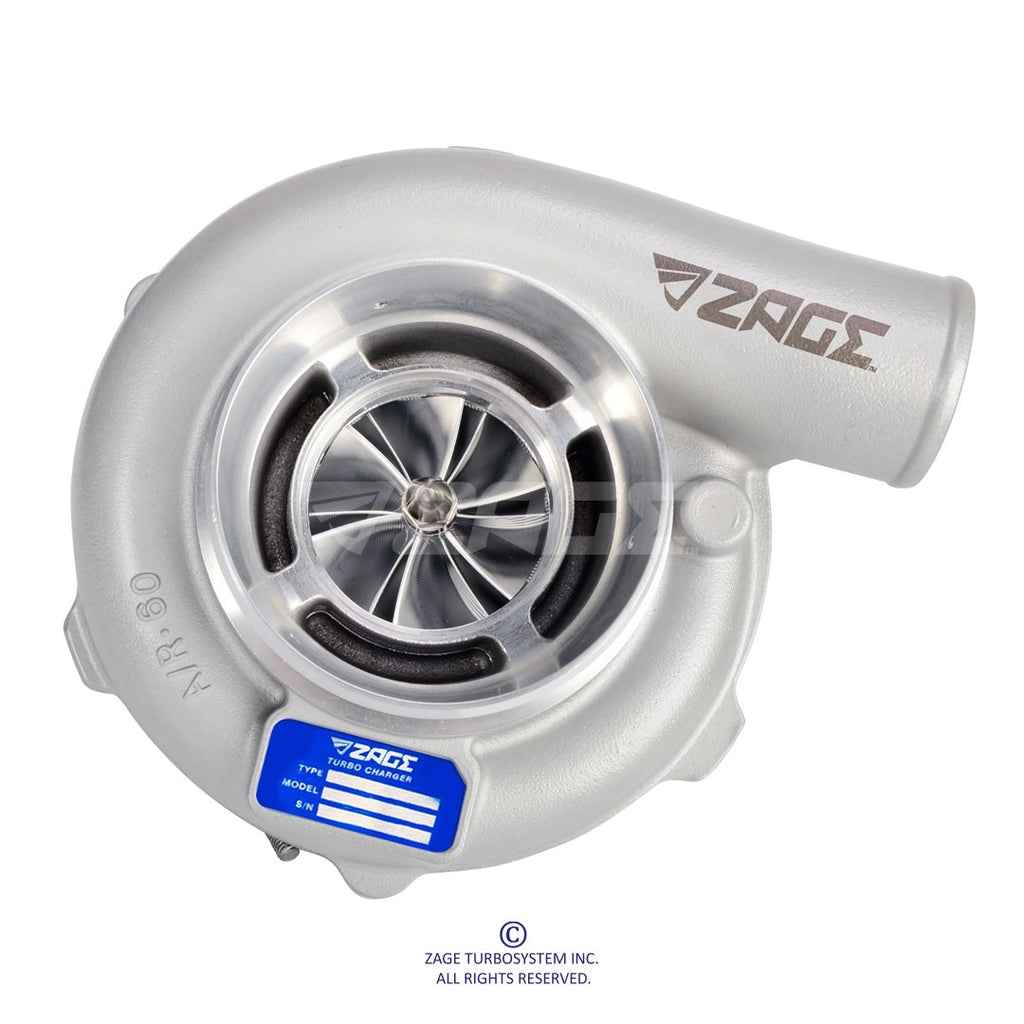

Supercore Part Number: 1ZUN8S-595700-A2
- Comp Wheel: 57/76mm
Trim: 56
A/R: 0.60
- Turbine Wheel: 60/55mm
Trim: 84
- Horsepower: 310 - 525hp
- Displacement: 2.0- 3.5L
- Bearing: Dual-row ceramic ball bearing
The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.
Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
● Scrollable Table for Turbo Configurations:

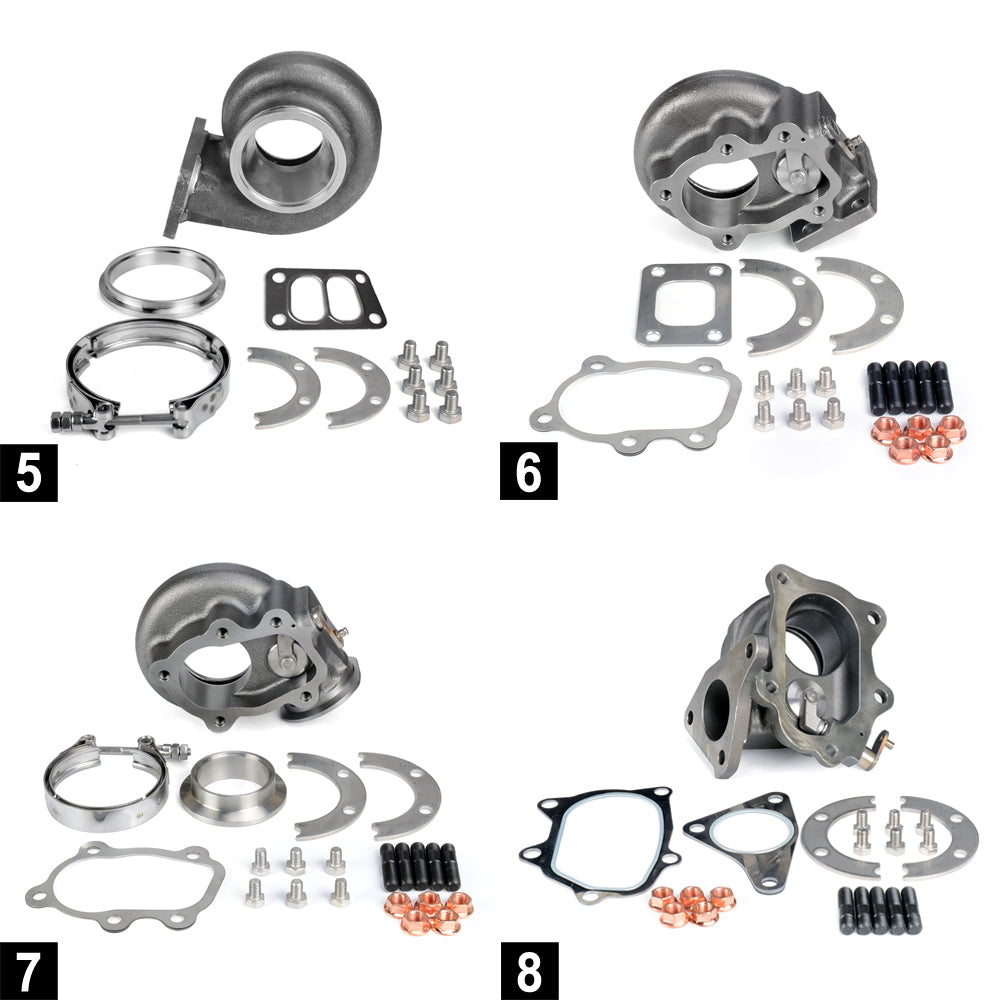

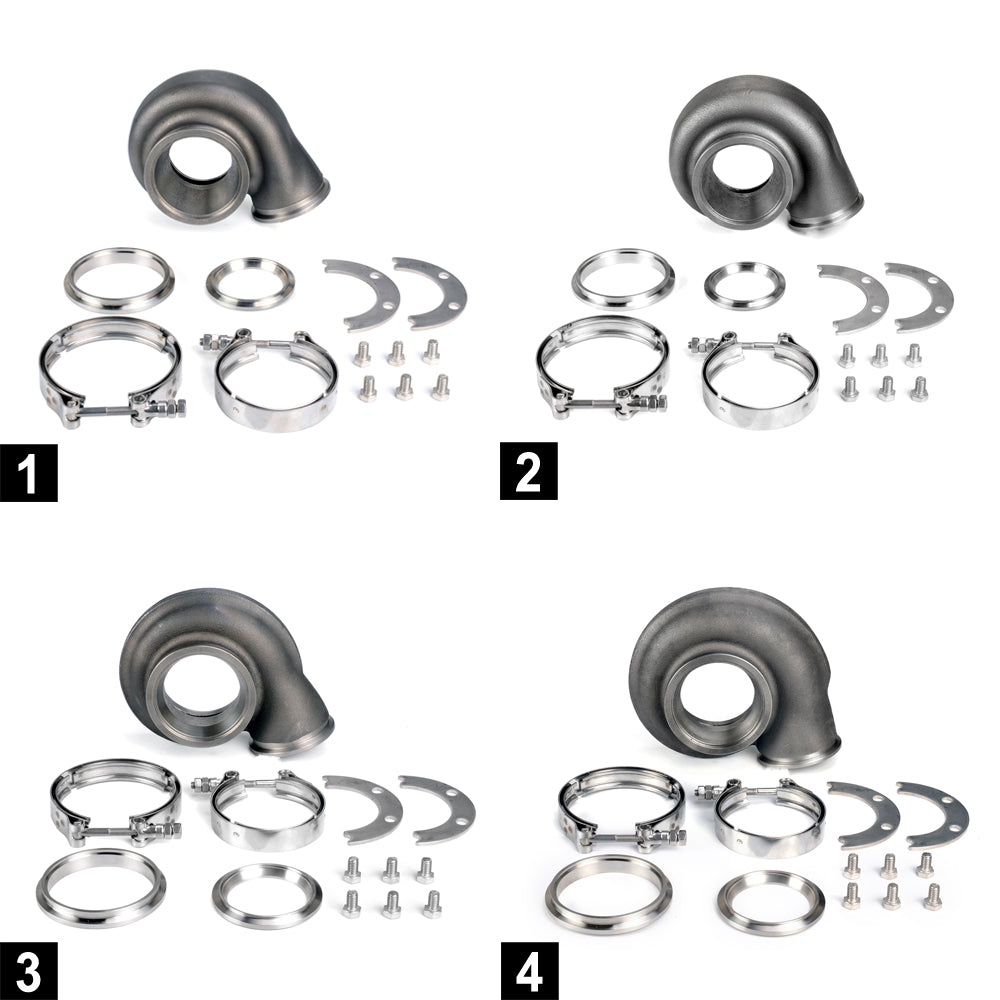

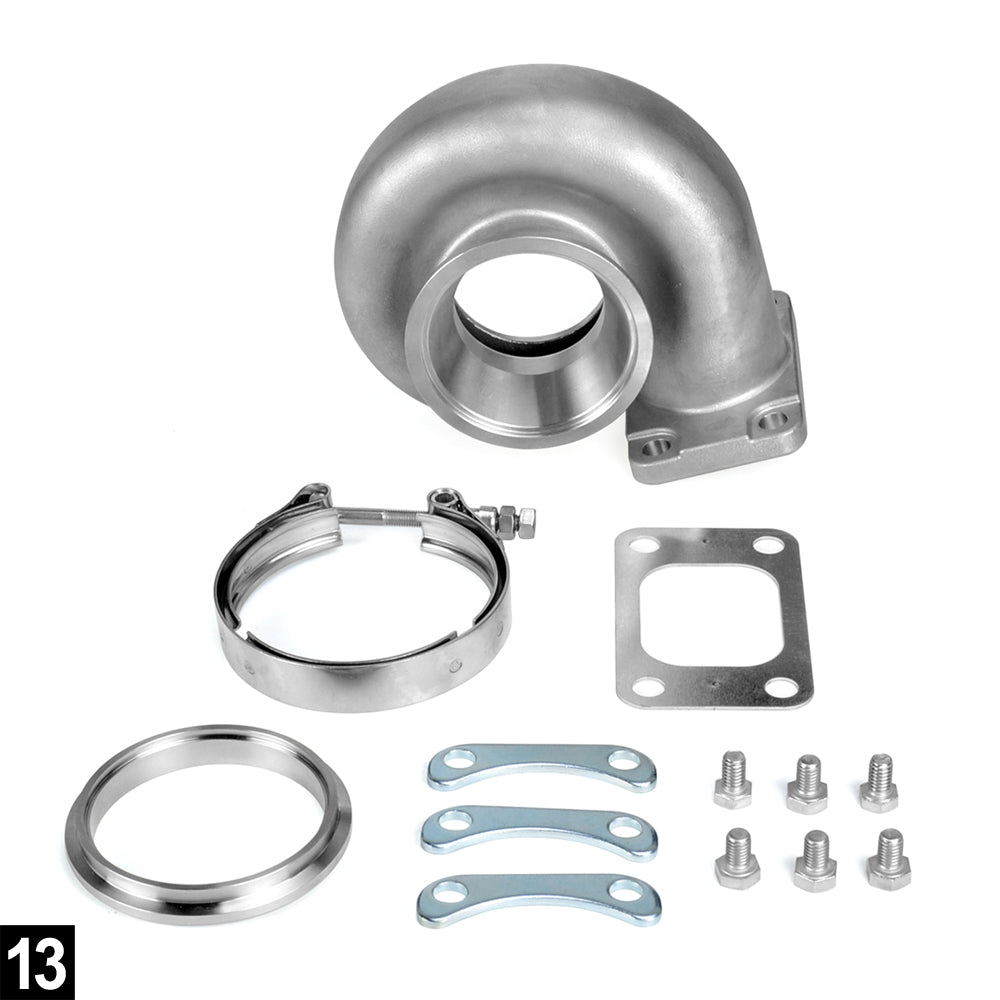

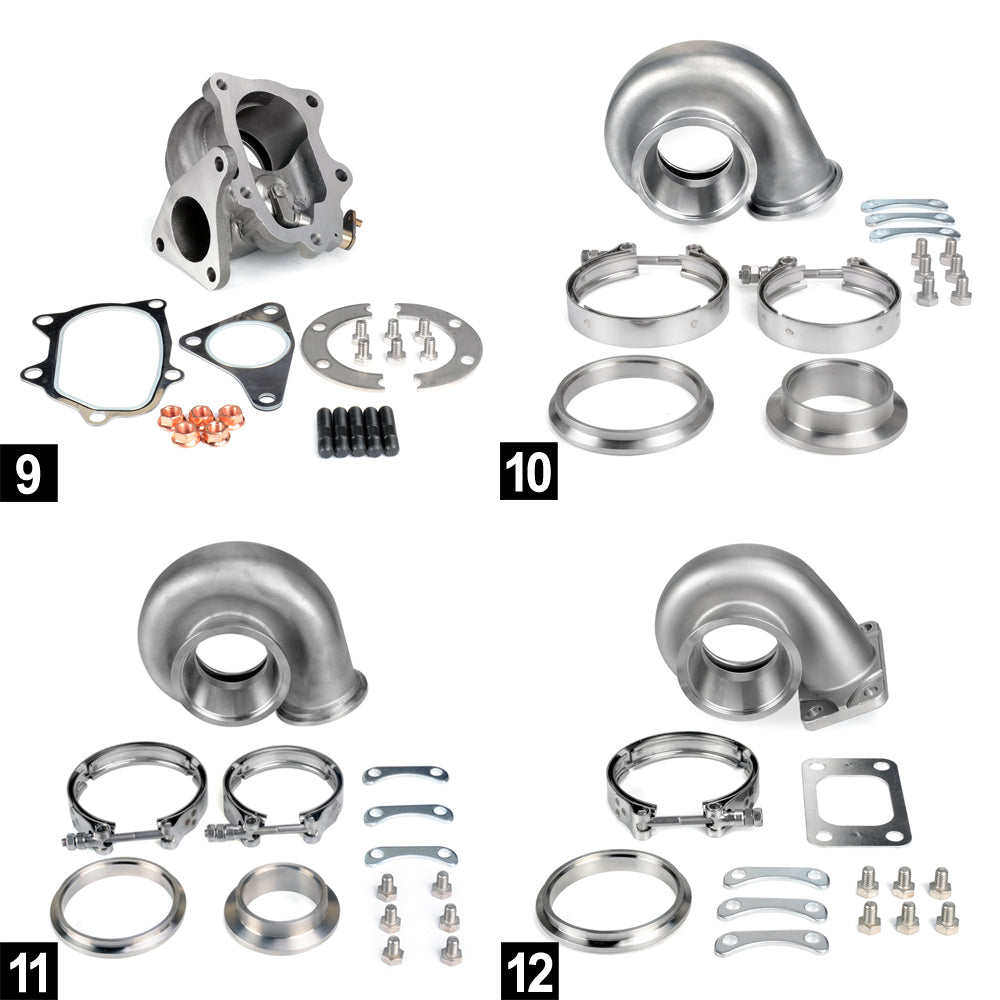

| Number | Product | A/R | Inlet | Outlet | Wastegate | Divided | Pic |
|---|---|---|---|---|---|---|---|
| 1GTBH-GA3ZG55-0100 | Turbo Housing | 0.61 | V-Band | V-Band | Free Float | Yes | 1 |
| 1GTBH-NI5ZG55-0102 | Turbo Housing | 0.64 | T25 | 5 Bolt | Wastegated | No | 6 |
| 1GTBH-NI5ZG55-0201 | Turbo Housing | 0.64 | 5 Bolt | 5 Bolt | Wastegated | No | 7 |
| 1GTBH-SU1ZG55-0100 | Turbo Housing | 7cm2 | SUBARU | SUBARU | Wastegated | No | 8 |
| 1GTBH-SU5ZG55-0100 | Turbo Housing | 10cm2 | SUBARU | SUBARU | Wastegated | No | 8 |
| 1GTBH-SU7ZG55-0100 | Turbo Housing | 8cm2 | SUBARU | SUBARU | Wastegated | No | 9 |
| 1GTBH-UN506355-0100 | Turbo Housing | 0.63 | V-Band | V-Band | Free Float | No | 10 |
| 1GTBH-UN508255-0101 | Turbo Housing | 0.82 | V-Band | V-Band | Free Float | No | 11 |
| 1GTBH-UN510655-0101 | Turbo Housing | 1.06 | V-Band | V-Band | Free Float | No | 11 |
| 1GTBH-UN606355-0100 | Turbo Housing | 0.63 | T3 | V-Band | Free Float | No | 12 |
| 1GTBH-UN608255-0100 | Turbo Housing | 0.82 | T3 | V-Band | Free Float | No | 13 |
| 1GTBH-GA4ZG55-0100 | Turbo Housing | 0.83 | V-Band | V-Band | Free Float | Yes | 2 |
| 1GTBH-UN610655-0100 | Turbo Housing | 1.06 | T3 | V-Band | Free Float | No | 13 |
| 1GTBH-GA5ZG55-0100 | Turbo Housing | 1.01 | V-Band | V-Band | Free Float | Yes | 2 |
| 1GTBH-GA6ZG55-0100 | Turbo Housing | 0.61 | V-Band | V-Band | Free Float | No | 3 |
| 1GTBH-GA7ZG55-0100 | Turbo Housing | 0.83 | V-Band | V-Band | Free Float | No | 4 |
| 1GTBH-GA8ZG55-0100 | Turbo Housing | 1.01 | V-Band | V-Band | Free Float | No | 4 |
| 1GTBH-GA9ZG55-0100 | Turbo Housing | 0.61 | T3 | V-Band | Free Float | Yes | 5 |
| 1GTBH-GA10ZG55-0100 | Turbo Housing | 0.83 | T3 | V-Band | Free Float | Yes | 5 |
| 1GTBH-GA11ZG55-0100 | Turbo Housing | 1.01 | T3 | V-Band | Free Float | Yes | 5 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
