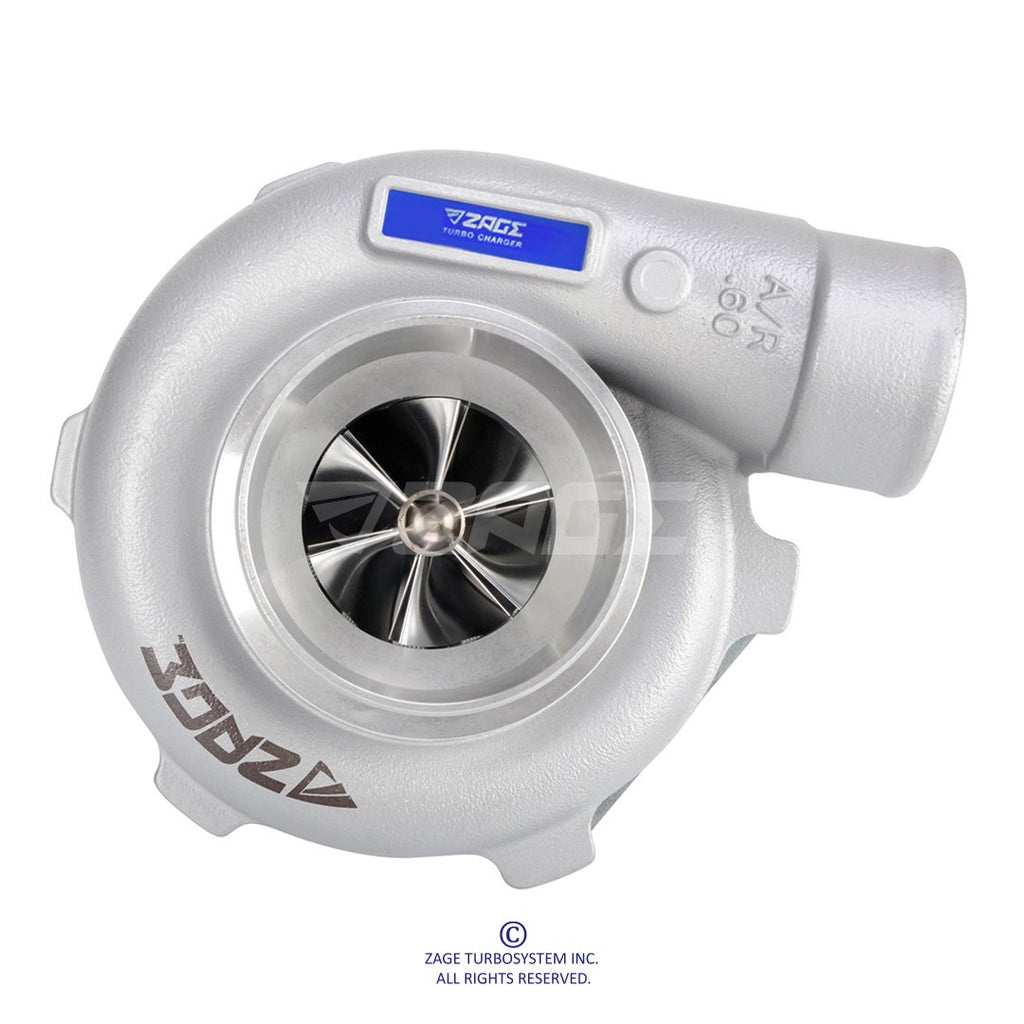

Supercore Part Number: 1ZUN8S-535300-A2


- Comp Wheel: 53/71mm

Trim: 56

A/R: 0.60



- Turbine Wheel: 54/47mm

Trim: 76



- Horsepower: 280 - 475hp

- Displacement: 1.8- 3.0L

- Bearing: Dual-row ceramic ball bearing



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.

Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.



● Scrollable Table for Turbo Housing Options:

Number Product A/R Inlet Outlet Wastegate Divided Pic

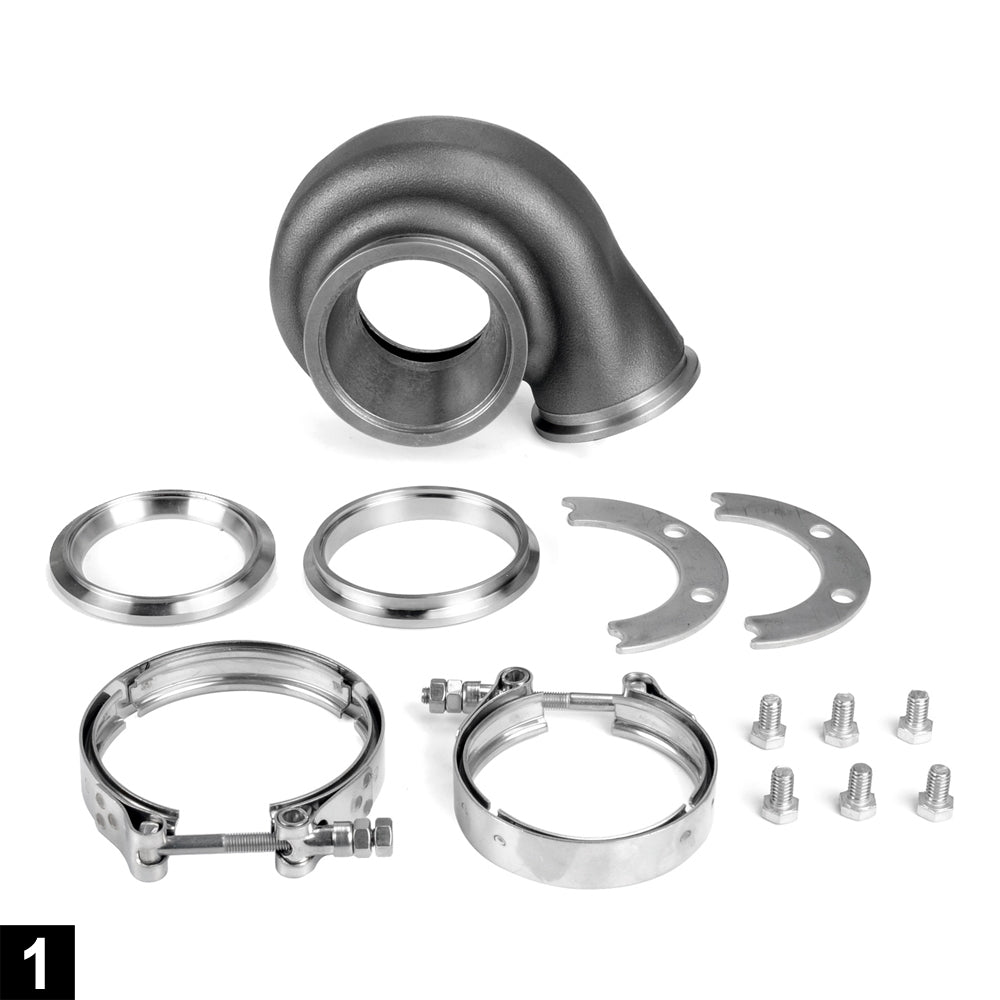

1GTBH-GA1ZG47-0101 Turbo Housing 0.57 V-Band V-Band Free Float No 1
1GTBH-GA2ZG47-0101 Turbo Housing 0.72 V-Band V-Band Free Float No 1

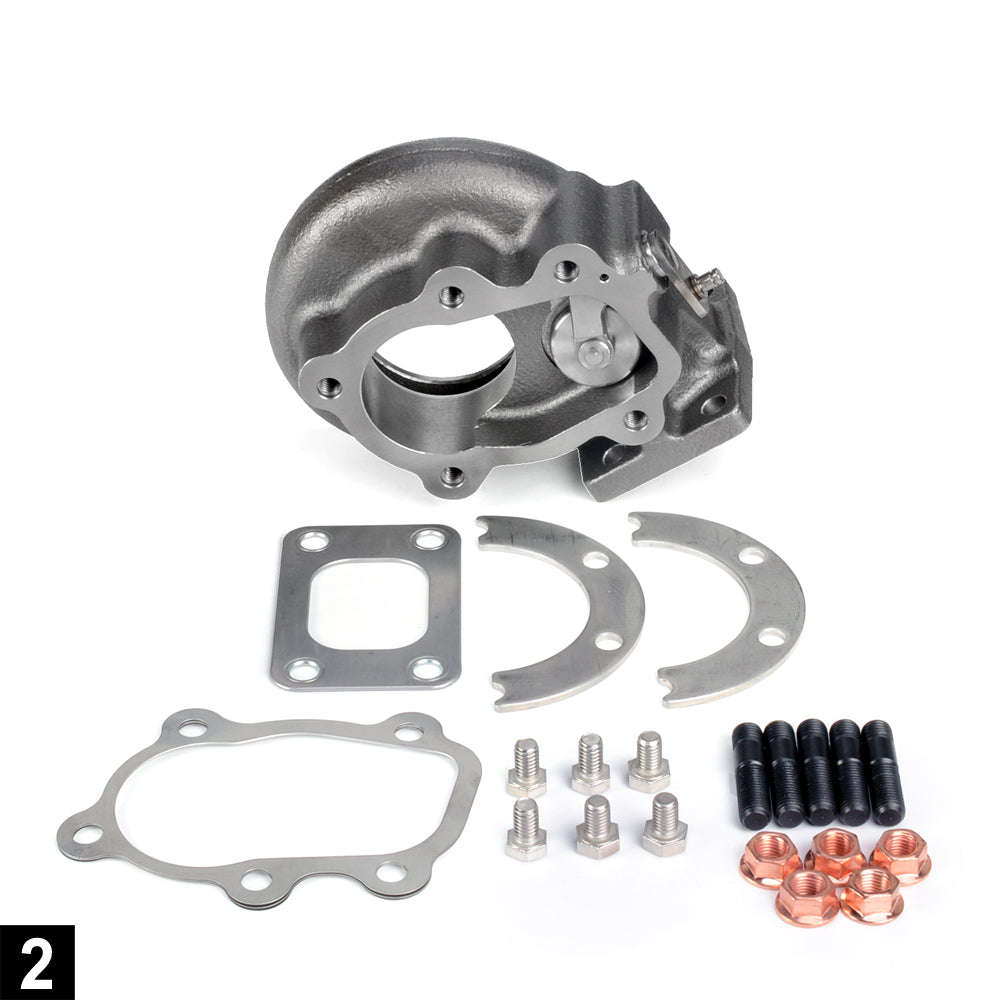

1GTBH-NI5ZG47-0101 Turbo Housing 0.64 T25 5 Bolt Wastegated No 2

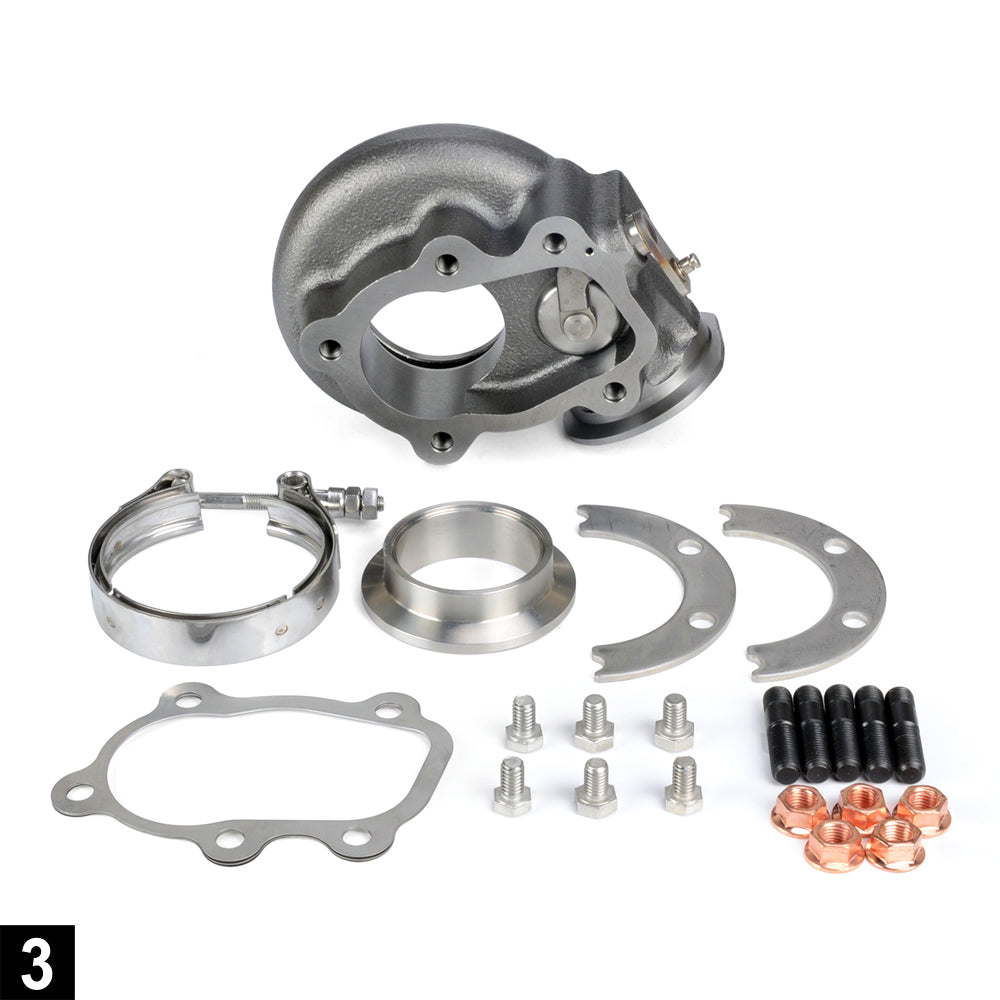

1GTBH-NI5ZG47-0201 Turbo Housing 0.64 V-Band 5 Bolt Wastegated No 3
1GTBH-NI8ZG47-0100 Turbo Housing 0.57 T25 5 Bolt Wastegated No 2
1GTBH-NI8ZG47-0200 Turbo Housing 0.57 V-Band 5 Bolt Wastegated No 3

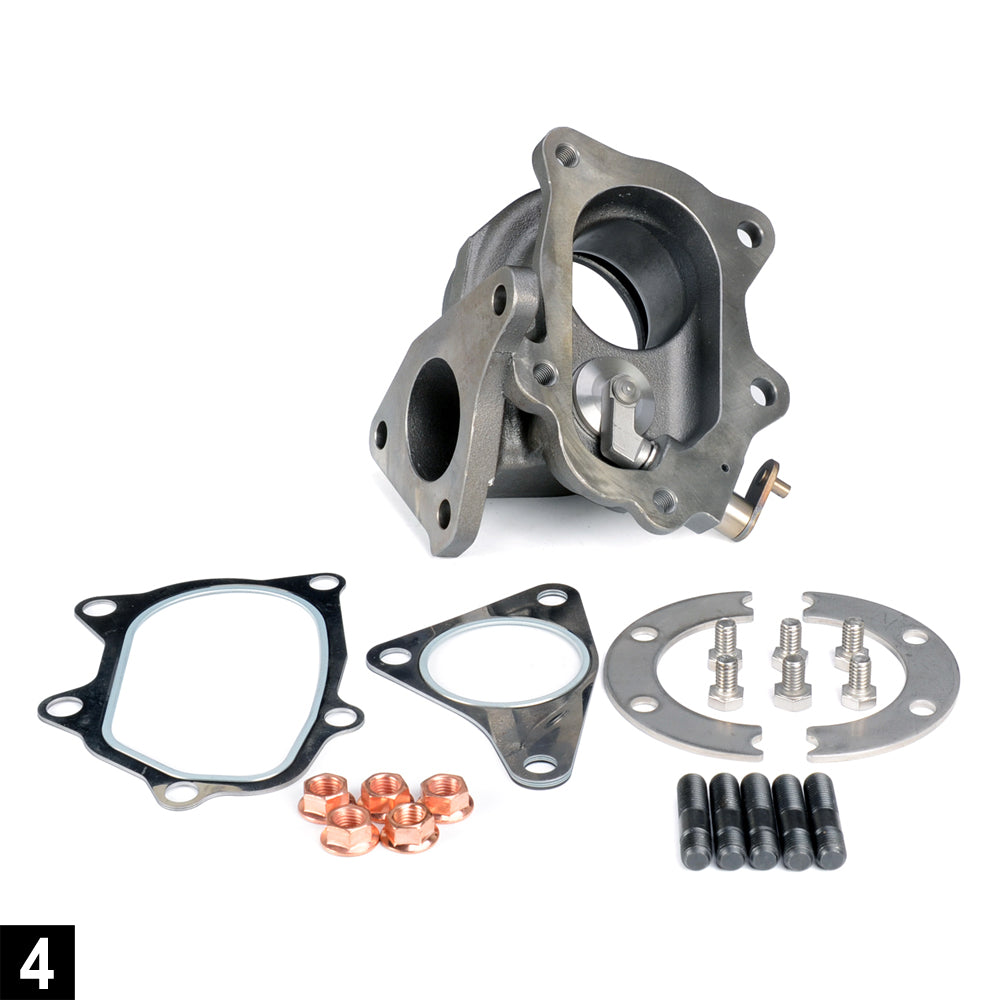

1GTBH-SU1ZG47-0100 Turbo Housing 7cm² SUBARU SUBARU Wastegated No 4

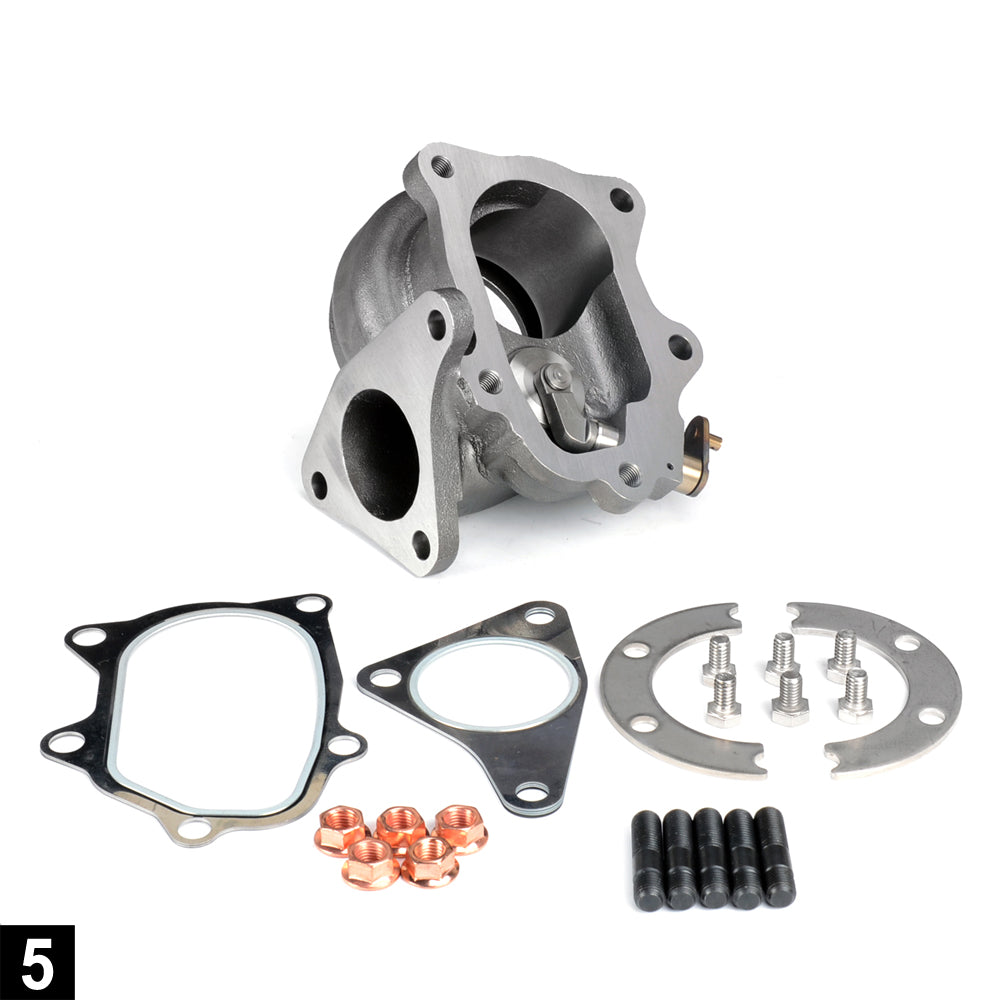

1GTBH-SU7ZG47-0100 Turbo Housing 8cm² SUBARU SUBARU Wastegated No 5

● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.

● ZAGE can ship worldwide with no minimum order quantity.

● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
