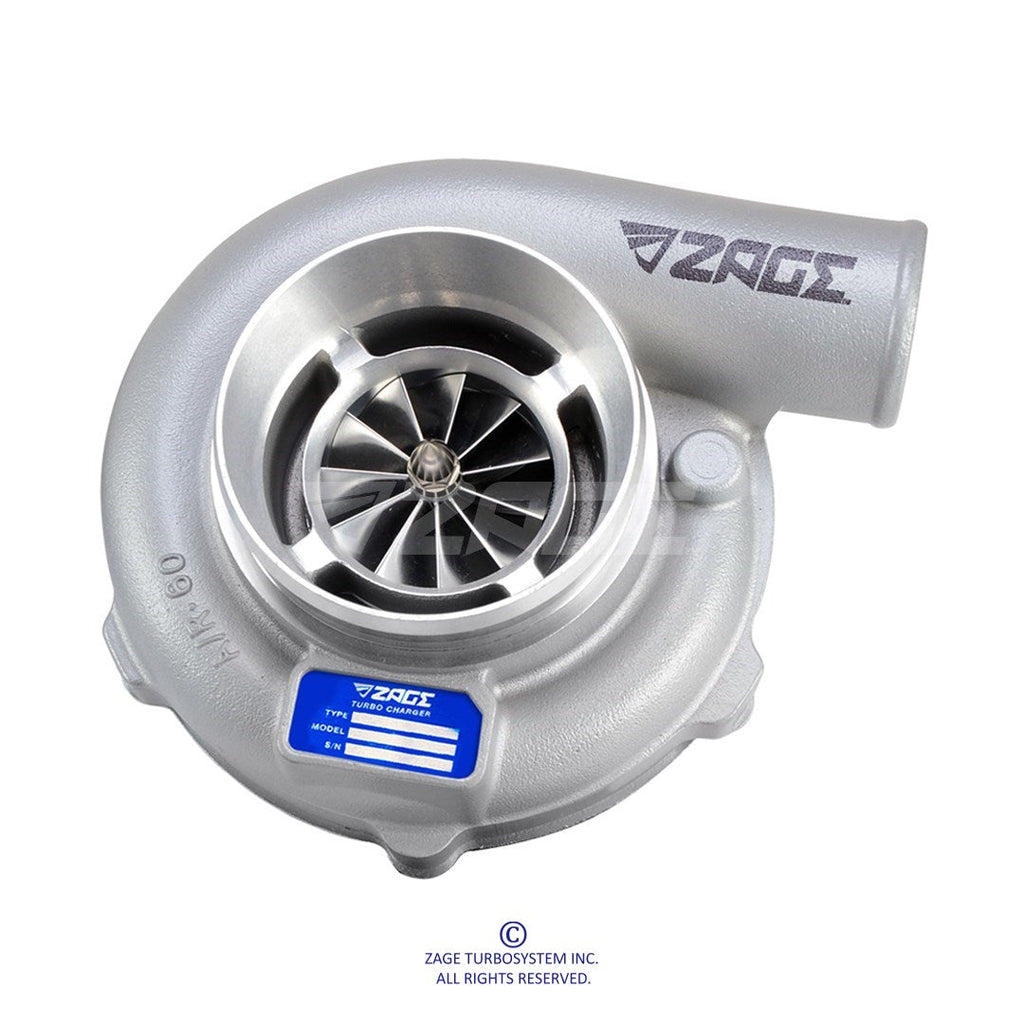

Supercore Part Number : 1ZUN8S-595800-A1



Comp Wheel: 58/76mm

Trim: 58

A/R: 0.60



Turbine Wheel: 60/55mm

Trim: 84



Horsepower: 400-750hp

Displacement: :1.8- 3.0L



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator


Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
*** ZAGE can ship worldwide with no minimum order quantity. ***

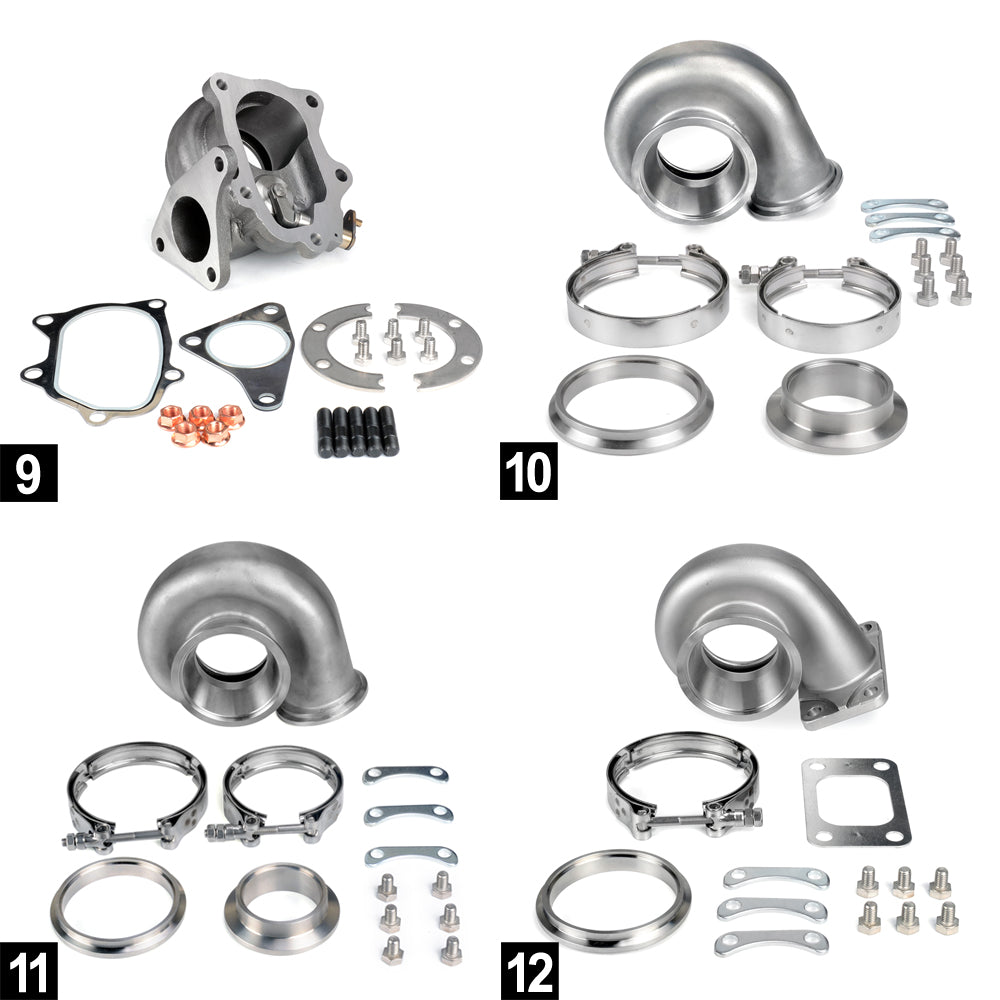

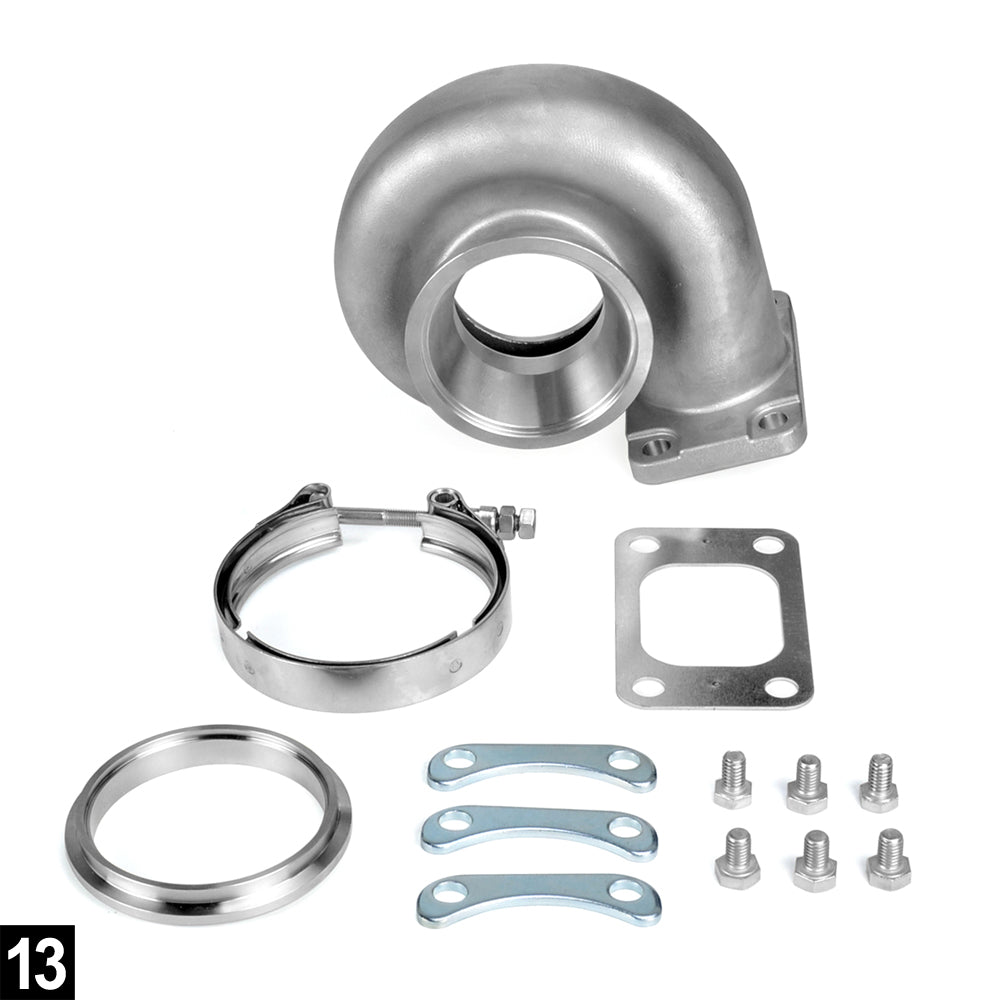

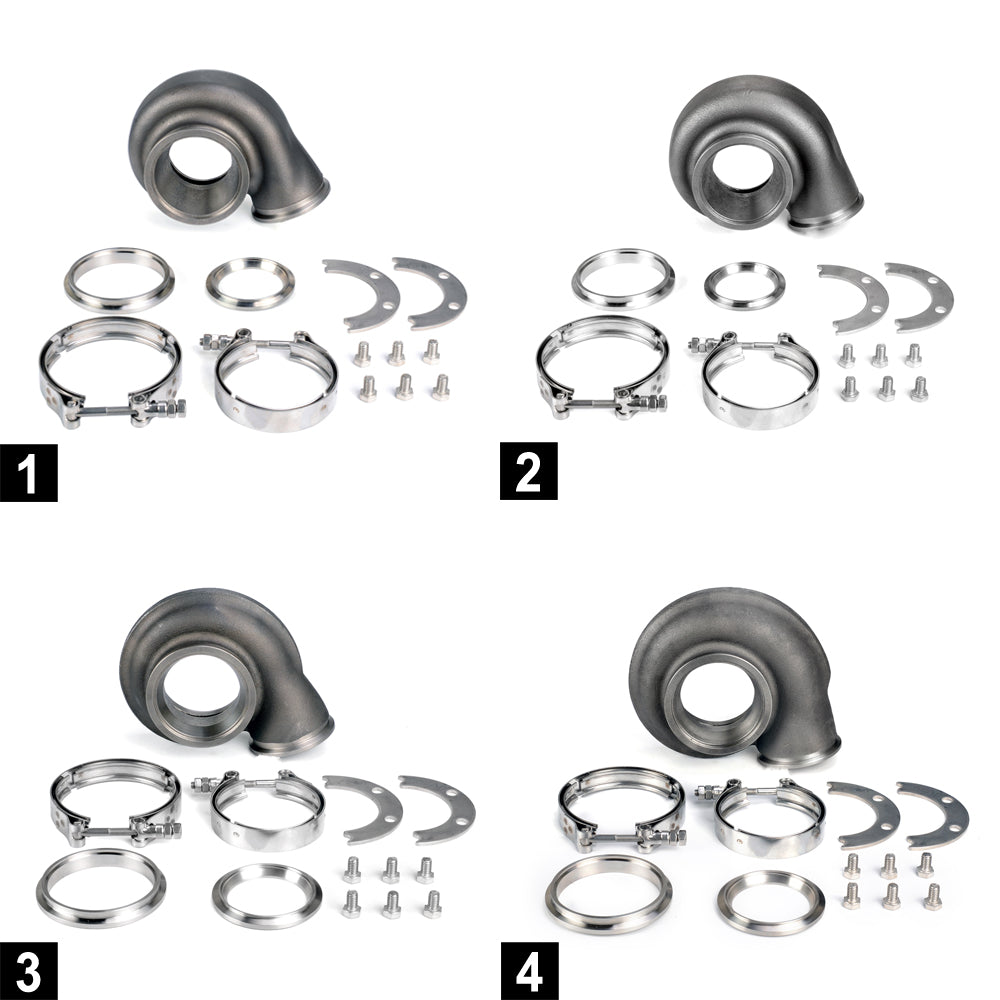

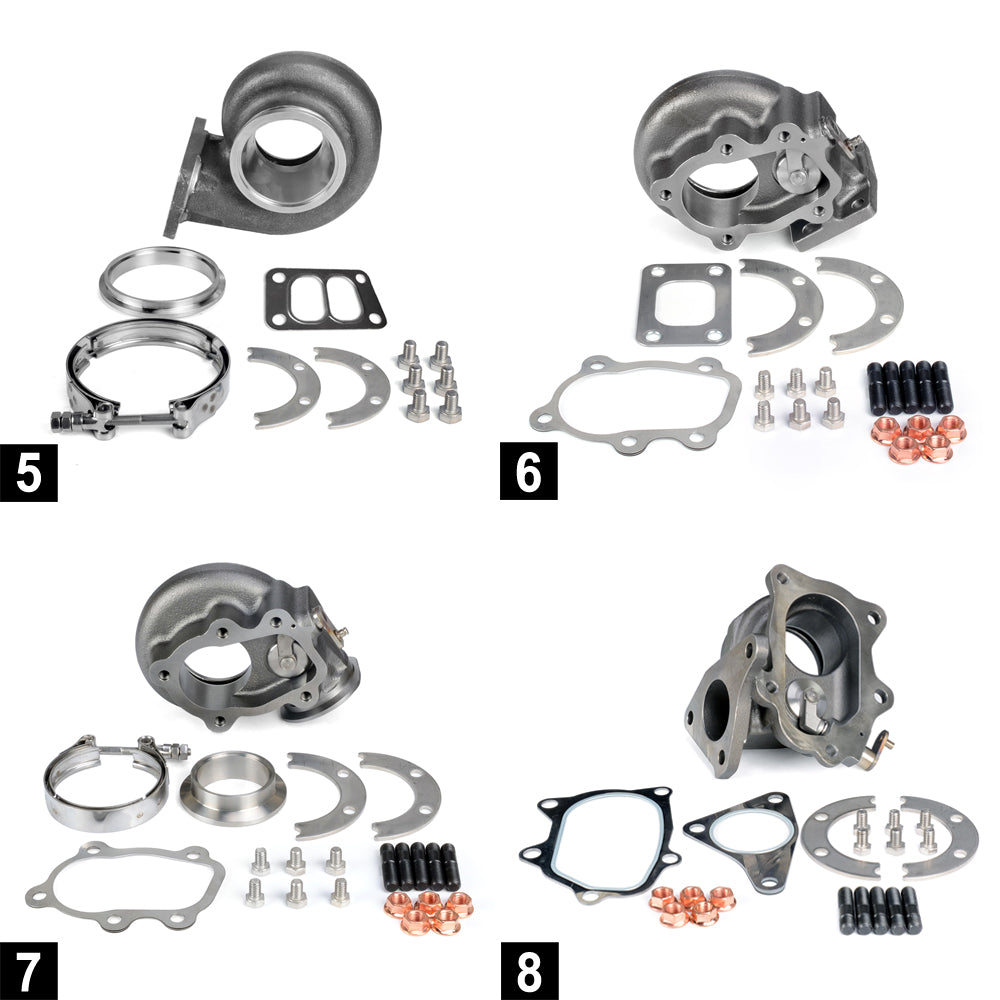

Number Product A/R Inlet Outlet Wastegate Divided Pic
1GTBH-GA3ZG55-0100 Turbo Housing 0.61 V-Band V-Band Free Float Yes 1
1GTBH-NI5ZG55-0102 Turbo Housing 0.64 T25 5 Bolt Wastegated No 6
1GTBH-NI5ZG55-0201 Turbo Housing 0.64 V-Band 5 Bolt Wastegated No 7
1GTBH-SU1ZG55-0100 Turbo Housing 7cm2 Subaru 5 Bolt Wastegated No 8
1GTBH-SU5ZG55-0100 Turbo Housing 10cm2 Subaru 5 Bolt Wastegated No 8
1GTBH-SU7ZG55-0100 Turbo Housing 8cm2 Subaru 5 Bolt Wastegated No 9
1GTBH-UN506355-0100 Turbo Housing 0.63 V-Band V-Band Free Float No 10
1GTBH-UN508255-0101 Turbo Housing 0.82 V-Band V-Band Free Float No 11
1GTBH-UN510655-0101 Turbo Housing 1.06 V-Band V-Band Free Float No 11
1GTBH-UN606355-0100 Turbo Housing 0.63 T3 V-Band Free Float No 12
1GTBH-UN608255-0101 Turbo Housing 0.82 T3 V-Band Free Float No 13
1GTBH-GA4ZG55-0100 Turbo Housing 0.83 V-Band V-Band Free Float Yes 2
1GTBH-UN610655-0100 Turbo Housing 1.06 T3 V-Band Free Float No 13
1GTBH-GA5ZG55-0100 Turbo Housing 1.01 V-Band V-Band Free Float Yes 2
1GTBH-GA6ZG55-0100 Turbo Housing 0.61 V-Band V-Band Free Float No 3
1GTBH-GA7ZG55-0100 Turbo Housing 0.83 V-Band V-Band Free Float No 4
1GTBH-GA8ZG55-0100 Turbo Housing 1.01 V-Band V-Band Free Float No 4
1GTBH-GA9ZG55-0100 Turbo Housing 0.61 T3 V-Band Free Float Yes 5
1GTBH-GA10ZG55-0100 Turbo Housing 0.83 T3 V-Band Free Float Yes 5
1GTBH-GA11ZG55-0100 Turbo Housing 1.01 T3 V-Band Free Float Yes 5



Supercore Part Number : 1ZUN8S-595800-A1



Comp Wheel: 58/76mm

Trim: 58

A/R: 0.60



Turbine Wheel: 60/55mm

Trim: 84



Horsepower: 400-750hp

Displacement: :1.8- 3.0L



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator


Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
*** ZAGE can ship worldwide with no minimum order quantity. ***
Number Product A/R Inlet Outlet Wastegate Divided Pic
1GTBH-GA3ZG55-0100 Turbo Housing 0.61 V-Band V-Band Free Float Yes 1
1GTBH-NI5ZG55-0102 Turbo Housing 0.64 T25 5 Bolt Wastegated No 6
1GTBH-NI5ZG55-0201 Turbo Housing 0.64 V-Band 5 Bolt Wastegated No 7
1GTBH-SU1ZG55-0100 Turbo Housing 7cm2 Subaru 5 Bolt Wastegated No 8
1GTBH-SU5ZG55-0100 Turbo Housing 10cm2 Subaru 5 Bolt Wastegated No 8
1GTBH-SU7ZG55-0100 Turbo Housing 8cm2 Subaru 5 Bolt Wastegated No 9
1GTBH-UN506355-0100 Turbo Housing 0.63 V-Band V-Band Free Float No 10
1GTBH-UN508255-0101 Turbo Housing 0.82 V-Band V-Band Free Float No 11
1GTBH-UN510655-0101 Turbo Housing 1.06 V-Band V-Band Free Float No 11
1GTBH-UN606355-0100 Turbo Housing 0.63 T3 V-Band Free Float No 12
1GTBH-UN608255-0101 Turbo Housing 0.82 T3 V-Band Free Float No 13
1GTBH-GA4ZG55-0100 Turbo Housing 0.83 V-Band V-Band Free Float Yes 2
1GTBH-UN610655-0100 Turbo Housing 1.06 T3 V-Band Free Float No 13
1GTBH-GA5ZG55-0100 Turbo Housing 1.01 V-Band V-Band Free Float Yes 2
1GTBH-GA6ZG55-0100 Turbo Housing 0.61 V-Band V-Band Free Float No 3
1GTBH-GA7ZG55-0100 Turbo Housing 0.83 V-Band V-Band Free Float No 4
1GTBH-GA8ZG55-0100 Turbo Housing 1.01 V-Band V-Band Free Float No 4
1GTBH-GA9ZG55-0100 Turbo Housing 0.61 T3 V-Band Free Float Yes 5
1GTBH-GA10ZG55-0100 Turbo Housing 0.83 T3 V-Band Free Float Yes 5
1GTBH-GA11ZG55-0100 Turbo Housing 1.01 T3 V-Band Free Float Yes 5
