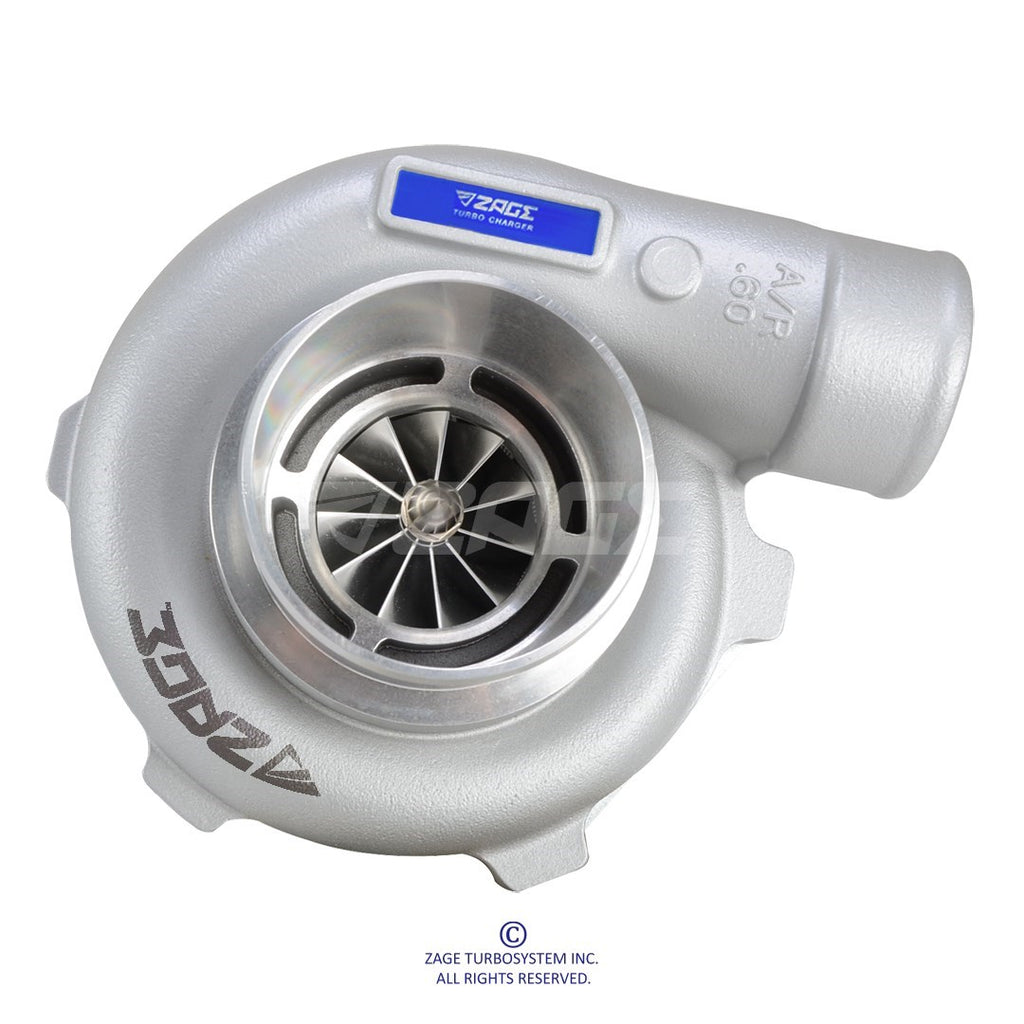

Supercore Part Number : 1ZUN8S-534500-A1
Comp Wheel: 46/60mm
Trim: 58
A/R: 0.60
Turbine Wheel: 54/47mm
Trim: 76
Horsepower: 200-400hp
Displacement: 1.4-2.5L
The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator
Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Number | Product | A/R | Inlet | Outlet | Wastegate | Divided | Pic |

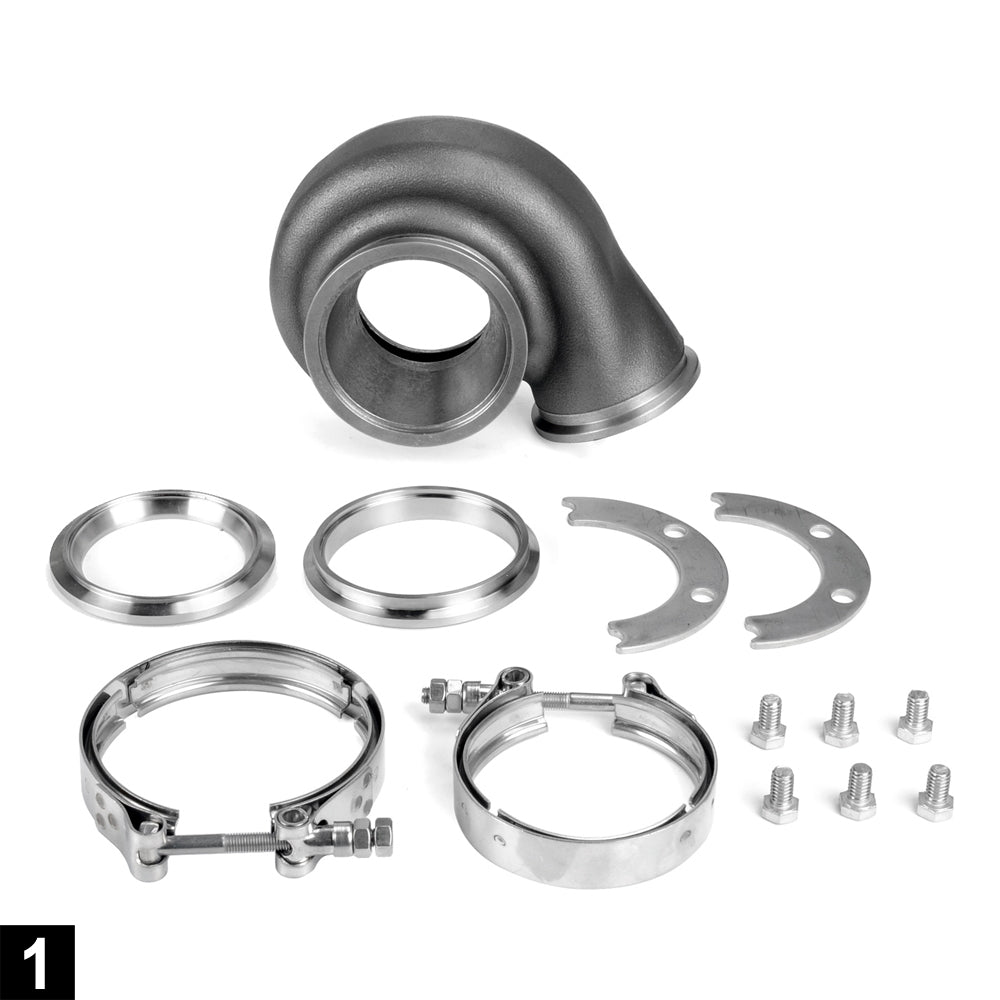

| 1GTBH-GA1ZG47-0101 | Turbo Housing | 0.57 | V-Band | V-Band | Free Float | No | 1 |
| 1GTBH-GA2ZG47-0101 | Turbo Housing | 0.72 | V-Band | V-Band | Free Float | No | 1 |

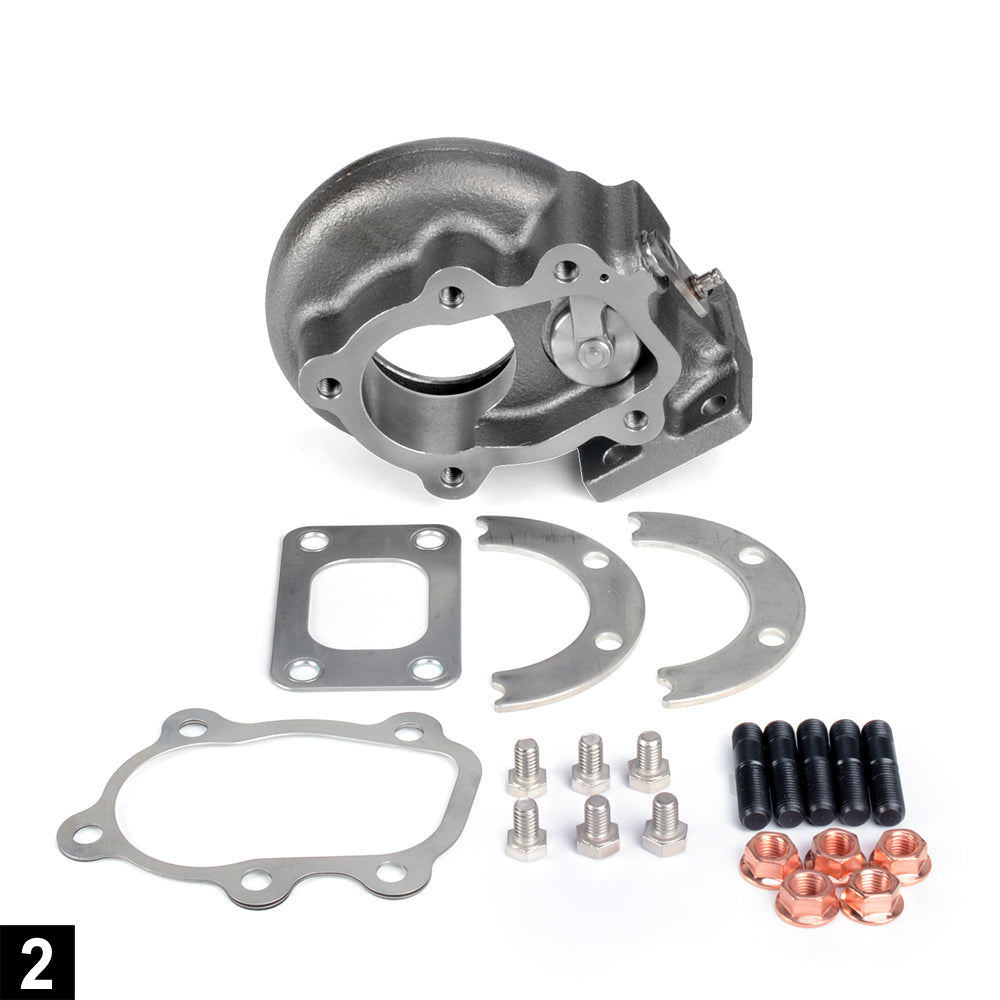

| 1GTBH-NI5ZG47-0101 | Turbo Housing | 0.64 | T25 | 5 Bolt | Wastegated | No | 2 |

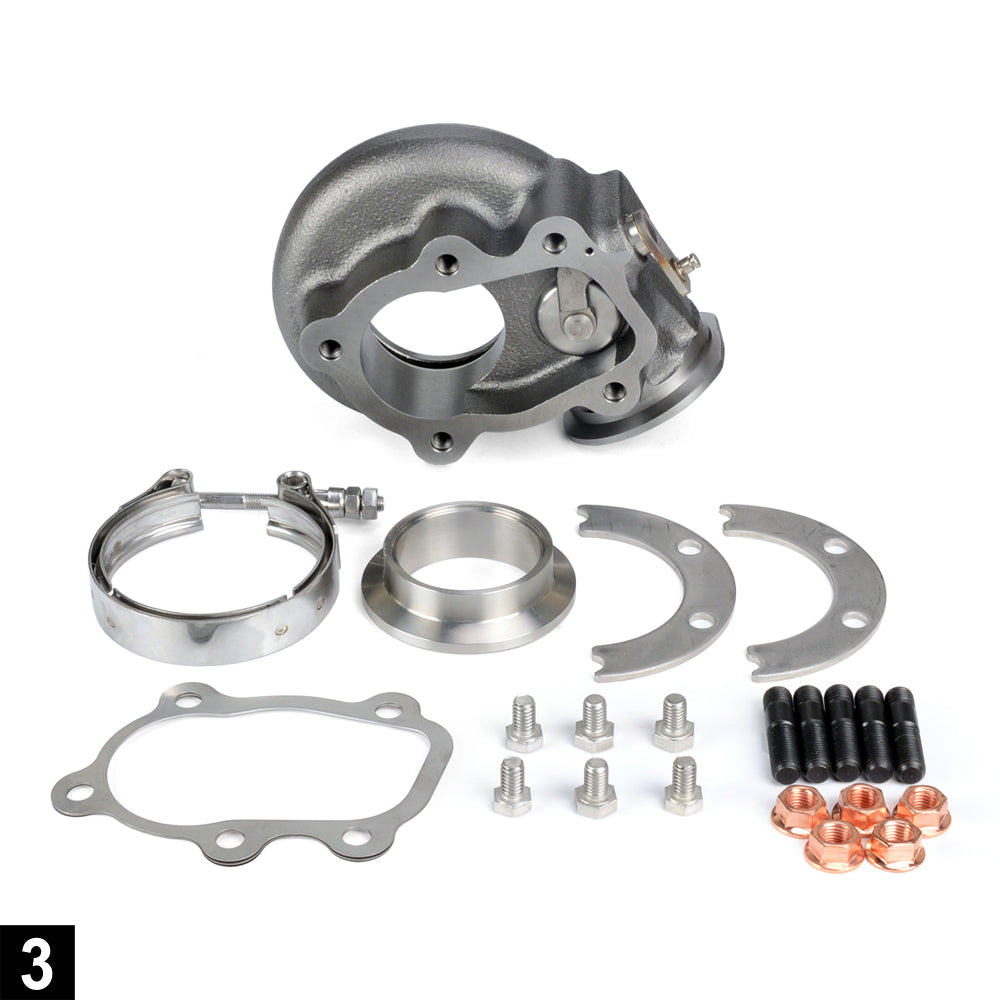

| 1GTBH-NI5ZG47-0201 | Turbo Housing | 0.64 | V-Band | 5 Bolt | Wastegated | No | 3 |
| 1GTBH-NI8ZG47-0100 | Turbo Housing | 0.57 | T25 | 5 Bolt | Wastegated | No | 2 |
| 1GTBH-NI8ZG47-0200 | Turbo Housing | 0.57 | V-Band | 5 Bolt | Wastegated | No | 3 |

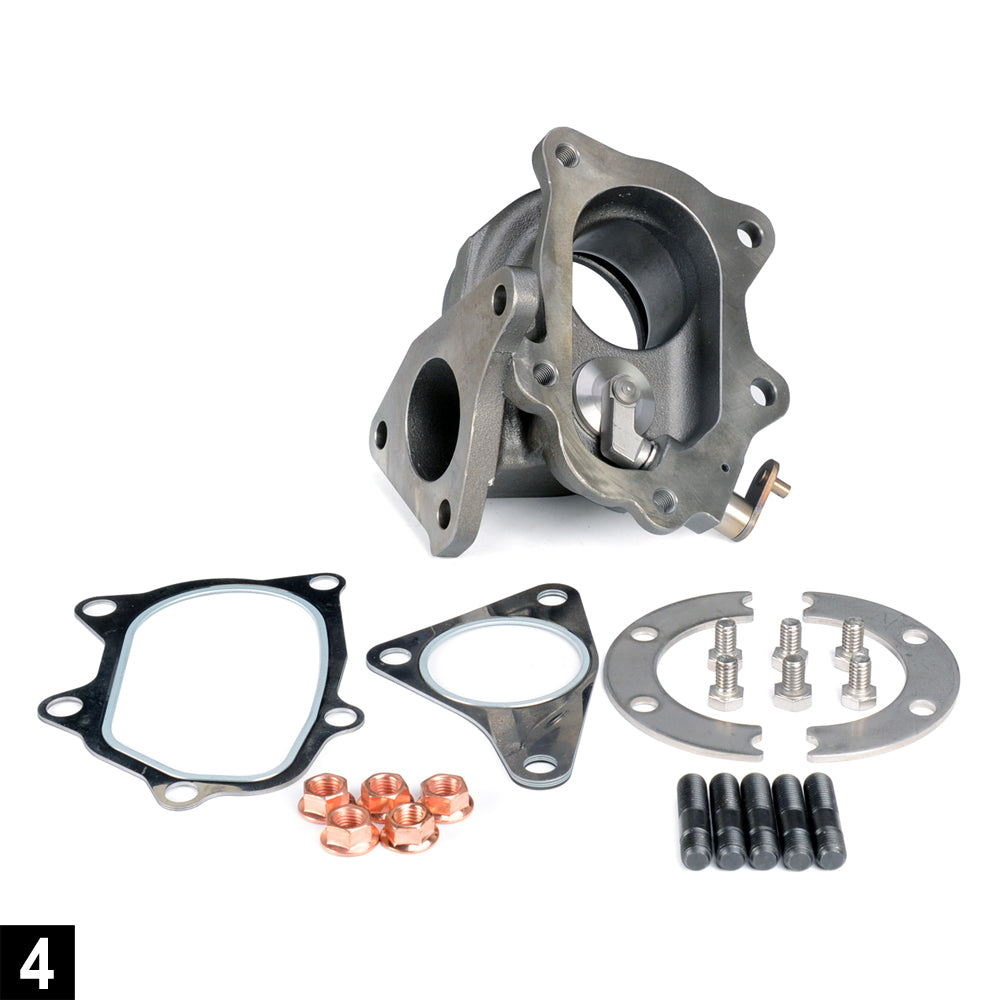

| 1GTBH-SU1ZG47-0100 | Turbo Housing | 7cm2 | Subaru | 5 Bolt | Wastegated | No | 4 |

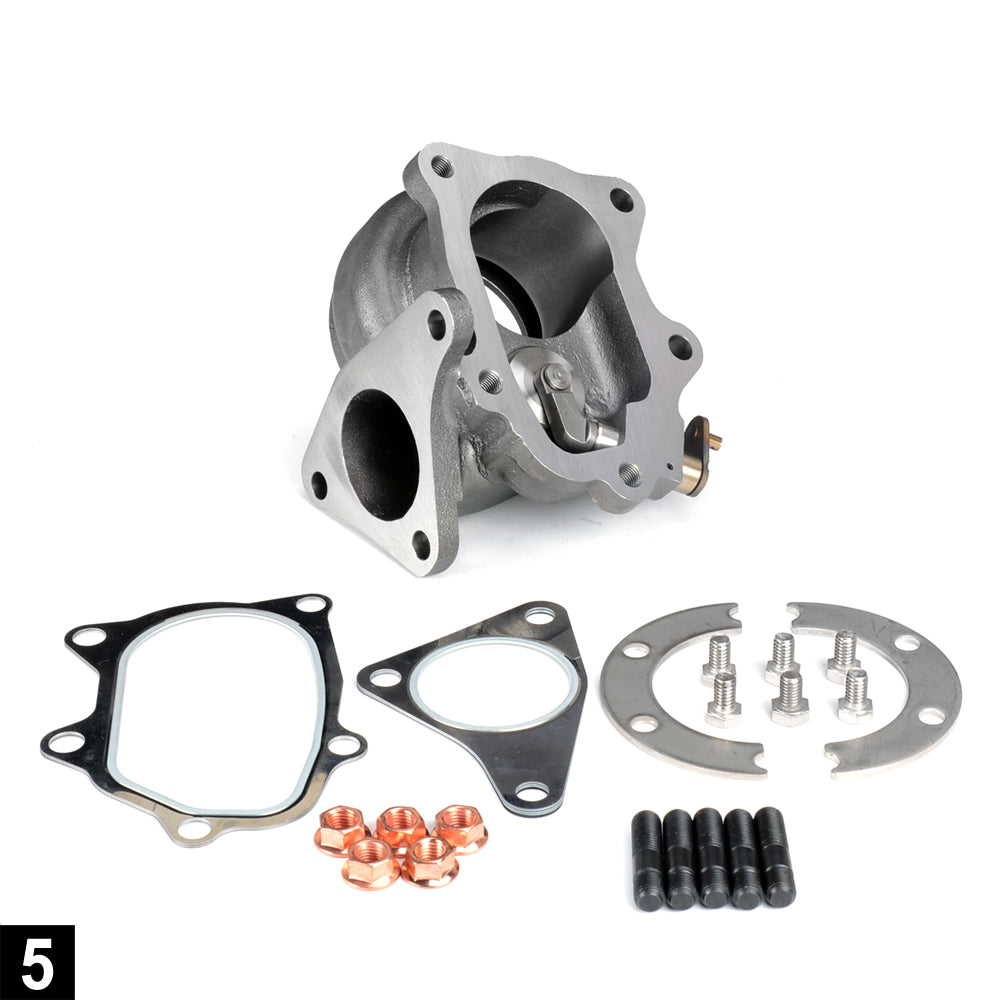

| 1GTBH-SU3ZG47-0100 | Turbo Housing | 8cm2 | Subaru | 5 Bolt | Wastegated | No | 5 |
