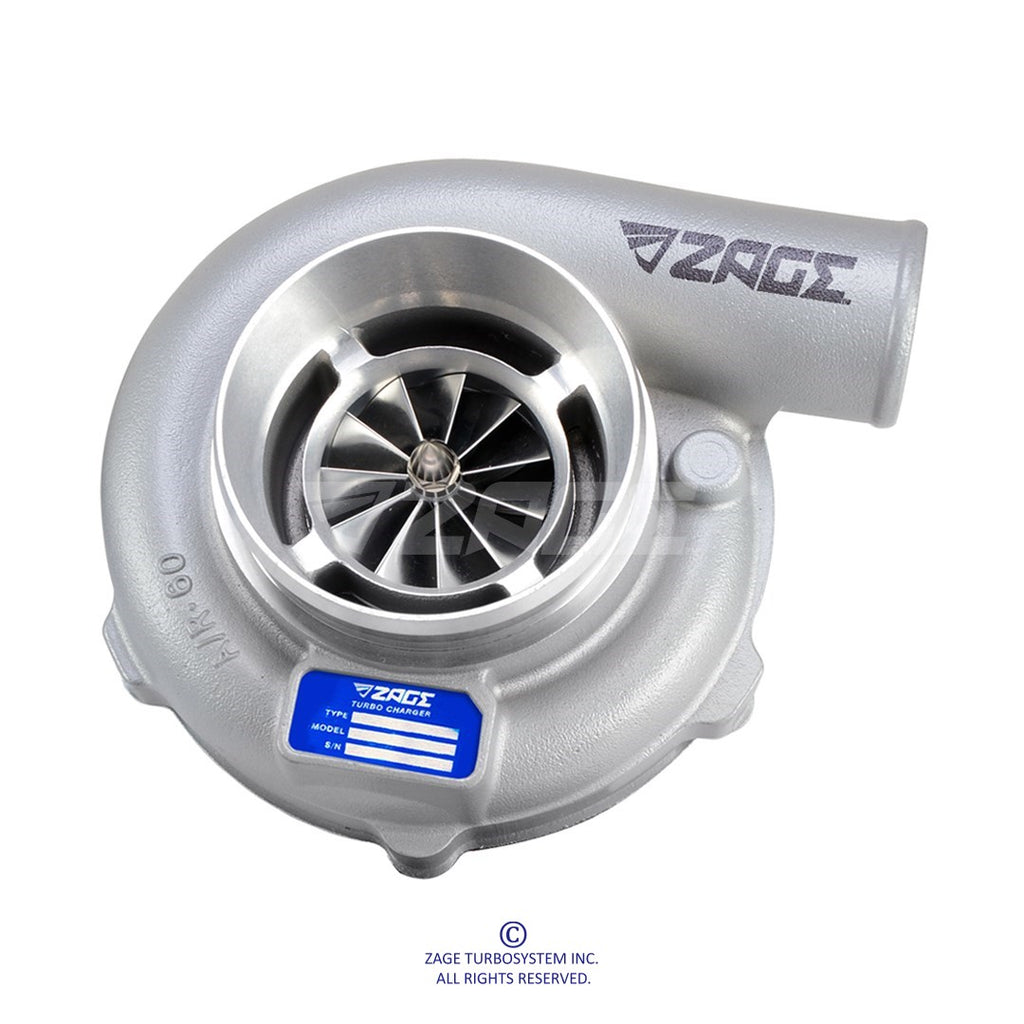

Supercore Part Number: 1ZUN8S-575400-A1



- Comp Wheel: 54/71mm

Trim: 58

A/R: 0.60



- Turbine Wheel: 57/54mm

Trim: 90



- Horsepower: 340-560hp

- Displacement: 1.8 - 3.0L

- Bearing: Dual-row ceramic ball bearing



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.
Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.


● Scrollable Table for Turbo Configurations:

Number Product A/R Inlet Outlet Wastegate Divided Pic

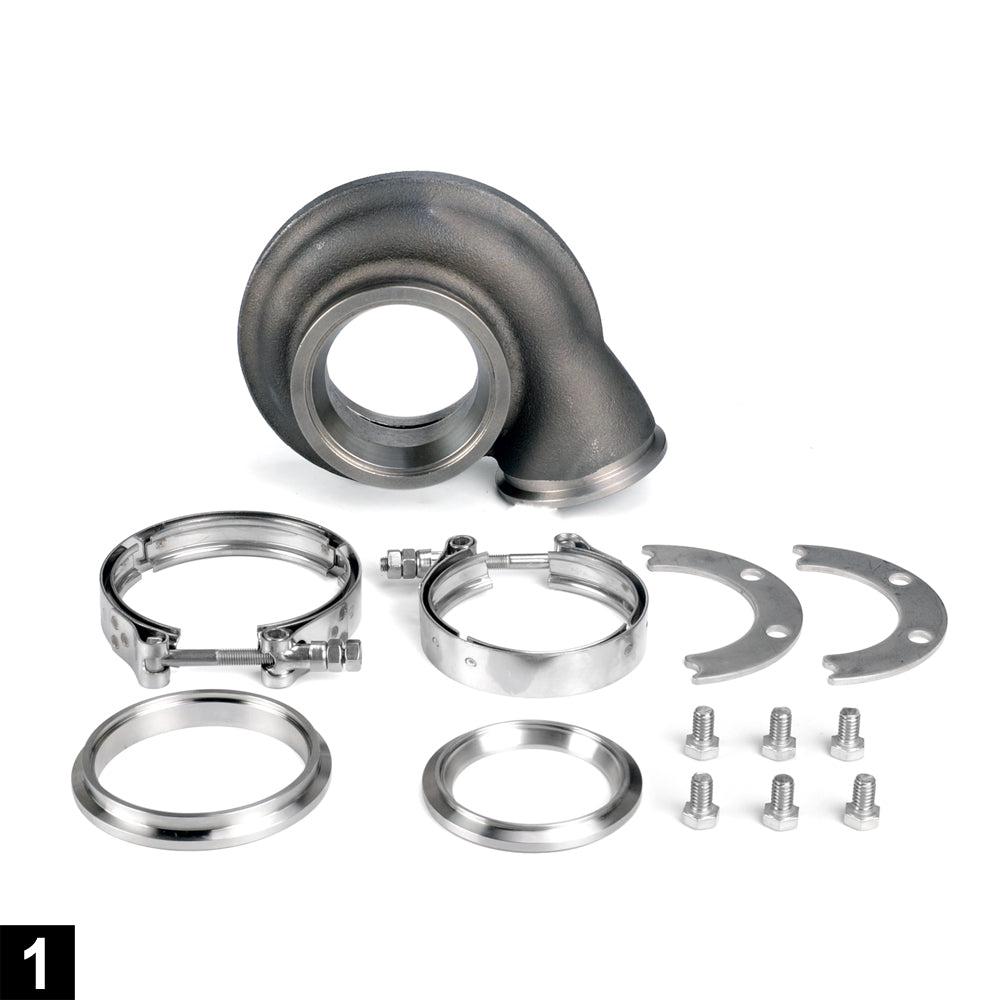

1GTBH-GA6ZG53-0100 Turbo Housing 0.61 V-Band V-Band Free Float No 1

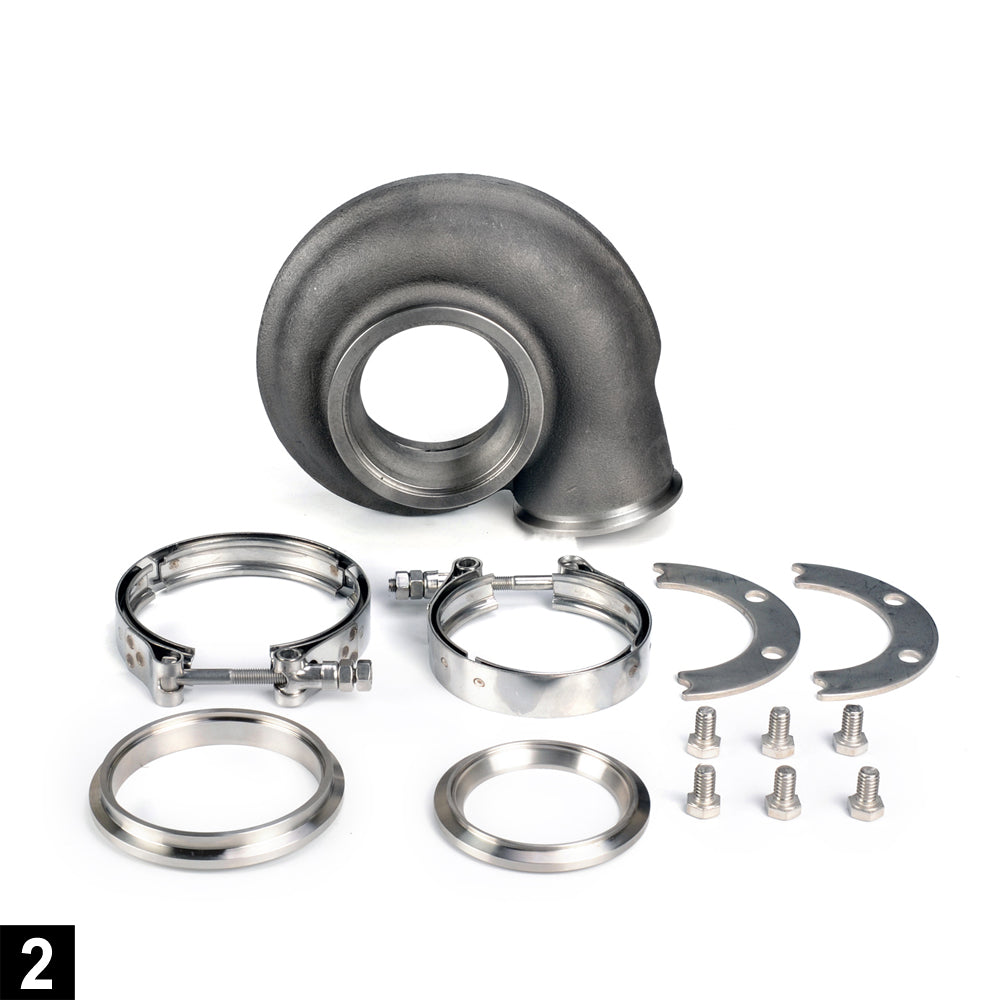

1GTBH-GA7ZG53-0100 Turbo Housing 0.83 V-Band V-Band Free Float No 2

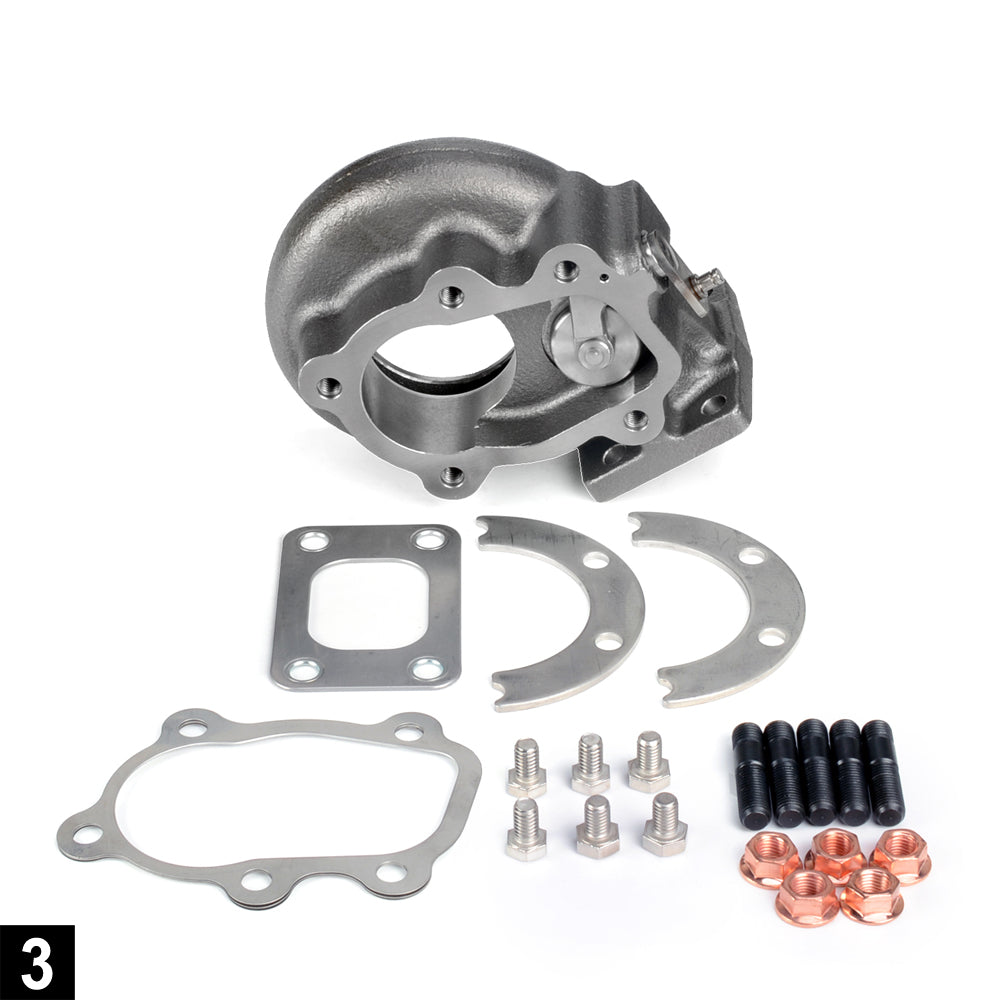

1GTBH-NI5ZG53-0100 Turbo Housing 0.64 T25 5 Bolt Free Float No 3

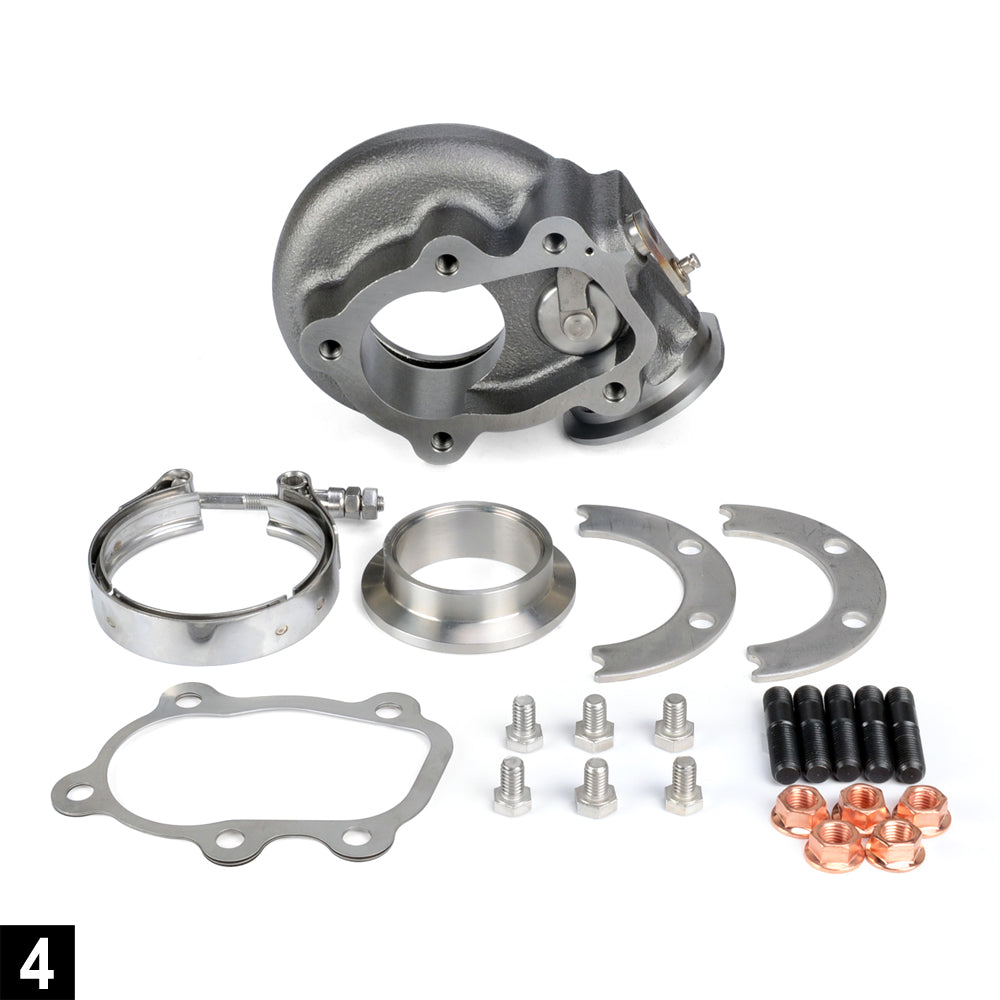

1GTBH-NI5ZG53-0200 Turbo Housing 0.64 V-Band 5 Bolt Free Float No 4

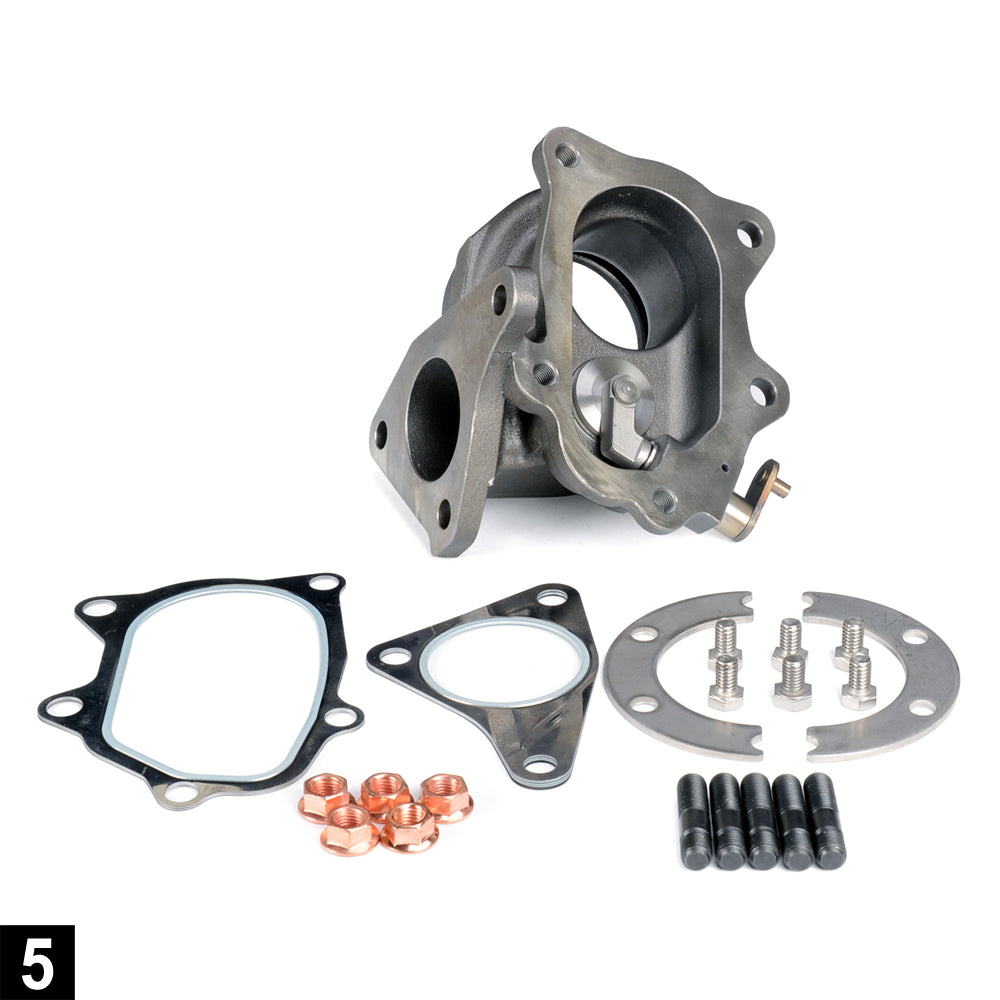

1GTBH-SU5ZG53-0100 Turbo Housing 10cm2 Subaru 5 Bolt Wastegated No 5

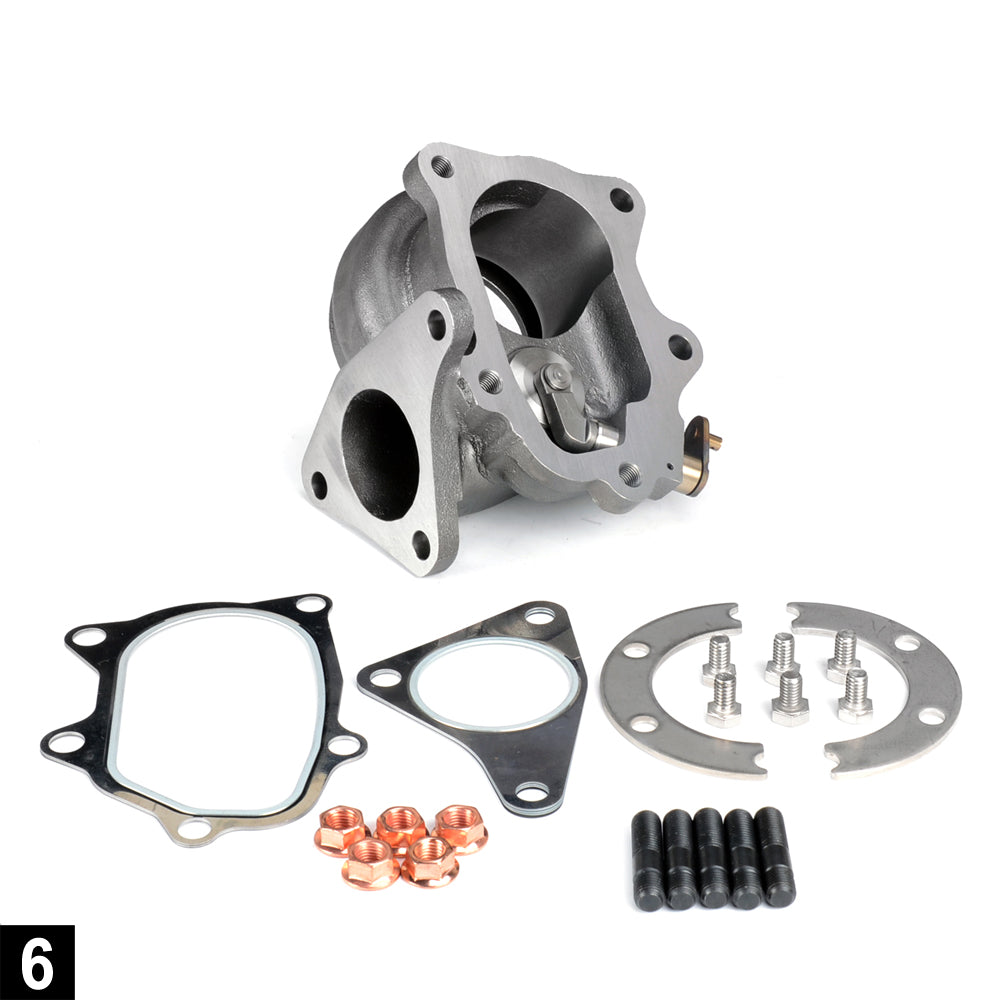

1GTBH-SU7ZG53-0100 Turbo Housing 8cm2 Subaru 5 Bolt Wastegated No 6

● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.

● ZAGE can ship worldwide with no minimum order quantity.

● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
