Rebuild Kit for Toyota CT9 (17201-0L030) Turbo
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Part Number | Type |
| 1GRBK-ZTO5-0200 | 17201-OL030 |

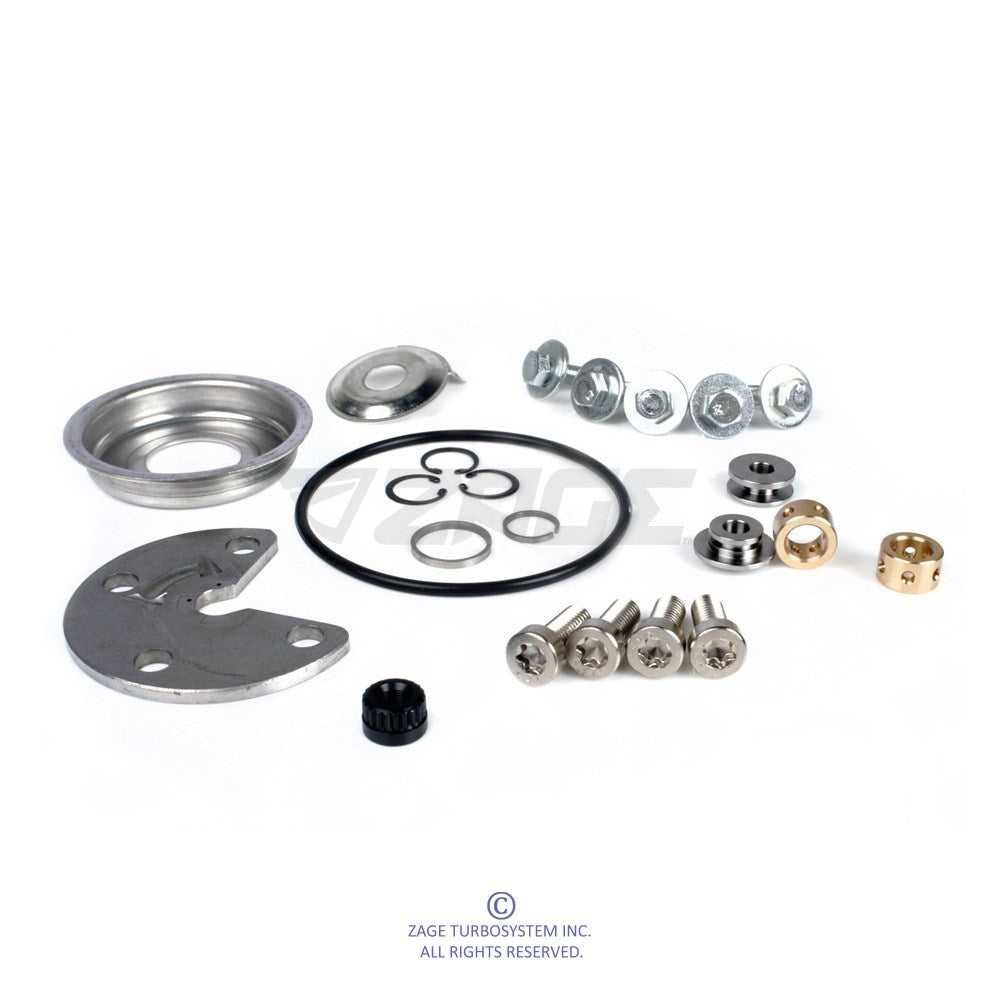

| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0508015D-0100 | Bolt | 5 |
| 4BOT-M0610015J-0100 | Bolt | 4 |
| 4CSR-I-012-0100 | Snap Ring | 3 |
| 4HTS-TO-0100 | Heat Shield | 1 |
| 4NUT-M05050R-0200 | Shaft Nut(M5xp0.5 LH) | 1 |
| 4ORN-06326-0100 | O-Ring(62mm) | 1 |
| 4RKP-FG-TO-0200 | Flinger | 1 |
| 4RKP-JB-TO-0200 | Journal Bearing | 2 |
| 4RKP-OD-TO-0200 | Oil Deflector | 1 |
| 4RKP-PR-110-0200 | Piston Ring(Insert side)Φ11 | 1 |
| 4RKP-PR-154-0101 | Piston Ring(T)Φ15.4/1.56/R0.9 | 1 |
| 4RKP-TB-TO-0200 | Thrust Bearing | 1 |
| 4RKP-TR-TO-0200 | Thrust Ring | 1 |
