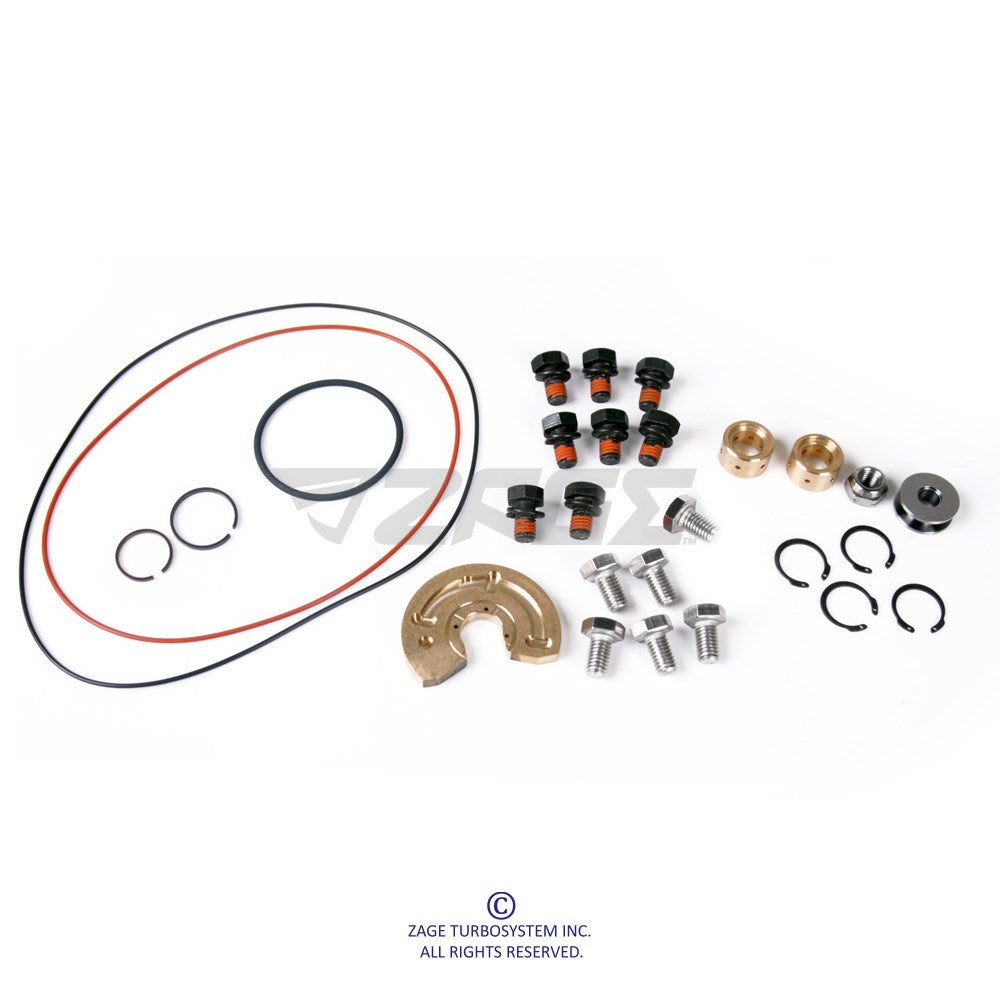

Rebuild Kit for Schwitzer S300 Turbo
Part Number : 1GRBK-ZSW8-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0812512A-0100 | Bolt(M8*1.25p*12mm) | 6 |
| 4BOT-M0812515D-0100 | Actuator Bolt | 8 |
| 4CSR-I-019-0100 | Snap Ring(20.4xT1) | 4 |
| 4NUT-I51620R-0100 | Shaft Nut (M8*1.25P) | 1 |
| 4ORN-04926-0100 | O-Ring (Insert/49mm)VT | 1 |
| 4ORN-13317-0100 | O-Ring (COVER 133mm) | 1 |
| 4ORN-16318-0100 | O-Ring (Comp Cover/164mm) | 1 |
| 4RKP-FG-SW-0500 | Thrust Collar | 1 |
| 4RKP-JB-SW-0700 | Journal Bearing | 2 |
| 4RKP-PR-180-0101 | Piston Ring(Turb)Φ18.02 T1.59 | 1 |
| 4RKP-PR-220-0201 | Piston Ring(Turb) | 1 |
| 4RKP-TB-SW-0700 | Thrust Bearing | 1 |
