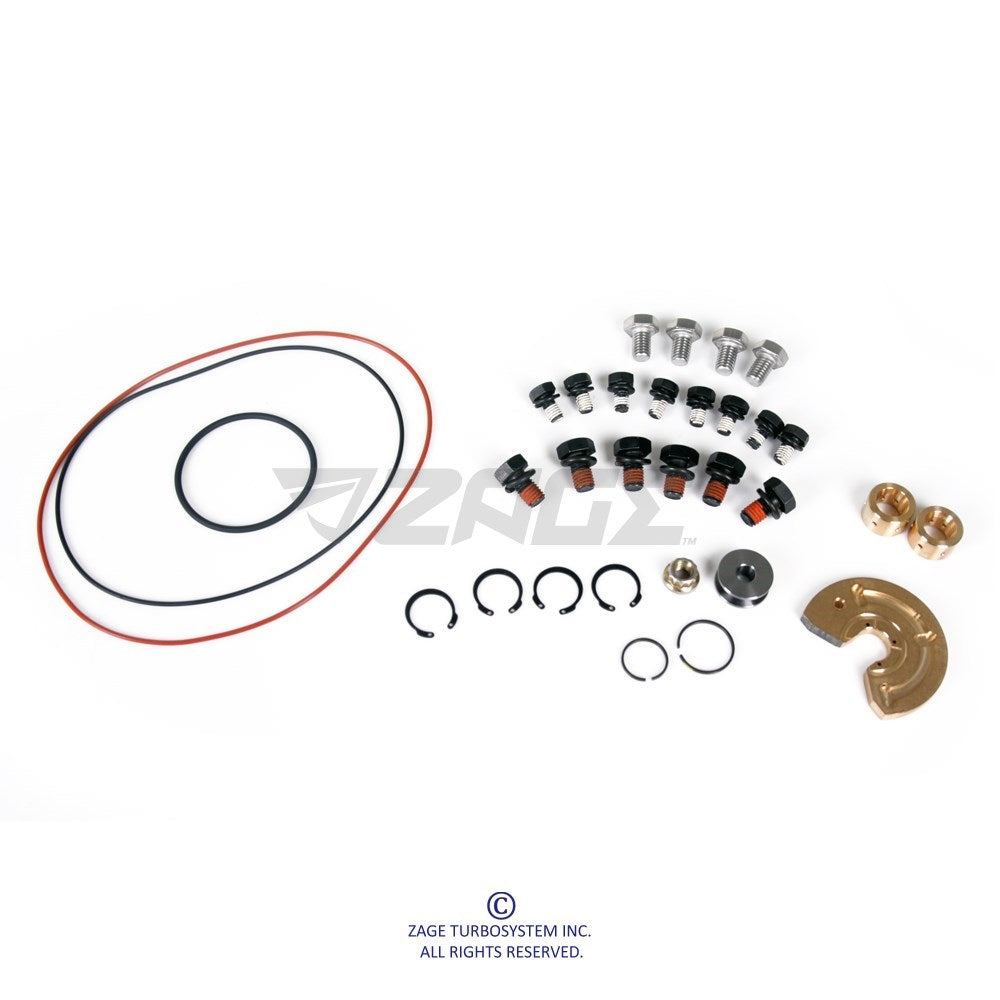

Rebuild Kit for Schwitzer S200 Turbo



Rebuild Kit for Schwitzer S200 Turbo



Part Number : 1GRBK-ZSW4-0100



*** ZAGE can ship worldwide with no minimum order quantity. ***



Kit Includes
 P/N  Type  Qty
4BOT-M0610012B-0100 Bolt 8
4BOT-M0812512A-0100 Bolt(M8*1.25p*12mm) 4
4BOT-M0812515D-0100 Actuator Bolt 6
4CSR-I-017-0100 Snap Ring (C/Hsg-B/Hsg) 4
4NUT-M07100R-0200 Shaft Nut 1
4ORN-04926-0100 O-Ring (Insert/49mm)VT 1
4ORN-12017-0100 O-Ring (COVER 120.37mm) 1
4ORN-14019-0100 O-Ring (Comp Cover/140mm) 1
4RKP-FG-SW-0400 Thrust Collar 1
4RKP-JB-SW-0300 Journal Bearing 2
4RKP-PR-160-0300 Piston Ring(Comp) 1
4RKP-PR-200-0201 Piston Ring(Turb)  1
4RKP-TB-SW-0400 Thrust Bearing 1
