Rebuild Kit for K24 Turbo
| Part Number | Type | OEM Number |
|---|---|---|
| 1GRBK-ZKK2-0200 | 270 Degree | 5324-711-0022 |
| 1GRBK-ZKK2-0100 | 360 Degree | 5324-711-0005 |

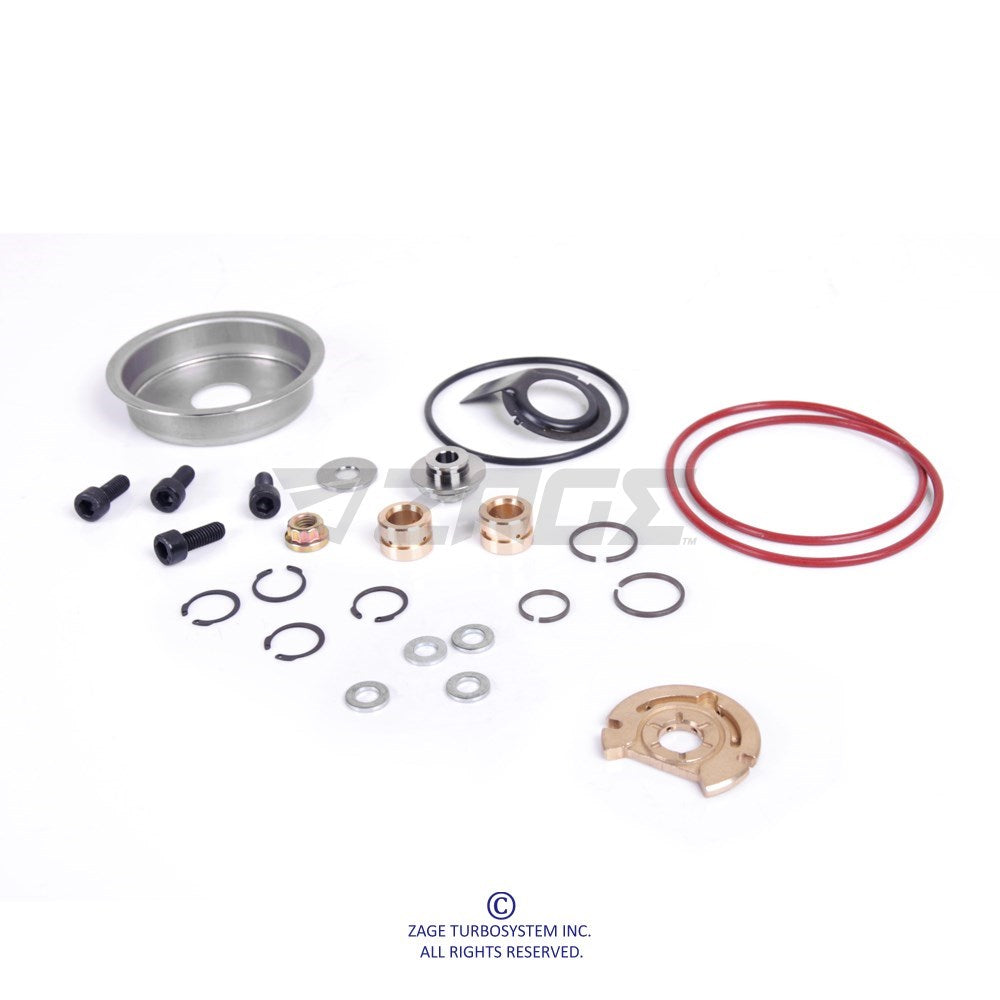

● Scrollable Table for Kit Contents (270 Degree):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610015J-0100 | Bolt | 4 |
| 4CSR-I-160-0100 | Snap Ring(J-Brg)(17x0.6) | 4 |
| 4HTS-KK-0200 | Heat Shield | 1 |
| 4NUT-M07100R-0200 | Shaft Nut | 1 |
| 4ORN-06426-0100 | O-Ring (Insert/64.7mm)4LE | 1 |
| 4ORN-15031-0100 | O-Ring (B/Hsg-C/Hsg) | 1 |
| 4RKP-FG-KK-0400 | Flinger | 1 |
| 4RKP-JB-KK-0500 | Journal Bearing | 2 |
| 4RKP-OD-KK-0200 | Oil Deflector | 1 |
| 4RKP-PR-140-0100 | Piston Ring Φ14/T1.37/R0.78 | 1 |
| 4RKP-PR-193-0301 | Piston Ring Φ19.304 1.39 W6 | 2 |
| 4RKP-TB-KK-0500 | Thrust Bearing | 1 |
| 4RKP-TR-KK-0300 | Thrust Ring | 1 |
| 4WAS-M06F-0600 | Washer | 4 |
● Scrollable Table for Kit Contents (360 Degree):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610015J-0100 | Bolt | 4 |
| 4CSR-I-160-0100 | Snap Ring(J-Brg)(17x0.6) | 4 |
| 4HTS-KK-0200 | Heat Shield | 1 |
| 4NUT-M07100R-0200 | Shaft Nut | 1 |
| 4ORN-06426-0100 | O-Ring (Insert/64.7mm)4LE | 1 |
| 4ORN-15031-0100 | O-Ring (B/Hsg-C/Hsg) | 1 |
| 4RKP-FG-KK-0400 | Flinger | 1 |
| 4RKP-JB-KK-0500 | Journal Bearing | 2 |
| 4RKP-OD-KK-0200 | Oil Deflector | 1 |
| 4RKP-PR-140-0100 | Piston Ring Φ14/T1.37/R0.78 | 1 |
| 4RKP-PR-193-0201 | Piston Ring Φ19.3 | 2 |
| 4RKP-PR-193-0301 | Piston Ring Φ19.304 1.39 W6 | 2 |
| 4RKP-TB-KK-0500 | Thrust Bearing | 1 |
| 4RKP-TR-KK-0300 | Thrust Ring | 1 |
| 4WAS-M06F-0600 | Washer | 4 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
