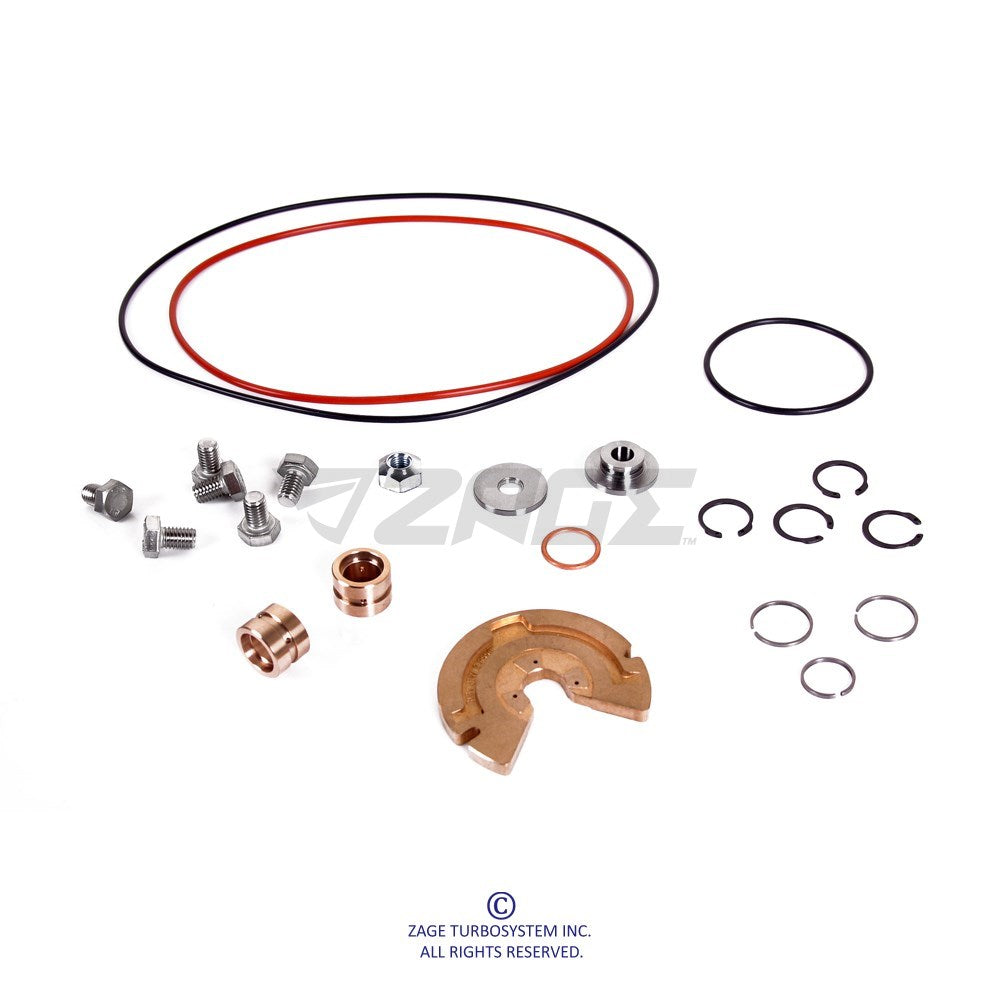

Rebuild Kit for K31 Turbo
Part Number : 1GRBK-ZKK6-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0812512A-0100 | Bolt(M8*1.25p*12mm) | 6 |
| 4CSR-I-019-0100 | Snap Ring(20.4xT1) | 4 |
| 4NUT-M08100R-0100 | Shaft Nut M8x1.0 | 1 |
| 4ORN-06026-0100 | O-Ring(Seal plate/60) | 1 |
| 4ORN-16430-0100 | O-Ring (Comp Cover/164.4mm) | 1 |
| 4ORN-19626-0100 | O-Ring (Comp Cover/196.52mm) | 1 |
| 4RKP-FG-KK-0300 | Flinger | 1 |
| 4RKP-JB-KK-0600 | Journal Bearing | 2 |
| 4RKP-PR-160-0400 | Piston Ring(Comp) | 1 |
| 4RKP-PR-193-0301 | Piston Ring Φ19.304 1.39 W6 | 2 |
| 4RKP-TB-KK-0200 | Thrust Bearing | 1 |
| 4RKP-TW-KK-0200 | Thrust Washer | 1 |
| 4WAS-M16C-0200 | Washer | 1 |
