Rebuild Kit for KKK K26 Turbo



Rebuild Kit for K26 Turbo



Part Number : 1GRBK-ZKK4-0100



*** ZAGE can ship worldwide with no minimum order quantity. ***

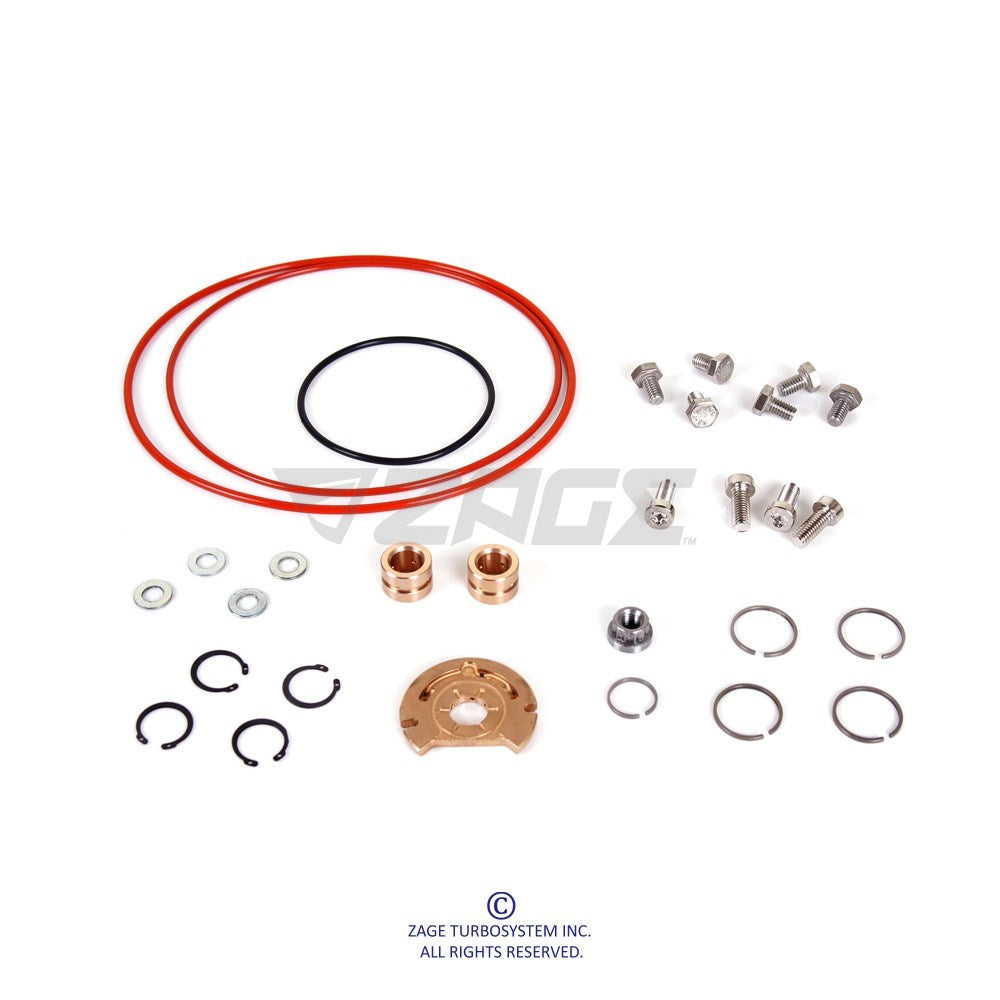

Kit Includes
 P/N  Type  Qty
4BOT-M0610010C-0200 Bolt 6
4BOT-M0610015J-0100 Bolt 4
4CSR-I-160-0100 Snap Ring(J-Brg)(17x0.6) 4
4NUT-M07100R-0200 Shaft Nut(M7xp1) 1
4ORN-06426-0100 O-Ring (Insert/64.7mm)4LE 1
4ORN-13326-0100 O-Ring (Comp Cover/133*2.65mm) 1
4ORN-15031-0100 O-Ring (B/Hsg-C/Hsg)  1
4RKP-JB-KK-0500 Journal Bearing 2
4RKP-PR-140-0100 Piston Ring Φ14/T1.37/R0.78 1
4RKP-PR-193-0201 Piston Ring Φ19.3 (K33 S)W6 2
4RKP-TB-KK-0300 Thrust Bearing 360˚ 1
4WAS-M06F-0600 Washer 4
4RKP-PR-193-0301 Piston Ring Φ19.304 1.39 W6 2




Rebuild Kit for K26 Turbo



Part Number : 1GRBK-ZKK4-0100



*** ZAGE can ship worldwide with no minimum order quantity. ***



Kit Includes
 P/N  Type  Qty
4BOT-M0610010C-0200 Bolt 6
4BOT-M0610015J-0100 Bolt 4
4CSR-I-160-0100 Snap Ring(J-Brg)(17x0.6) 4
4NUT-M07100R-0200 Shaft Nut(M7xp1) 1
4ORN-06426-0100 O-Ring (Insert/64.7mm)4LE 1
4ORN-13326-0100 O-Ring (Comp Cover/133*2.65mm) 1
4ORN-15031-0100 O-Ring (B/Hsg-C/Hsg)  1
4RKP-JB-KK-0500 Journal Bearing 2
4RKP-PR-140-0100 Piston Ring Φ14/T1.37/R0.78 1
4RKP-PR-193-0201 Piston Ring Φ19.3 (K33 S)W6 2
4RKP-TB-KK-0300 Thrust Bearing 360˚ 1
4WAS-M06F-0600 Washer 4
4RKP-PR-193-0301 Piston Ring Φ19.304 1.39 W6 2
