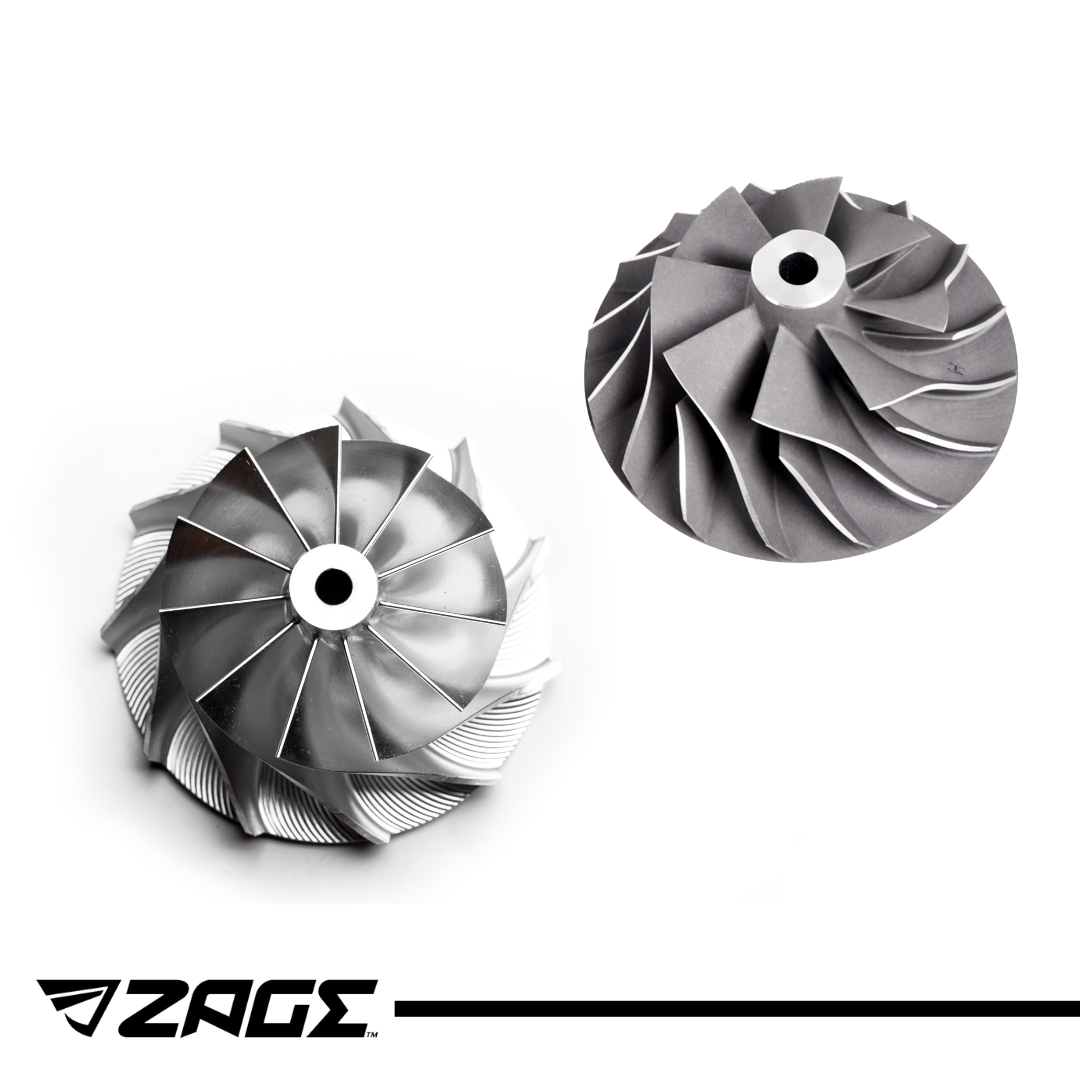

When you disassemble a factory turbocharger, chances are you will find a cast compressor wheel instead of billet compressor wheel. OEM turbochargers are usually equipped with cast aluminum compressor wheel due to cost-effectiveness, easiness to mass produce, and stability; while billet wheels advance in blade geometry, durability, and flexibility for small quantity production. Although both are manufactured from aluminum, differences in production methods impart distinct mechanical and structural characteristics to each.

Cast Compressor Wheels

Manufacturing Process

Cast Wheel Limitations
Casting wheels are prone to porosity and grain structure inconsistency due to gravity casting processes. The density of the aluminum is therefore lower than forging aluminum. Inconsistent density within cast wheels may lead to imbalanced rotating assemblies that generate vibration and stress throughout the turbocharger. This imbalance not only accelerates bearing wear but also impose limitations on maximum rotating speed which affects power output.

Design Constraints
Considering its lower strength in material, compressor blade thickness is maintained above certain minimums, resulting in relatively thicker blades and larger hubs. This is why people “mistakenly” think cast wheels are heavier than billet wheels, while theoretically when you make the exact same designs, billet wheel with higher density should be heavier. Cast wheels are made thicker overall to maintain their reliability. However, this limits the following:
•The use of very thin or highly swept blades
•Aggressive extended-tip designs
•Complex splitter blade configurations

Billet Compressor Wheels

CNC Machining from Solid Billet
Billet compressor wheels are machined from a solid block of aluminum alloy—often forged or aerospace-grade—using multi-axis CNC equipment. This process enables precise control over blade geometry, hub shape, and mass distribution. Consistent material density throughout the entire wheel structure enables balanced rotating assemblies to operate smoothly at extreme speeds. Unlike casting, billet manufacturing does not rely on molten material flow, eliminating many sources of internal defects and dimensional variability.

Material Properties
Billet aluminum exhibits a uniform and continuous grain structure, resulting in:
•Higher tensile and yield strength
•Improved fatigue life under cyclic loading
•Increased resistance to crack
•Higher allowable shaft speeds and centrifugal stress limits

These properties provide a greater mechanical safety margin, particularly in high-boost or high-RPM applications.

Aerodynamic Design Flexibility
CNC machining allows precise control of blade geometry and surface finish. Dimensional tolerances measured in thousandths of an inch contribute to smooth blade surfaces, which are critical to maintaining aerodynamic efficiency during compression.
The improved material strength of billet wheels allows engineers to implement more advanced aerodynamic features, including:
•Slimmer hub profiles
•Thinner main blades
•Extended-tip blade geometry
•Optimized splitter blade placement

Aerodynamic Performance Considerations
From an aerodynamic perspective, compressor performance is governed by blade shape, flow angle control, and surface finish. Billet compressor wheels enable tighter control of these parameters, often resulting in:
•Higher peak efficiency
•Improved flow stability near surge
•Better performance at elevated pressure ratios

As shaft speed increases, centrifugal stress rises exponentially. In high-boost applications, compressor wheels may approach material fatigue or burst limits. Billet wheels provide a higher safety margin due to superior material integrity and strength.

Cast wheels, when operated within conservative shaft speed limits and appropriate thermal conditions, can deliver long service life and reliable operation. Many OEM turbochargers demonstrate that casting remains a viable solution when engineering limits are respected.

Application-Based Selection

Appropriate Use of Cast Compressor Wheels
Cast wheels are well suited for:
•OEM replacement turbochargers
•Mild to moderate boost levels
•Daily-driven vehicles prioritizing longevity
•Applications with controlled shaft speeds

Appropriate Use of Billet Compressor Wheels
Billet wheels are preferred for:
•High boost and high pressure ratio operation
•Motorsport and endurance applications
•Compact turbochargers requiring high flow density
•Operating environments involving aggressive tuning or alternative fuels

Casting and billet manufacturing methods each present distinct advantages and limitations in turbocharger compressor wheel design. Cast wheels offer cost efficiency and proven reliability within defined operating limits, while billet wheels provide enhanced mechanical strength and greater aerodynamic design freedom for demanding applications.

From an engineering standpoint, the optimal choice depends on the intended operating conditions, performance targets, and system constraints. Effective turbocharger design prioritizes material selection, aerodynamics, and mechanical integrity as part of a cohesive system rather than relying on manufacturing method alone.
