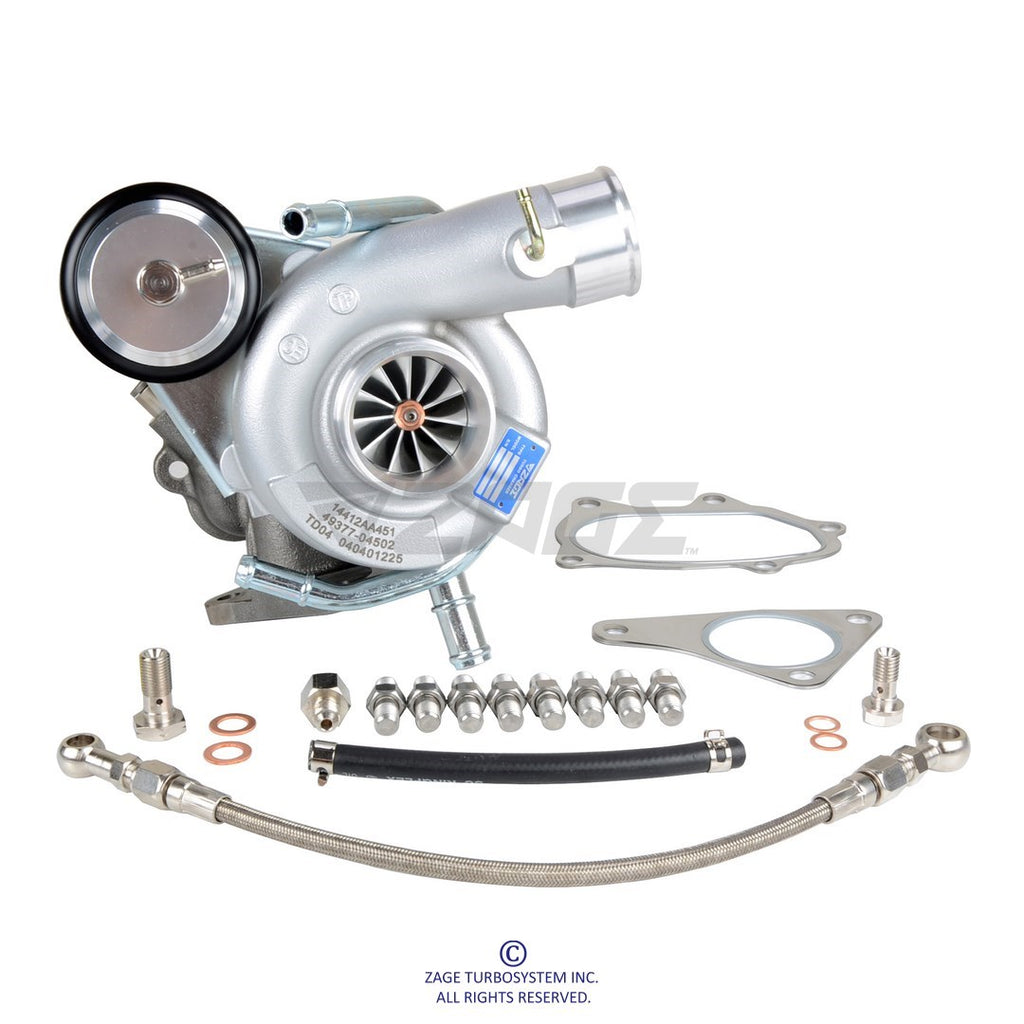

EJ20/EJ25 (IMPREZA/WRX/STI/GC8-GDB)
Flange: Std SUBARU Single Scroll

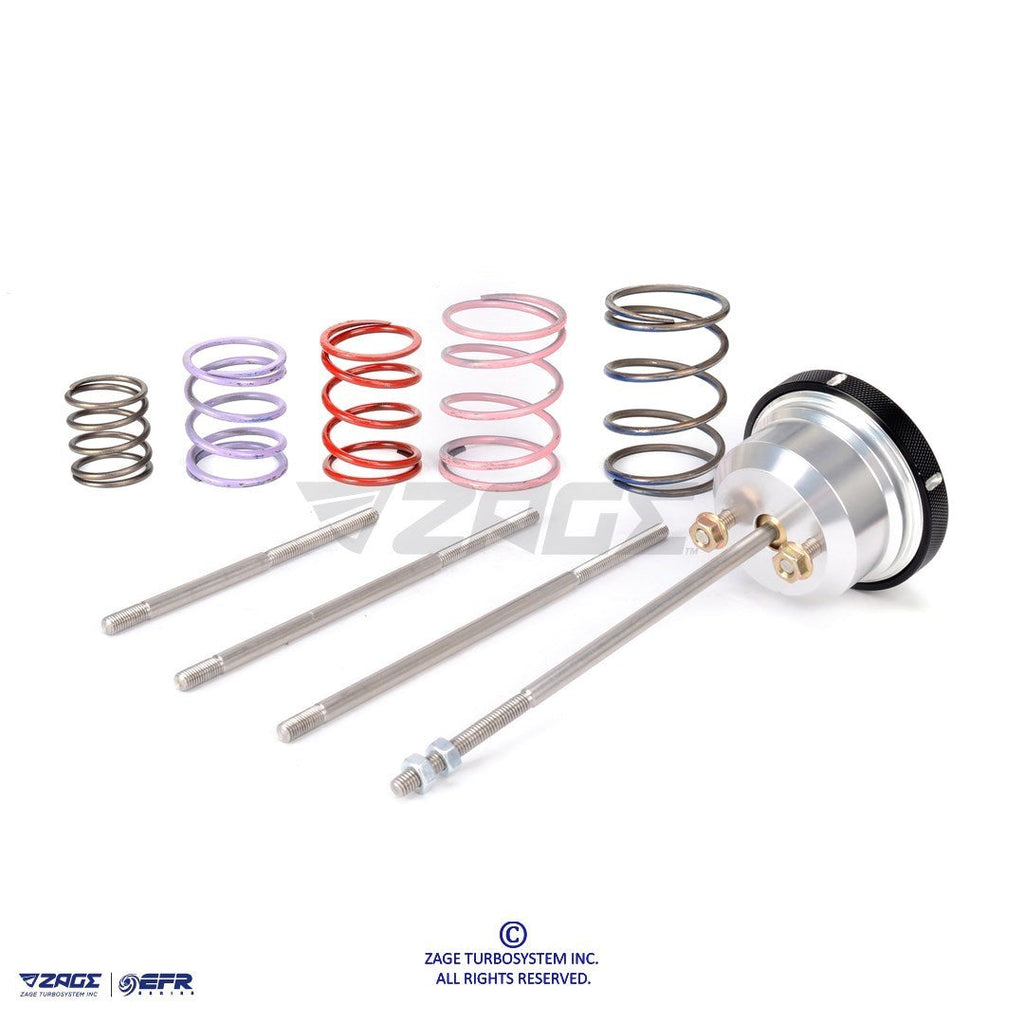

Actuator: 0.2~2 BAR
APPLICATIONS:
2002 - 2007 Subaru WRX
2004 - 2018 Subaru STi
- Bearing: Dual-row ceramic ball bearing
Replacement for: Stock TD04L Turbo P/N 49377-04100, 49377-04200, 49377-04300, etc.
*Stock MHI TD04L Turbo MAX 230HP

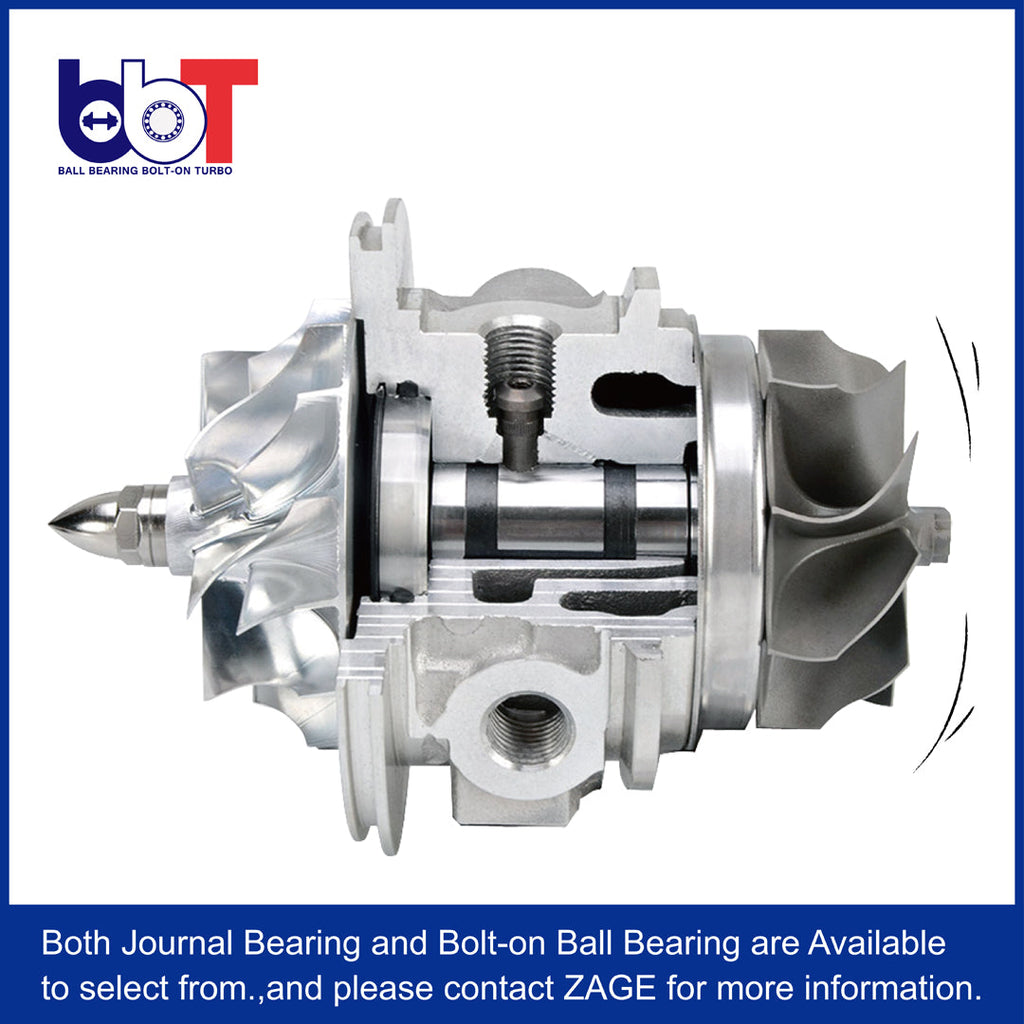

● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from, and please contact ZAGE for more information.
● Scrollable Table for Turbo Configurations:
| Max HP | Turbine Wheel | AR | Compressor Wheel | CFM | Part Number |
|---|---|---|---|---|---|
| 260+ | TD04H (44.2/52mm - 6cm²) | 41 | 19T (46/58mm) | 450 | 1ZSU6I-524606-01 |
| 250+ | TD04L (41.2/47mm - 6cm²) | 41 | 19T (46/58mm) | 450 | 1ZSU6I-474606-01 |
| 240+ | TD04H (44.2/52mm - 6cm²) | 41 | 13T (40.8/56mm) | 1ZSU6I-524006-01 | |
| 240+ | TD04L (41.2/47mm - 6cm²) | 41 | 13T (40.8/56mm) | 1ZSU6I-474006-01 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
