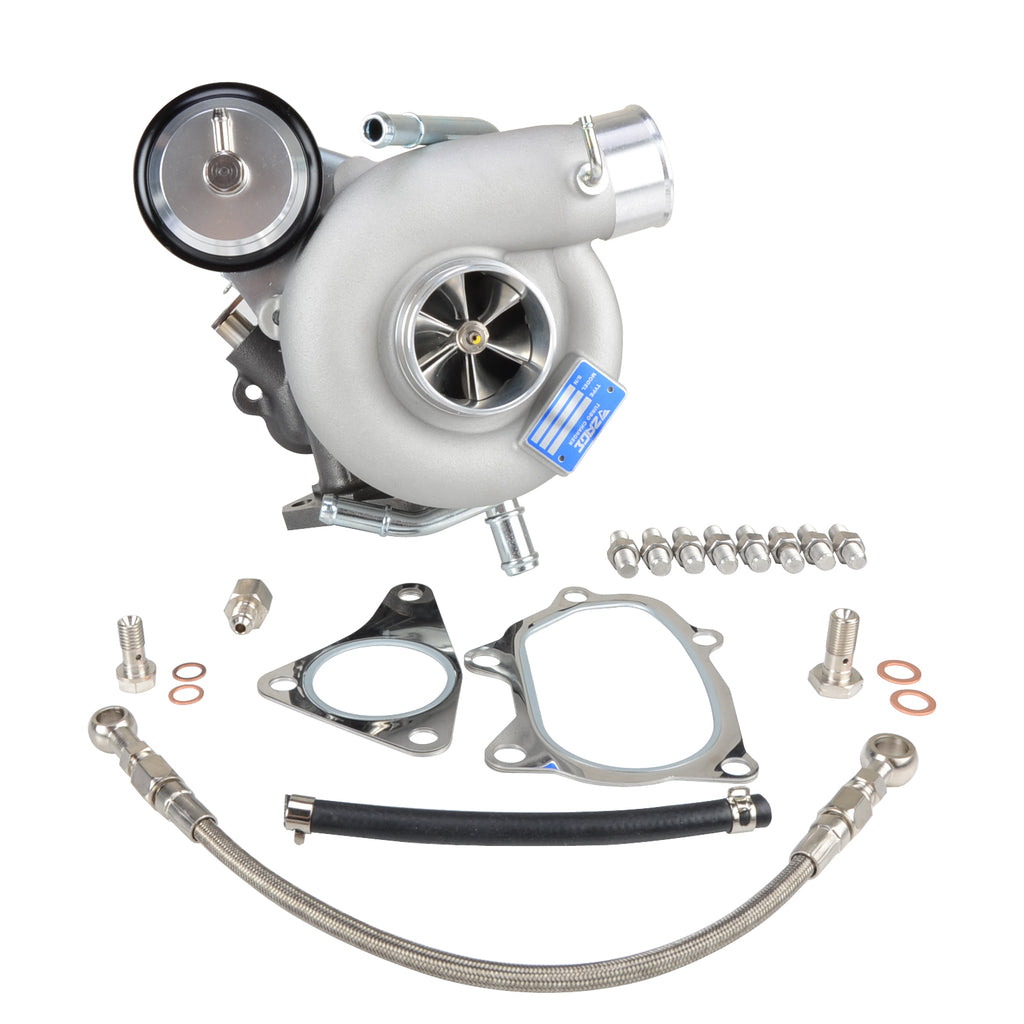

IMPREZA STI GRF EJ25 08~
Flange: Std SUBARU Single Scroll
Actuator: 0.2~2 BAR
APPLICATIONS: 2008-2014 Subaru STI
- Bearing: Dual-row ceramic ball bearing
Replacement for : Stock TD04 Turbo P/N 49377-04502, TD05H P/N 49178-06310, etc.
● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from, and please contact ZAGE for more information.
● Scrollable Table for Turbo Configurations:
| Max HP | Turbine Wheel | A/R | Compressor Wheel | CFM | Part Number |
|---|---|---|---|---|---|
| 340+ | TD05H (49.2/55.8mm - 7cm²) | 49 | Big16G (48.3/68mm) | 580 | 1ZSU2I-564807-01 |
| 350+ | TD05H (49.2/55.8mm - 7cm²) | 49 | 18G (50.3/68mm) | 600 | 1ZSU2I-565007-01 |
| 360+ | TD05H (49.2/55.8mm - 8cm²) | 57 | 18G (50.3/68mm) | 600 | 1ZSU2I-565008-01 |
| 380+ | TD05H (49.2/55.8mm - 7cm²) | 49 | 20G (52.5/68mm) | 640 | 1ZSU2I-565207-01 |
| 390+ | TD05H (49.2/55.8mm - 8cm²) | 57 | 20G (52.5/68mm) | 640 | 1ZSU2I-565208-01 |
| 400+ | TD06SL2 (54/61mm - 8cm²) | 57 | 18G (50.3/68mm) | 600 | 1ZSU2I-615008-01 |
| 400+ | TD06SL2 (54/61mm - 7cm²) | 49 | 20G (52.5/68mm) | 640 | 1ZSU2I-615207-01 |
| 410+ | TD06SL2 (54/61mm - 8cm²) | 57 | 20G (52.5/68mm) | 640 | 1ZSU2I-615208-01 |
| 420+ | TD06H-11B (58.8/67.1mm - 8cm²) | 57 | 20G (52.5/68mm) | 640 | 1ZSU2I-675208-01 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
