Rebuild Kit for Mitsubishi TD04 Turbo
| Part Number | Type | OE Number |
|---|---|---|
| 1GRBK-ZMI2-0100 | Flatback (Upgrade) | - |
| 1GRBK-ZMI2-0200 | Superback (Upgrade) | - |
| 1GRBK-ZMI2-0400 | Flatback (STD) | 49189-84000 |
| 1GRBK-ZMI2-0500 | Superback (STD) | 49177-80410 |

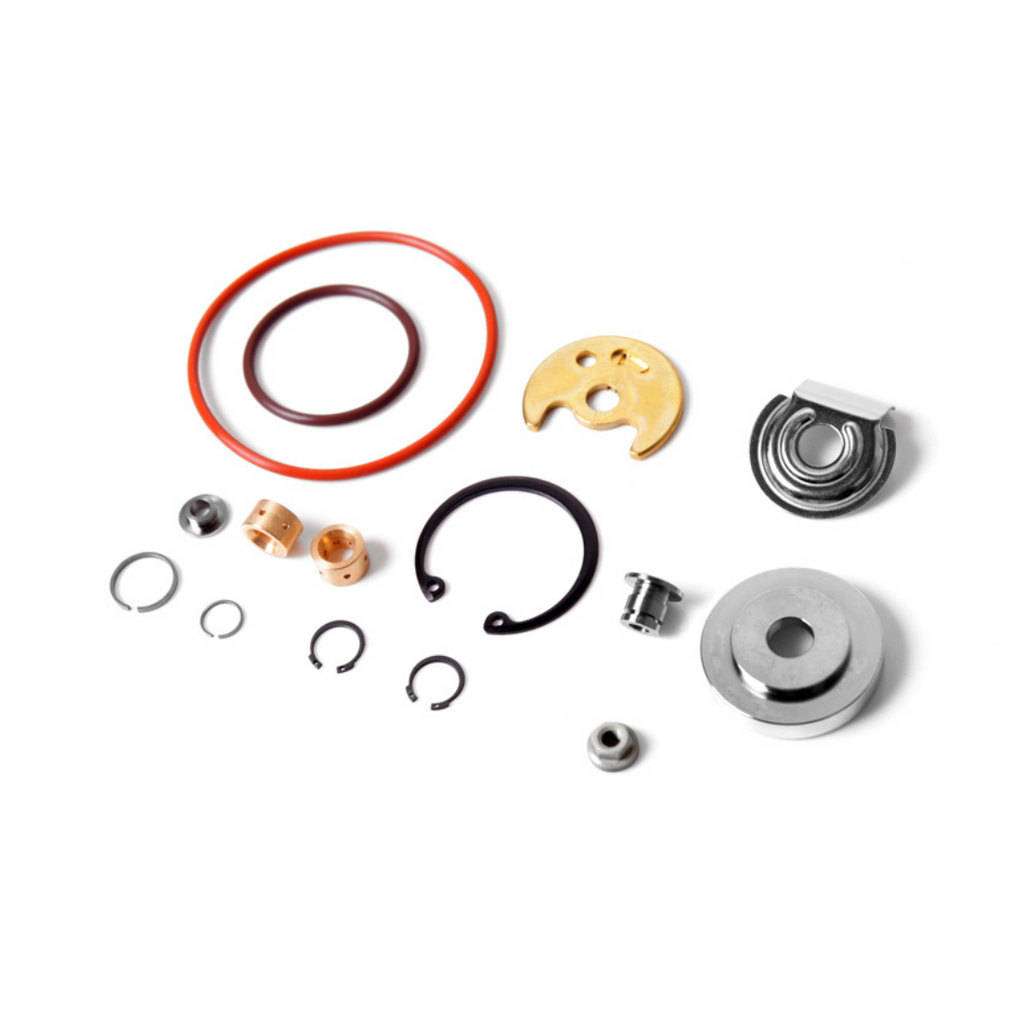

● Scrollable Table for Kit Contents (Flatback (Upgrade)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0400 | Snap Ring (C/Hsg-B/Hsg) | 2 |
| 4CSR-I-040-0100 | Snap Ring (Insert) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut | 1 |
| 4ORN-03931-0100 | O-Ring (Insert) | 1 |
| 4ORN-07431-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4RKP-IS-MI-0300 | Insert | 1 |
| 4RKP-FG-MI-0200 | Flinger | 1 |
| 4RKP-JB-MI-0100 | Journal Bearing | 2 |
| 4RKP-OD-MI-0100 | Oil Deflector | 1 |
| 4RKP-PR-100-0400 | Piston Ring CompΦ10 | 1 |
| 4RKP-PR-158-0301 | Piston Ring(Φ15.88) | 1 |
| 4RKP-TB-MI-0100 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0200 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (Superback (Upgrade)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0400 | Snap Ring (C/Hsg-B/Hsg) | 2 |
| 4CSR-I-040-0100 | Snap Ring (Insert) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut | 1 |
| 4ORN-03931-0100 | O-Ring (Insert) | 1 |
| 4ORN-07431-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4RKP-IS-MI-0200 | Insert | 1 |
| 4RKP-FG-MI-0800 | Flinger | 1 |
| 4RKP-JB-MI-0100 | Journal Bearing | 2 |
| 4RKP-OD-MI-0200 | Oil Deflector | 1 |
| 4RKP-PR-100-0400 | Piston Ring CompΦ10 | 1 |
| 4RKP-PR-158-0301 | Piston Ring(Φ15.88) | 1 |
| 4RKP-TB-MI-0100 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0200 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (Flatback (STD)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0400 | Snap Ring (C/Hsg-B/Hsg) | 2 |
| 4CSR-I-040-0100 | Snap Ring (Insert) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut | 1 |
| 4ORN-03931-0100 | O-Ring (Insert) | 1 |
| 4ORN-07431-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4RKP-IS-MI-0300 | Insert | 1 |
| 4RKP-FG-MI-0700 | Flinger | 1 |
| 4RKP-JB-MI-0100 | Journal Bearing | 2 |
| 4RKP-OD-MI-0200 | Oil Deflector | 1 |
| 4RKP-PR-100-0400 | Piston Ring CompΦ10 | 1 |
| 4RKP-PR-158-0301 | Piston Ring(Φ15.88) | 1 |
| 4RKP-TB-MI-0400 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0100 | Thrust Ring (STD) | 1 |
● Scrollable Table for Kit Contents (Superback (STD)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0400 | Snap Ring (C/Hsg-B/Hsg) | 2 |
| 4CSR-I-040-0100 | Snap Ring (Insert) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut | 1 |
| 4ORN-03931-0100 | O-Ring (Insert) | 1 |
| 4ORN-07431-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4RKP-IS-MI-0200 | Insert | 1 |
| 4RKP-FG-MI-1200 | Flinger | 1 |
| 4RKP-JB-MI-0100 | Journal Bearing | 2 |
| 4RKP-OD-MI-0200 | Oil Deflector | 1 |
| 4RKP-PR-100-0400 | Piston Ring CompΦ10 | 1 |
| 4RKP-PR-158-0301 | Piston Ring(Φ15.88) | 1 |
| 4RKP-TB-MI-0400 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0100 | Thrust Ring (STD) | 1 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
