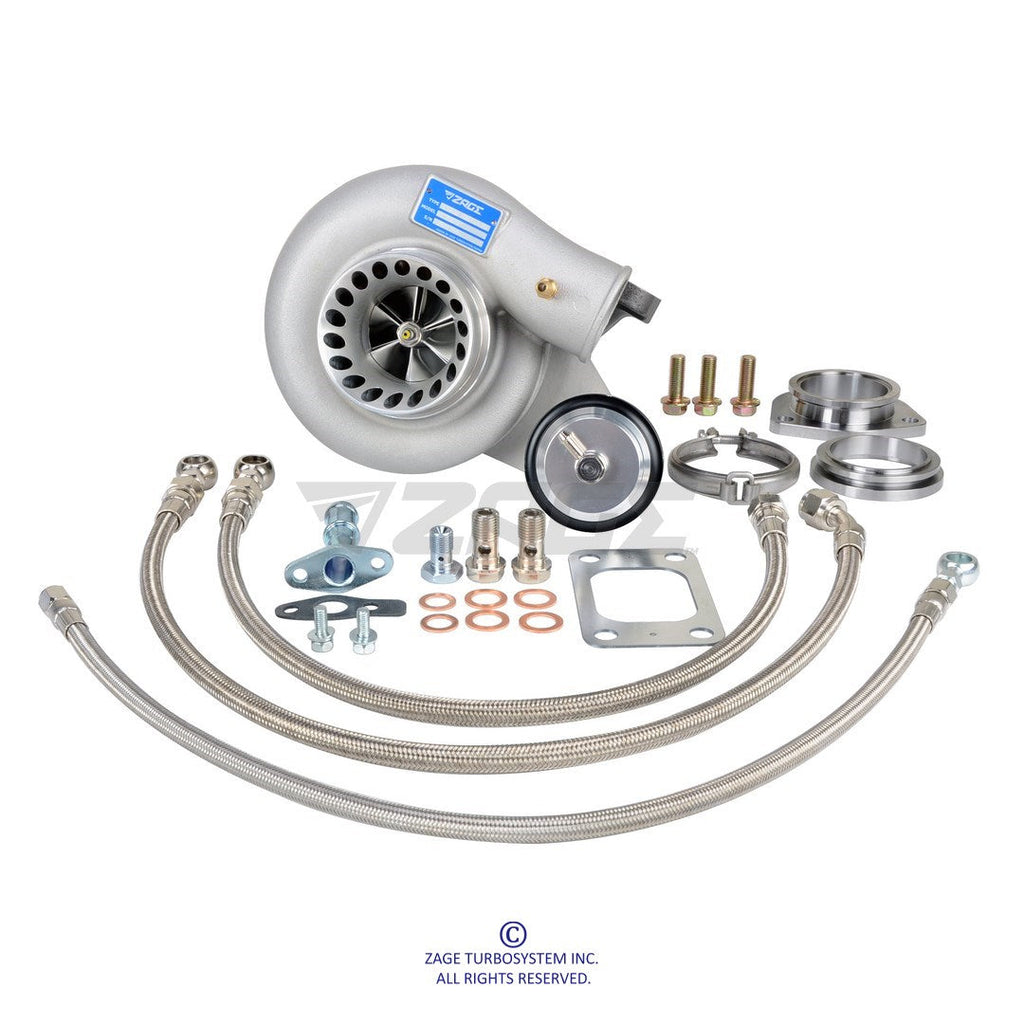

TD42 Patrol
Flange: T3

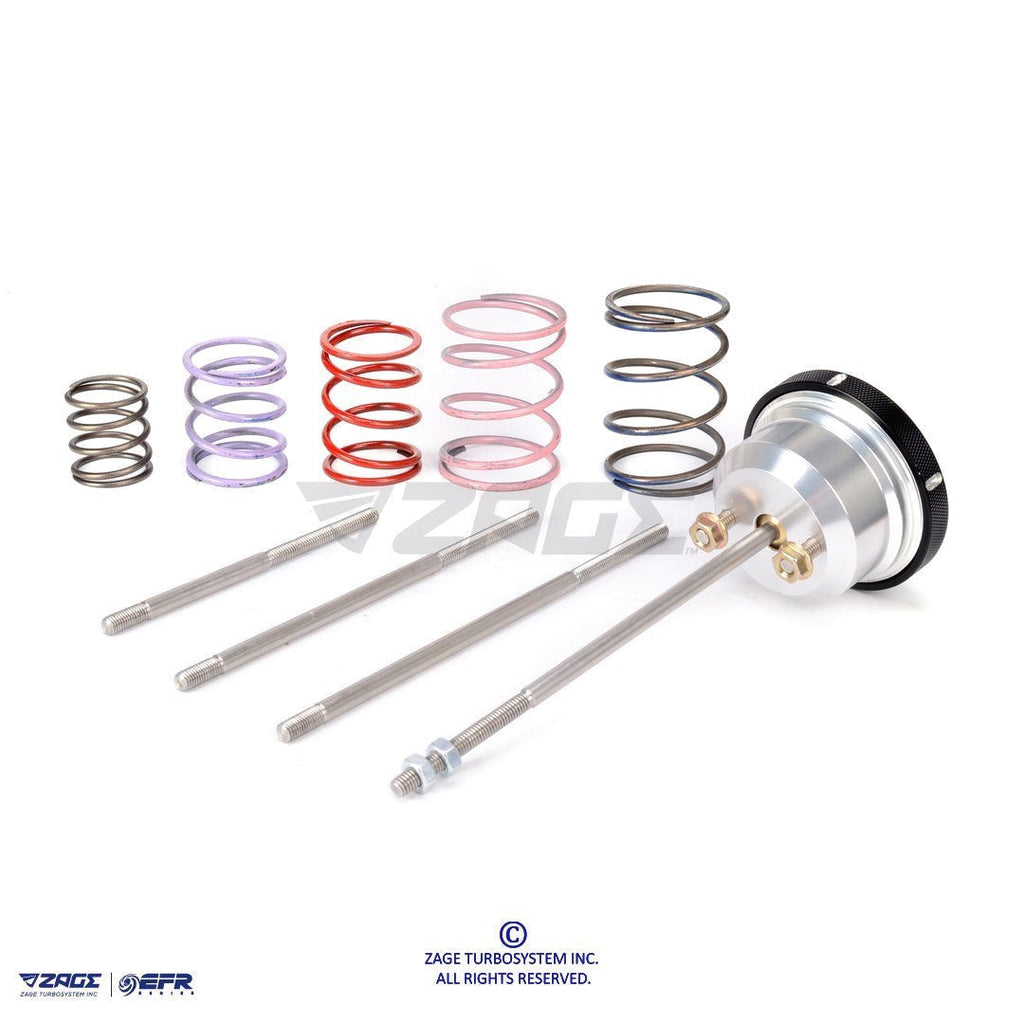

Actuator: 0.2~2 BAR
APPLICATIONS: Nissan TD42 Patrol Safari Diesel Engine
- Bearing: Dual-row ceramic ball bearing
Replacement for: Stock TB2809, TB2815 Turbo.

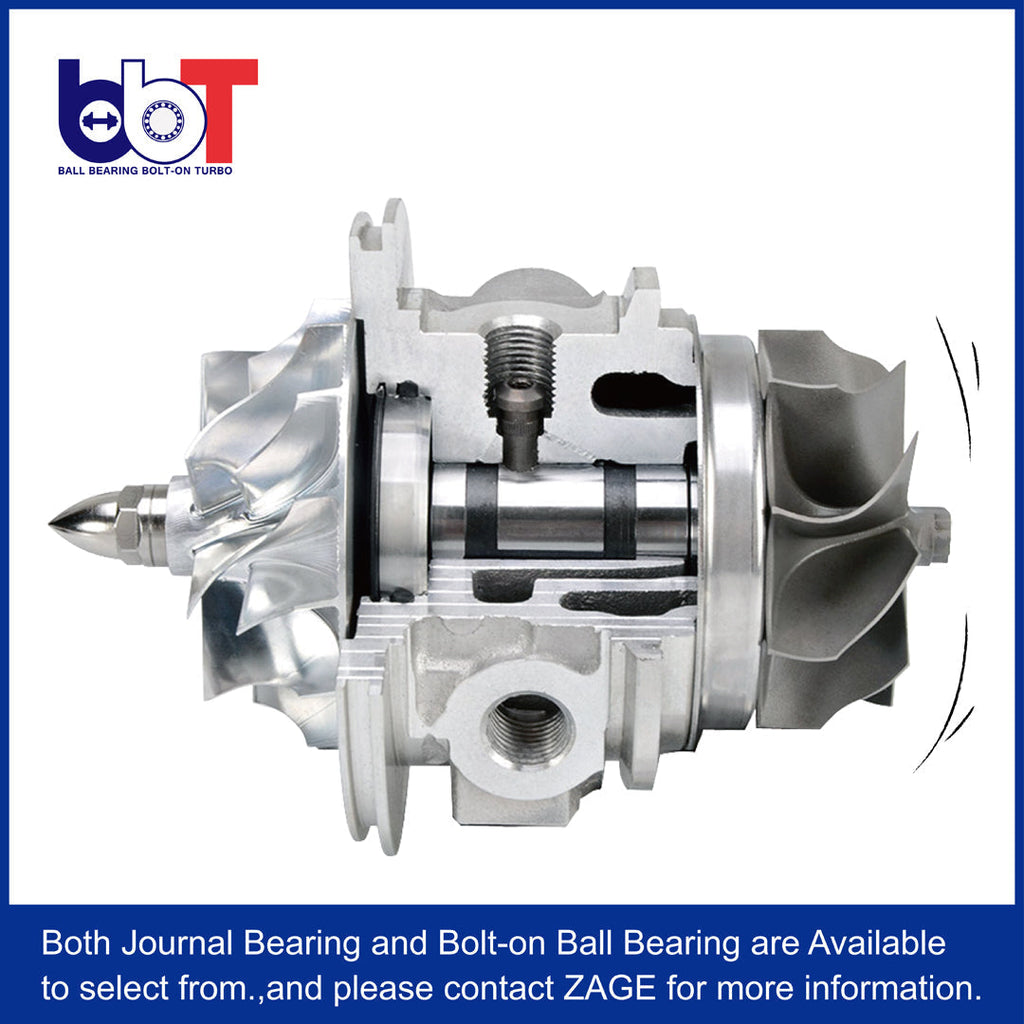

● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from. Please contact ZAGE for more information.
● Scrollable Table for Turbo Configurations:
| Turbine Wheel | Nozzle Area | AR | Compressor Wheel | CFM | Part Number |
|---|---|---|---|---|---|
| TD05H-9B (49.2/55.8mm) | 6cm² | 41 | 18G (50.3/68mm) | 600 | 1ZNI8I-565006-02 |
| TD05H-12B (49.2/55.8mm) | 6cm² | 41 | 18G (50.3/68mm) | 600 | 1ZNI8I-565006-01 |
| TD05H-9B (49.2/55.8mm) | 6cm² | 41 | 20G (52.5/68mm) | 640 | 1ZNI8I-565206-02 |
| TD05H-12B (49.2/55.8mm) | 6cm² | 41 | 20G (52.5/68mm) | 640 | 1ZNI8I-565206-01 |
| TD06SL2 (54/61mm) | 6cm² | 41 | 20G (52.5/68mm) | 640 | 1ZNI8I-615206-01 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
