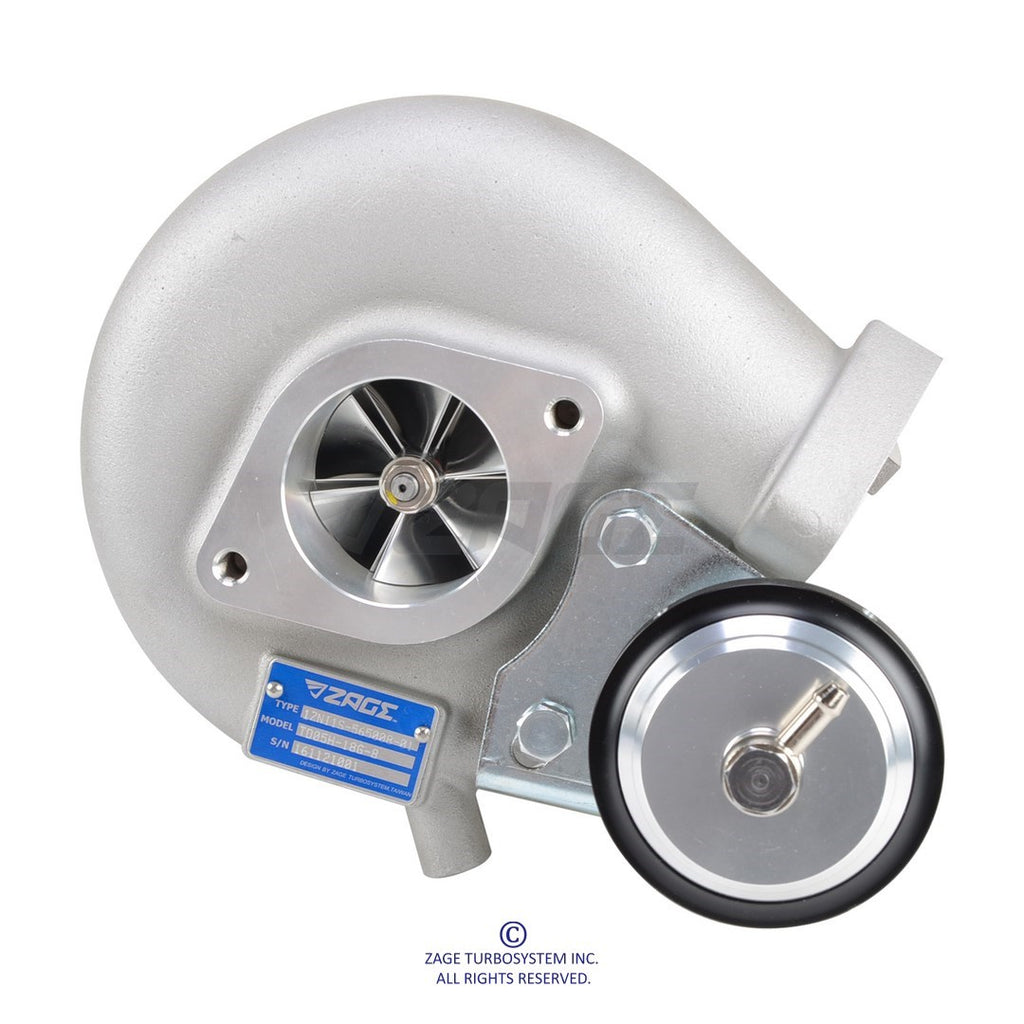

SR20DET (Silvia S14/15 200sx)
Flange: T25

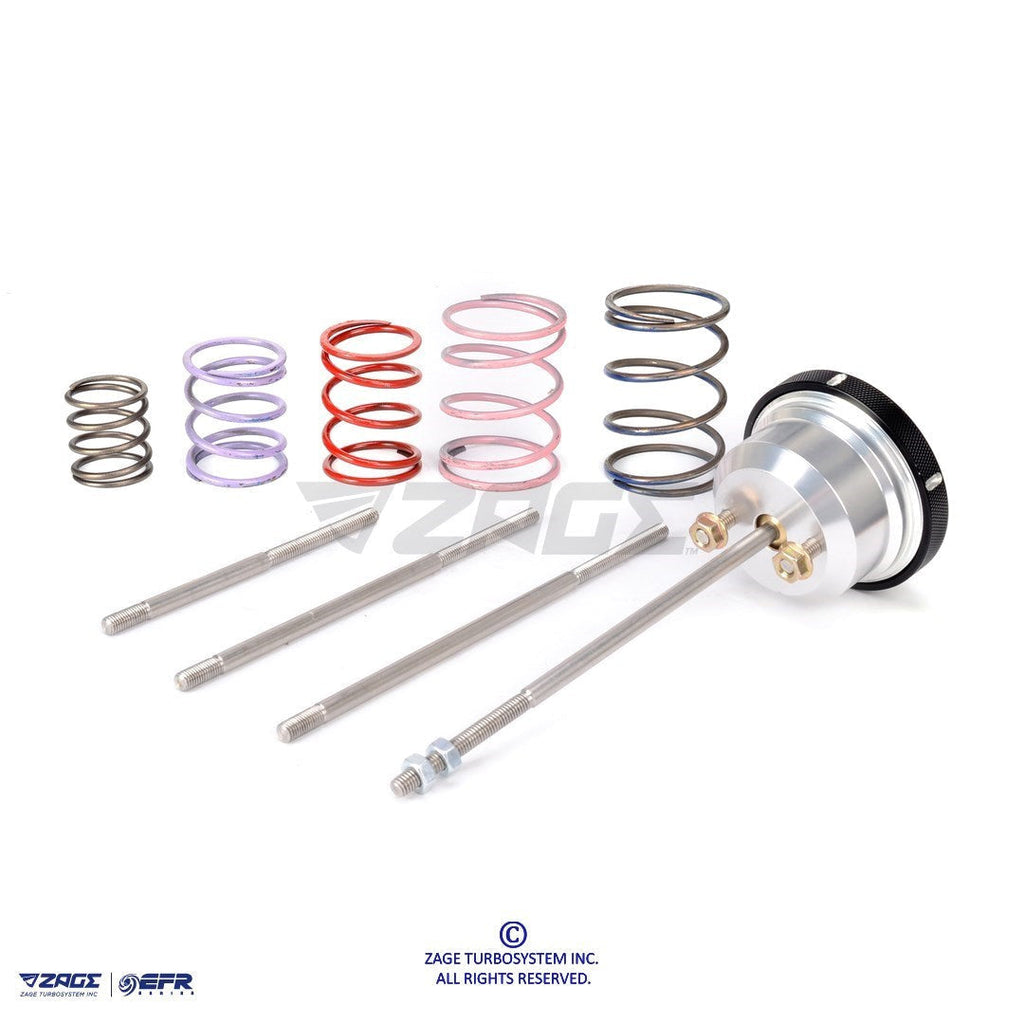

Actuator: 0.2~2 BAR
APPLICATIONS: Nissan Silvia SR20DET S13/ S14/ S15
- Bearing: Dual-row ceramic ball bearing
Replacement for: Stock TB2809, TB2815 Turbo

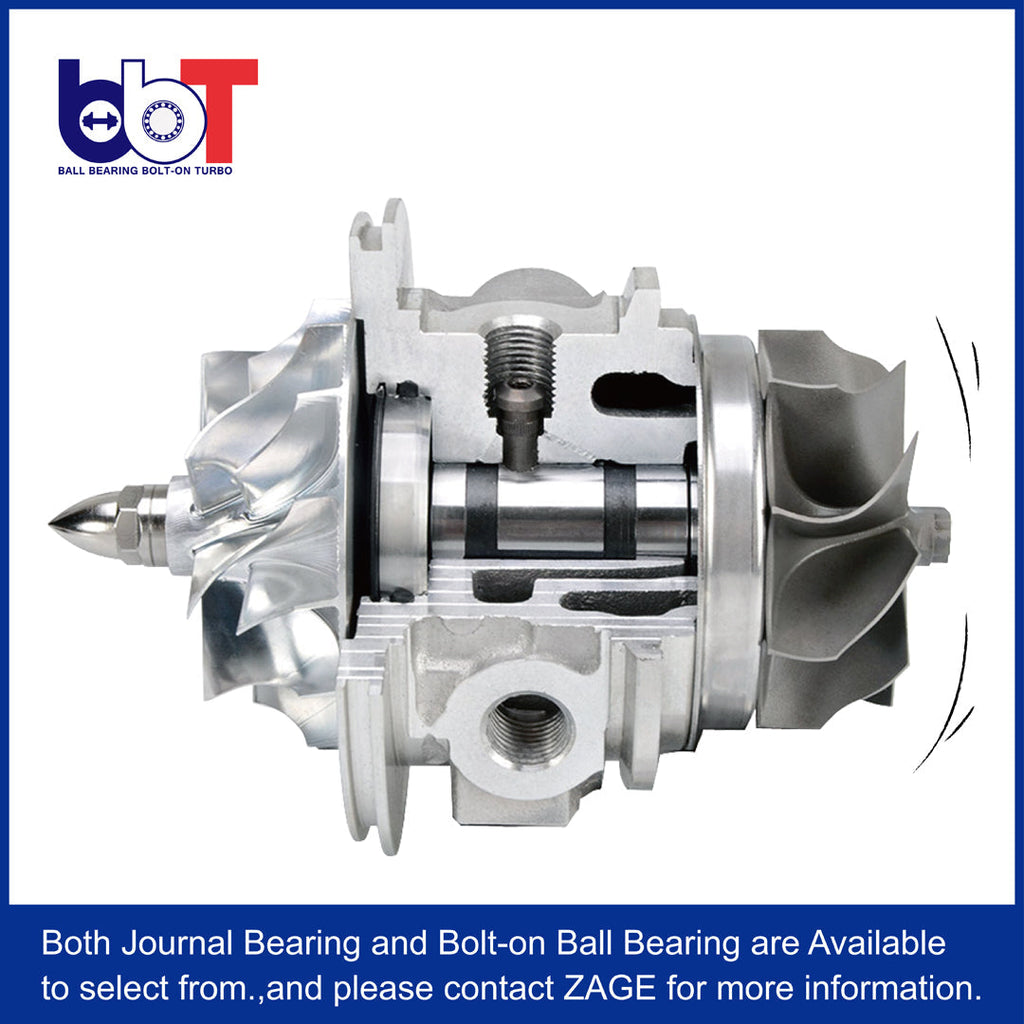

● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from.,and please contact ZAGE for more information.
● Scrollable Table for Turbo Configurations:
| Max HP | Turbine Wheel | AR | Compressor Wheel | CFM | Part Number |
|---|---|---|---|---|---|
| 360+ | TD05H (49.2/55.8mm - 8cm²) | 57 | 18G (50.3/68mm) | 600 | 1ZNI1I-565008-01 |
| 420+ | TD06SL2 (54/61mm - 7cm²) | 49 | 20G (52.5/68mm) | 640 | 1ZNI1I-615207-01 |
| 380+ | TD05H (49.2/55.8mm - 8cm²) | 57 | 20G (52.5/68mm) | 640 | 1ZNI1I-565208-01 |
| 420+ | TD06SL2 (54/61mm - 8cm²) | 57 | 20G (52.5/68mm) | 640 | 1ZNI1I-615208-01 |
| 430+ | TD06H -12B (58.8/67.1mm - 8cm²) | 57 | 20G (52.5/68mm) | 640 | 1ZNI1I-675208-02 |
| 430+ | TD06H -11B (58.8/67.1mm - 8cm²) | 57 | 20G (52.5/68mm) | 640 | 1ZNI1I-675208-01 |
| 450+ | TD06H -12B (58.8/67.1mm - 8cm²) | 57 | 601 (59/76mm) | 750 | 1ZNI1I-675908-02 |
| 450+ | TD06H -11B (58.8/67.1mm - 8cm²) | 57 | 601 (59/76mm) | 750 | 1ZNI1I-675908-01 |
| 360+ | TD05H (49.2/55.8mm - 7cm²) | 49 | 18G (50.3/68mm) | 600 | 1ZNI1I-565007-01 |
| 380+ | TD05H (49.2/55.8mm - 7cm²) | 49 | 20G (52.5/68mm) | 640 | 1ZNI1I-565207-01 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
