EVO9(4-8) 4G63T
Flange: STD EVO 9
Actuator: 0.2~2 BAR
APPLICATIONS: Mitsubishi 4G63T EVO4-9
- Bearing: Dual-row ceramic ball bearing
Replacement for: Stock TD05HR Turbo P/N 49378-01570, 49378-01580, etc.
*Stock MHI TD05HR-16G6-10.5T Turbo MAX 320HP

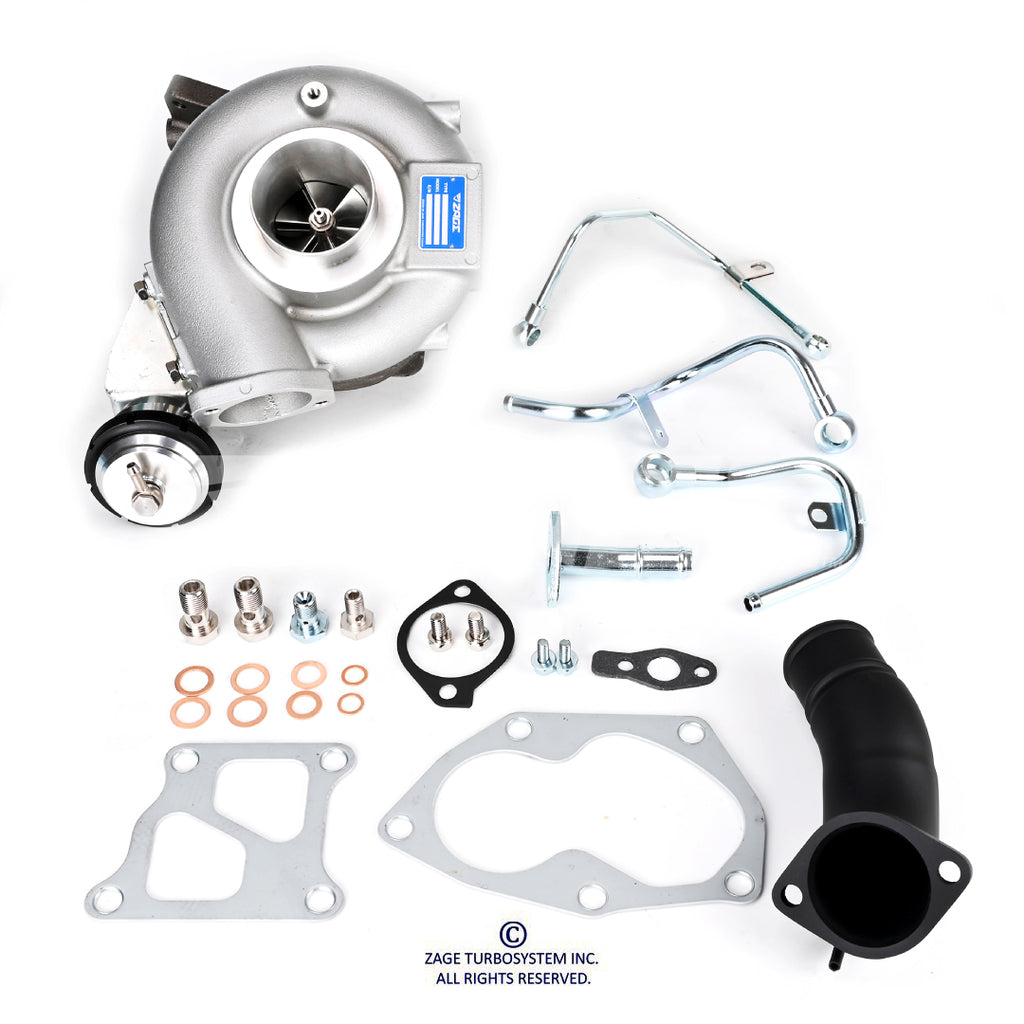

*Oil & water line kit (1GOWK-MI1-0100) is required to be bought at an additional cost for application on EVO 4-8.
●Both Journal Bearing and Bolt-on Ball Bearing are Available to select from.,and please contact ZAGE for more information.
| Turbine Wheel | AR | Compressor Wheel | Part Number |
|---|---|---|---|
| TD05HR (49/56mm) | 77 | 16G (48.3/68mm) | 1ZMI3I-564810-01 |
| TD05HR (49/56mm) | 77 | 18G (50.3/68mm) | 1ZMI3I-565010-01 |
| TD05HR (49/56mm) | 77 | 20G (52.5/68mm) | 1ZMI3I-565210-02 |
| TD06SL2R (54/61.5mm) | 77 | 20G (52.5/68mm) | 1ZMI3I-615210-01 |
| TD06HR (58.75/66.8mm) | 77 | 20G (52.5/68mm) | 1ZMI3I-675210-02 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
