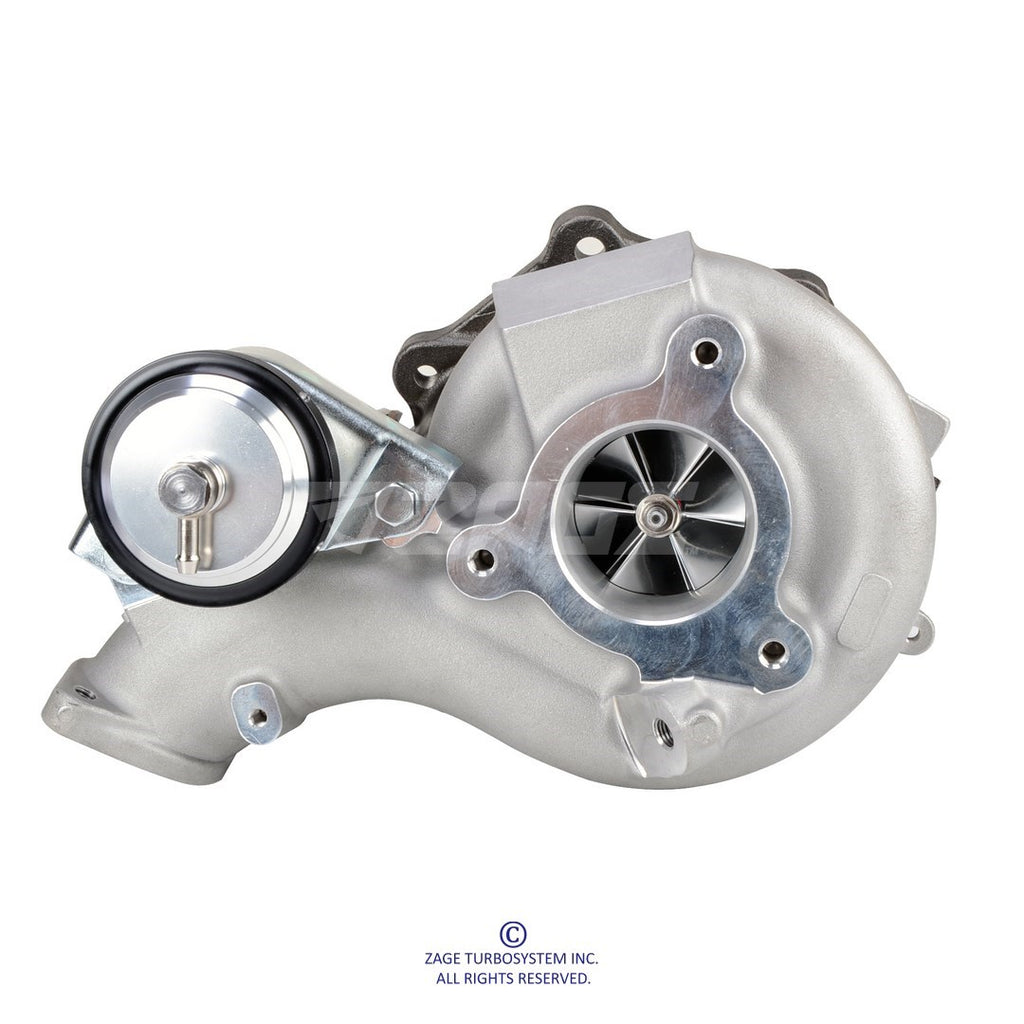

EVOX Lancer 4B11T
Flange: STD EVO 10

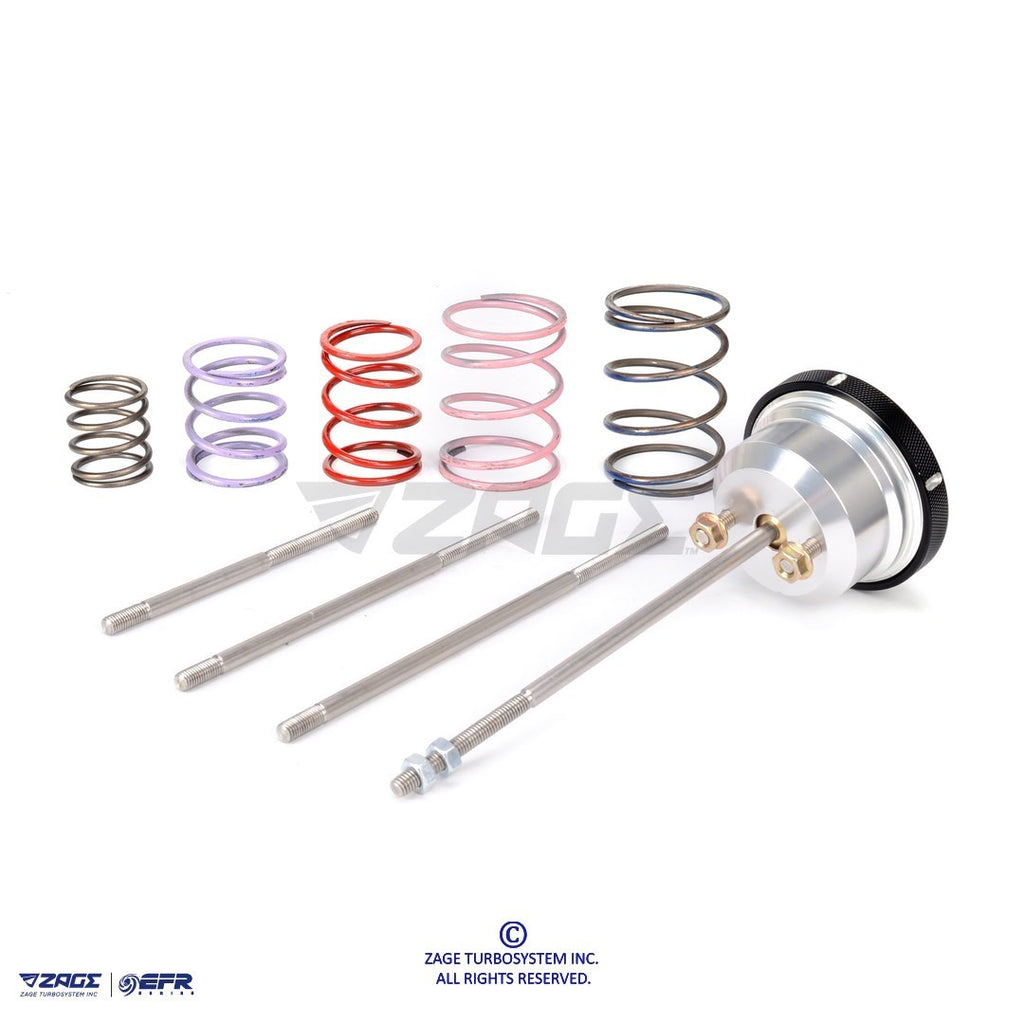

Actuator: 0.2~2 BAR
- Cooling: Oil water cooled system
APPLICATIONS: Mitsubishi 4B11T EVO10
- Bearing: Dual-row ceramic ball bearing
Replacement for Stock TD05H Turbo P/N 49378-01641, 49378-01642, etc.
*Stock MHI TD05H Turbo MAX 280HP
*Oil & water line kit (1GOWK-MI2-0100) and Compressor Inlet Pipe (1GCIP-MI2-0100) are required to be bought at an additional cost.

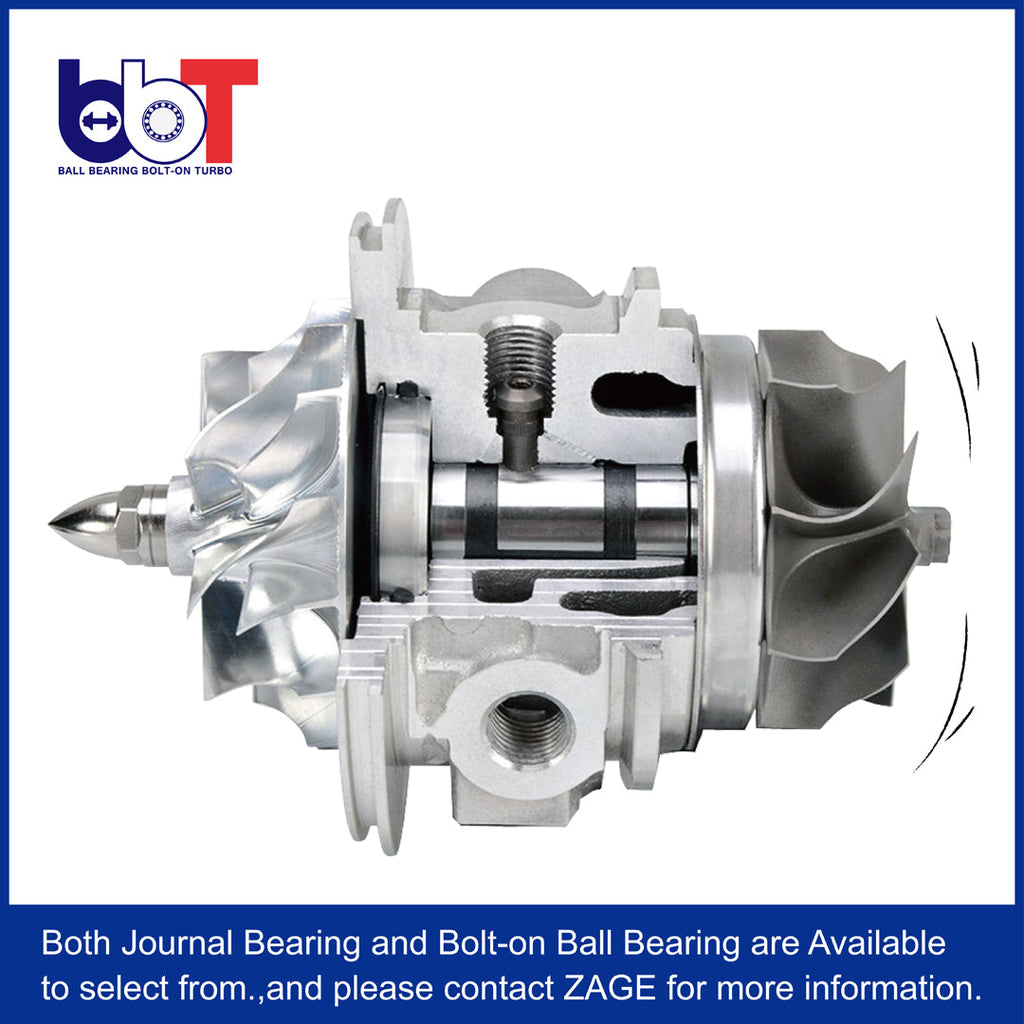

● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from.,and please contact ZAGE for more information.
● Turbo Specification:
| Max HP | Turbine Wheel | Nozzle Area | AR | Compressor Wheel | CFM | Part Number |
|---|---|---|---|---|---|---|
| 330+ | TD05H (49.2 / 55.8 mm) | 12cm² | 89 | 18G (50.3 / 68 mm) | 600 | 1ZMI4I-565012-01 |
| 350+ | TD05H (49.2 / 55.8 mm) | 12cm² | 89 | 20G (52.5 / 68 mm) | 640 | 1ZMI4I-565212-01 |
| 380+ | TD06SL2 (54 / 61 mm) | 12cm² | 89 | 20G (52.5 / 68 mm) | 640 | 1ZMI4I-615212-01 |
| 400+ | TD06H -9B (58.8 / 67.1 mm) | 12cm² | 89 | 20G (52.5 / 68 mm) | 640 | 1ZMI4I-675212-01 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
