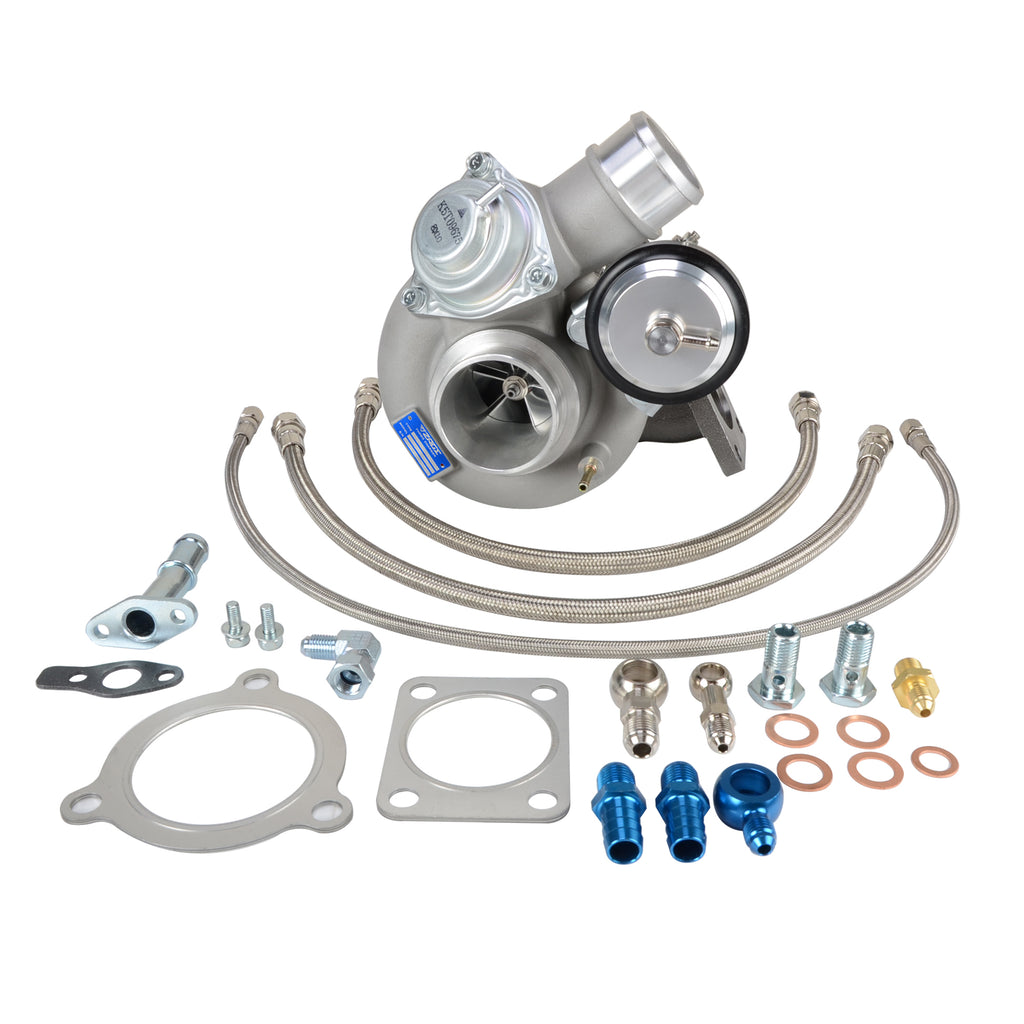

GENESIS COUPE 2.0T Theta G4KC 2008~
Flange: Std Genesis
Actuator: 0.2~2 BAR
APPLICATIONS: 2008-10 Hyundai Genesis Coupe with Theta 2.0L G4KC Engine
Replacement for: Stock TD04L Turbo P/N 49377-06902, etc.
*STOCK MHI TD04 TURBO MAX 210HP.
● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from, and please contact ZAGE for more information.
● Scrollable Table for details:
| Max HP | Turbine Wheel | Nozzle Area | AR | Compressor Wheel | CFM | Part Number |
|---|---|---|---|---|---|---|
| 280+ | TD05H (49.2/55.8mm) | 8cm² | 57 | Big16G (48.3/68mm) | 580 | 1ZHY1B-564808-01 |
| 300+ | TD05H (49.2/55.8mm) | 8cm² | 57 | 18G (50.3/68mm) | 600 | 1ZHY1B-565008-01 |
| 320+ | TD05H (49.2/55.8mm) | 8cm² | 57 | 20G (52.5/68mm) | 640 | 1ZHY1B-565208-01 |
| 380+ | TD06SL2 (54/61mm) | 8cm² | 57 | 20G (52.5/68mm) | 640 | 1ZHY1B-615208-01 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
