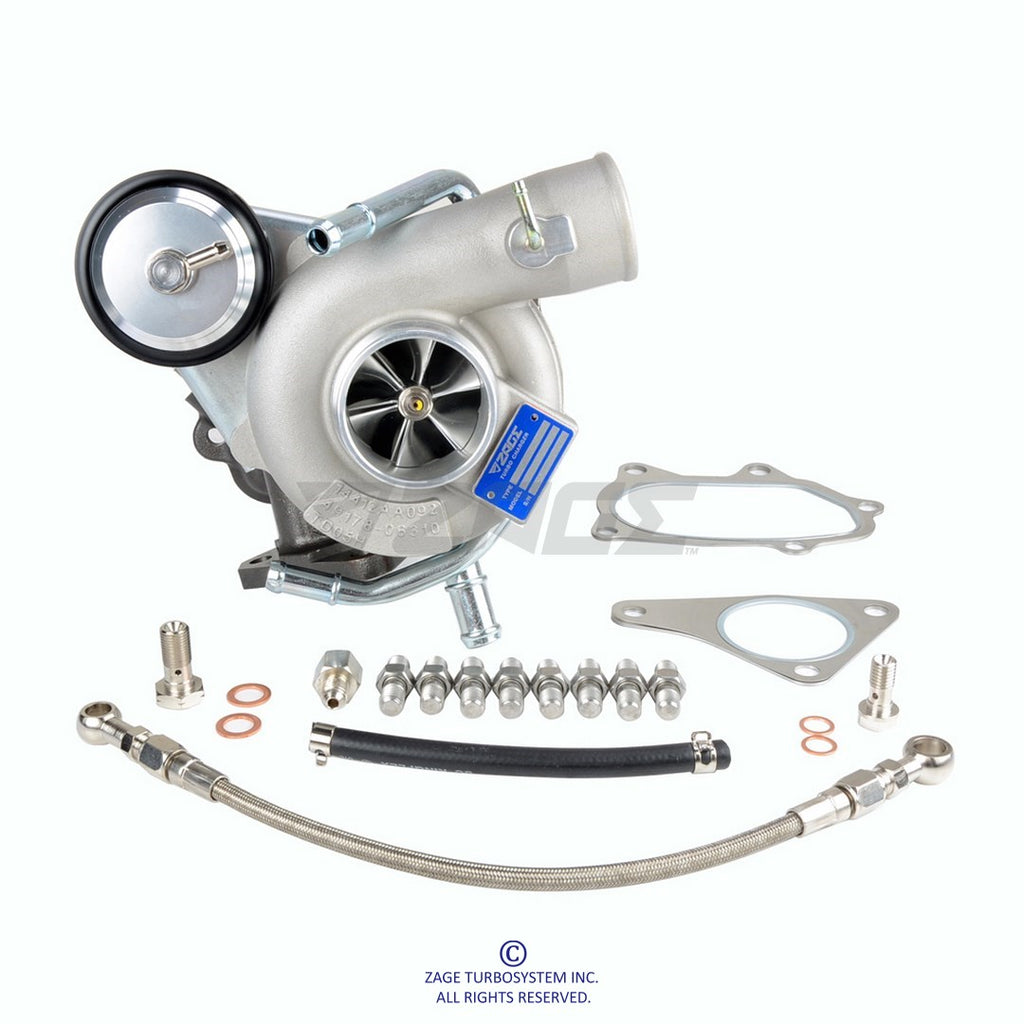

EJ20/EJ25 (IMPREZA/WRX/STI/GC8-GDB)

Stock type cover

Flange: Std SUBARU Single Scroll

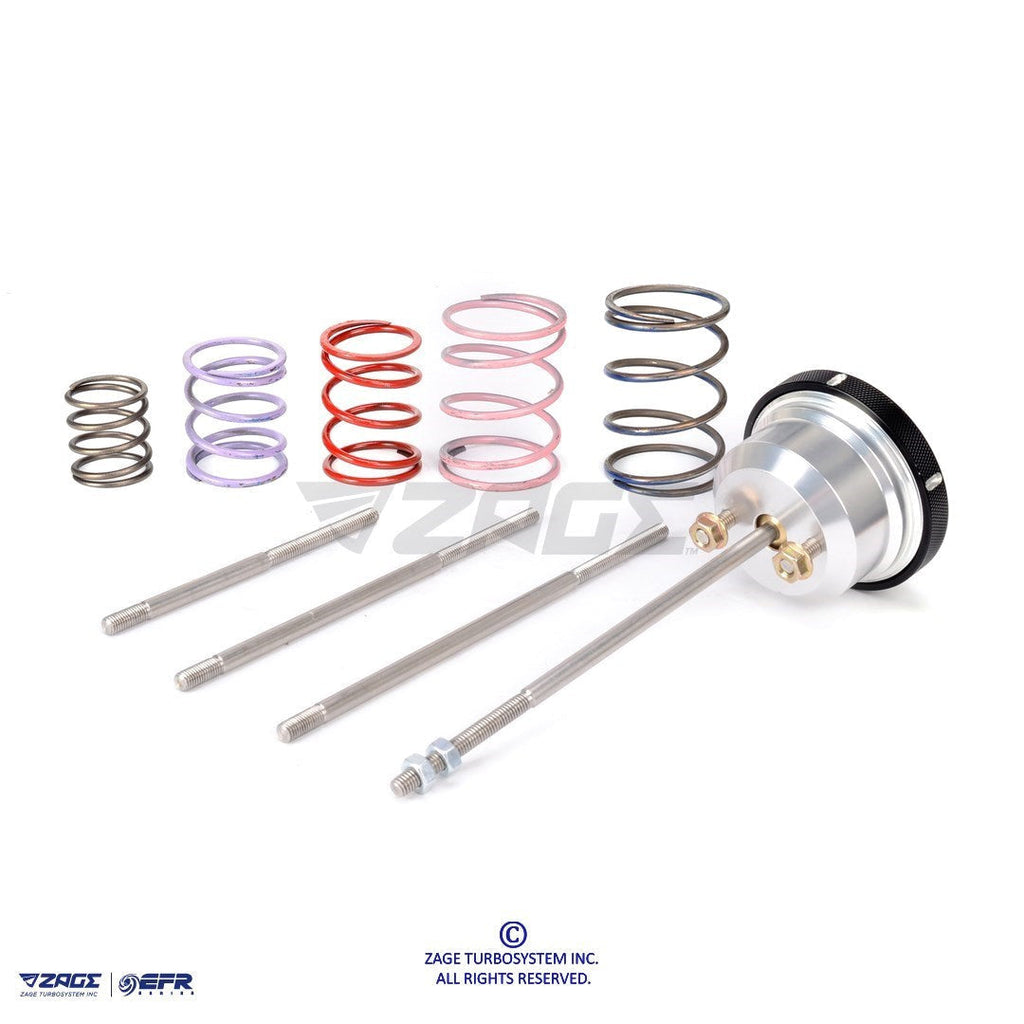

Actuator: 0.2~2 BAR

Replacement for: Stock TD04L Turbo P/N 49377-04100, 49377-04200, 49377-04300, etc.

*Stock MHI TD04L Turbo MAX 230HP

APPLICATIONS:

2002 - 2007 Subaru WRX

2004 – 2018 Subaru Sti

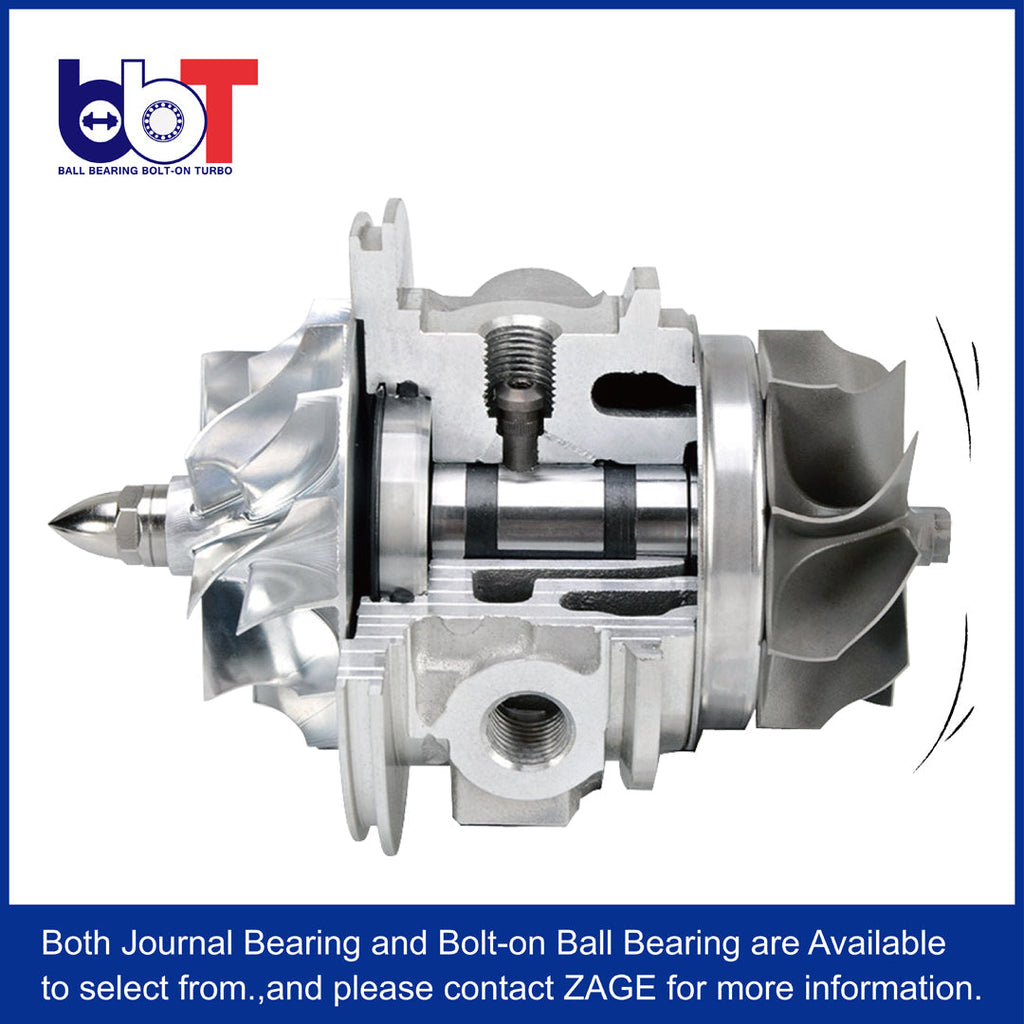

● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from, and please contact ZAGE for more information.



● Scrollable Table for Turbo Configurations:

Max HP Turbine Wheel AR Compressor Wheel CFM Part Number
330+ TD05H (49.2/55.8mm - 7cm²) 49 Big16G (48.3/68mm) 580 1ZSU1B-564807-02
350+ TD05H (49.2/55.8mm - 7cm²) 49 18G (50.3/68mm) 600 1ZSU1B-565007-02
360+ TD05H (49.2/55.8mm - 7cm²) 49 20G (52.5/68mm) 640 1ZSU1B-565207-02
340+ TD05H (49.2/55.8mm - 8cm²) 57 Big16G (48.3/68mm) 580 1ZSU1B-564808-02
360+ TD05H (49.2/55.8mm - 8cm²) 57 18G (50.3/68mm) 600 1ZSU1B-565008-02
370+ TD05H (49.2/55.8mm - 8cm²) 57 20G (52.5/68mm) 640 1ZSU1B-565208-02



● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.

● ZAGE can ship worldwide with no minimum order quantity.

● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
