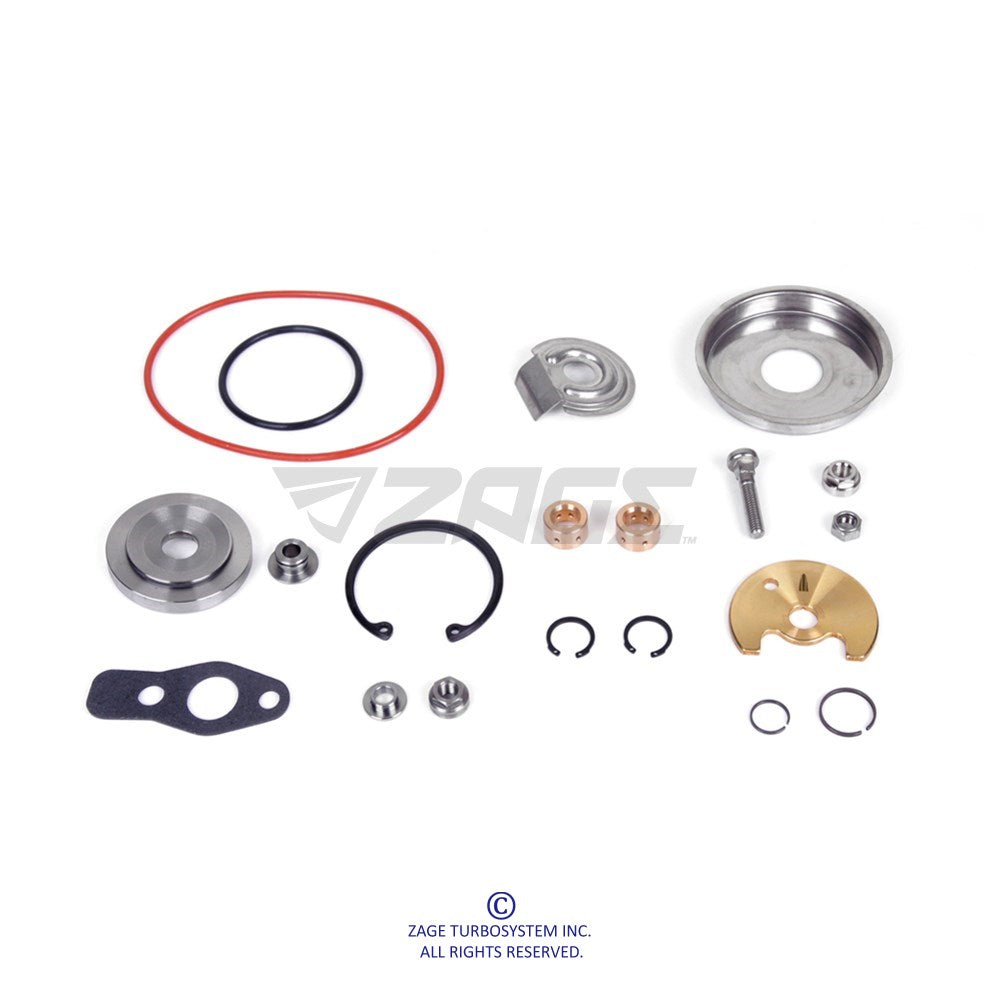

Rebuild Kit for Mitsubishi TD05/ TD06 Turbo
| Part Number | Type | OE Number |
|---|---|---|
| 1GRBK-ZMI3-0100 | Flatback(Upgrade) | |
| 1GRBK-ZMI3-0200 | Superback(Upgrade) | - |
| 1GRBK-ZMI3-0700 | Flatback(STD) | 49178-81110 |

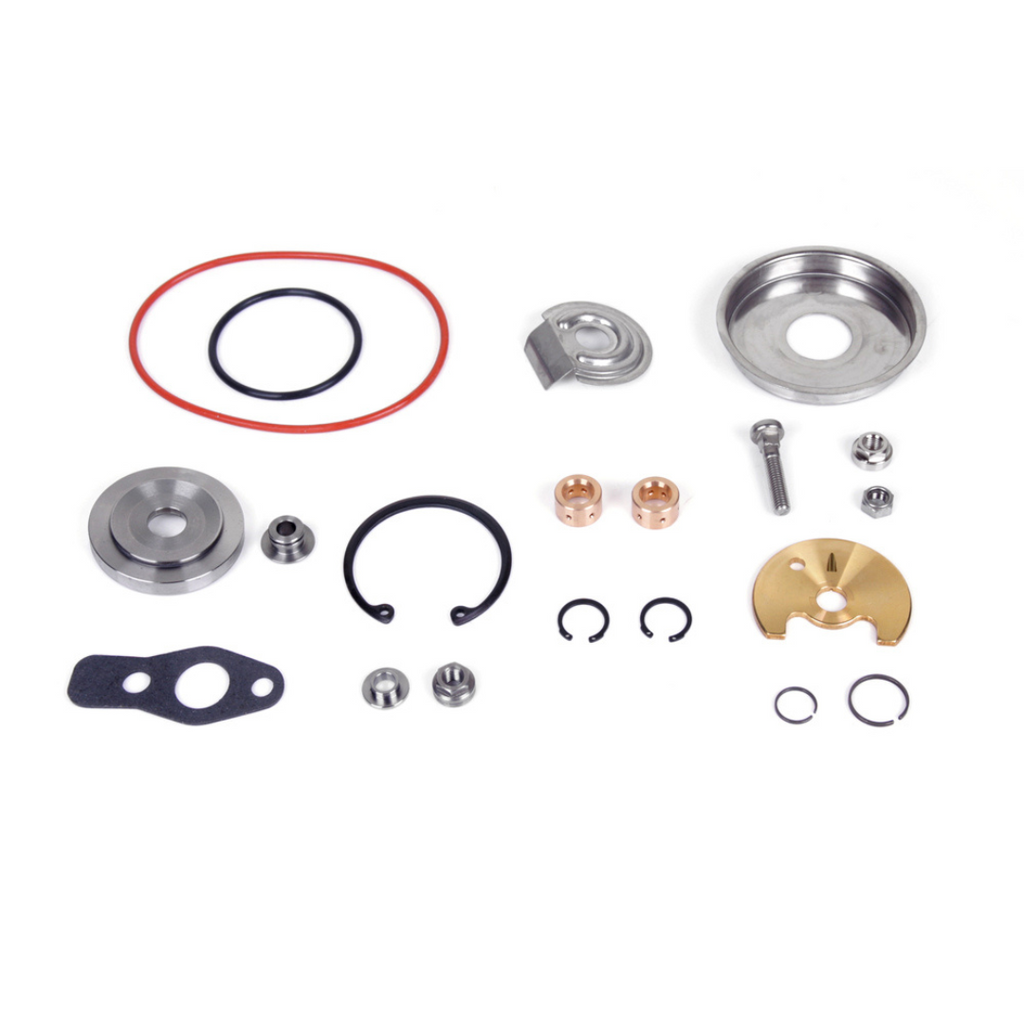

| 1GRBK-ZMI3-0800 | Superback(STD) | 49178-81210 |
| 1GRBK-ZMI3-0400 | Reverse EVO4-8(Upgrade) | - |
| 1GRBK-ZMI3-0500 | Reverse EVO9(Upgrade) | - |
| 1GRBK-ZMI3-1300 | Reverse EVO4-8(STD) | - |
| 1GRBK-ZMI3-1400 | Reverse EVO9(STD) | - |
| 1GRBK-ZMI3-1200 | EVO10(Upgrade) |
● Scrollable Table for Kit Contents (Flatback(Upgrade)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4RKP-TB-MI-0600 | Thrust Bearing(STD) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring(Turb)Φ17.5 1.58 | 1 |
| 4RKP-IS-MI-0400 | Insert(Flatback) | 1 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-FG-MI-0300 | Flinger(SB STD) | 1 |
| 4RKP-TR-MI-0600 | Thrust Ring | 1 |
| 4ORN-09830-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4HTS-MI-0400 | Heat Shield | 1 |
| 4BOT-M0610030K-0100 | Turbo Clamp Bolt | 1 |
| 4NUT-M06100N-0400 | Turbo Clamp Nut | 1 |
● Scrollable Table for Kit Contents (Superback(Upgrade)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610030K-0100 | Turbo Clamp Bolt | 1 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4HTS-MI-0400 | Heat Shield | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4NUT-M06100N-0400 | Turbo Clamp Nut | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-09830-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4RKP-FG-MI-0600 | Flinger | 1 |
| 4RKP-IS-MI-0500 | Insert (Superback) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring(Turb)Φ17.5 1.58 0.85 | 1 |
| 4RKP-TB-MI-0600 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0600 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (Flatback(STD)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610030K-0100 | Turbo Clamp Bolt | 1 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4HTS-MI-0400 | Heat Shield | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4NUT-M06100N-0400 | Turbo Clamp Nut | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-09830-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4RKP-FG-MI-1100 | Flinger (FB STD) | 1 |
| 4RKP-IS-MI-0400 | Insert (Flatback) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring (Turb)Φ17.5 1.58 0.85 | 1 |
| 4RKP-TB-MI-0700 | Thrust Bearing (STD) | 1 |
| 4RKP-TR-MI-0300 | Thrust Ring (STD) | 1 |
● Scrollable Table for Kit Contents (Superback(STD)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610030K-0100 | Turbo Clamp Bolt | 1 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4HTS-MI-0400 | Heat Shield | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4NUT-M06100N-0400 | Turbo Clamp Nut | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-09830-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4RKP-FG-MI-0500 | Flinger (SB STD) | 1 |
| 4RKP-IS-MI-0500 | Insert (Superback) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring (Turb)Φ17.5 1.58 0.85 | 1 |
| 4RKP-TB-MI-0700 | Thrust Bearing (STD) | 1 |
| 4RKP-TR-MI-0300 | Thrust Ring (STD) | 1 |
● Scrollable Table for Kit Contents (Reverse EVO4-8(Upgrade)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610030K-0100 | Turbo Clamp Bolt | 1 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4HTS-MI-0500 | Heat Shield | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4NUT-M06100N-0400 | Turbo Clamp Nut | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-09830-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4RKP-FG-MI-0600 | Flinger (SB) | 1 |
| 4RKP-IS-MI-0500 | Insert (Superback) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring (Turb)Φ17.5 1.58 0.85 | 1 |
| 4RKP-TB-MI-0500 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0600 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (Reverse EVO9(Upgrade)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610030K-0100 | Turbo Clamp Bolt | 1 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4HTS-MI-0500 | Heat Shield | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4NUT-M06100N-0400 | Turbo Clamp Nut | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-12931-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4RKP-FG-MI-0600 | Flinger (SB) | 1 |
| 4RKP-IS-MI-0500 | Insert (Superback) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring (Turb)Φ17.5 1.58 0.85 | 1 |
| 4RKP-TB-MI-0500GT | Thrust Bearing (Reverse) | 1 |
| 4RKP-TR-MI-0600 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (Reverse EVO4-8(STD)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610030K-0100 | Turbo Clamp Bolt | 1 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4HTS-MI-0500 | Heat Shield | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4NUT-M06100N-0400 | Turbo Clamp Nut | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-09830-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4RKP-FG-MI-0500 | Flinger (SB STD) | 1 |
| 4RKP-IS-MI-0500 | Insert (Superback) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring (Turb)Φ17.5 1.58 0.85 | 1 |
| 4RKP-TB-MI-0501 | Thrust Bearing (Reverse) | 1 |
| 4RKP-TR-MI-0300 | Thrust Ring (STD) | 1 |
● Scrollable Table for Kit Contents (Reverse EVO9(STD)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0610030K-0100 | Turbo Clamp Bolt | 1 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4HTS-MI-0500 | Heat Shield | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4NUT-M06100N-0400 | Turbo Clamp Nut | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-12931-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4RKP-FG-MI-0500 | Flinger (SB STD) | 1 |
| 4RKP-IS-MI-0500 | Insert (Superback) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring (Turb)Φ17.5 1.58 0.85 | 1 |
| 4RKP-TB-MI-0501 | Thrust Bearing (Reverse) | 1 |
| 4RKP-TR-MI-0300 | Thrust Ring (STD) | 1 |
● Scrollable Table for Kit Contents (EVO10(Upgrade)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4BOT-M0812533K-0100 | Turbo Clamp Bolt | 1 |
| 4CSR-I-016-0100 | Snap Ring (C/Hsg-Brg/Hsg) | 2 |
| 4CSR-I-050-0100 | Snap Ring (Insert) | 1 |
| 4HTS-MI-0500 | Heat Shield | 1 |
| 4NUT-I41628N-0400 | Shaft Nut RHD | 1 |
| 4NUT-I41628R-0100 | Shaft Nut LHD | 1 |
| 4NUT-M08125N-0300 | Turbo Clamp Nut | 1 |
| 4OOG-MI1-0100 | Oil Return Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-09830-0100 | O-Ring (B/Hsg-C/Hsg) Si | 1 |
| 4RKP-FG-MI-0600 | Flinger (SB) | 1 |
| 4RKP-IS-MI-0500 | Insert (Superback) | 1 |
| 4RKP-JB-MI-0300 | Journal Bearing | 2 |
| 4RKP-OD-MI-0300 | Oil Deflector | 1 |
| 4RKP-PR-124-0100 | Piston Ring Φ12.4 T1.18 R0.8 | 1 |
| 4RKP-PR-170-0203 | Piston Ring (Turb)Φ17.5 1.58 0.85 | 1 |
| 4RKP-TB-MI-0600 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0600 | Thrust Ring | 1 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
