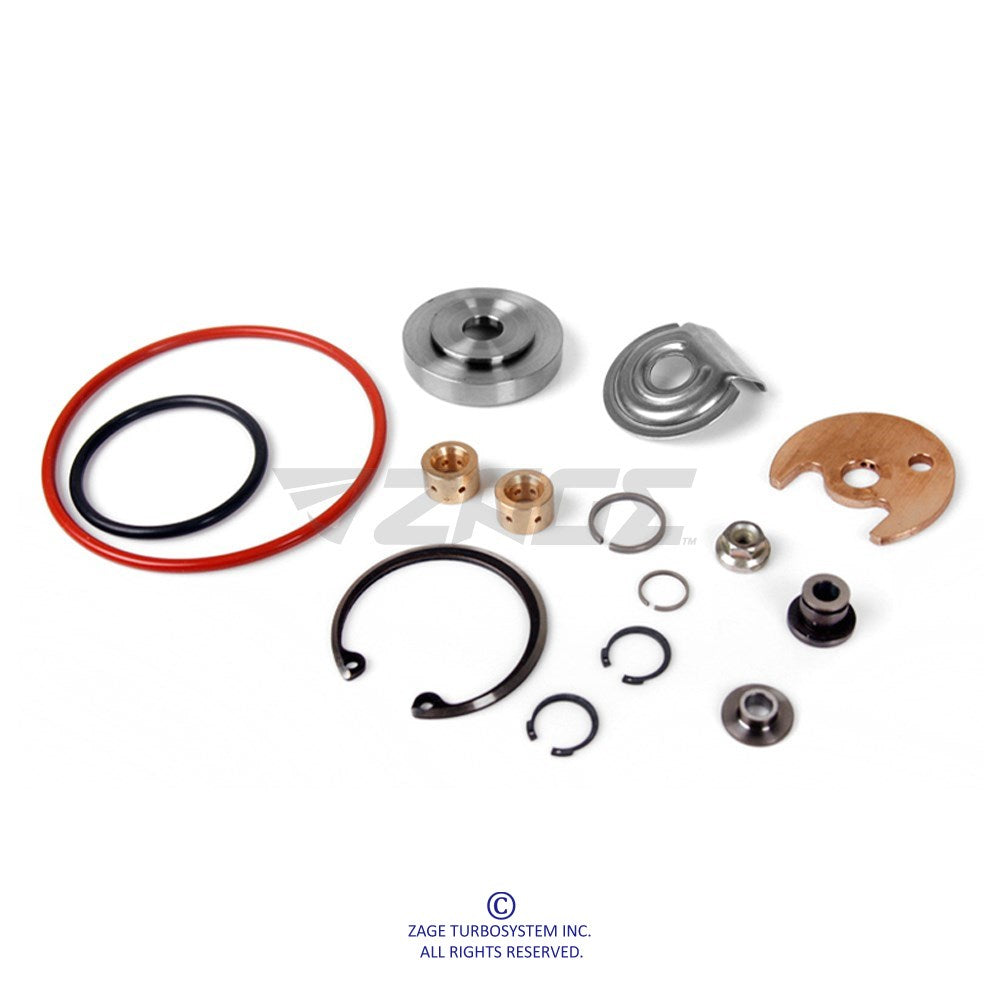

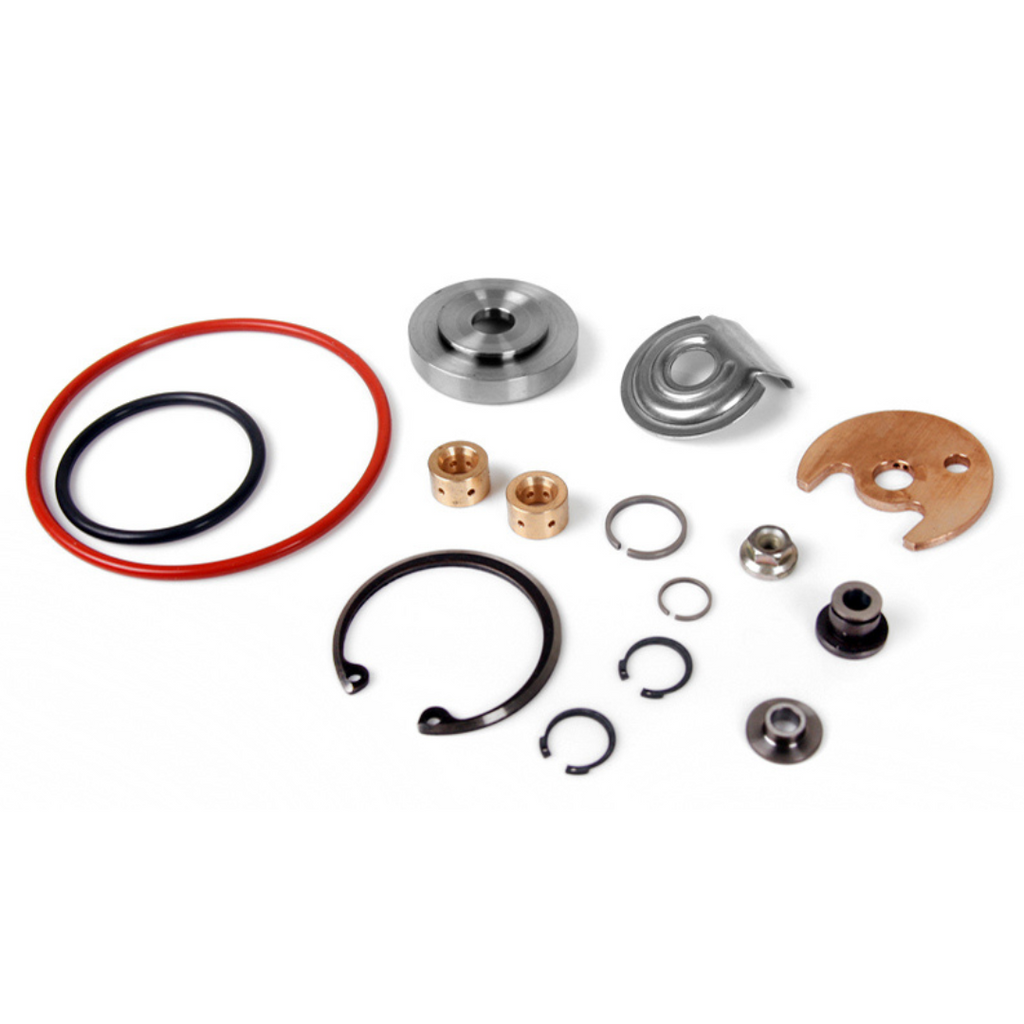

Rebuild Kit for Mitsubishi TF035 Turbo
| Part Number | Type | OEM Number |
|---|---|---|
| 1GRBK-ZMI1-0100 | SUPERBACK (UPGRADE) | - |
| 1GRBK-ZMI1-0200 | SUPERBACK (STD) | - |
| 1GRBK-ZMI1-0300 | FLATBACK (STD) | 49135-80350 |
| 1GRBK-ZMI1-0400 | FLATBACK (UPGRADE) | - |
● Scrollable Table for Kit Contents (SUPERBACK (UPGRADE)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0400 | Snap Ring (C/Hsg-B/Hsg) | 2 |
| 4CSR-I-040-0100 | Snap Ring (Insert) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut M5x0.8P | 1 |
| 4ORN-03931-0100 | O-Ring (Insert/39.4x3.1VT) | 1 |
| 4ORN-07431-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4RKP-FG-MI-0800 | Flinger | 1 |
| 4RKP-IS-MI-0200 | Insert | 1 |
| 4RKP-JB-MI-0200 | Journal Bearing (Std) | 2 |
| 4RKP-OD-MI-0200 | Oil Deflector | 1 |
| 4RKP-PR-100-0400 | Piston Ring Comp Φ10 0.96 0.65 | 1 |
| 4RKP-PR-158-0301 | Piston Ring(Φ15.88 1.58 0.95) | 1 |
| 4RKP-TB-MI-0100 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0200 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (SUPERBACK (STD)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0400 | Snap Ring (C/Hsg-B/Hsg) | 2 |
| 4CSR-I-040-0100 | Snap Ring (Insert) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut M5x0.8P | 1 |
| 4ORN-03931-0100 | O-Ring (Insert/39.4x3.1VT) | 1 |
| 4ORN-07431-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4RKP-FG-MI-1200 | Flinger | 1 |
| 4RKP-IS-MI-0200 | Insert | 1 |
| 4RKP-JB-MI-0200 | Journal Bearing (Std) | 2 |
| 4RKP-OD-MI-0200 | Oil Deflector | 1 |
| 4RKP-PR-100-0400 | Piston Ring Comp Φ10 0.96 0.65 | 1 |
| 4RKP-PR-158-0301 | Piston Ring(Φ15.88 1.58 0.95) | 1 |
| 4RKP-TB-MI-0400 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0100 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (FLATBACK (STD)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0400 | Snap Ring (C/Hsg-B/Hsg) | 2 |
| 4CSR-I-040-0100 | Snap Ring (Insert) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut M5x0.8P | 1 |
| 4ORN-03931-0100 | O-Ring (Insert/39.4x3.1VT) | 1 |
| 4ORN-07431-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4RKP-FG-MI-0700 | Flinger | 1 |
| 4RKP-IS-MI-0300 | Insert | 1 |
| 4RKP-JB-MI-0200 | Journal Bearing (Std) | 2 |
| 4RKP-OD-MI-0200 | Oil Deflector | 1 |
| 4RKP-PR-100-0400 | Piston Ring Comp Φ10 0.96 0.65 | 1 |
| 4RKP-PR-158-0301 | Piston Ring(Φ15.88 1.58 0.95) | 1 |
| 4RKP-TB-MI-0400 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0100 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (FLATBACK (UPGRADE)):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0400 | Snap Ring (C/Hsg-B/Hsg) | 2 |
| 4CSR-I-040-0100 | Snap Ring (Insert) | 1 |
| 4NUT-M05080R-0200 | Shaft Nut M5x0.8P | 1 |
| 4ORN-03931-0100 | O-Ring (Insert/39.4x3.1VT) | 1 |
| 4ORN-07431-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4RKP-FG-MI-0200 | Flinger | 1 |
| 4RKP-IS-MI-0300 | Insert | 1 |
| 4RKP-JB-MI-0200 | Journal Bearing (Std) | 2 |
| 4RKP-OD-MI-0200 | Oil Deflector | 1 |
| 4RKP-PR-100-0400 | Piston Ring Comp Φ10 0.96 0.65 | 1 |
| 4RKP-PR-158-0301 | Piston Ring(Φ15.88 1.58 0.95) | 1 |
| 4RKP-TB-MI-0100 | Thrust Bearing | 1 |
| 4RKP-TR-MI-0200 | Thrust Ring | 1 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
