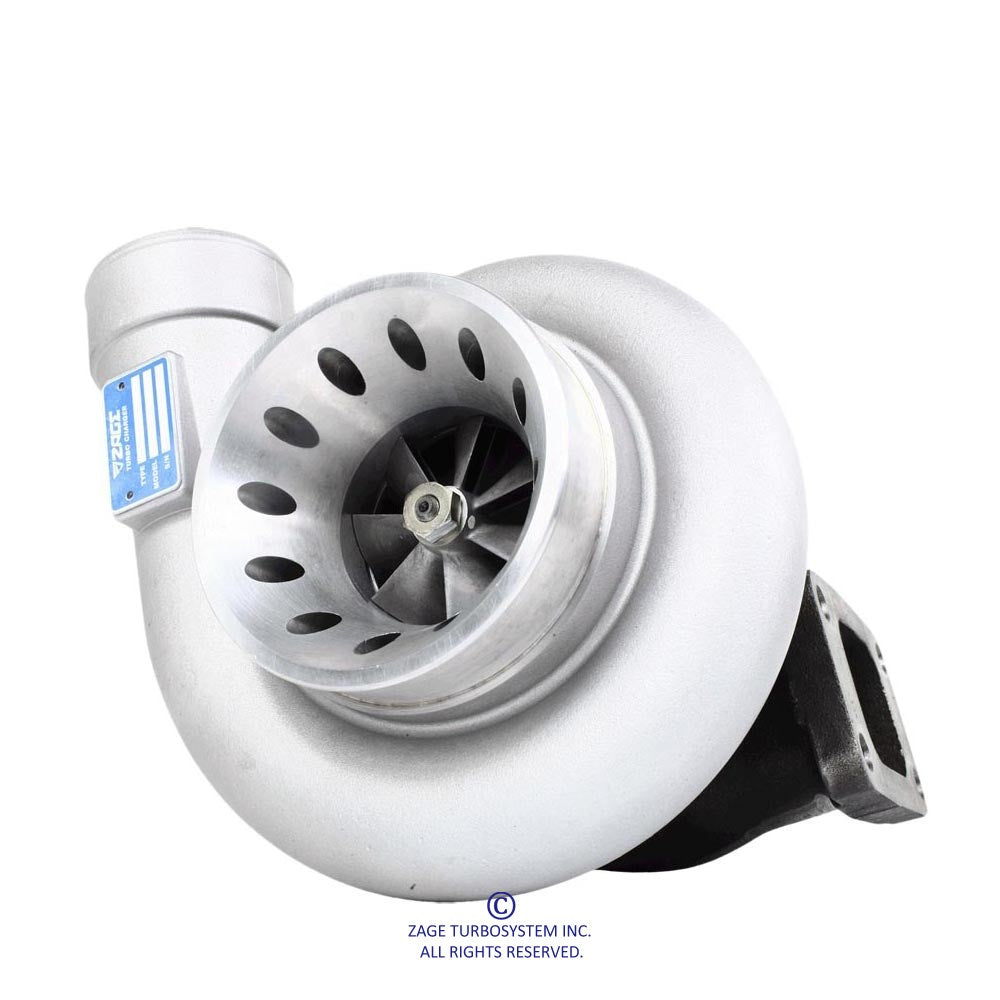

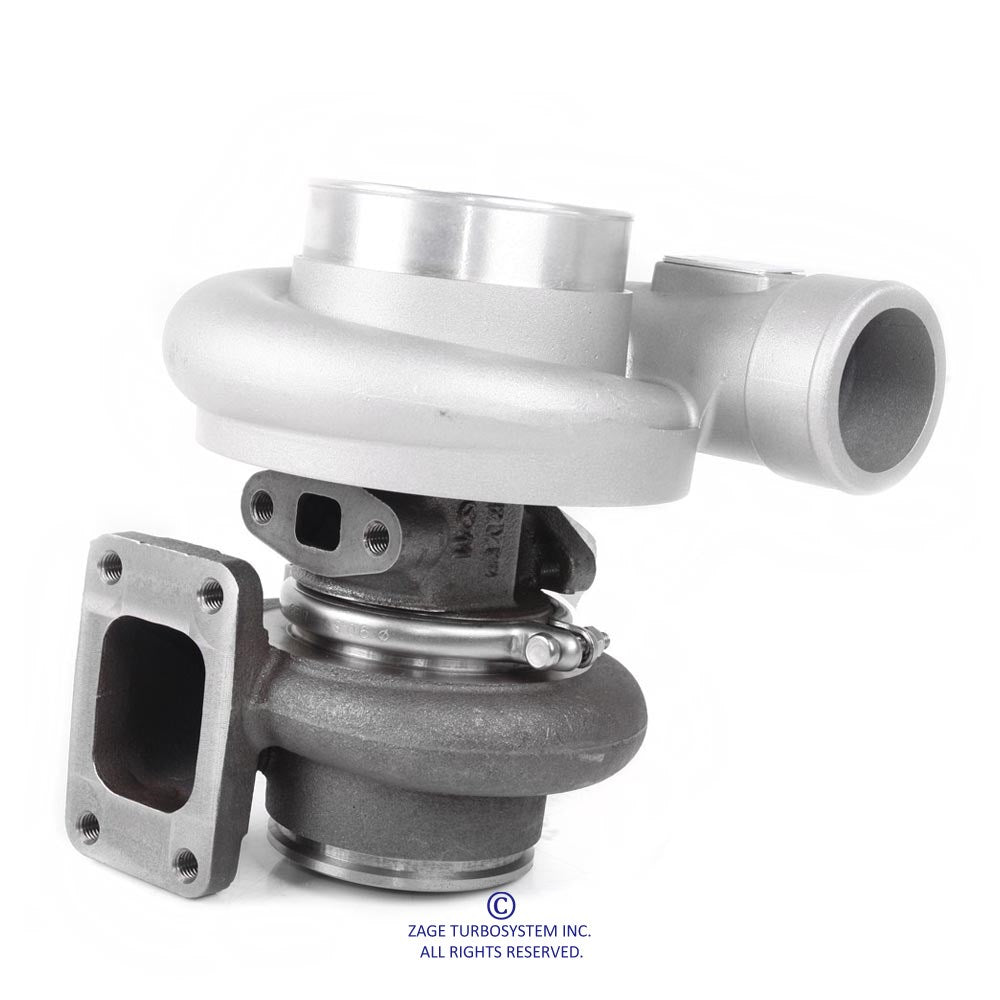

2.0-3.0L V-clamp (4" Inlet) Turbocharger
2.0-3.5L-V-clamp
4 Inch Cover Anti-Surge
Flange: Inlet T3 (10cm2)/ T25/T28 (8cm2), Outlet V-clamp
Actuator: External
●With ZAGE billet wheel, it can gain 15%~25% increase in HP than cast aluminum wheel turbo.

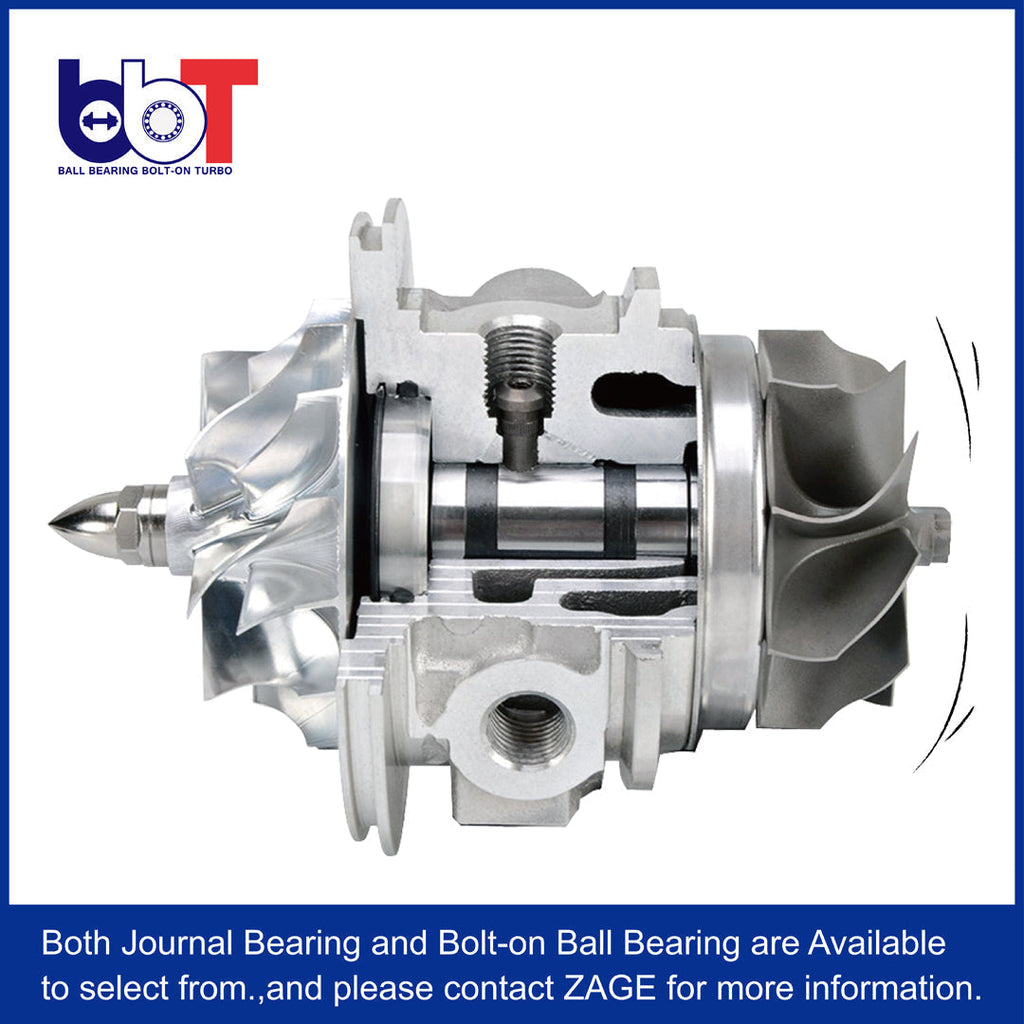

●Both Journal Bearing and Bolt-on Ball Bearing are Available to select from., and please contact ZAGE for more information.
● Scrollable Table for Turbo Configurations:
| Turbine Wheel | AR | Compressor Wheel | CFM |
|---|---|---|---|
| T67 (54/61mm - 10cm²) | 73 | 25G (60.5/78mm) | 780 |
| TE06H (58.8/67.14mm - 10cm²) | 73 | 25G (60.5/78mm) | 780 |
| T67 (54/61mm - 8cm²) | 57 | 25G (60.5/78mm) | 780 |
| TE06H (58.8/67.14mm - 8cm²) | 57 | 25G (60.5/78mm) | 780 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
2.0-3.5L-V-clamp
4 Inch Cover Anti-Surge
Flange: Inlet T3 (10cm2)/ T25/T28 (8cm2), Outlet V-clamp
Actuator: External
●With ZAGE billet wheel, it can gain 15%~25% increase in HP than cast aluminum wheel turbo.
●Both Journal Bearing and Bolt-on Ball Bearing are Available to select from., and please contact ZAGE for more information.
● Scrollable Table for Turbo Configurations:
| Turbine Wheel | AR | Compressor Wheel | CFM |
|---|---|---|---|
| T67 (54/61mm - 10cm²) | 73 | 25G (60.5/78mm) | 780 |
| TE06H (58.8/67.14mm - 10cm²) | 73 | 25G (60.5/78mm) | 780 |
| T67 (54/61mm - 8cm²) | 57 | 25G (60.5/78mm) | 780 |
| TE06H (58.8/67.14mm - 8cm²) | 57 | 25G (60.5/78mm) | 780 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
