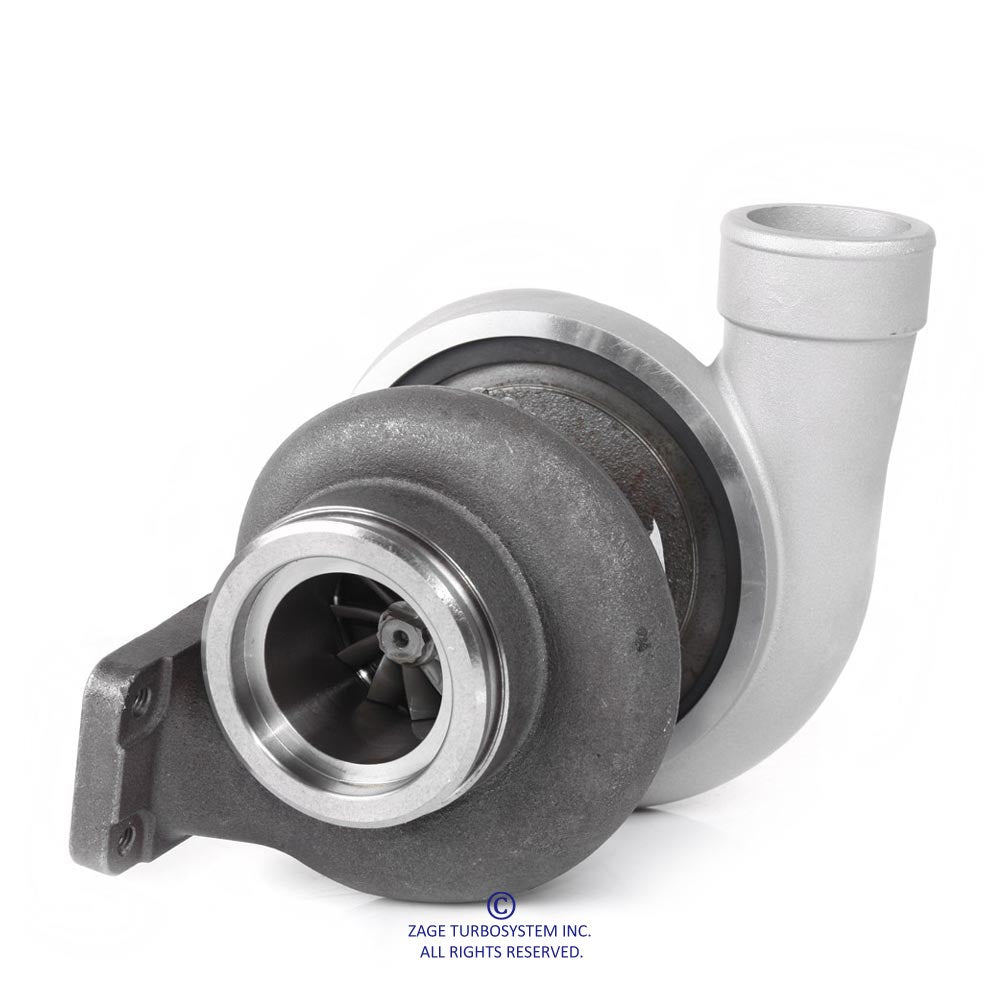

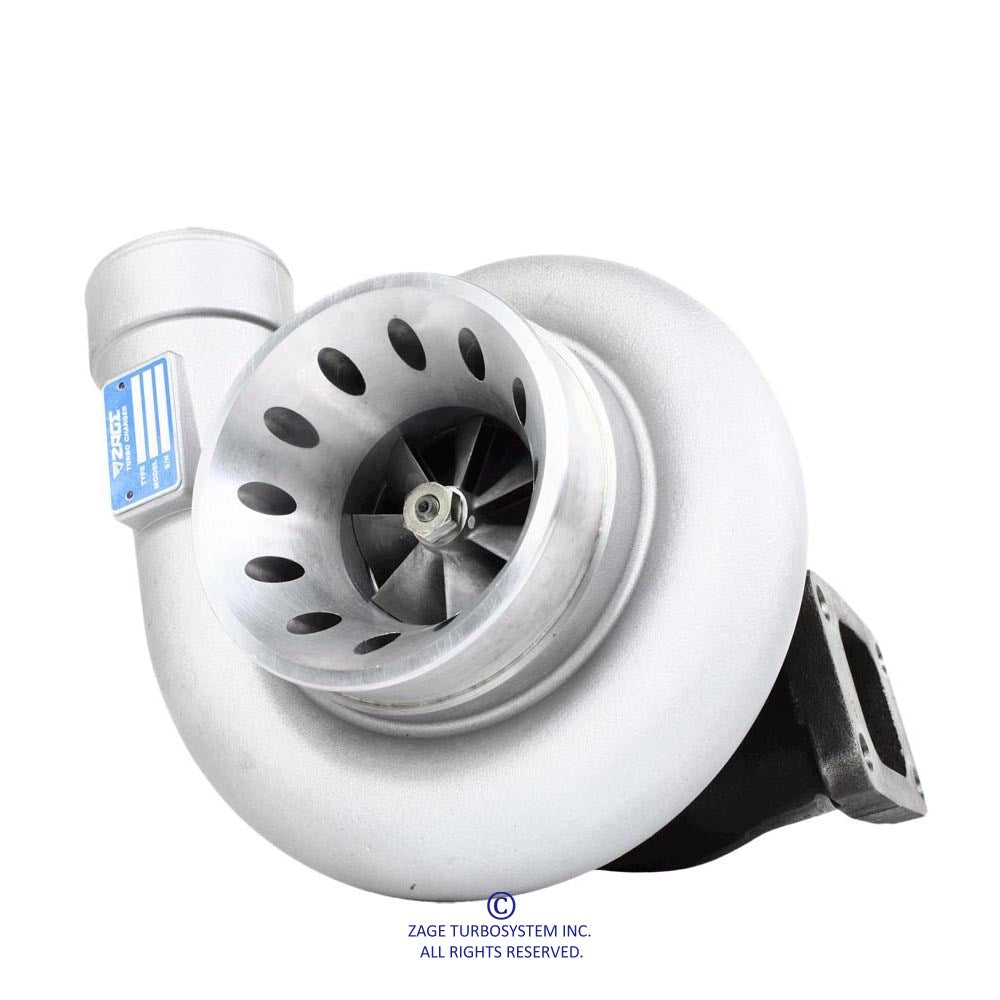

2.0-3.0L V-clamp Turbocharger
2.0-3.0L V-clamp
3.15 Inch Cover

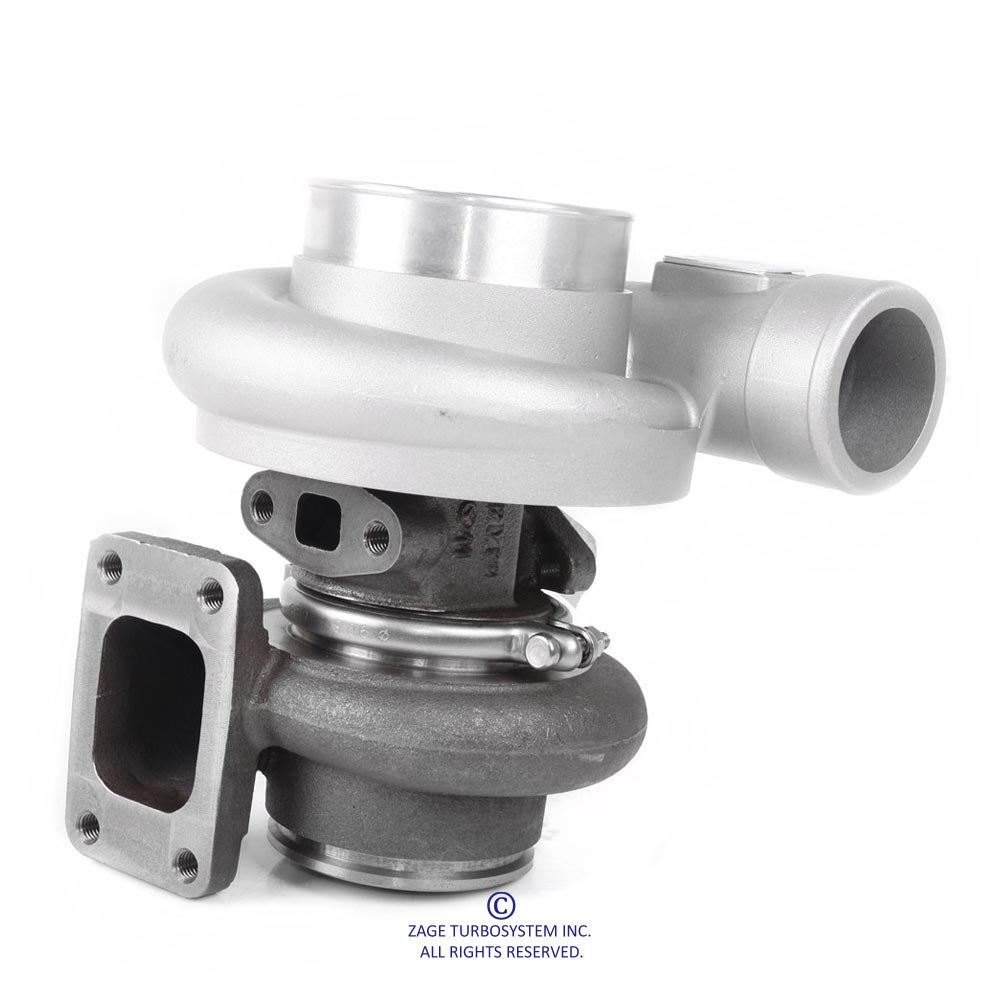

Flange: Inlet T3 (10cm2) / T25/T28 (8cm2), Outlet V-clamp
Actuator: External
●With ZAGE billet wheel, it can gain 15%~25% increase in HP than cast aluminum wheel turbo.
●3 inch compressor housing is also available, please contact ZAGE for further details.

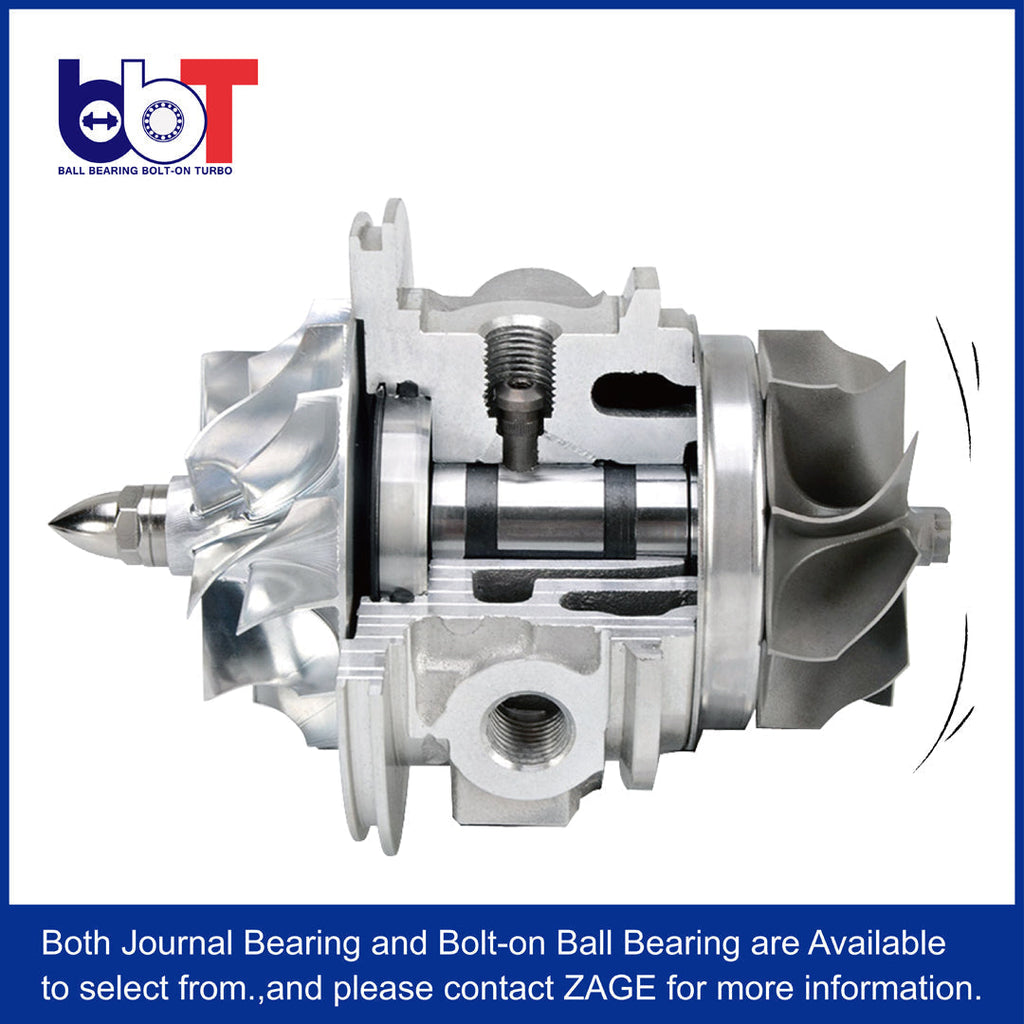

●Both Journal Bearing and Bolt-on Ball Bearing are Available to select from., and please contact ZAGE for more information.
● Scrollable Table for Turbo Configurations:
| Turbine Wheel | AR | Compressor Wheel | CFM |
|---|---|---|---|
| TD06SL2 ( 54/61mm - 10cm² ) | 73 | 20G ( 52.5/68mm ) | 640 |
| TD06H-11B ( 58.8/67.1mm - 10cm² ) | 73 | 20G ( 52.5/68mm ) | 640 |
| TD06H-12B ( 58.8/67.1mm - 10cm² ) | 73 | 20G ( 52.5/68mm ) | 640 |
| TD06SL2 ( 54/61mm - 10cm² ) | 73 | 601 ( 59/76mm ) | 750 |
| TD06H-11B ( 58.8/67.1mm - 10cm² ) | 73 | 601 ( 59/76mm ) | 750 |
| TD06H-12B ( 58.8/67.1mm - 10cm² ) | 73 | 601 ( 59/76mm ) | 750 |
| TD06SL2 ( 54/61mm - 8cm² ) | 57 | 20G ( 52.5/68mm ) | 640 |
| TD06H-11B ( 58.8/67.1mm - 8cm² ) | 57 | 20G ( 52.5/68mm ) | 640 |
| TD06H-12B ( 58.8/67.1mm - 8cm² ) | 57 | 20G ( 52.5/68mm ) | 640 |
| TD06SL2 ( 54/61mm - 8cm² ) | 57 | 601 ( 59/76mm ) | 750 |
| TD06H-11B ( 58.8/67.1mm - 8cm² ) | 57 | 601 ( 59/76mm ) | 750 |
| TD06H-12B ( 58.8/67.1mm - 8cm² ) | 57 | 601 ( 59/76mm ) | 750 |
● Carefully assembled and VSR balanced by balancing machine from Turbo Technics in our fully equipped Taiwan facility.
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
