EVO9(4-8) 4G63T ANTI-SURGE
Flange : STD EVO 9

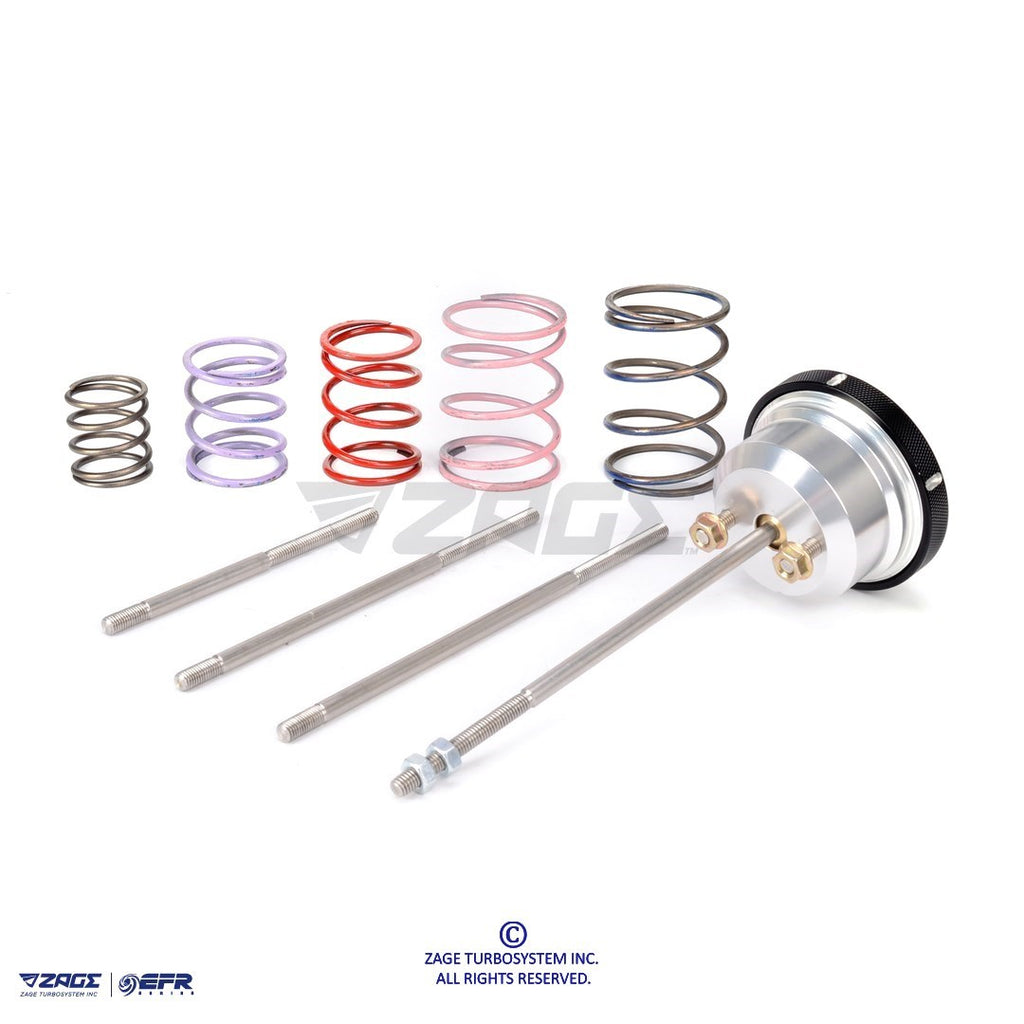

Actuator : 0.2~2 BAR
APPLICATIONS : Mitsubishi 4G63T EVO4-9
Replacement for : Stock TD05HR Turbo P/N 49378-01570, 49378-01580, etc.
*Stock MHI TD05HR-16G6-10.5T Turbo MAX 320HP
*Oil & water line kit (1GOWK-MI1-0100) is required to be bought at an additional cost for application on EVO 4-8.

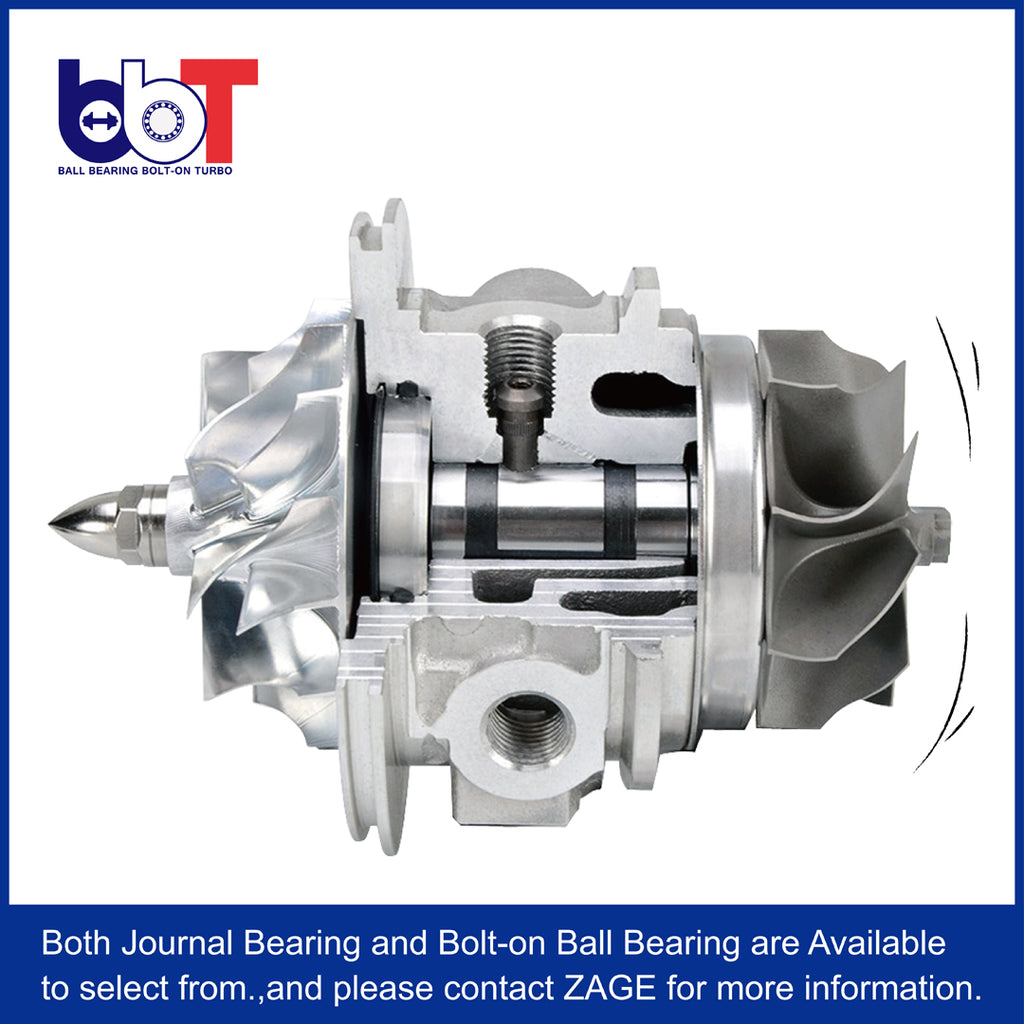

●Both Journal Bearing and Bolt-on Ball Bearing are Available to select from.,and please contact ZAGE for more information.
| Turbine Wheel | AR | Compressor Wheel | Part Number |
| TD05H (49/55mm) | 77 | Big16G (48/68mm) | 1ZMI3I-564810-01 |
| TD06SL2 (54/61mm) | 77 | 18G (50/68mm) | 1ZMI3I-615010-01 |
| TD06H ( 58.8/67.1mm) | 77 | 20G (52/68mm) | 1ZMI3I-675210-01 |
| TD06HR ( 58.75/66.8mm) | 77 | R2 ( 56.3/75mm ) | 1ZMI3I-675610-01 |
| TD06HR ( 58.75/66.8mm) | 77 | 25G (60/78mm) | 1ZMI3I-676010-01 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
