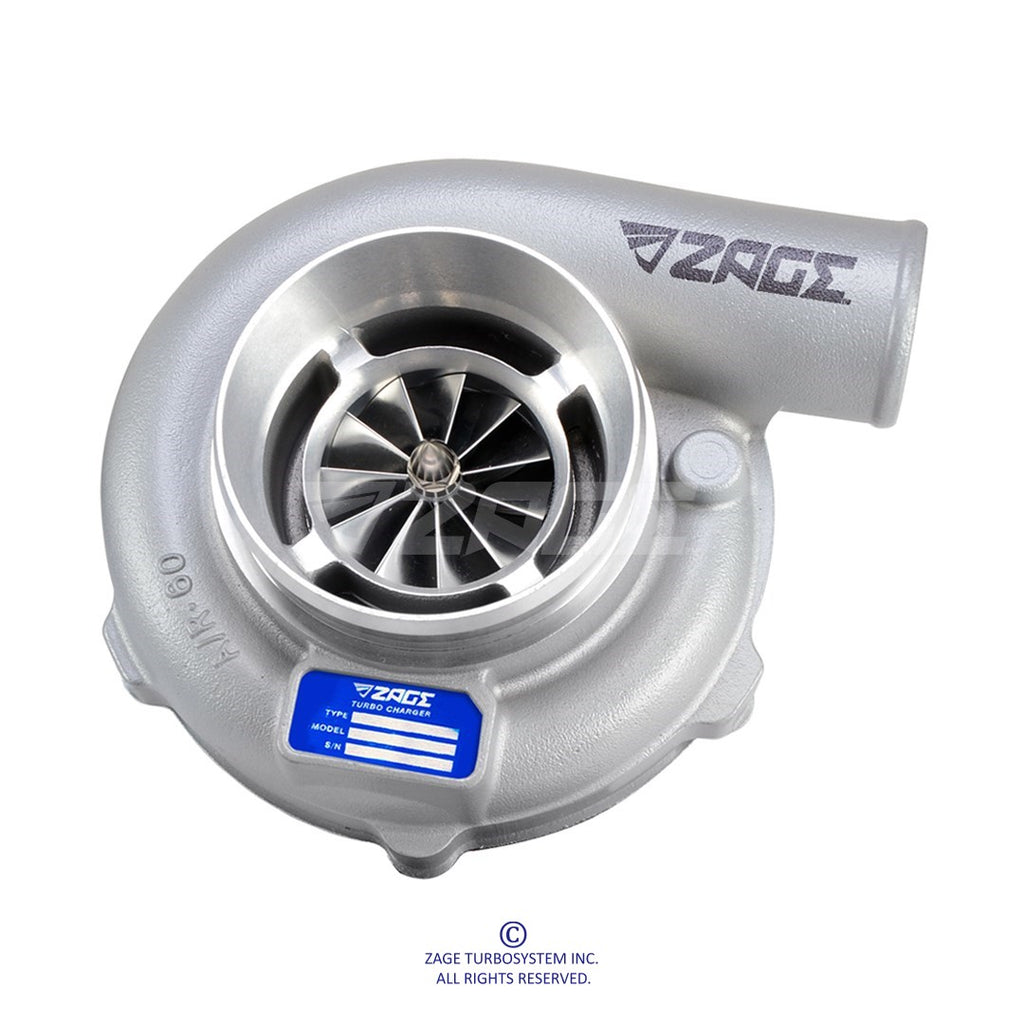

Supercore Part Number : 1ZUN8S-685800-A1
Comp Wheel: 58/76mm
Trim: 58
A/R: 0.70
Turbine Wheel: 68/62mm
Trim: 84
Horsepower: 400-750hp
Displacement: : 2.0- 4.5L
The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.
Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
*** ZAGE can ship worldwide with no minimum order quantity. ***

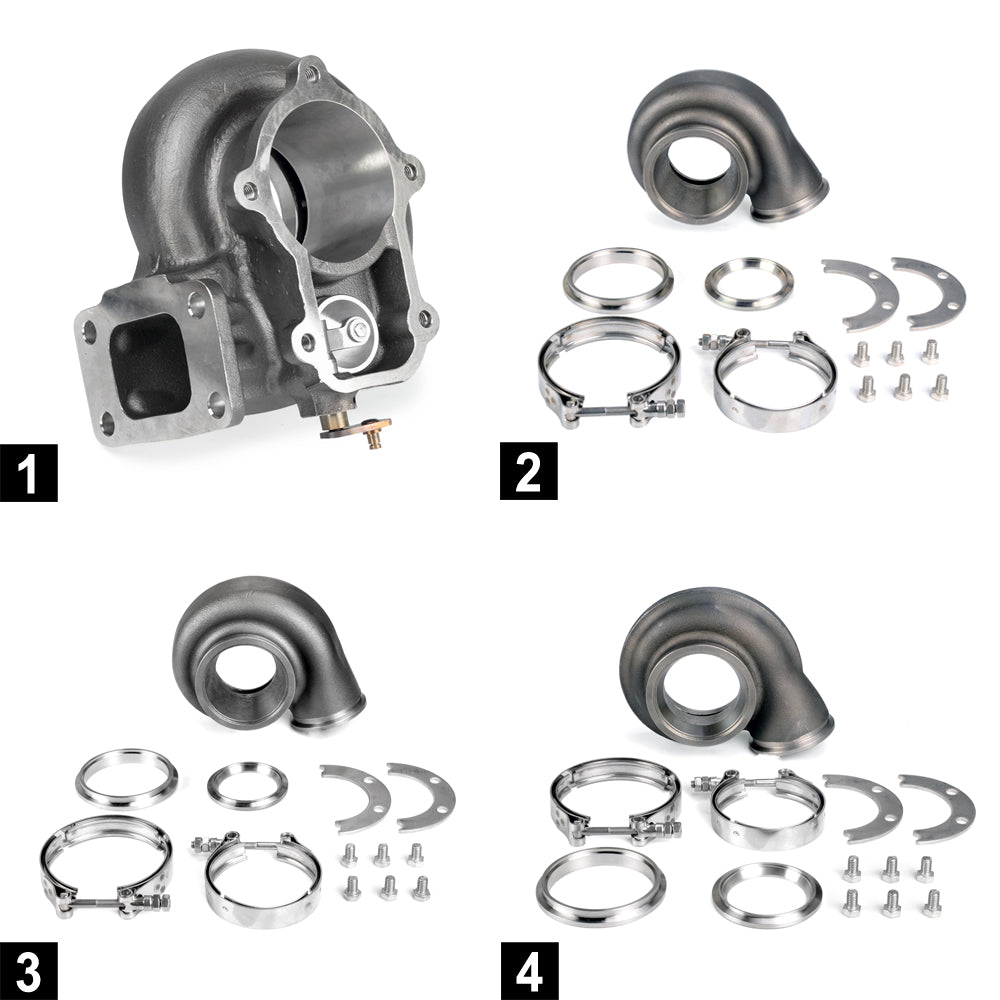

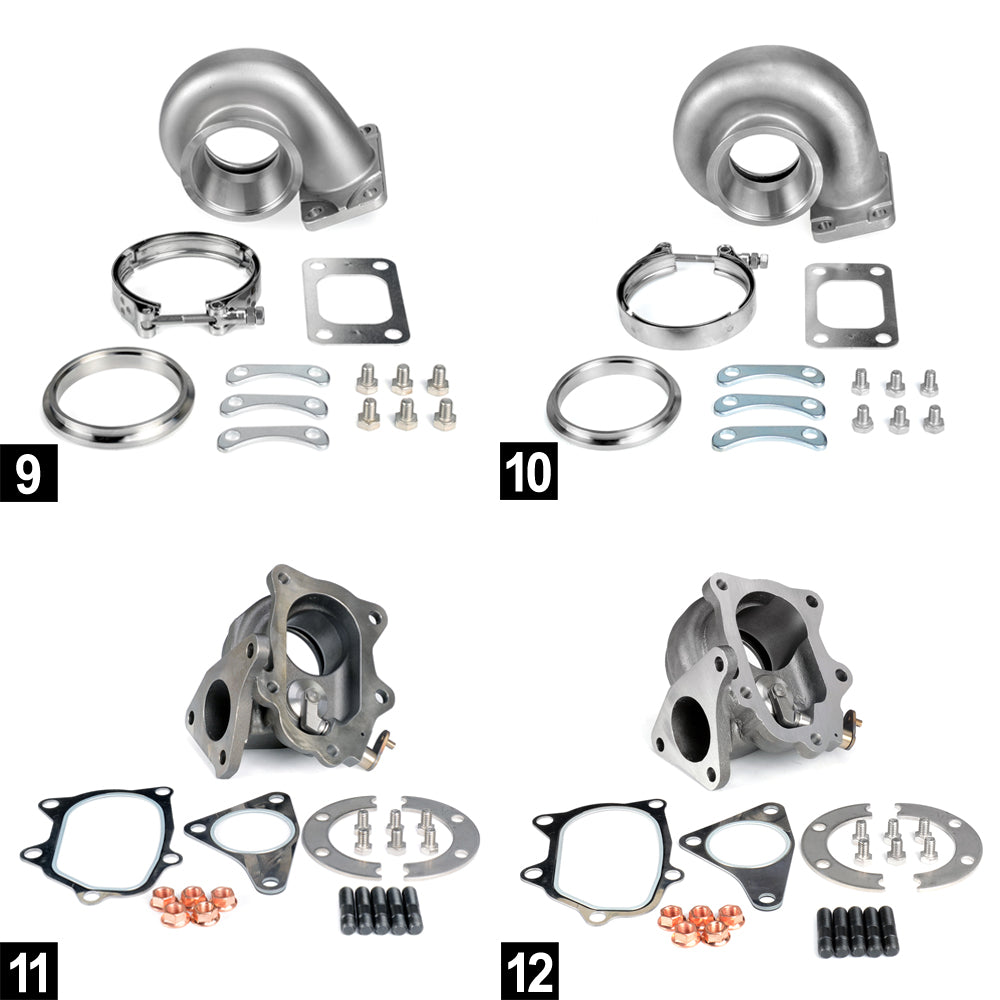

| Number | Product | A/R | Inlet | Outlet | Wastegate | Divided | Pic |
| 1GTBH-F01ZG62-0200 | Turbo Housing | 1.06 | T3 | 5 Bolt | Wastegated | No | 1 |
| 1GTBH-GA11ZG62-0100 | Turbo Housing | 1.01 | T3 | V-Band | Free Float | Yes | 6 |
| 1GTBH-UN506362-0100 | Turbo Housing | 0.63 | V-Band | V-Band | Free Float | No | 7 |
| 1GTBH-UN508262-0100 | Turbo Housing | 0.82 | V-Band | V-Band | Free Float | No | 8 |
| 1GTBH-UN510662-0100 | Turbo Housing | 1.06 | V-Band | V-Band | Free Float | No | 8 |
| 1GTBH-UN606362-0100 | Turbo Housing | 0.63 | T3 | V-Band | Free Float | No | 9 |
| 1GTBH-UN608262-0100 | Turbo Housing | 0.82 | T3 | V-Band | Free Float | No | 10 |
| 1GTBH-UN610662-0100 | Turbo Housing | 1.06 | T3 | V-Band | Free Float | No | 10 |
| 1GTBH-SU5ZG62-0100 | Turbo Housing | 10cm2 | Subaru | 5 Bolt | Wastegated | No | 11 |
| 1GTBH-SU7ZG62-0100 | Turbo Housing | 8cm2 | Subaru | 5 Bolt | Wastegated | No | 12 |
| 1GTBH-GA3ZG62-0100 | Turbo Housing | 0.61 | V-Band | V-Band | Free Float | Yes | 2 |
| 1GTBH-GA4ZG62-0100 | Turbo Housing | 0.83 | V-Band | V-Band | Free Float | Yes | 3 |
| 1GTBH-GA5ZG62-0100 | Turbo Housing | 1.01 | V-Band | V-Band | Free Float | Yes | 3 |
| 1GTBH-GA6ZG62-0200 | Turbo Housing | 0.61 | V-Band | V-Band | Free Float | No | 4 |
| 1GTBH-GA7ZG62-0200 | Turbo Housing | 0.83 | V-Band | V-Band | Free Float | No | 5 |
| 1GTBH-GA8ZG62-0100 | Turbo Housing | 1.01 | V-Band | V-Band | Free Float | No | 5 |
| 1GTBH-GA9ZG62-0100 | Turbo Housing | 0.61 | T3 | V-Band | Free Float | Yes | 6 |
| 1GTBH-GA10ZG62-0100 | Turbo Housing | 0.83 | T3 | V-Band | Free Float | Yes | 6 |
