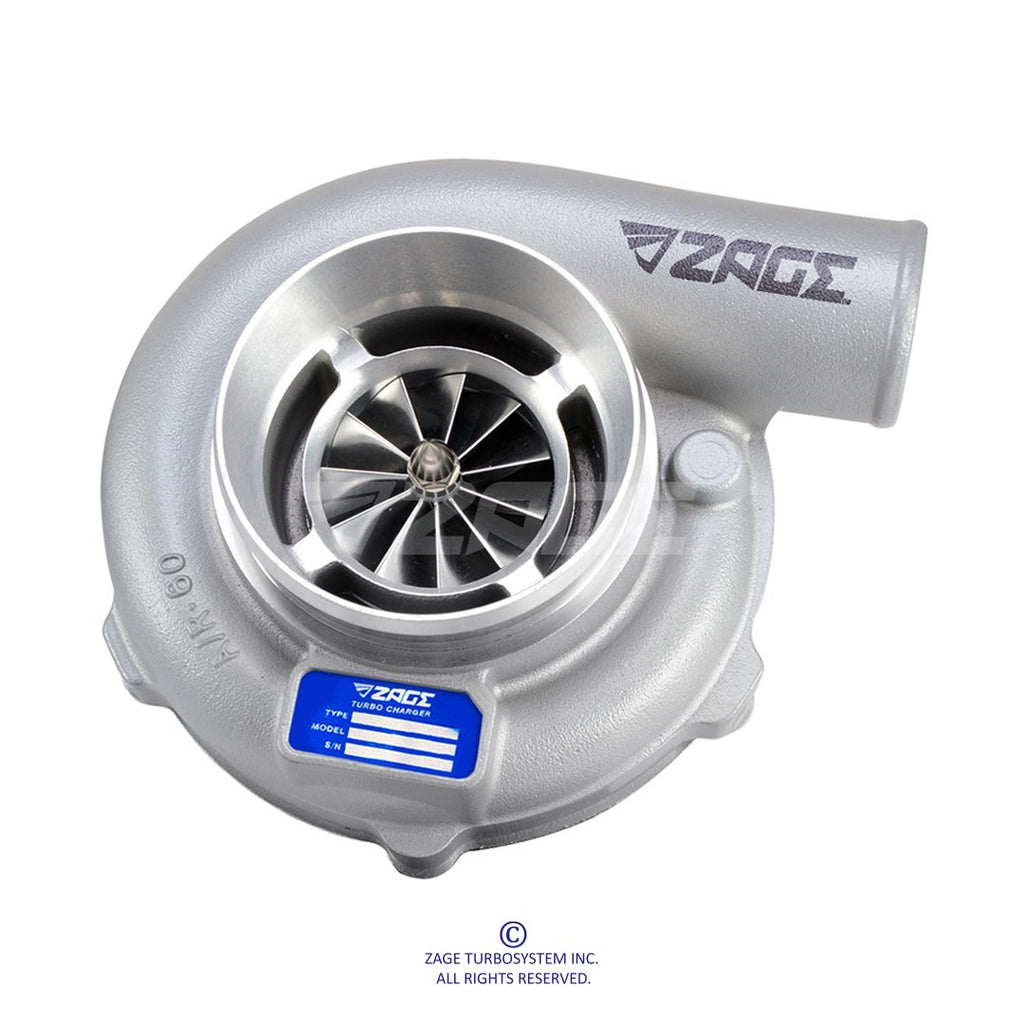

Supercore Part Number : 1ZUN8S-565400-A1
Comp Wheel: 54/71mm
Trim: 58
A/R: 0.60
Turbine Wheel: 57/52mm
Trim: 84
Horsepower: 340-560hp
Displacement: 1.8 - 3.0L
The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator
Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.
*** ZAGE can ship worldwide with no minimum order quantity. ***

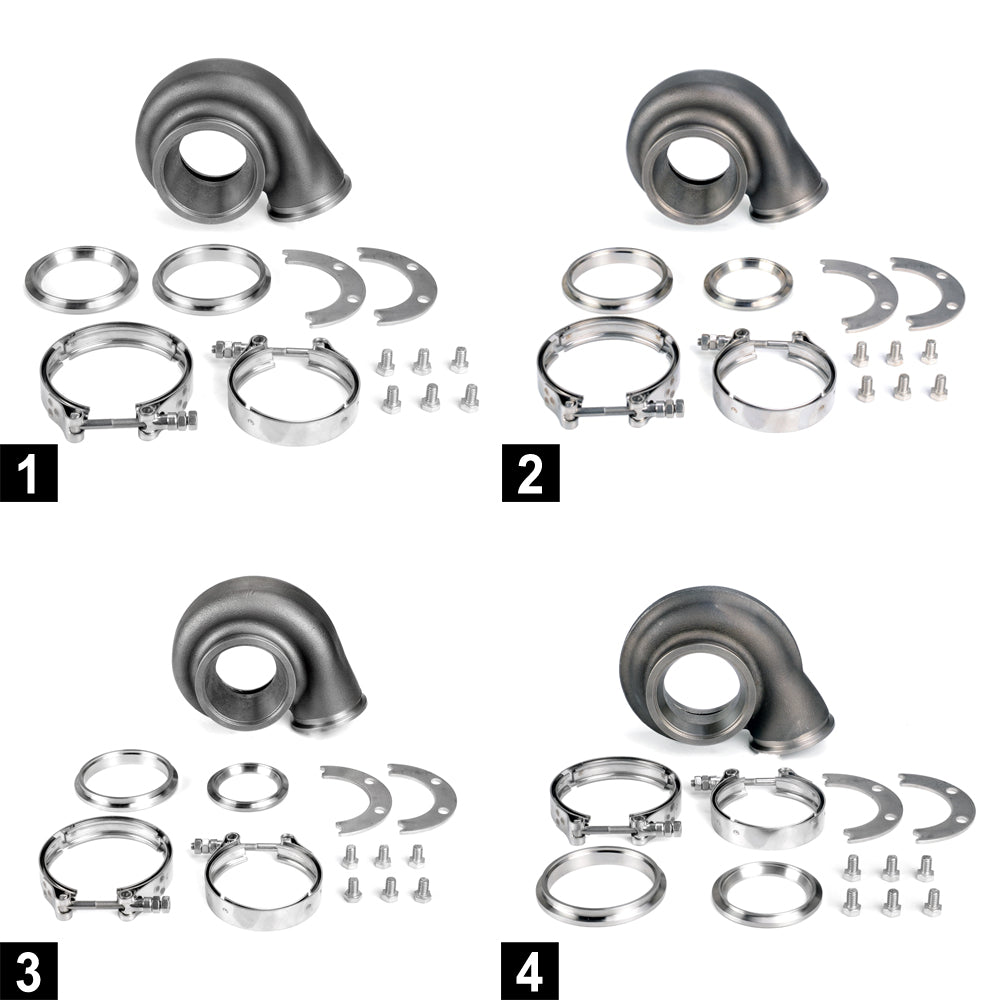

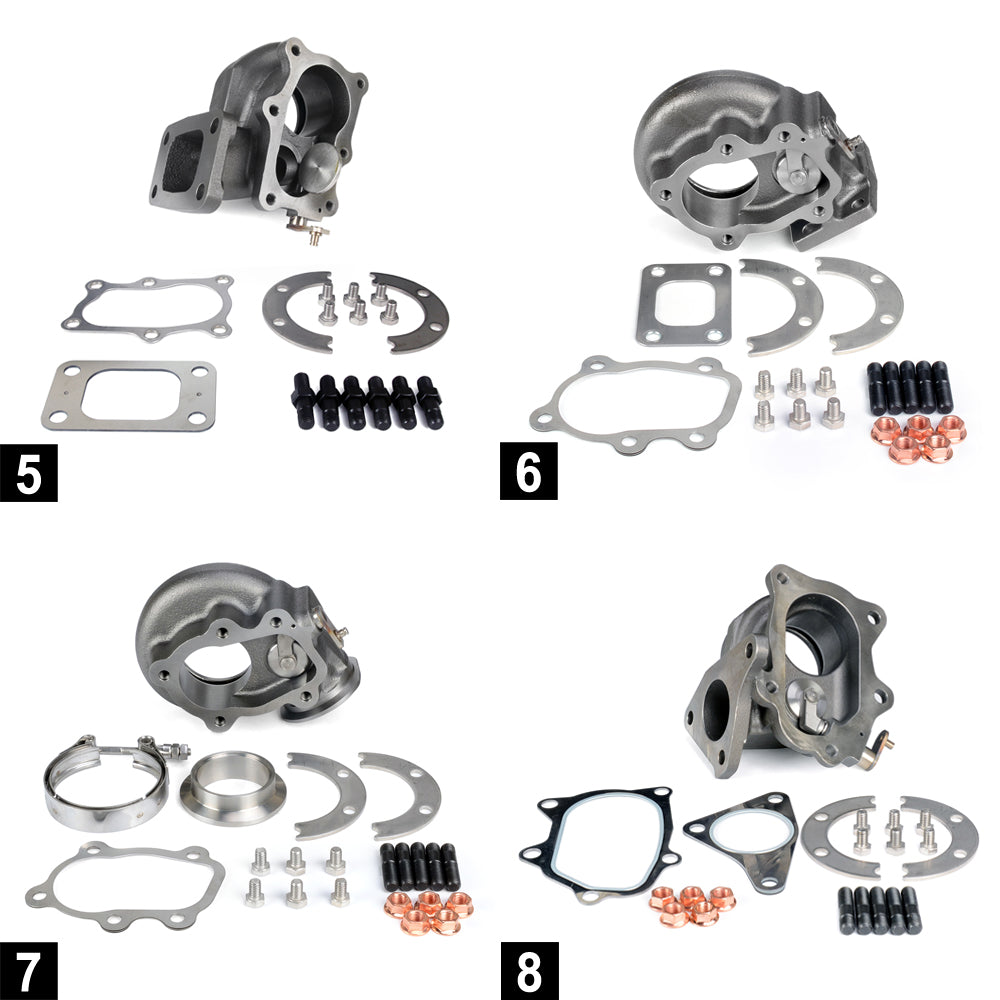

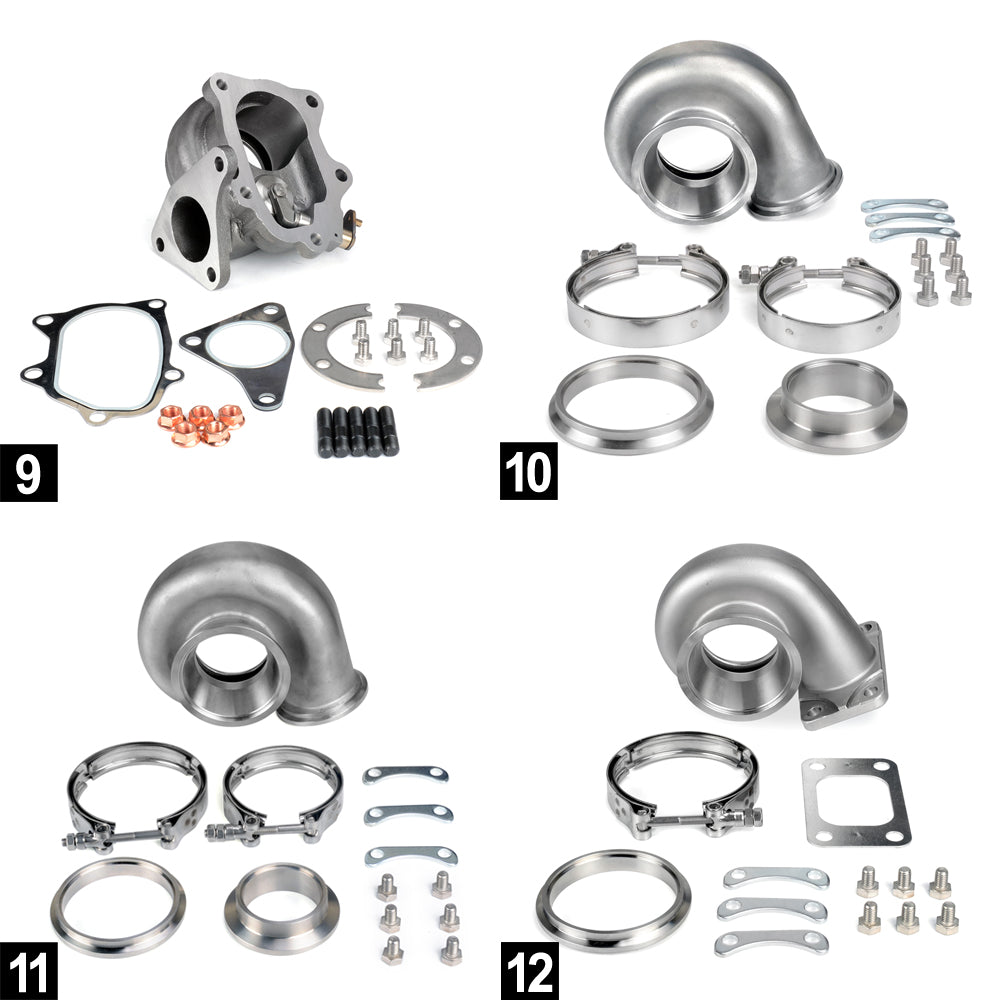

| Number | Product | A/R | Inlet | Outlet | Wastegate | Divided | Pic |
| 1GTBH-GA1ZG51-0101 | Turbo Housing | 0.57 | V-Band | V-Band | Free Float | No | 1 |
| 1GTBH-NI8ZG51-0100 | Turbo Housing | 0.57 | T25 | 5 Bolt | Wastegated | No | 6 |
| 1GTBH-NI8ZG51-0200 | Turbo Housing | 0.57 | V-Band | 5 Bolt | Wastegated | No | 7 |
| 1GTBH-SU1ZG51-0100 | Turbo Housing | 7cm2 | Subaru | 5 Bolt | Wastegated | No | 8 |
| 1GTBH-SU5ZG51-0100 | Turbo Housing | 10cm2 | Subaru | 5 Bolt | Wastegated | No | 8 |
| 1GTBH-SU7ZG51-0100 | Turbo Housing | 8cm2 | Subaru | 5 Bolt | Wastegated | No | 9 |
| 1GTBH-UN506351-0100 | Turbo Housing | 0.63 | V-Band | V-Band | Free Float | No | 10 |
| 1GTBH-UN508251-0100 | Turbo Housing | 0.82 | V-Band | V-Band | Free Float | No | 11 |
| 1GTBH-UN606351-0100 | Turbo Housing | 0.63 | T3 | V-Band | Free Float | No | 12 |

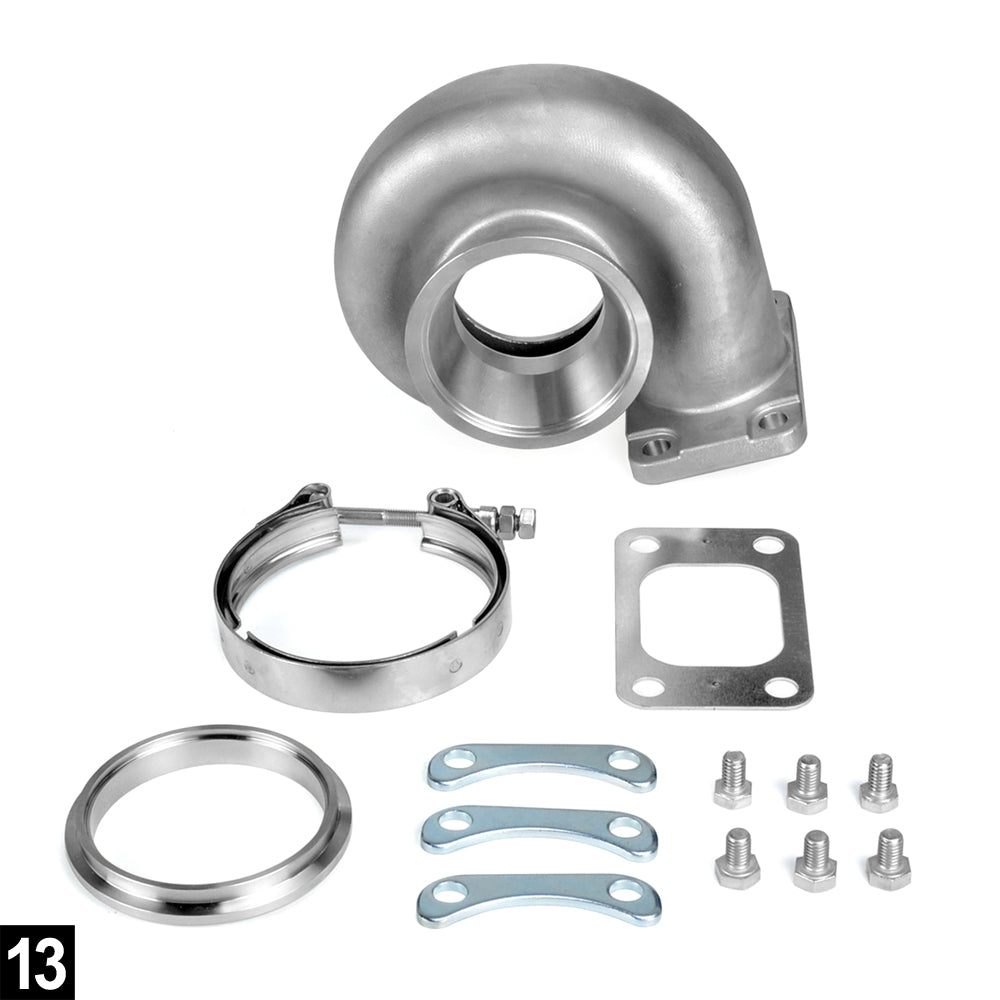

| 1GTBH-UN608251-0100 | Turbo Housing | 0.82 | T3 | V-Band | Free Float | No | 13 |

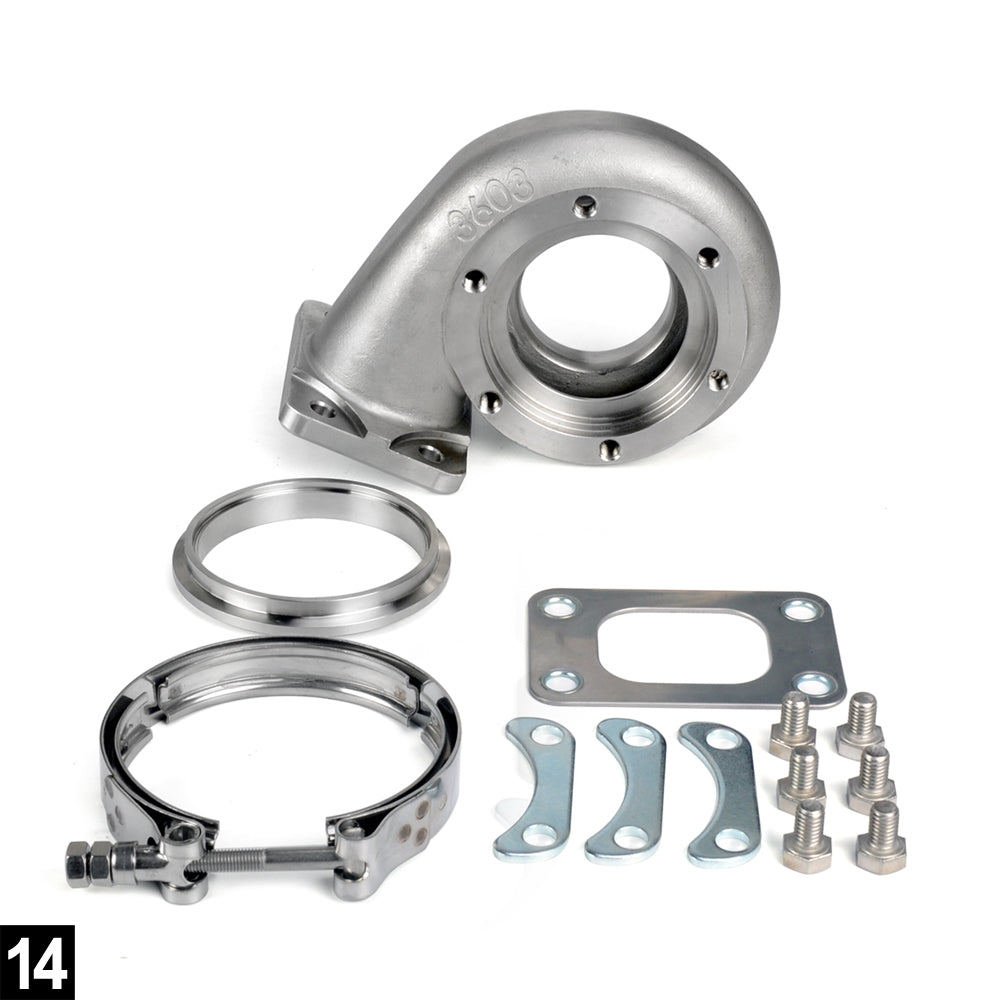

| 1GTBH-UN706351-0100 | Turbo Housing | 0.63 | T25 | V-Band | Free Float | No | 14 |
| 1GTBH-GA2ZG51-0101 | Turbo Housing | 0.72 | V-Band | V-Band | Free Float | No | 1 |

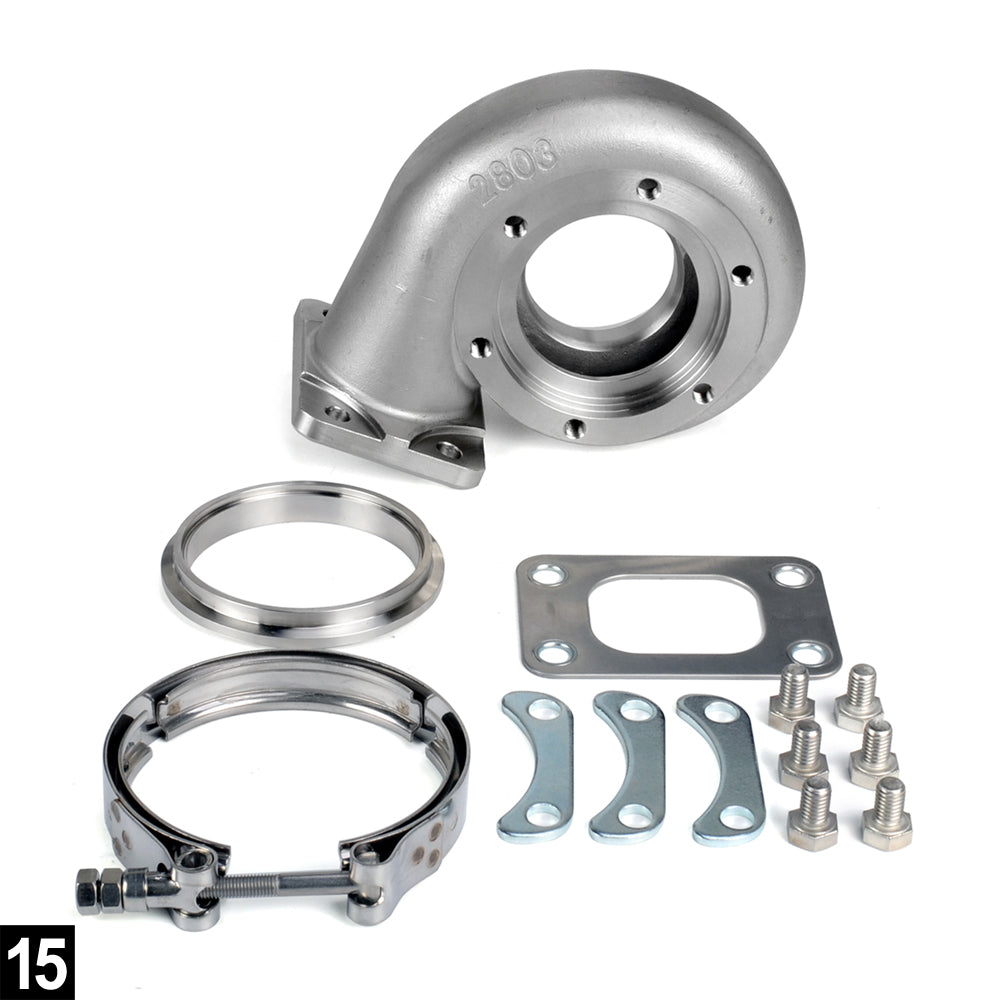

| 1GTBH-UN708251-0100 | Turbo Housing | 0.82 | T25 | V-Band | Free Float | No | 15 |
| 1GTBH-GA3ZG51-0100 | Turbo Housing | 0.61 | V-Band | V-Band | Free Float | Yes | 2 |
| 1GTBH-GA4ZG51-0100 | Turbo Housing | 0.83 | V-Band | V-Band | Free Float | Yes | 3 |
| 1GTBH-GA5ZG51-0100 | Turbo Housing | 1.01 | V-Band | V-Band | Free Float | Yes | 3 |
| 1GTBH-GA6ZG51-0100 | Turbo Housing | 0.61 | V-Band | V-Band | Free Float | No | 4 |
| 1GTBH-NI4ZG51-0100 | Turbo Housing | 8cm2 | T3 | 6 Bolt | Wastegated | No | 5 |
| 1GTBH-NI5ZG51-0101 | Turbo Housing | 0.64 | T25 | 5 Bolt | Wastegated | No | 6 |
| 1GTBH-NI5ZG51-0201 | Turbo Housing | 0.64 | V-Band | 5 Bolt | Wastegated | No | 7 |
