Rebuild Kit for Toyota CT20B / CT26 Small Turbo
| Part Number | Type |
|---|---|
| 1GRBK-ZTO2-0100 | Major |
| 1GRBK-ZTO2-0200 | Minor |

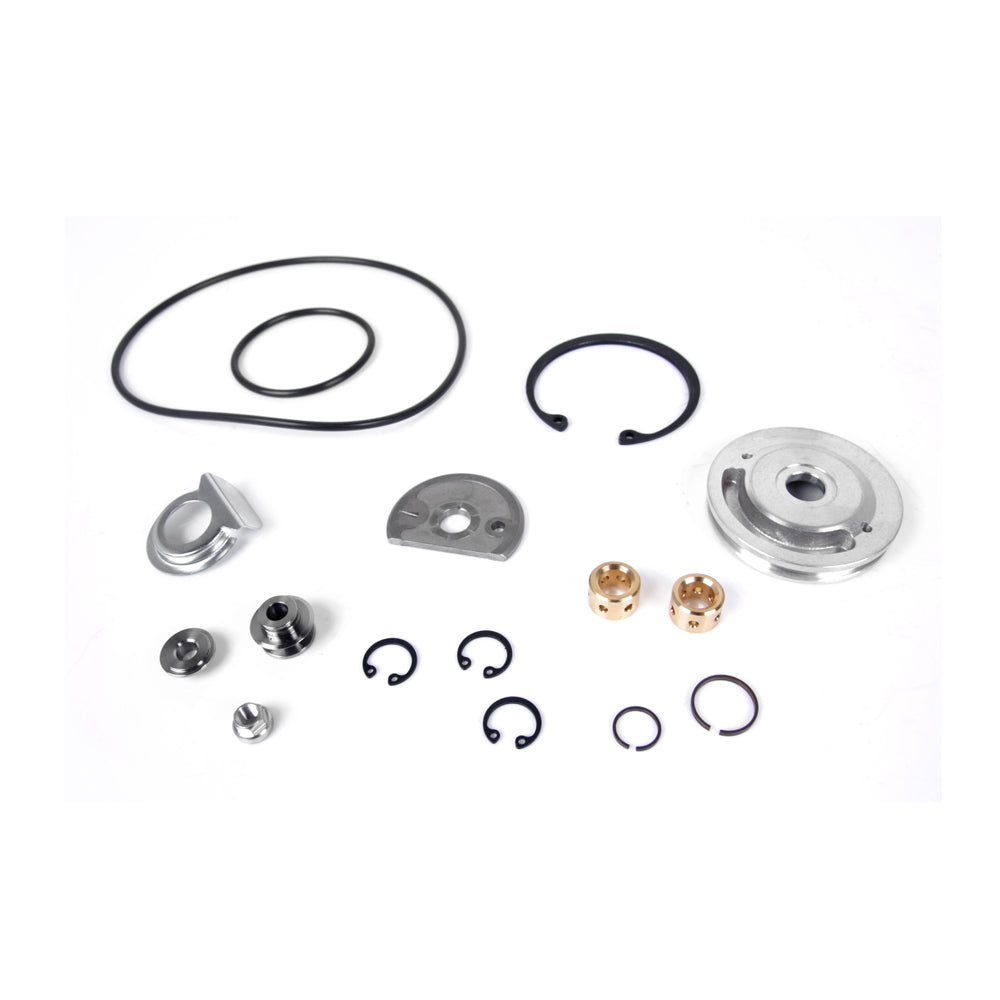

● Scrollable Table for Kit Contents (Major):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0500 | Snap Ring (C/Hsg-B/Hsg) | 3 |
| 4CSR-I-055-0200 | Snap Ring (Insert)Φ59 | 1 |
| 4NUT-M55050R-0100 | Shaft Nut (M5.5x0.5P) | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-12431-0100 | O-Ring (124.4*3.1mm)VT | 1 |
| 4RKP-FG-TO-0100 | Flinger | 1 |
| 4RKP-IS-TO-0100 | Insert | 1 |
| 4RKP-JB-TO-0100 | Journal Bearing | 2 |
| 4RKP-OD-TO-0100 | Oil Deflector | 1 |
| 4RKP-PR-110-0200 | Piston Ring (Insert side)Φ11 | 1 |
| 4RKP-PR-154-0101 | Piston Ring(T)Φ15.4/1.56/R0.9 | 1 |
| 4RKP-TB-TO-0100 | Thrust Bearing | 1 |
| 4RKP-TR-TO-0100 | Thrust Ring | 1 |
● Scrollable Table for Kit Contents (Minor):
| Kit Includes | ||
|---|---|---|
| P/N | Type | Qty |
| 4CSR-I-013-0601 | Snap Ring (C/Hsg-B/Hsg) | 3 |
| 4NUT-M55050R-0100 | Shaft Nut (M5.5x0.5P) | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4RKP-JB-TO-0100 | Journal Bearing | 2 |
| 4RKP-PR-110-0200 | Piston Ring (Insert side)Φ11 | 1 |
| 4RKP-PR-154-0101 | Piston Ring(T)Φ15.4/1.56/R0.9 | 1 |
| 4RKP-TB-TO-0100 | Thrust Bearing | 1 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
