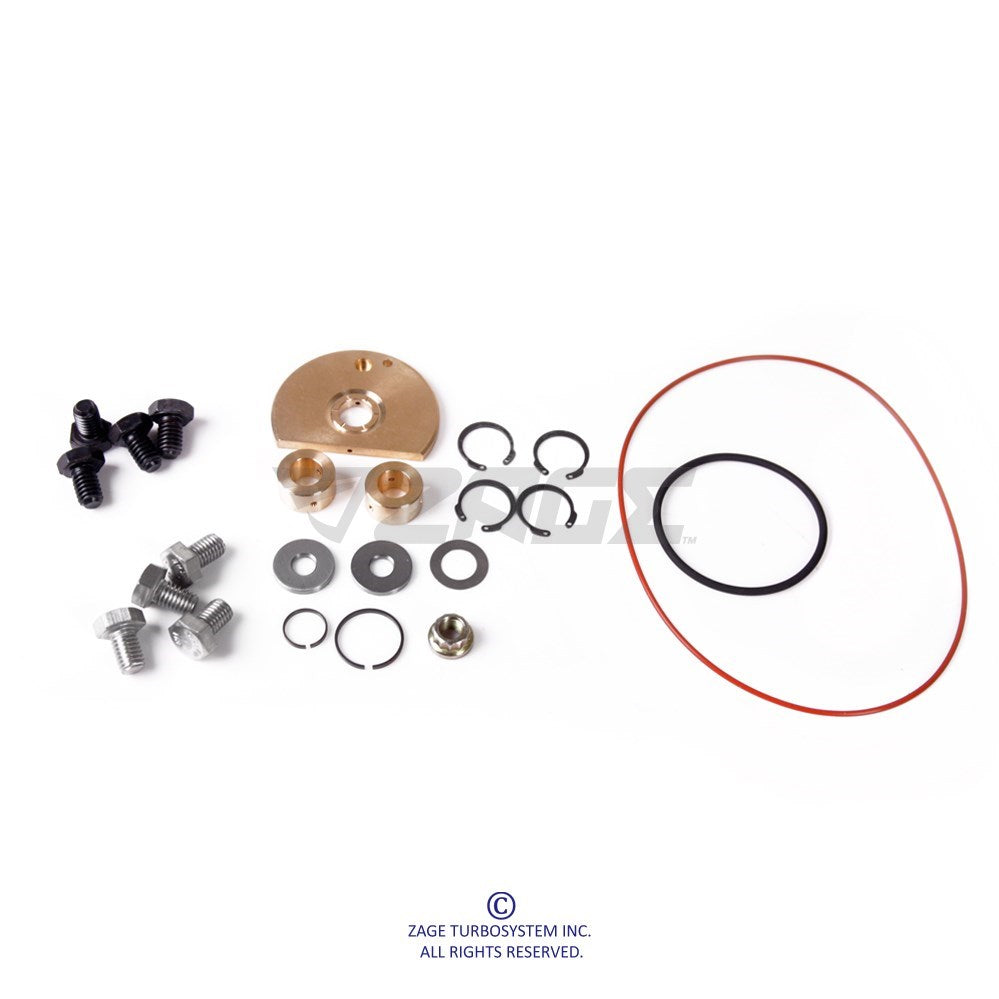

Rebuild Kit for Schwitzer S2B/ S2C/ S2E Turbo
Part Number : 1GRBK-ZSW7-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-I5161813A-0100 | Bolt(C/Hsg-Hsg) | 4 |
| 4BOT-M0812512A-0100 | Bolt(M8*1.25p*12mm) | 4 |
| 4CSR-I-017-0100 | Snap Ring (C/Hsg-B/Hsg) | 4 |
| 4NUT-I41628R-0100 | Shaft Nut | 1 |
| 4ORN-04926-0100 | O-Ring (Insert/49mm)VT | 1 |
| 4ORN-12017-0100 | O-Ring (COVER 120.37mm) | 1 |
| 4RKP-JB-SW-0600 | Journal Bearing | 2 |
| 4RKP-PR-127-0100 | Piston Ring(C)Φ12.7 1.58 0.65 | 1 |
| 4RKP-PR-193-0100 | Piston RingΦ19.3 0.9 1.58 | 1 |
| 4RKP-TB-SW-0600 | Thrust Bearing | 1 |
| 4RKP-TW-SW-0300 | Thrust Washer | 2 |
| 4WAS-M11F-0100 | Washer | 1 |
