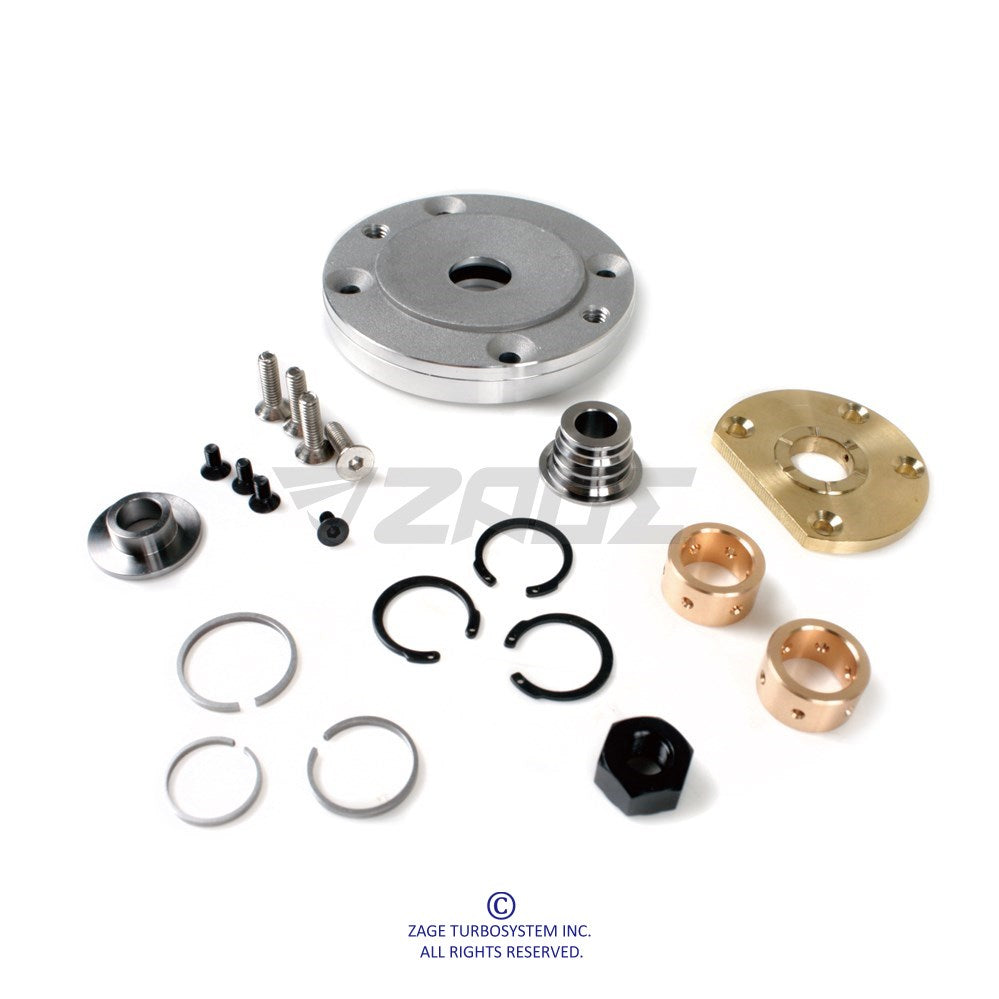

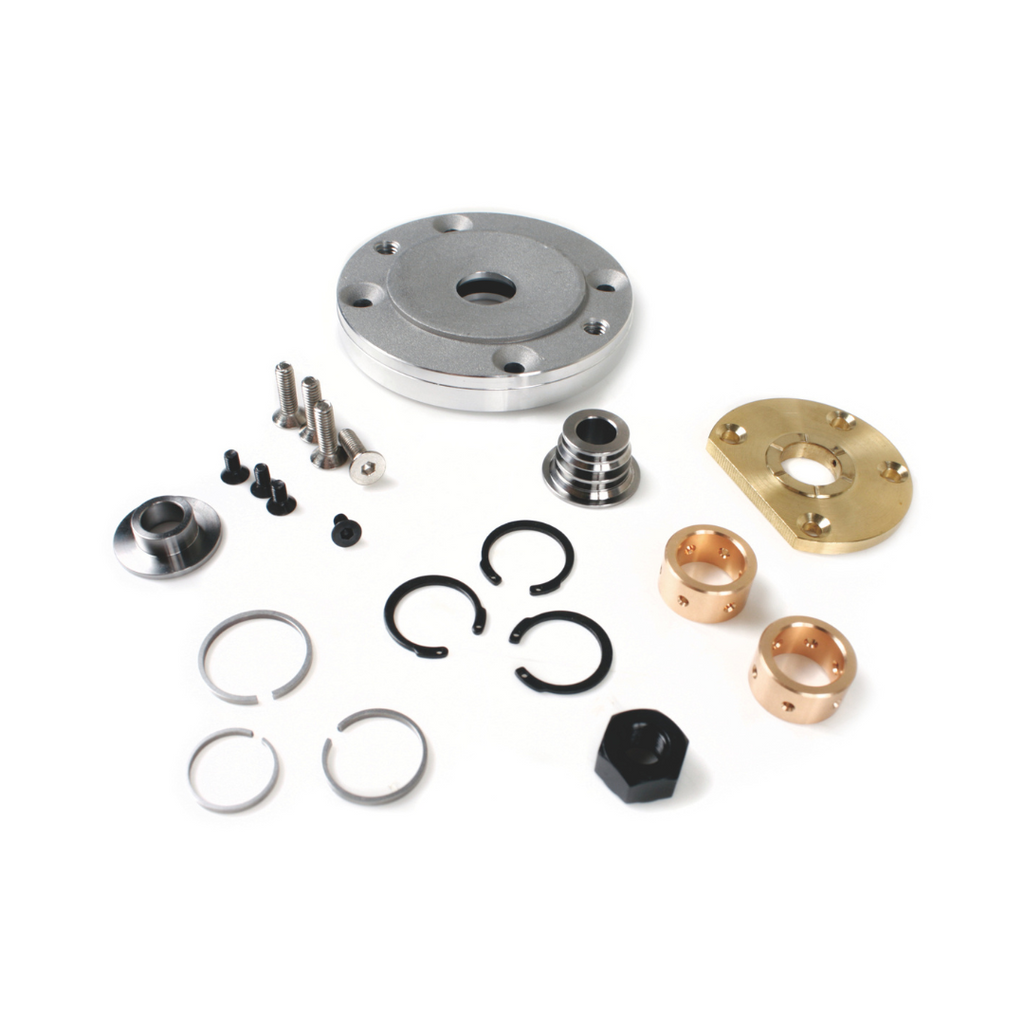

Rebuild Kit for IHI RHC7 Turbo

Part Number Type
1GRBK-ZIH5-0200 Major
1GRBK-ZIH5-0300 Minor

● Scrollable Table for Kit Contents(Major):

Kit Includes
P/N Type Qty
4BOT-M0305006H-0100 Screw (M3x6) 4
4BOT-M0407010G-0100 Bolt Cap (Comp.) 4
4CSR-I-017-0100 Snap Ring (C/Hsg-B/Hsg) 4
4NUT-M07075R-0100 Shaft Nut 1
4RKP-FG-IH-0600 Flinger 1
4RKP-IS-IH-0100 Insert 1
4RKP-JB-IH-0900 Journal Bearing 2
4RKP-PR-140-0100 Piston Ring Φ14/T1.37/R0.78 1
4RKP-PR-160-0200 Piston Ring (Comp)Φ16 1
4RKP-PR-185-0101 Piston Ring(Turb) 1
4RKP-TB-IH-0700 Thrust Bearing 1
4RKP-TR-IH-0300 Thrust Ring 1

● Scrollable Table for Kit Contents(Minor):

Kit Includes
P/N Type Qty
4CSR-I-017-0100 Snap Ring (C/Hsg-B/Hsg) 4
4NUT-M07075R-0100 Shaft Nut 1
4RKP-JB-IH-0900 Journal Bearing 2
4RKP-PR-140-0100 Piston Ring Φ14/T1.37/R0.78 1
4RKP-PR-160-0200 Piston Ring (Comp)Φ16 1
4RKP-PR-185-0101 Piston Ring(Turb) 1
4RKP-TB-IH-0700 Thrust Bearing 1

● ZAGE can ship worldwide with no minimum order quantity.

● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
